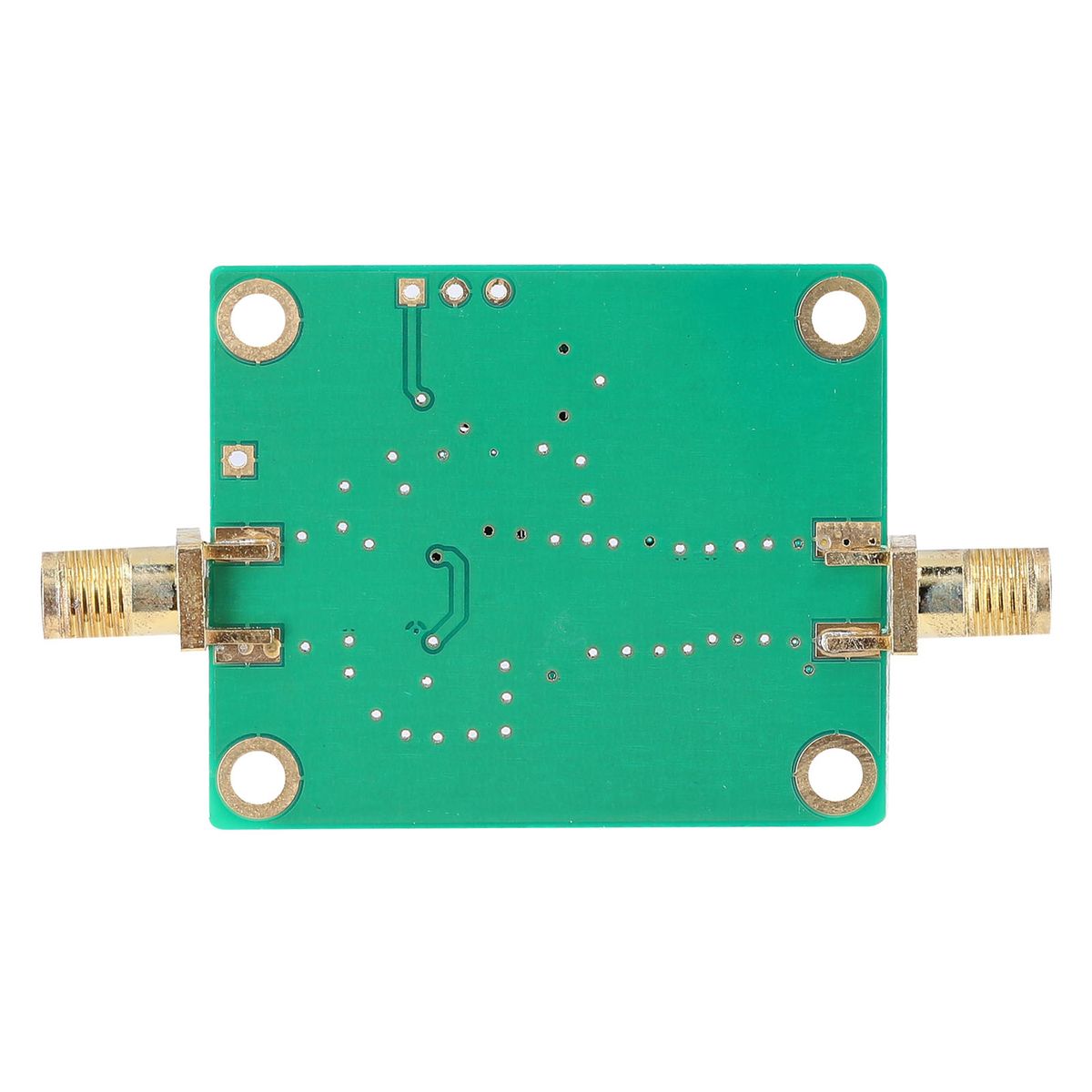

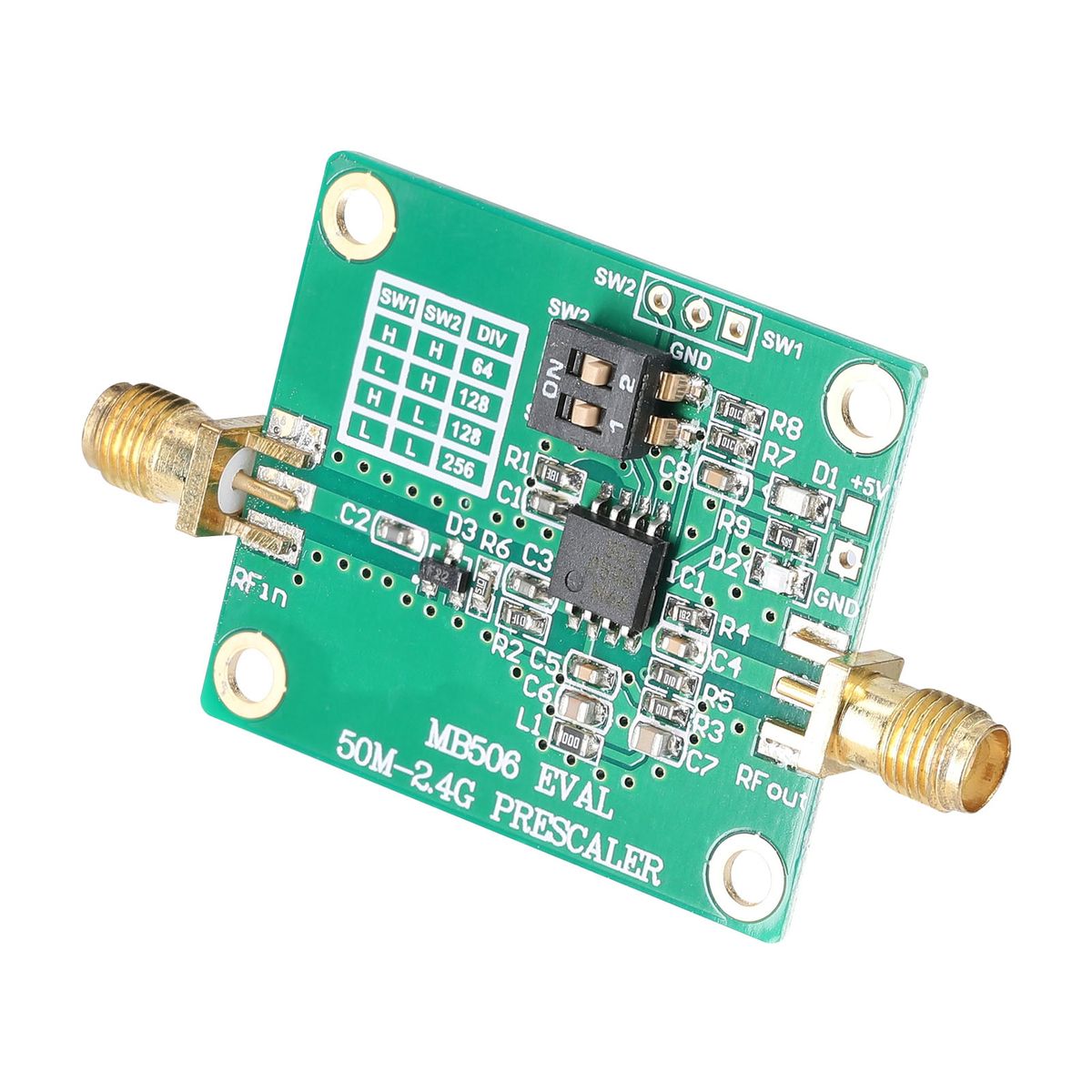

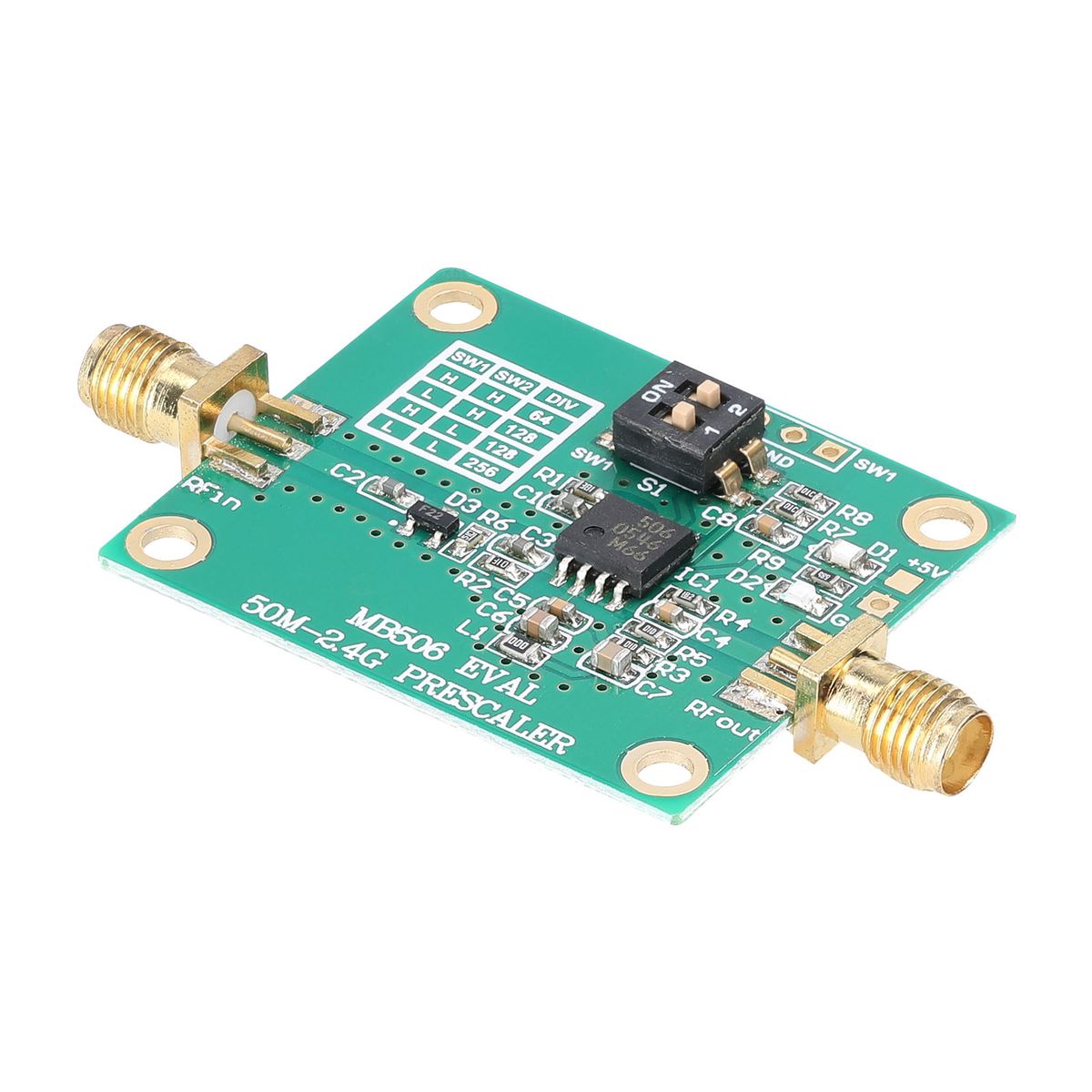

MB506 Module 50MHz-2.4GHz High Frequency Prescaler 64

The frequency of MB506 is up to 2.4GHz, it\'s a high frequency prescaler. It divides the input frequency by the modulus of 128 or 256. And the output level is 1.6V at the peak-to-peak value at the ECL level. Use a frequency synthesizer to form a phase lock loop (PLL).

Features:

The frequency of MB506 is up to 2.4GHz, it\'s a high frequency prescaler.

The impedance change is lower, which can get better classification performance and improve the dynamic range.

And the output level is 1.6V at the peak-to-peak value at the ECL level.

Use a frequency synthesizer to form a phase lock loop (PLL).

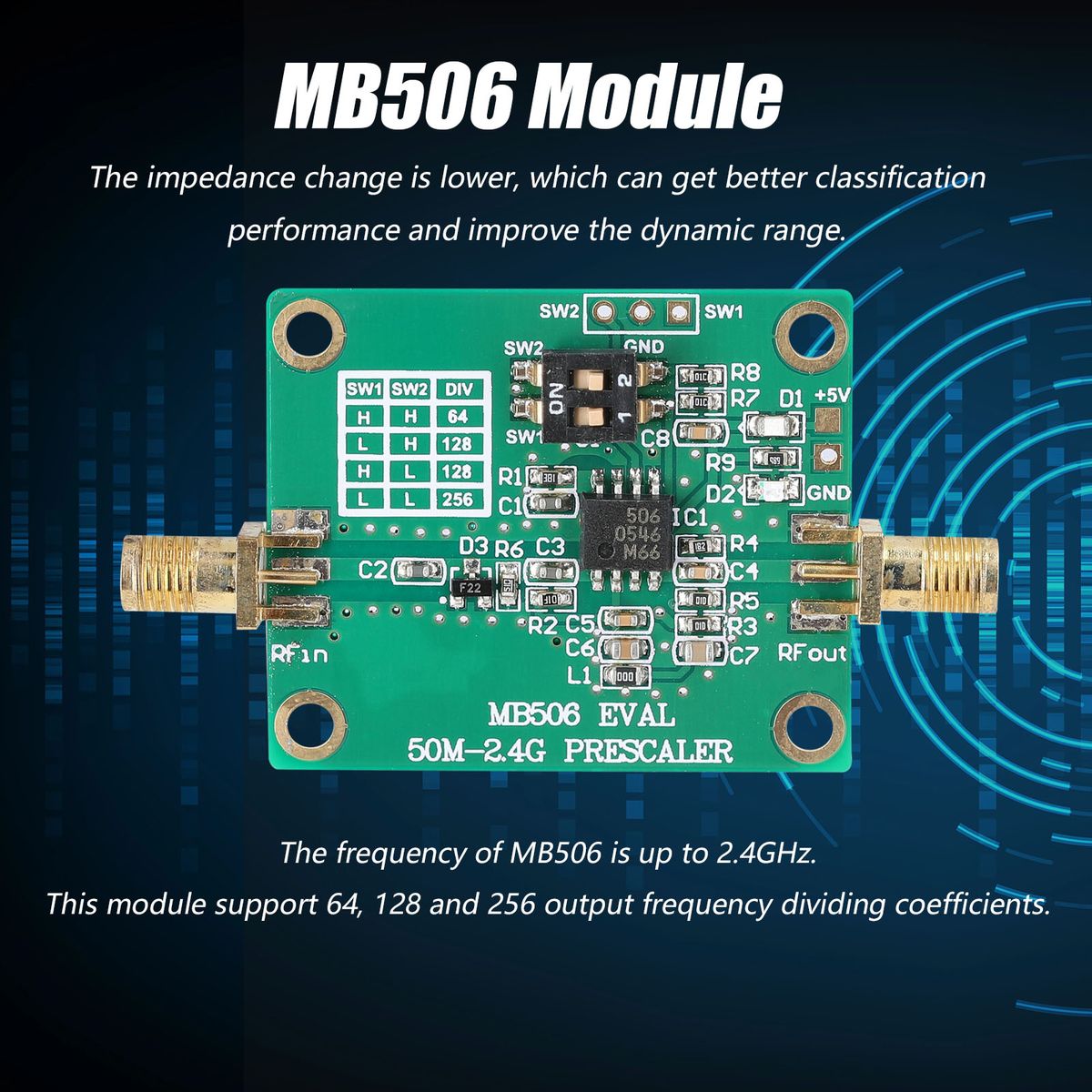

This module support 64, 128 and 256 output frequency dividing coefficients.

Specifications:

Name: MB506 Module

Material: printed circuit board

Model: MB506

Frequency: 50MHz-2.4GHz

Power supplys: DC4.5V-DC5.5V

Channel: 1 channel

Current: 18mA

Input impedance: 50ohm

Input frequency: 50MHz-2.4GHz

Working frequency: -40℃ to 85℃

Input output interface: SMA

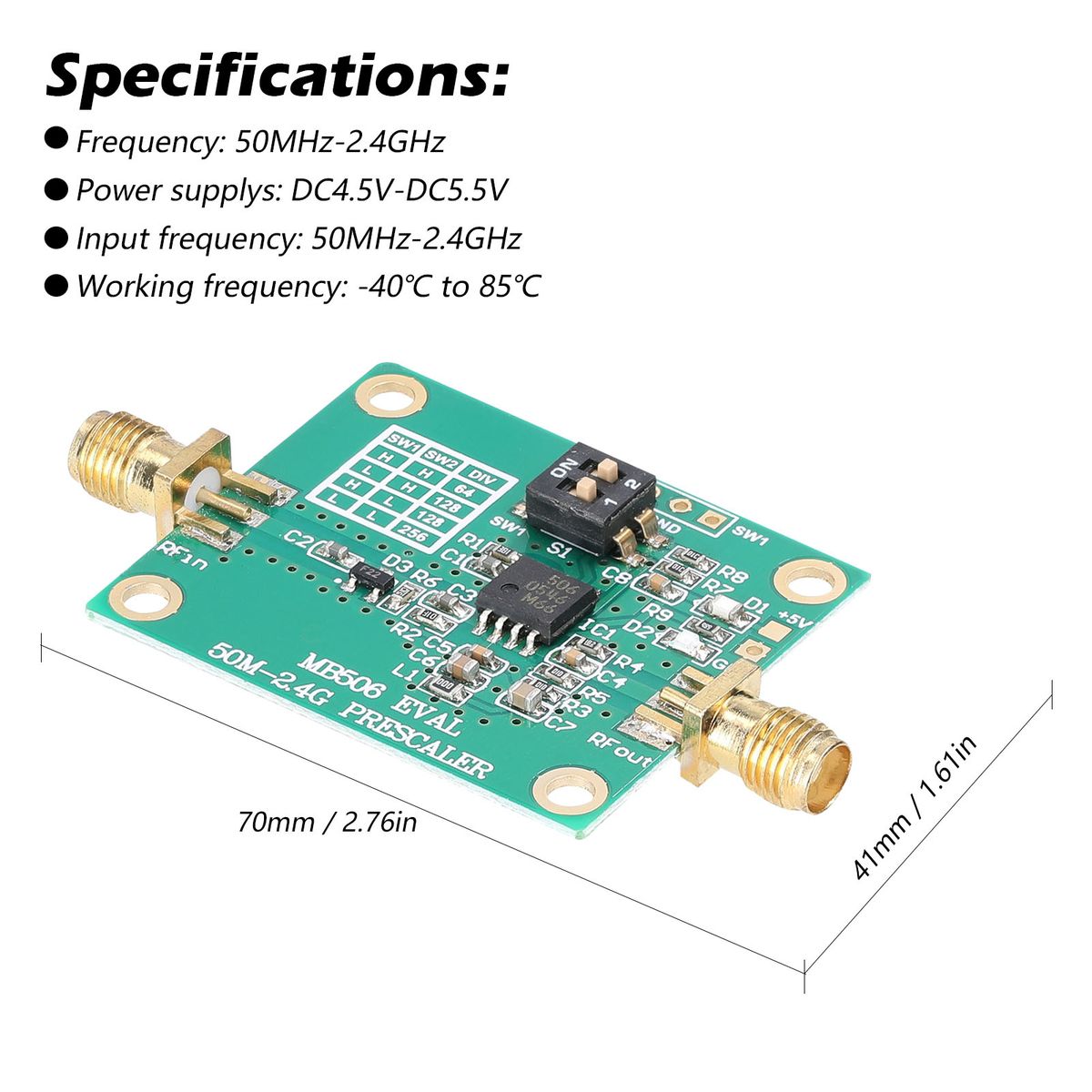

size: 70 * 41 * 15mm / 2.76 * 1.61 * 0.59in

weight: 10g / 0.35ounce

Package size: 110 * 70 * 10mm / 4.33 * 2.76 * 0.39in

Package weight: 11g / 0.39ounce

Packing List:

1 * MB506 Module

We confidently assure you'll be satisfied with what you get.However, If there's a chance that you are not satisfied with our goods or something else, please let us know before leaving us a Negative feedback. We will try our best for 100% customer satisfaction. Your 5-Star Positive Feedback is much appreciated to us, and your satisfaction is our greatest motivation to move forward.Welcome to Shop Here! Want more Items? Please come visit our SHOP.

*Shipping and Packaging All it will be double checked and well packed before sending.It will be dispatched within 5 business days after buyers pay for the order. It usually takes about 14 to 18 working days for delivering the package to the destination(for remote areas,it may take a little longer).Your satisfaction is our first priority.

*If you receive the order and it is in good condition,we would be grateful if you would leave us 5 star Positive Feedback for the transaction.

Key Features

The frequency of MB506 is up to 2.4GHz, it\'s a high frequency prescaler. It divides the input frequency by the modulus of 128 or 256. And the output level is 1.6V at the peak-to-peak value at the ECL level. Use a frequency synthesizer to form a phase lock loop (PLL).
The frequency of MB506 is up to 2.4GHz, it\'s a high frequency prescaler.
The impedance change is lower, which can get better classification performance and improve the dynamic range.
And the output level is 1.6V at the peak-to-peak value at the ECL level.
Use a frequency synthesizer to form a phase lock loop (PLL).
