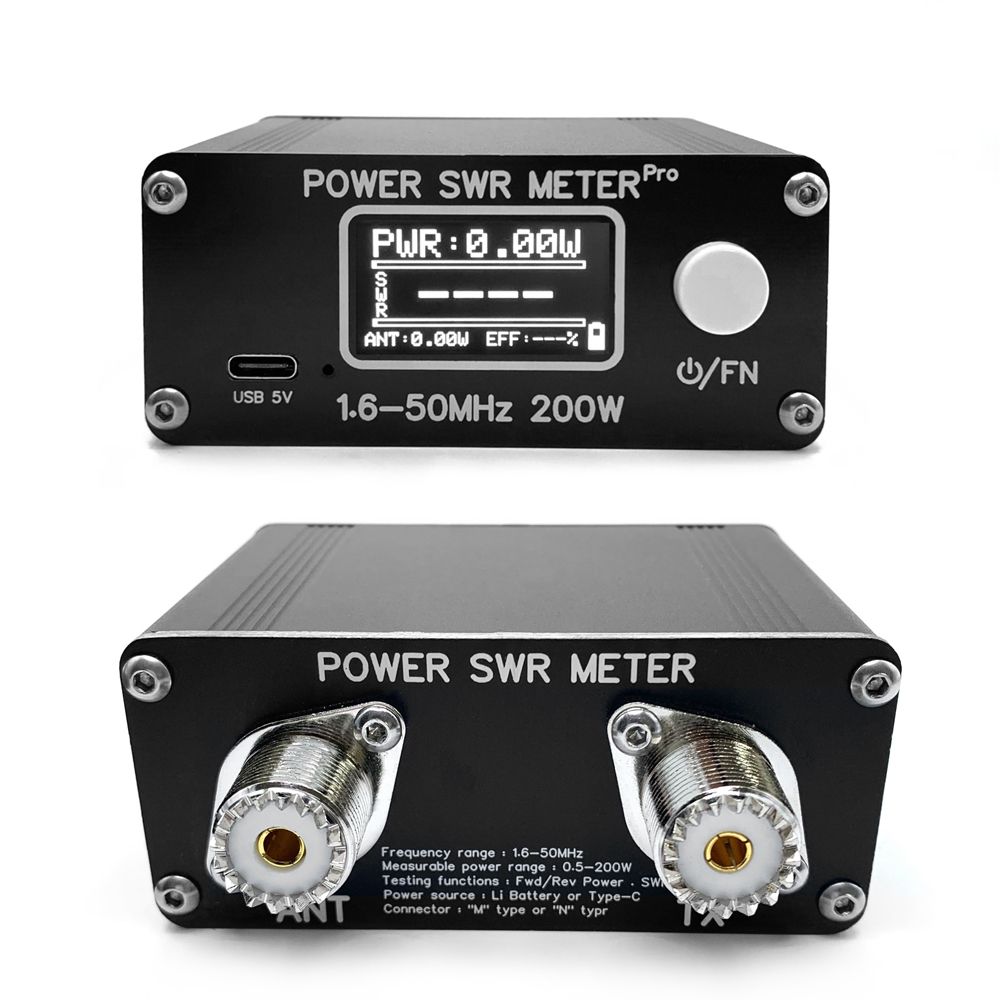

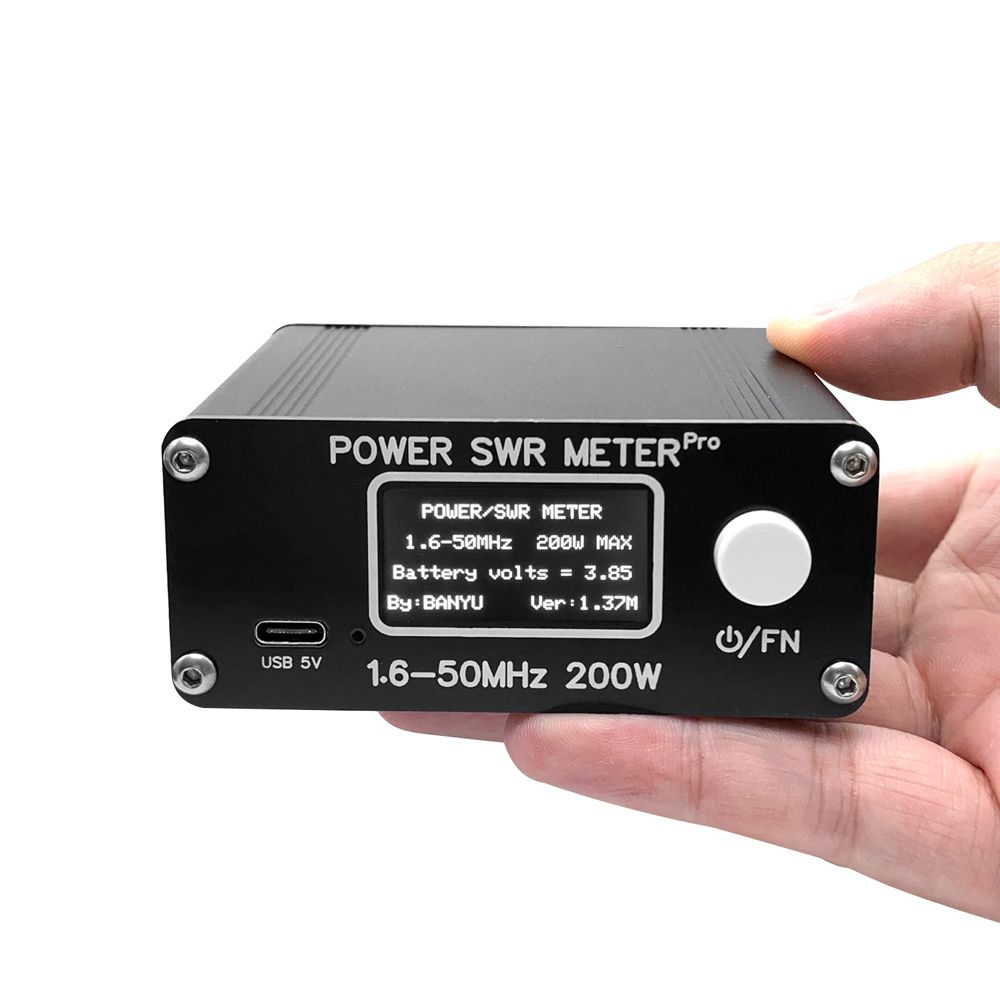

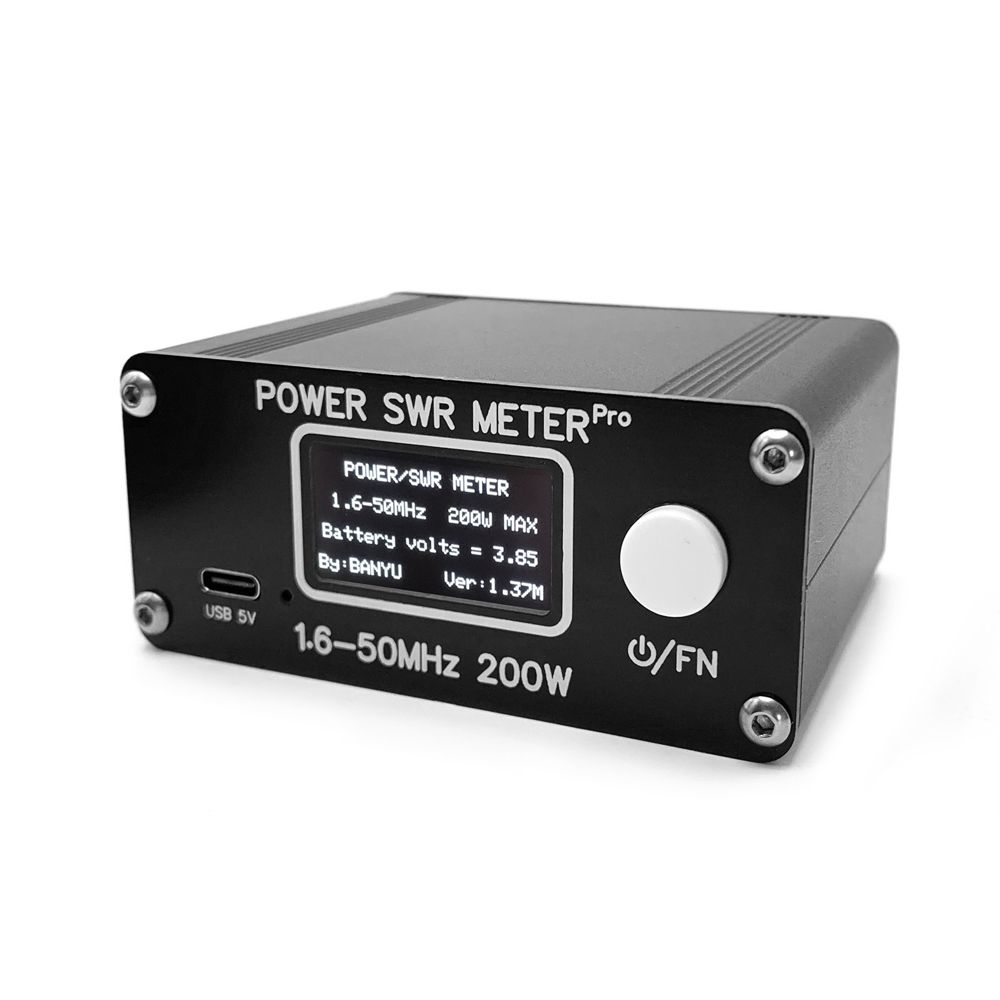

1.6-50MHz Frequency 0.5W-200W SWR Meter 1.29 Inch OLED

This product a digital standing wavemeter and HF shortwave meter, upgraded hardware, with 200W measurement ranges and 1.29-inch large OLED display screen.

Its display modes include normal mode and peakhold mode. Multi-interface display mode all adds dynamic analogue display bar, and the status is more intuitive under SSB. High-speed average detection mode and real-time efficiency display. Improved firmware, new fitting algorithm and multi-point correction algorithm. With built-in 800mAh rechargeable lithium battery, or you can use USB type-C as supplying ways.



Features:

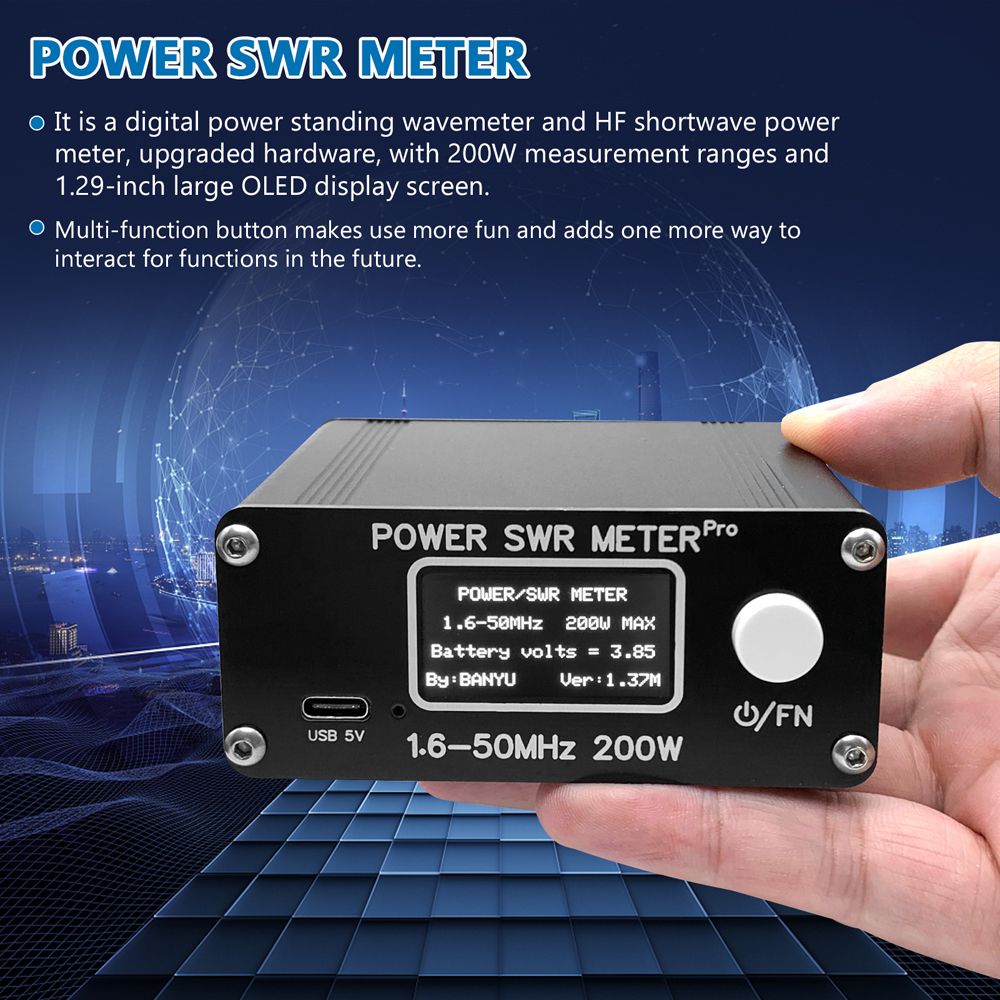

It is a digital standing wavemeter and HF shortwave meter, upgraded hardware, with 200W measurement ranges and 1.29-inch large OLED display screen. Multi-function button makes use more fun and adds one more way to interact for functions in the future.

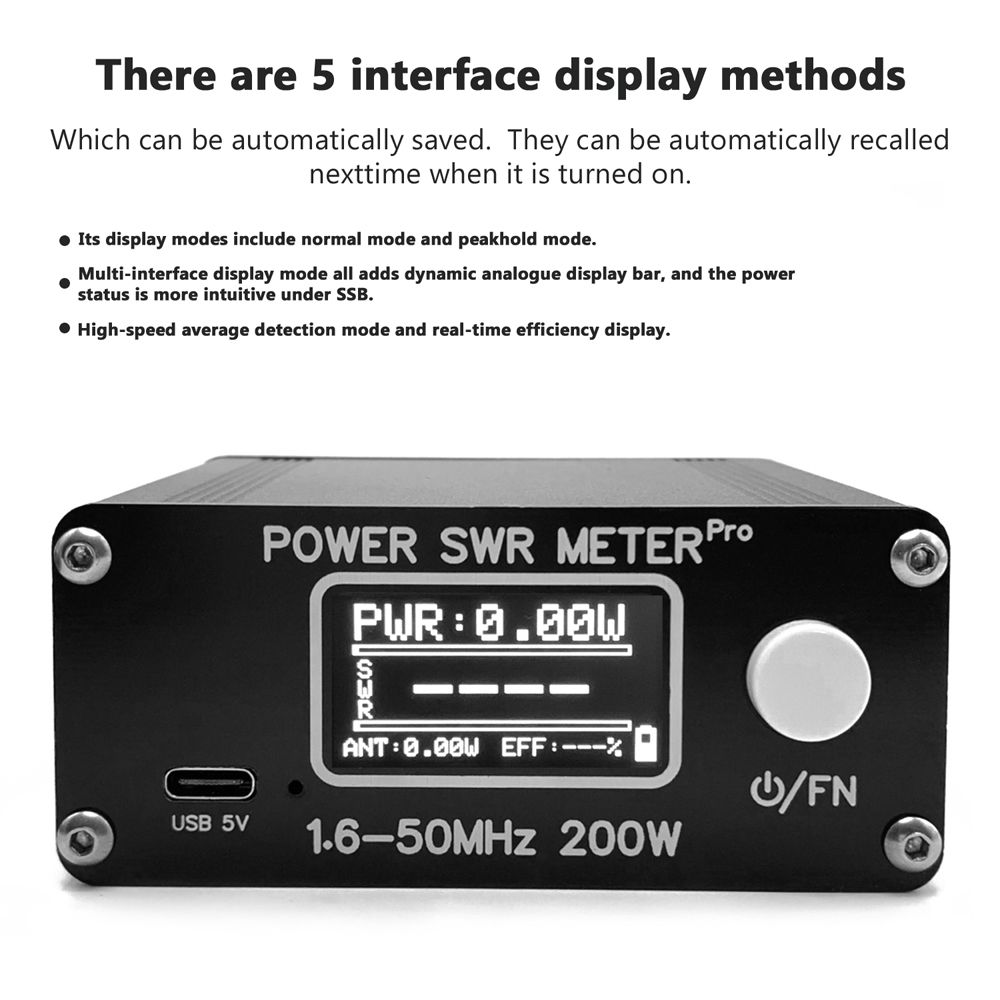

There are 5 interface display methods, which can be automatically saved. They can be automatically recalled nexttime when it is turned on.

Its display modes include normal mode and peakhold mode. Multi-interface display mode all adds dynamic analogue display bar, and the status is more intuitive under SSB. High-speed average detection mode and real-time efficiency display.

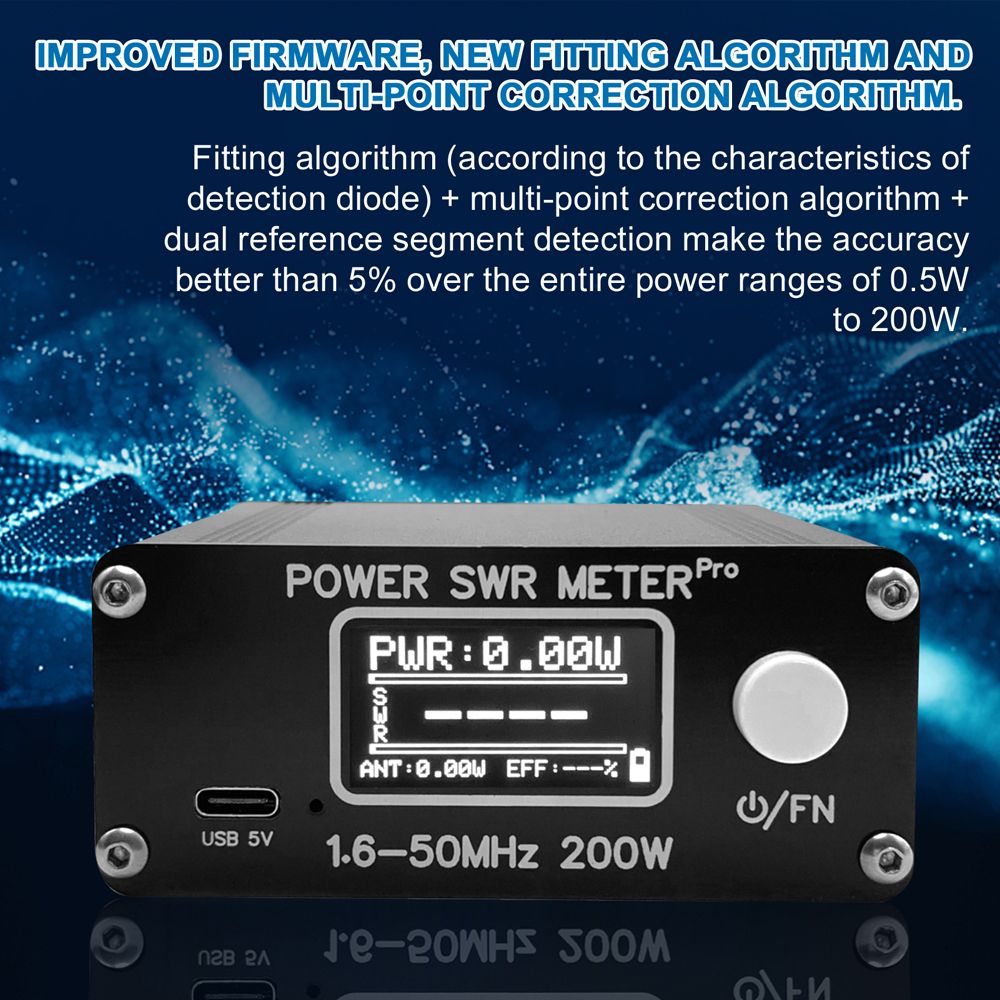

Improved firmware, new fitting algorithm and multi-point correction algorithm. Fitting algorithm (according to the characteristics of detection diode) + multi-point correction algorithm + dual reference segment detection make the accuracy better than 5% over the entire ranges of 0.5W to 200W.

With alarm function, when standing waves ≥ 2.0, it will enable intermittent beep alarm. When standing waves ≥ 3.0, it will trigger continuous beep alarm.

With built-in 800mAh rechargeable lithium battery, or you can use USB type-C as supplying ways.



Specifications:

Name: SWR Meter

Frequency ranges: 1.6-50MHz

measurement ranges: 0.5W-200W

Standing waves measurement ranges: 1.0-99.9

Insertion loss: < 0.12dB

Insertion of standing waves: ≤ 1.02 at 1.6-30MHz; ≤ 1.05 at 30-50MHz

Measurement accuracy: better than ±5%

Impedance: 50Ω

Standing waves alarm: when standing waves ≥ 2.0, it will enable intermittent beep alarm. When standing waves ≥ 3.0, it will trigger continuous beep alarm. The alarm can be turned off

RF interface type: so239

Display content: forward , standing waves, antenna-end and efficiency

supplying: built-in rechargeable lithium battery or USB type-c

consumption: < 0.1uA

Screen size: 1.29 inches

Screen type: OLED

Data communication: USB type-c

Firmware upgrade: Support

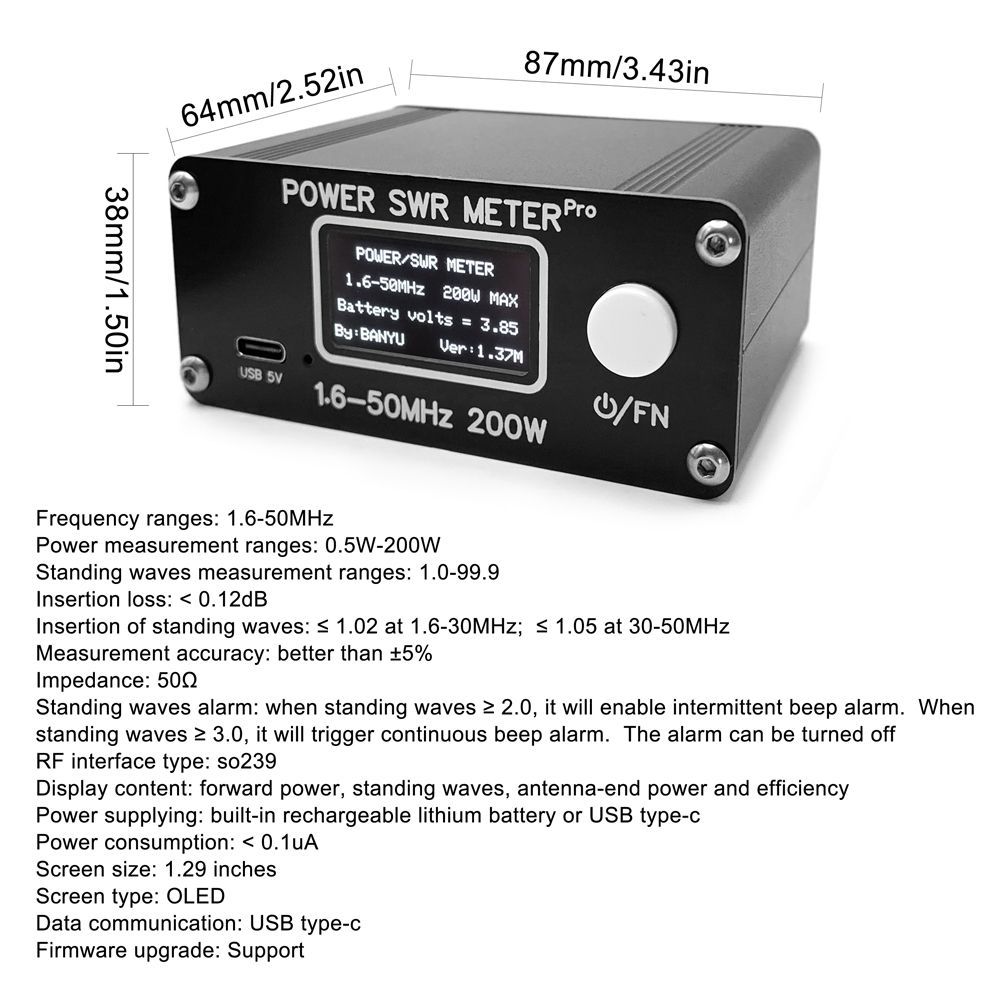

Item size: 87 * 38 * 64mm / 3.43 * 1.50 * 2.52in

Package size: 150 * 100 * 50mm / 5.91 * 3.94 * 1.97in

Package weight: 200g / 7.05ounce



Packing List:

1 * SWR Meter

Key Features

It is a digital standing wavemeter and HF shortwave meter, upgraded hardware, with 200W measurement ranges and 1.29-inch large OLED display screen. Multi-function button makes use more fun and adds one more way to interact for functions in the future.
There are 5 interface display methods, which can be automatically saved. They can be automatically recalled nexttime when it is turned on.
Its display modes include normal mode and peakhold mode. Multi-interface display mode all adds dynamic analogue display bar, and the status is more intuitive under SSB. High-speed average detection mode and real-time efficiency display.
Improved firmware, new fitting algorithm and multi-point correction algorithm. Fitting algorithm (according to the characteristics of detection diode) + multi-point correction algorithm + dual reference segment detection make the accuracy better than 5% over the entire ranges of 0.5W to 200W.
With alarm function, when standing waves ≥ 2.0, it will enable intermittent beep alarm. When standing waves ≥ 3.0, it will trigger continuous beep alarm.
With built-in 800mAh rechargeable lithium battery, or you can use USB type-C as supplying ways.

What's In the Box

1 x SWR Meter
