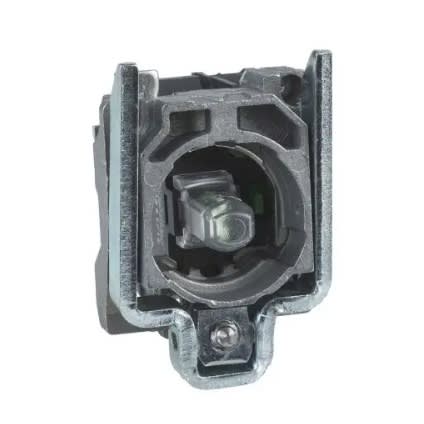

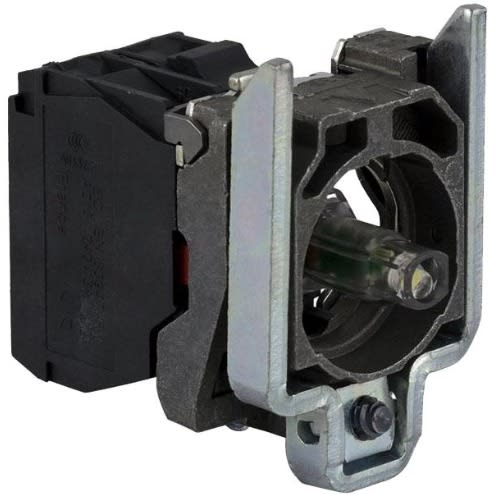

Harmony XB4 - Light Block 24 V AC/DC - ZB4BW0B45
˂
˃
Harmony XB4 - Light Block 24 V AC/DC - ZB4BW0B45
Price:
₦7,700
Share:
Product Description
| range of product | Harmony XB4 |
|---|---|
| product or component type | Complete body/contact assembly and light block |
| device short name | ZB4 |
| fixing collar material | Zamak |
| sale per indivisible quantity | 1 |
| head type | Standard |
| contacts type and composition | 1 NO + 1 NC |
| contact operation | Slow-break |
| connections - terminals | Screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to EN 60947-1 Screw clamp terminals, >= 1 x 0.22 mm² without cable end conforming to EN 60947-1 |
| light source | Protected LED |
| bulb base | Integral LED |
| light block supply | Direct |
| light source colour | Red |
| [Us] rated supply voltage | 24 V AC/DC at 50/60 Hz |
| CAD overall width | 30 mm |
|---|---|
| CAD overall height | 47 mm |
| terminals description ISO n°1 | (11-12)NC |
| net weight | 0.074 kg |
| contacts usage | Standard |
| positive opening | With conforming to EN/IEC 60947-5-1 appendix K |
| operating travel | 1.5 mm (NC changing electrical state) 2.6 mm (NO changing electrical state) 4.3 mm (total travel) |
| operating force | 2 N NC changing electrical state 2.3 N NO changing electrical state |
| operating torque | 0.05 N.m NO changing electrical state |
| mechanical durability | 5000000 cycles |
| tightening torque | 0.8…1.2 N.m conforming to EN 60947-1 |
| shape of screw head | Cross compatible with Philips no 1 screwdriver Cross compatible with pozidriv No 1 screwdriver Slotted compatible with flat Ø 4 mm screwdriver Slotted compatible with flat Ø 5.5 mm screwdriver |
| contacts material | Silver alloy (Ag/Ni) |
| short-circuit protection | 10 A cartridge fuse type gG conforming to EN/IEC 60947-5-1 |
| [Ith] conventional free air thermal current | 10 A conforming to EN/IEC 60947-5-1 |
| [Ui] rated insulation voltage | 600 V (pollution degree 3) conforming to EN 60947-1 |
| [Uimp] rated impulse withstand voltage | 6 kV conforming to EN 60947-1 |
