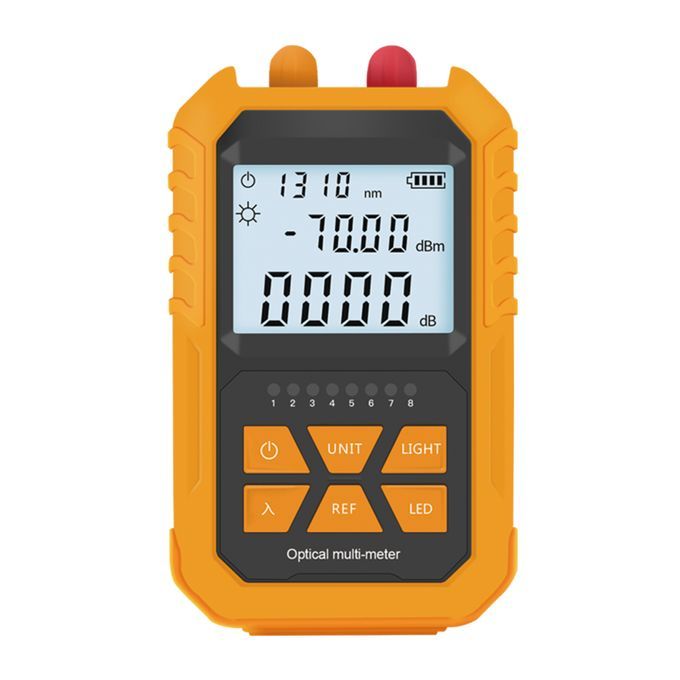

Handheld Optical Meter With 5km Red Light -70~+3dBm Mini

Features:

- Compact Body: Integrated detachable design, mini size, & thinner, easy to carry.

- High-precision Sensor: High sensitivity & high precision & high response speed.

- High-definition LCD Screen: The clear LCD display with backlight enables you to read values clearly even in the dark environment.

- LED Lighting Function: Equipped with a small bright LED lamp, capable of playing a role as a flashlight for simple inspection in the dark.

- 3 Types of Interface Supported: FC interface, SC interface and ST interface.

- 7 Optic Wavelengths for Selection: 850nm, 980nm, 1300nm, 1310nm, 1490nm, 1550nm and 1625nm.

- DIY Self Calibration: Adjust test parameters at will according to the actual test.

- Automatic Shutdown: No operation within 10 minutes, saving energy.

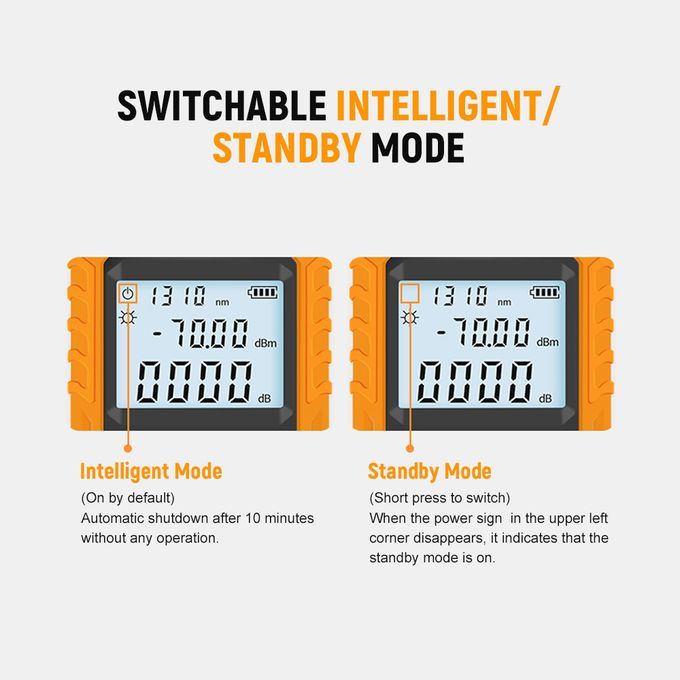

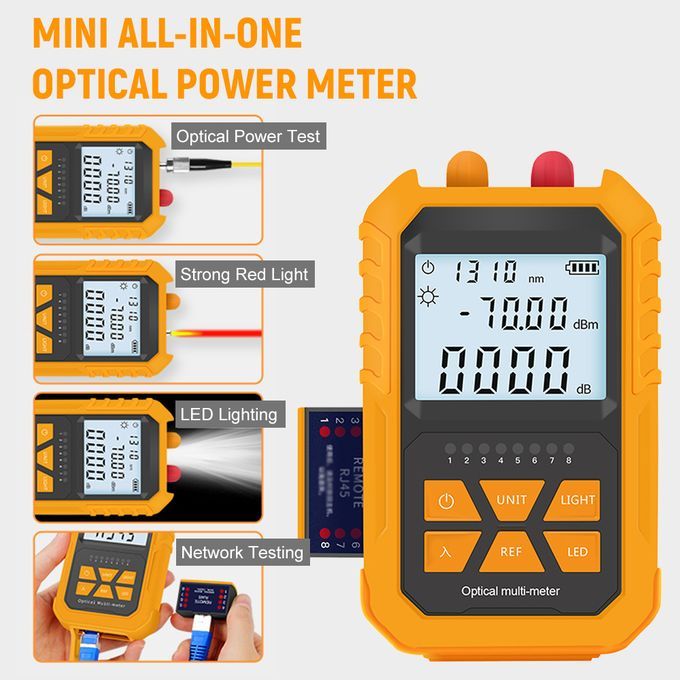

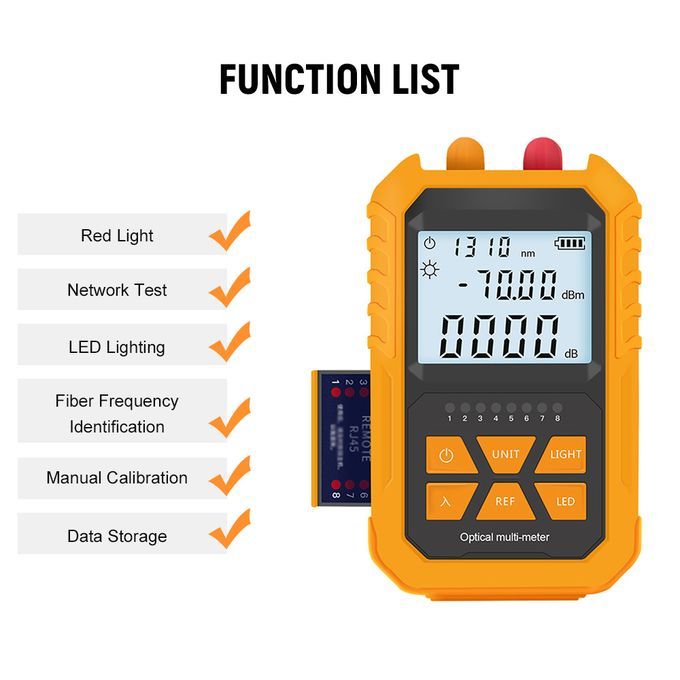

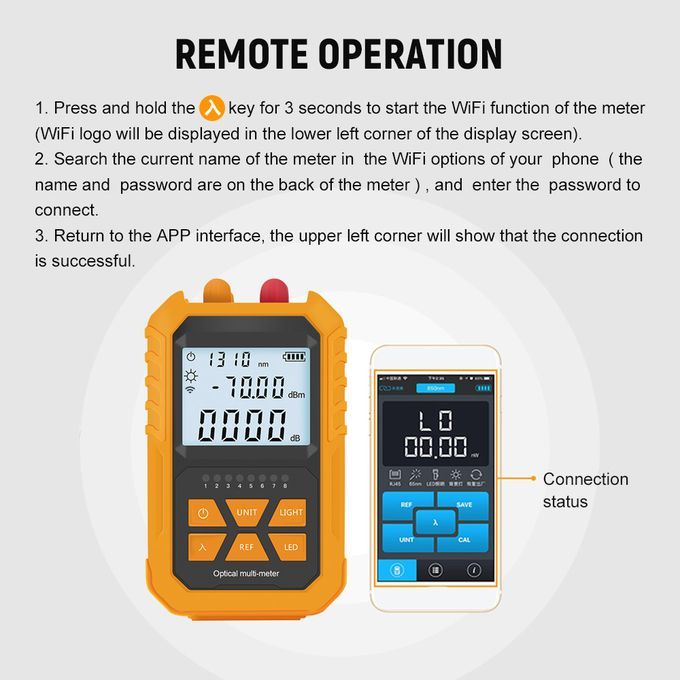

- Additional Features: 5km high-definition red light, replaceable ceramic core, selectable intelligent standby mode, energy-saving design, dual mode of supply, switchable units, network cable test, WiFi test, result storage, wavelength data memory, frequency identification, overcharge protection, over current protection, over voltage protection, over protection, short circuit protection and temperature protection.

- Wide Application: Applied in optic fiber engineering, optic fiber sensor research, optic elements production, optic elements research, etc.



Specifications:

Material: ABS

Color: Yellow

Supply: 2 * 1.5V AAA battery(NOT included) / USB Connection(use without battery)

Connector: FC / SC / ST

Measuring Range: -70~+3dBm

Accuracy: ±0.2dBm

Logarithmic Display Resolution: 0.01dBm

Linear Display Resolution: 0.1%

Wavelength Range: 800~1700nm

Wavelength Reference: 850nm, 980nm, 1300nm, 1310nm, 1490nm, 1550nm, 1625nm

Wavelength of Working Red Light: 650nm

Operating Temperature: -10~60℃

Storage Temperature: -25~70℃

Automatic Shutdown: No operation within 10 minutes

Item Size: Approx. 118*65*30mm / 4.65*2.56*1.18in

Item Weight: Approx. 140g / 4.94oz

Package Size: Approx. 130*77*60mm / 5.12*3.03*2.36in

Package Weight: Approx. 300g / 10.58oz



Note:

Please read the Users Manual before use.



Packing List:

1 * Optical Meter

1 * Network Test Module

1 * Ceramic Core

1 * Lanyard

1 * Users Manual(English)
a a a a a

Key Features

- Compact Body: Integrated detachable design, mini size, & thinner, easy to carry.
- High-precision Sensor: High sensitivity & high precision & high response speed.
- High-definition LCD Screen: The clear LCD display with backlight enables you to read values clearly even in the dark environment.
- LED Lighting Function: Equipped with a small bright LED lamp, capable of playing a role as a flashlight for simple inspection in the dark.
- 3 Types of Interface Supported: FC interface, SC interface and ST interface.
- 7 Optic Wavelengths for Selection: 850nm, 980nm, 1300nm, 1310nm, 1490nm, 1550nm and 1625nm.
Easy to use
Exquisite Workmanship
Well Made
Best Choice and best discounts
Customer Care is Our Top Priority
Offer is Subject to Availability
Big Sale

What's In the Box

1 x Optical Meter,1 x Network Test Module,1 x Ceramic Core,1 x Lanyard,1 x Users Manual(English)
