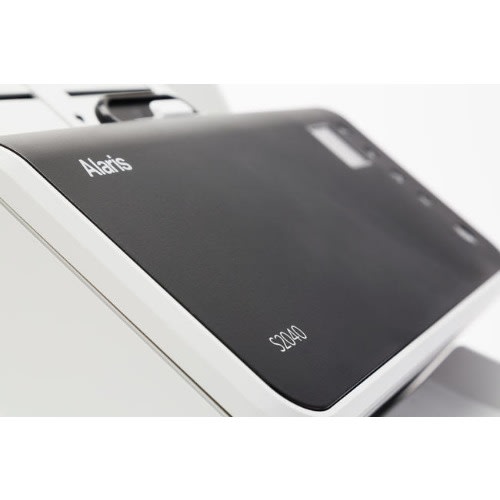

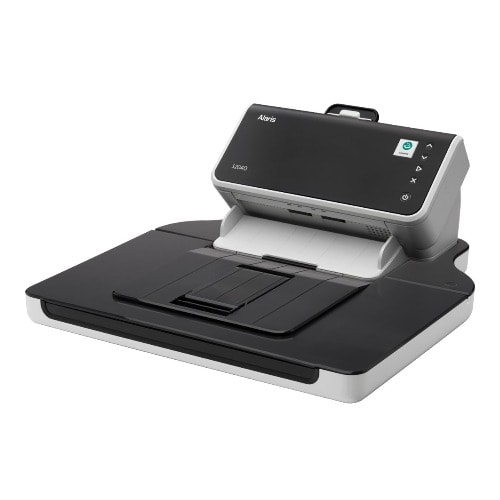

Kodak Alaris - S2040 ADF A4 Scanner

Recommended Daily Volume

Up to 4,000 pages per day

Throughput Speeds*

Black-and-white/grayscale/color: up to 60 ppm/120 ipm at 200 and 300 dpi

Scanning Technology

Dual CIS; Grayscale output bit depth is 256 levels (8-bit); color output bit depth is 24 bits (8 x 3)

Processor

Embedded Dual Core Cortex A15 Processors (1.5GHz) with Dual DSP (750 MHz) Image Processors with Multiple Cortex M4 Sub-processors

Operator Control Panel

3.5-inch/89 mm color touch screen LCD

Optical Resolution

600 dpi

Illumination

Dual RGB LEDs

Output Resolution

75 / 100 / 150 / 200 / 240 / 250 / 300 / 400 / 500 / 600 / 1200 dpi

Max./Min. Document Size**

216 mm x 356 mm (8.5 x 14 in.) / 52 mm x 52 mm (2.08 in. x 2.05 in.)
Long document mode: 216 mm x 3,000 mm (8.5 in. x 118 in.)

Paper Thickness & Weight

27–433 g/m² (7.2–160 lb. cover stock)
ID card thickness: up to 1.4 mm (0.55 in.)

Feeder

Up to 80 sheets of 80 g/m2 (20 lb.) paper

Handles small documents such as A8, ID cards, embossed hard cards, and insurance cards (portrait and landscape orientations)

Paper Feeding Detection

Multifeed with ultrasonic technology, Intelligent Document Protection

Connectivity

USB 3.1 GEN1, Wireless Network 802.11 b/g/n and 10/100 Ethernet
WLAN Security- WEP 64/128 Bit, WPA-PSK, WPA2-PSK, MSCHAPv2, EAP-TLS

Software Support

Standard Software:
WINDOWS Bundled software: TWAIN, ISIS, WIA Drivers
Alaris Smart Touch
Alaris Capture Pro Software Limited Edition (via web download)
