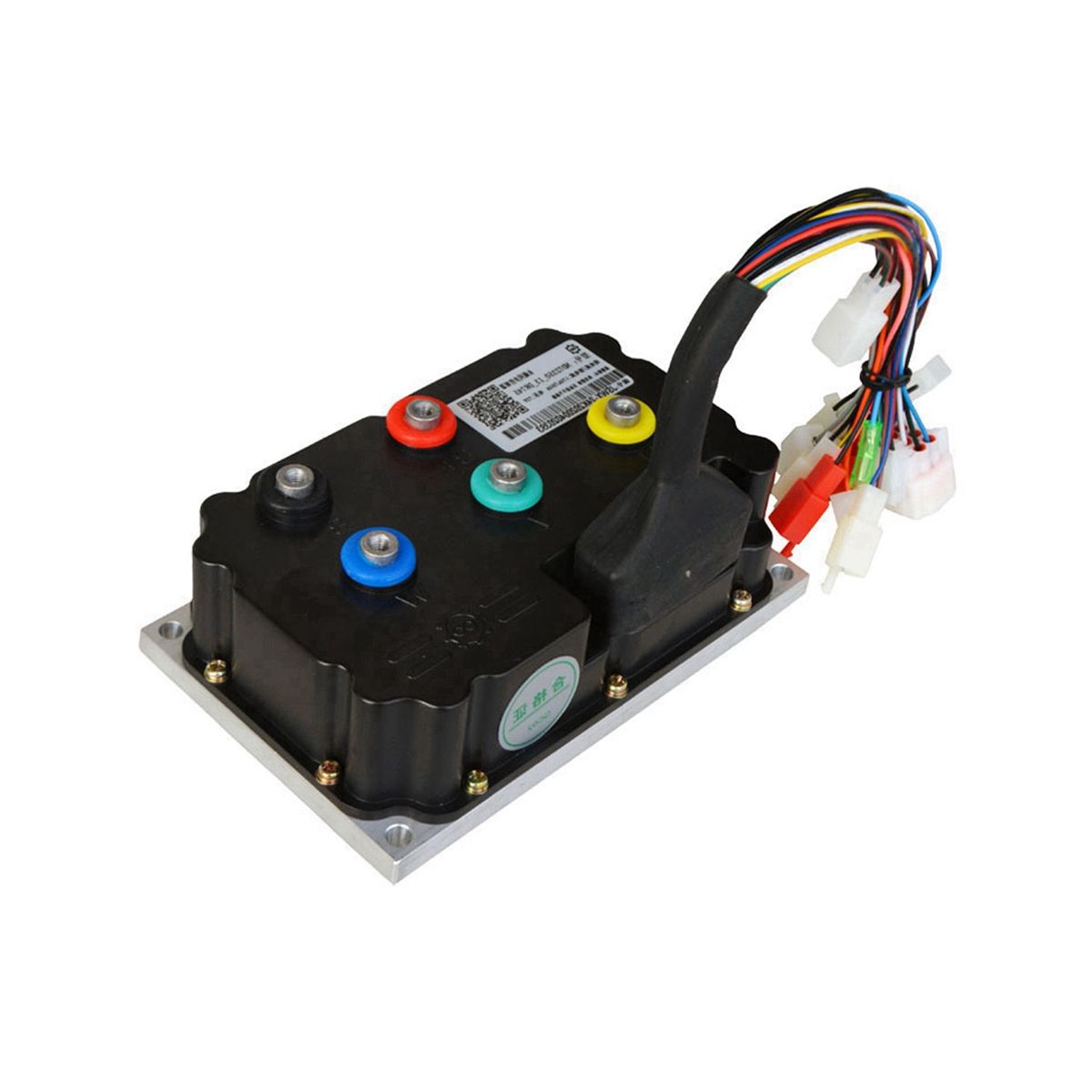

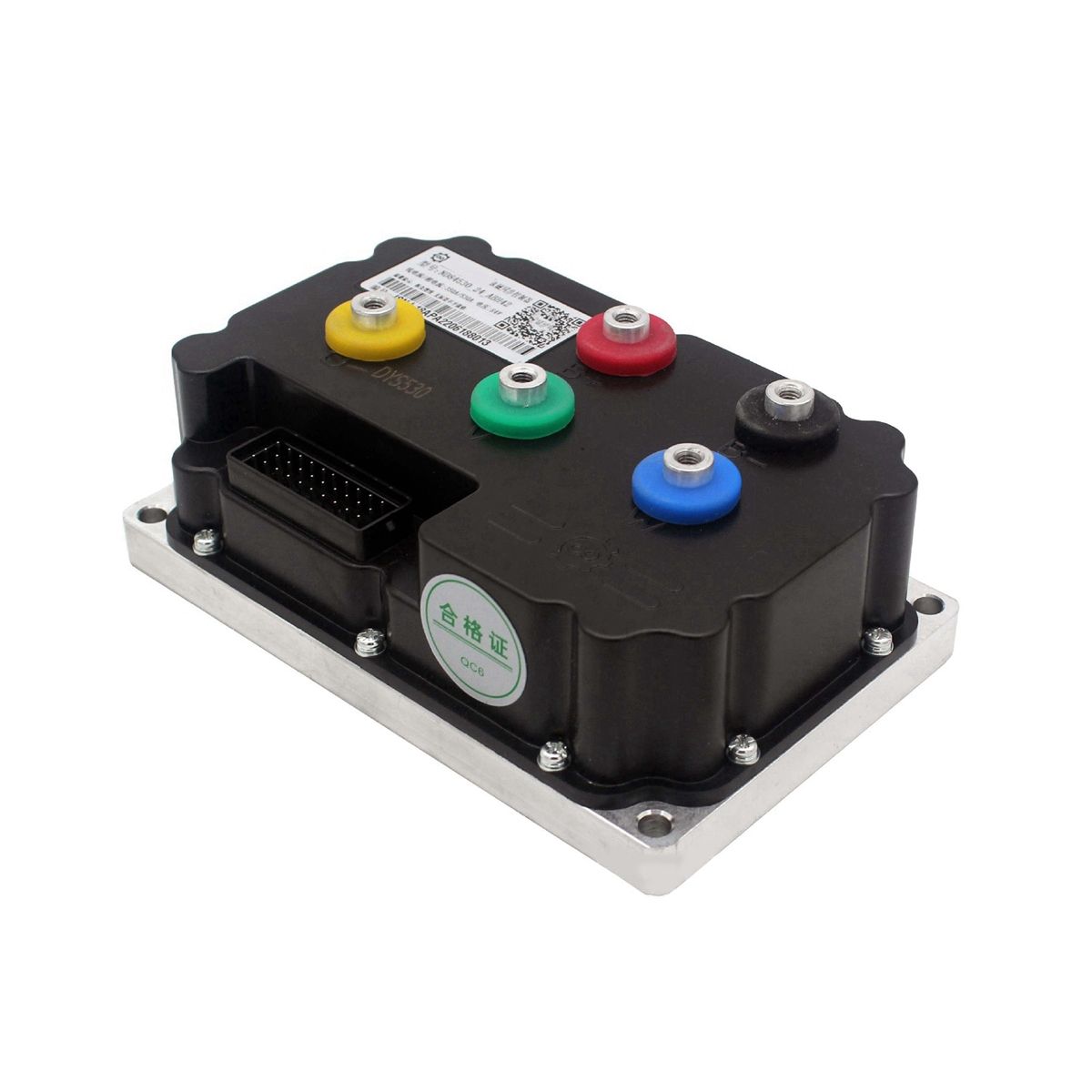

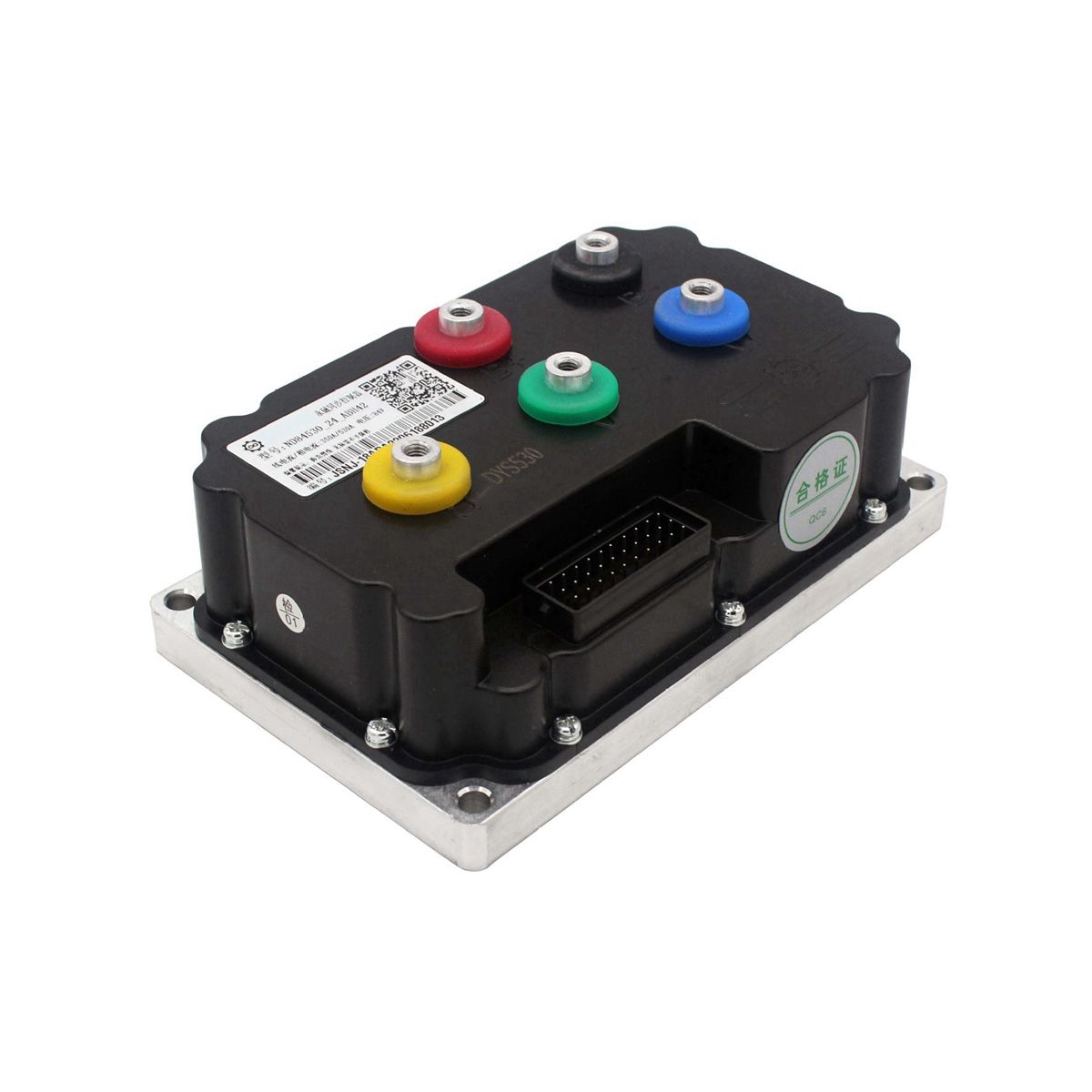

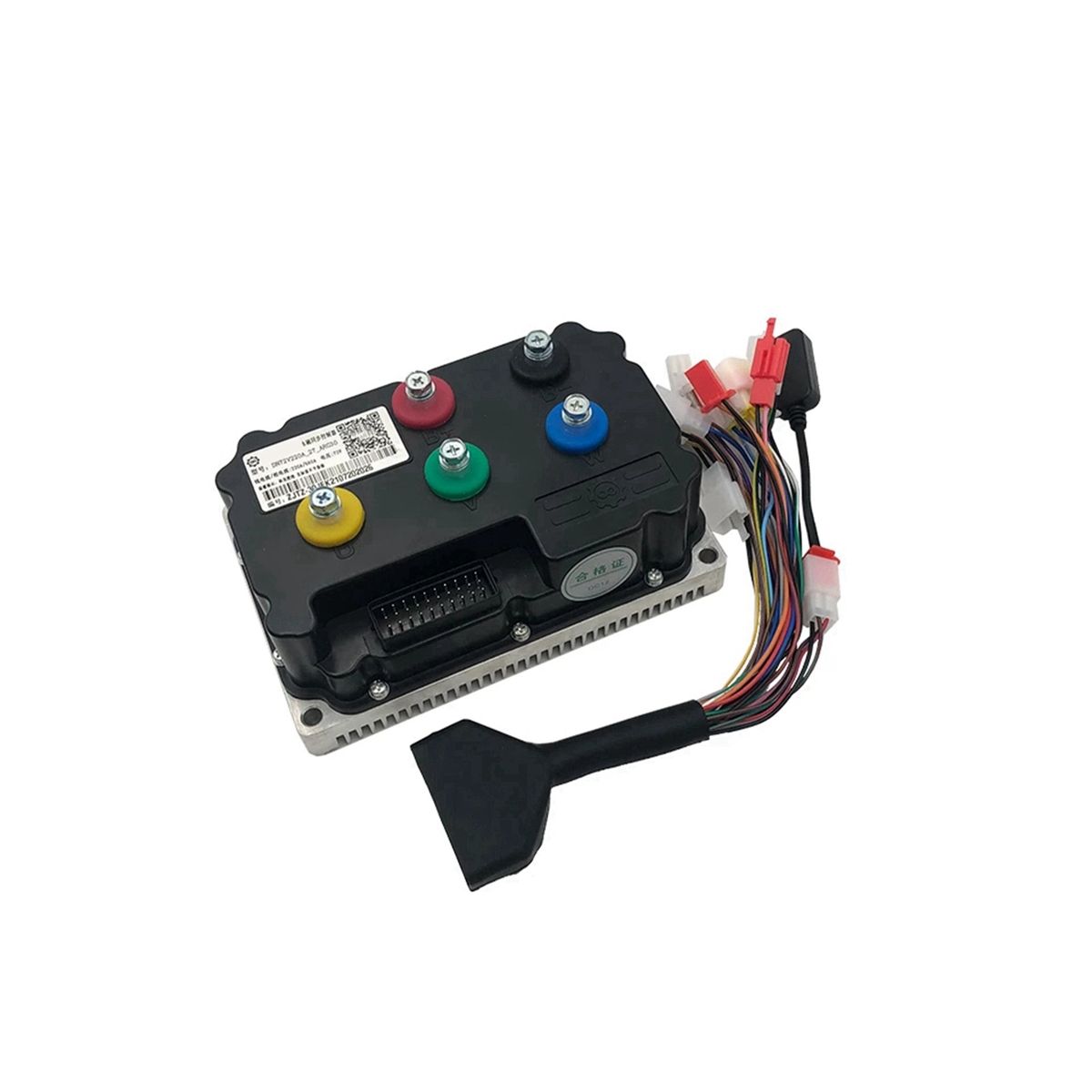

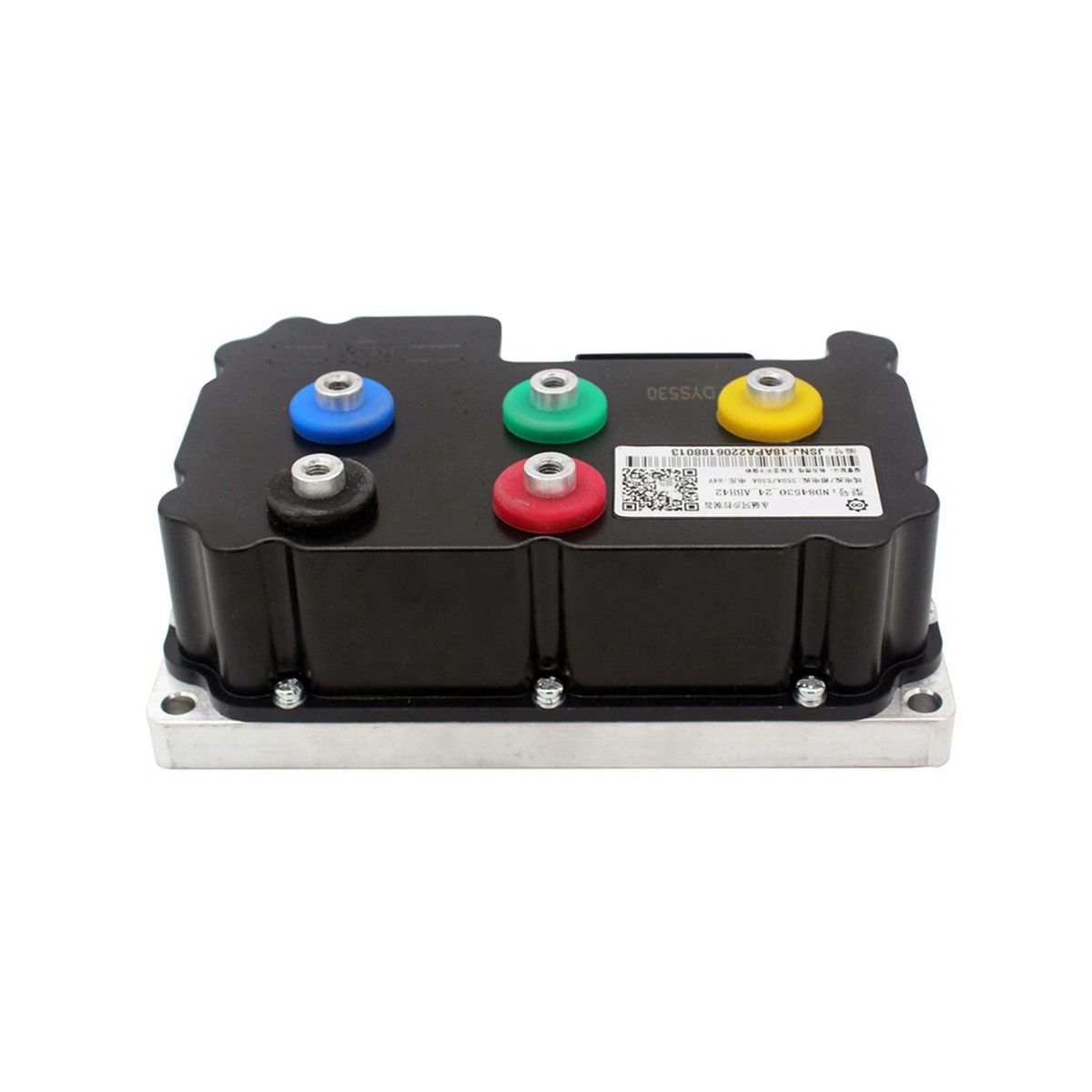

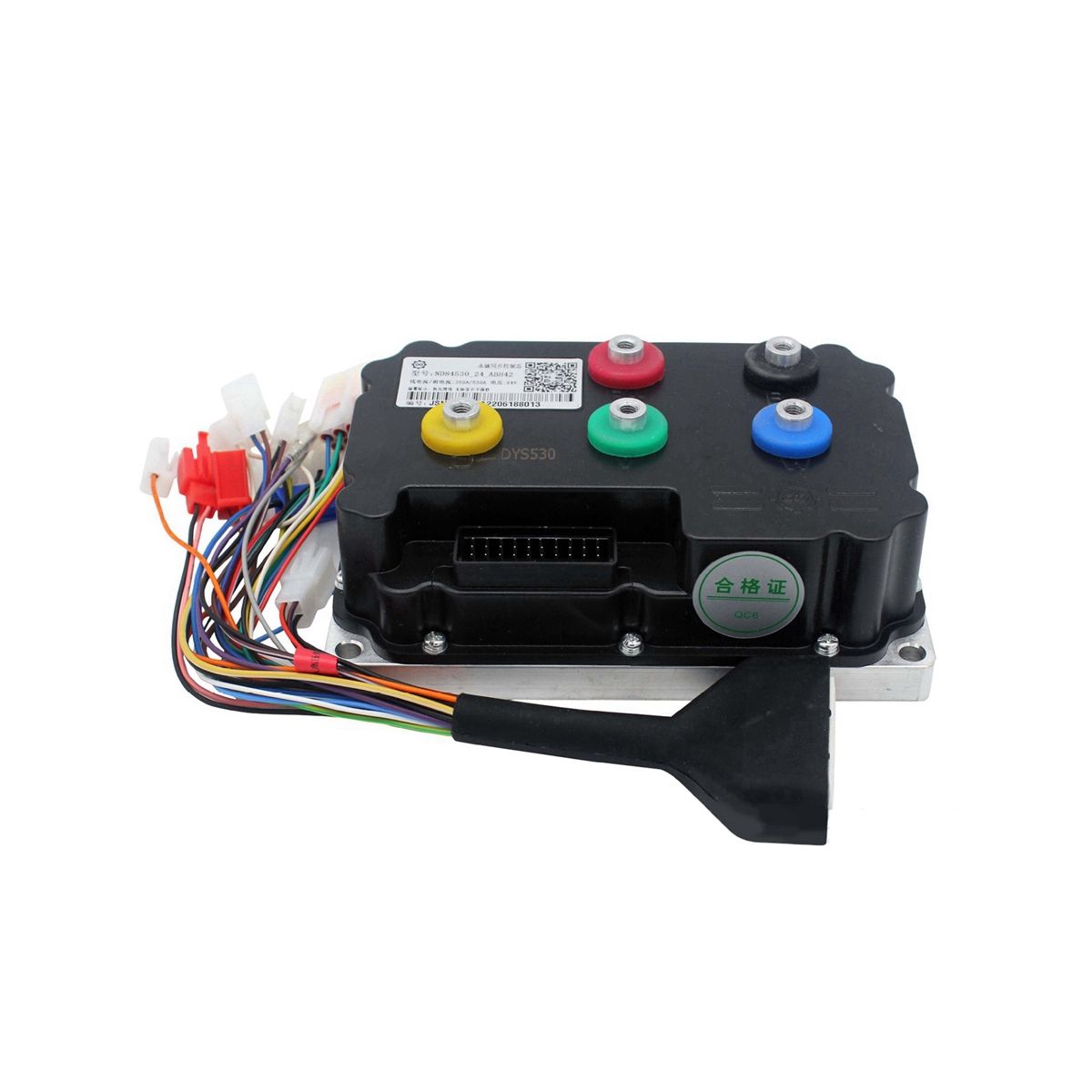

ND84530 84V 250A Programmable Electric Motorcycle

Products Description: The default function for controller : Hall plug, Throttle signal (0-5V), Ignition, Speed Signal Meter, High Brake(12v), Three Speed, Temp Sensor, Reverse, Low Brake(0v),Flux Weakening,Anti-Theft,Boost,Cruise,Self Learning,Program Port.
1). Withthe aluminum substrate scheme, the Moss tube is laid on the aluminum substrate and then placed on the PCB board
2).High efficiency, low temperature rise, small running current
3).With self-learning function, excellent commonality
4). Suitable for electric bike, scooter, motorcycle, tricycle, kart, ATV The app compatible with Android and With flux weakening function
Controller Type: Motorcycle Controller
Model Number: ND84530
Max. Bus Current: 250A
Max. Phase Current: 530A
Temp Sensor: KTY83-122
Working Voltage:100V
Compatible Motor Power: 6000W-8000W
Material: Metal
Color: Black Package Contents:
1 x ND84530 sine wave motor controller
1 x Cable Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
