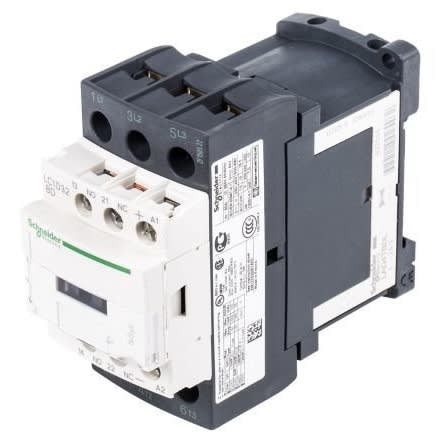

32a Contactor 220v with Telemecanique Original NC/NO buttons

Schneider Electric is a European multinational company providing energy and automation digital solutions for efficiency and sustainability.

Features:
1. 100%new and high quality.

2. This product is an industrial electric appliance that uses a coil to flow through the current to generate a magnetic field that closes the contact to achieve the control load of the electrical installation

3. The contactor is sensitive and has a greater carrying capacity.

4. Stable connection contact is of strong conductivity.

5. Usually used in power, distribution and power applications.

Specification:

Current: 32A

Coil Voltage: AC 220V

Ui: 690V

Uimp: 6kV

V/KW : (200-220)/2.2-3.7

max HP: 6HP

Torque: 20ib

Max. short circuit rms ratings: 5kv, 600v. with high response circuit breaker

Operating Frequency: 1200 times/hour

Wiring Mode: Plate Front Wiring

Installation Method: Fixed Type, Rail Type

Weight: Approx. 551g / 19.4oz

Buttons Features:

• Product Name: Push Button Switch;
• Action Type: Latching
• Model : XB2BA42 X1 and XB2BA32 X1
• Contact Type: ON (NO) + OFF (NC)
• Poles: SPST
• Max voltage : 660V
• Current : 10A
• Quantity: 1 OFF buttons + 1 ON buttons
• Terminal : 2 Pins
• Button Diameter : 40mm/ 1.6";
• Mount Hole Diameter: 22mm / 7/8";
• Fit Panel Thickness : 6mm / 15/64"(max.)
• Size: 60 x 70mm/ 2.4" x 2.8" (Max.D*H);
• Cap Lamp: Red; Green
• Material : hard Plastic and still

Color: As Picture Shown;

Package Content: 1 x ON Push Buttons Switch and 1 OFF Push Buttons Switch

* Features: 2 terminals, 22mm mounting hole, 1NO with 1NC contact type,

* Used widely to control the electromagnetic starter, contactor, relay and other automatic control electric circuits.

Package List:

1 * AC Contactor with NC/NO Buttons
