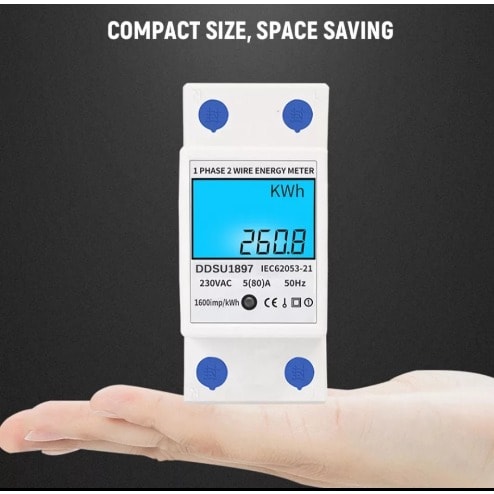

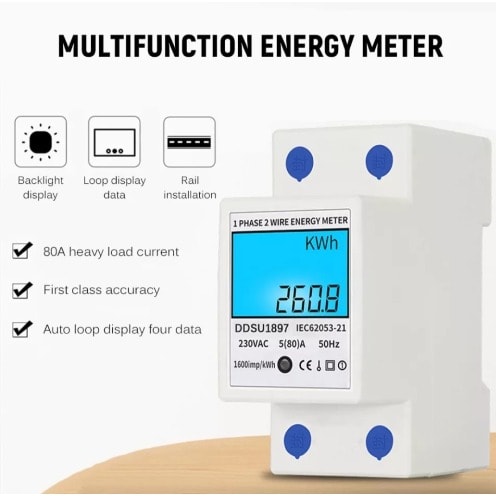

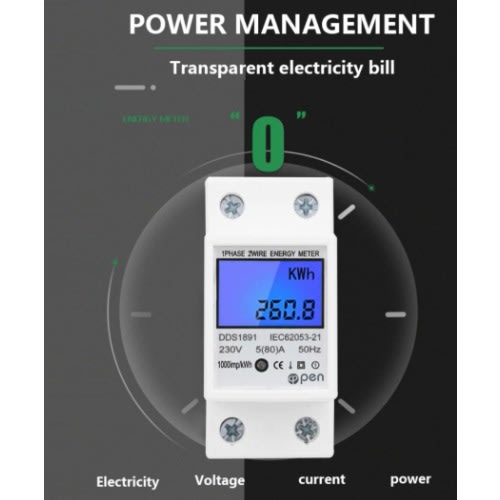

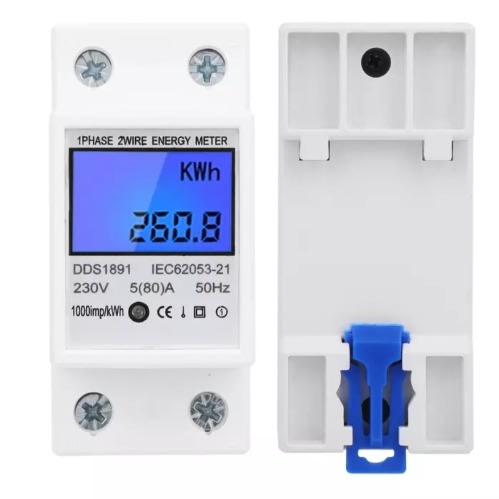

Single Phase Energy Power Meter - 80a - 17kw Wattmeter

0-80A DDS662 LCD Backlight Digital Display Single Phase Electronic Energy KWh Meter

This meter can be used by tenants sharing one prepaid meter to monitor the actual consumption of each tenant. Also for other energy users who want monitor their immediate and accumulated energy over time.

Comes with inbuilt memory that stores energy consumption readings during power outages. The reading continues once power is restored

Features:

1. 35mm DIN Rail mounting meets the standards of DIN EN50022.

2. 17.5mm pole width meets the standards of DIN43880.

3. LCD backlight digital display, no reset button, to avoid human manipulation with the data.

4. It displays energy, voltage, current ,power.

5. Red LED energy pulse signal.

6. Embedded end cover, ensuring power supply safety.

7. With the features of good reliability, small size, light weight, beautiful appearance and easy installation.

8. Adopt microelectronics and digital processing technology to measure electric energy, accurate and reliable.

9. Large scale integrated circuits and precision SMT technology, with good electromagnetic interference resistance and stable performance.

Specification:

Material: Plastic

Model: DDS662

Accuracy: First Grade

Reference Voltage: 220V/230V 50/60Hz

Reference Current (Max. Current): 5(80)A

Insulating Property: 1min 4KV Alternating Voltage, 1.2/50us 6KV Waveform Impulse Voltage

Display: LCD Backlight / LCD Display

Installation: 35mm DIN Rail

Wiring Method: Up-out and down-in/up-in and down-out

Power: 17000W

Environment Temperature: -20C~+50C

Pole Width: 17.5mm/0.7in

Functions: Display electricity, voltage, current, frequency, power factors

Package Size: Approx. 8.6 * 4.2 * 7.2cm/3.4 * 1.7 * 2.8in

Voltage :200-250VAC

Current: 0.1-80A

Energy: 0.1-99999.9 KWH

Power: 0.1-17000W
