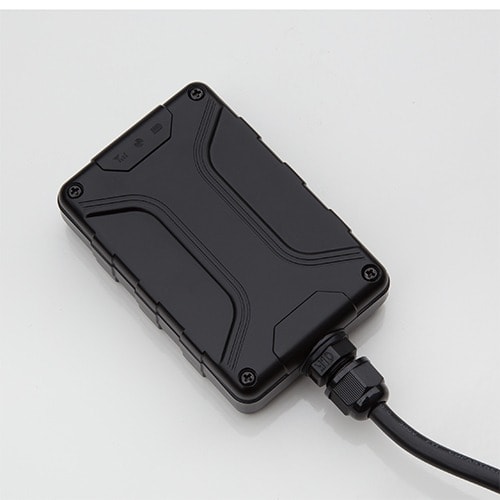

Fifotrack s20 Car Tracker

fifotrack s20 high quality tracker is suitable for motorcycle, car, vehicle, boat, truck, asset tracking, etc. Power input range is 8-92V with industrial design.

The Core features of S20 vehicle tracker include internal GPS/GSM antennas, IP66 waterproof, 2 digital input, 1 analog input and 1 output.

MAIN FEATURES:

• 8-92V Power input
• IP66 Waterproof
• Internal antennas
• 2 input/1 output/1 analog input

FEATURES INCLUDE:

• Dimension: 80*53*21mm
• Weight: 157g
• GPS Module: U-blox7Q
• Input Voltage: DC 8~92V/1.5A
• Internal Battery: 300mAh/3.7V
• Power Consumption: 30-35mA standby current
• Internal Battery Life: 6 hours in sleeping mode, and 2.5 hours in normal working mode
• Operating Temperature:-20 degree celcius ~ 70 degree celcius
• Humidity: 5%~95%
• LED Light: 3 LED lights indicating GPS/GSM/ext-power status
• Button/ Switch: 1 power switch (Inside case)
• Flash Memory: 8MB
• Sensor: 3D Accelerometer
• GSM Frequency Band: GSM 850/900/1800/1900MHz
• GPS Sensitivity: -161dBm
• GPS Start Speed: Cold start: 35s; Hot start: 1s
• Position Accuracy: 10m
• I/O Port:
• 2 Digital input: INPUT1 smart input (Default negative), INPUT2 positive input, default for ACC
• 1 Analog input, 12bits resolution; Range 0~12V
• 1 Output
