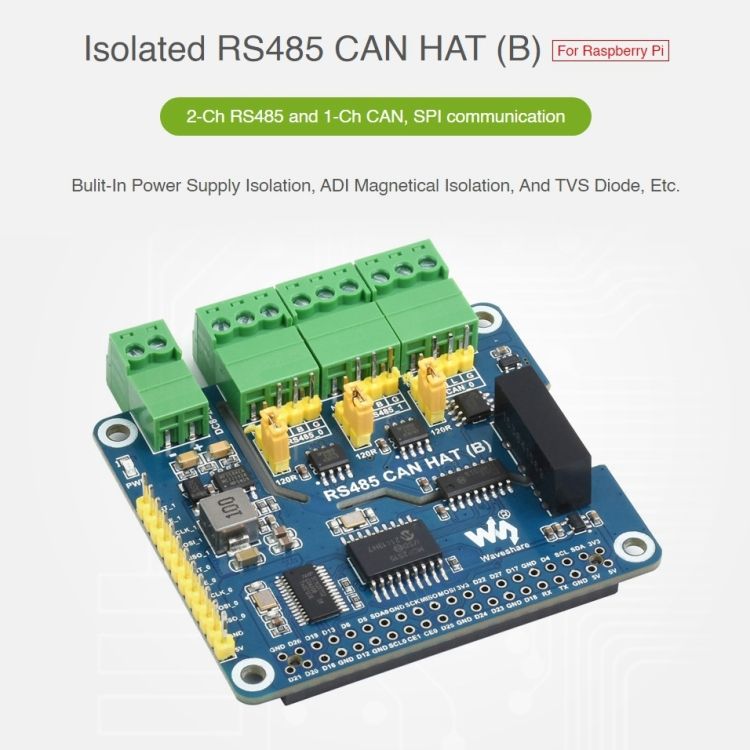

Isolated RS485 CAN HAT

Isolated RS485 CAN HAT

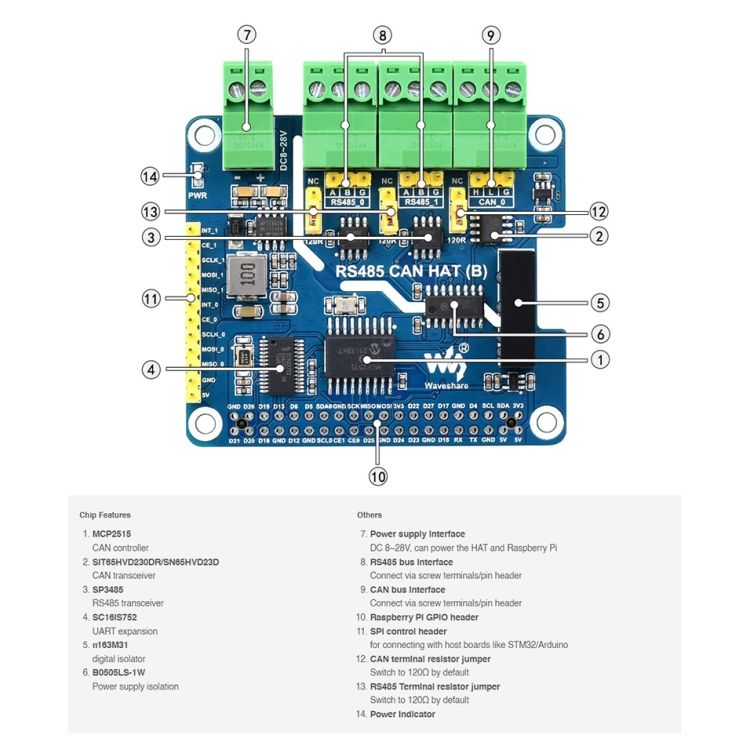

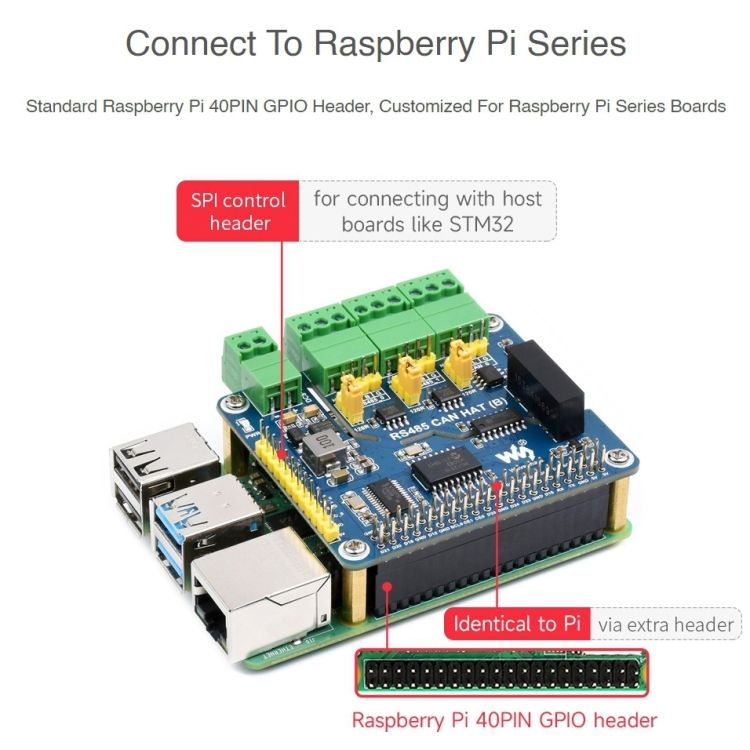

1. Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards

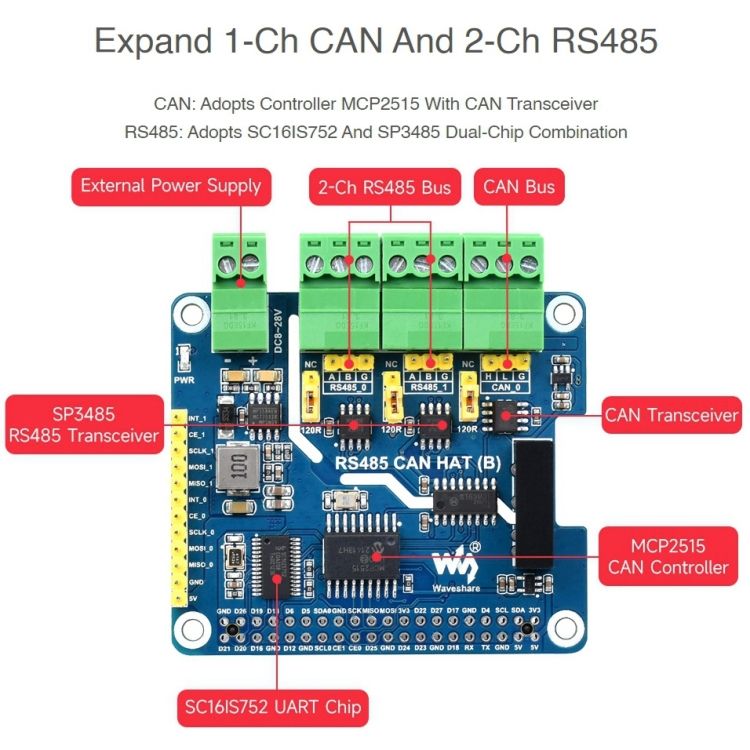

2. 1-Ch CAN, adopts MCP2515 controller and CAN ganzhou_randa, converts to CAN
3. 2-Ch RS485, adopts SC16IS752+SP3485 dual-chip combination, converts to RS485

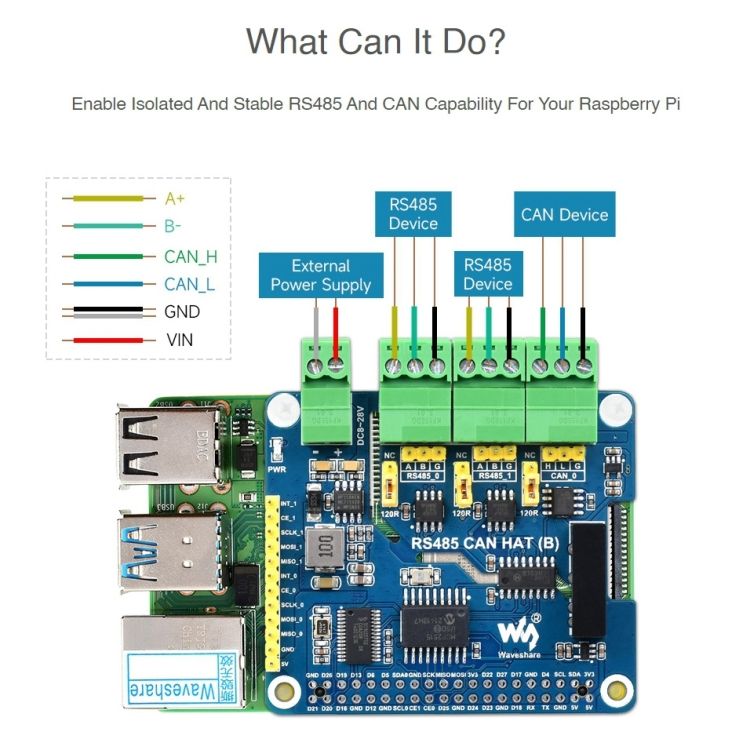

4. Onboard power conversion circuit, supports 8~28V wide voltage power supply, can power the Raspberry Pi at the same time

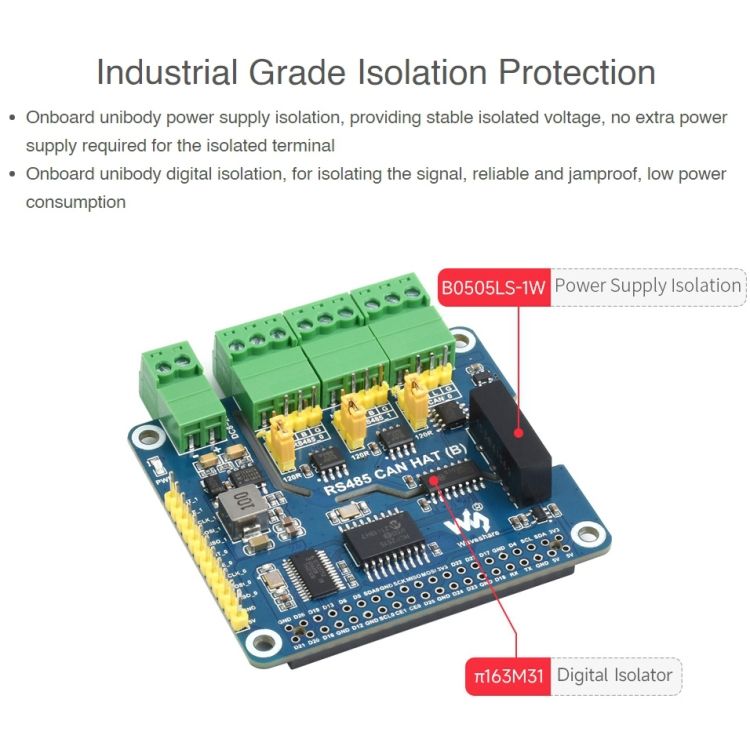

5. Onboard unibody power supply isolation, providing stable isolated voltage, no extra power supply required for the isolated terminal
6. Onboard unibody digital isolation, for isolating the signal, reliable and jamproof, low power consumption
7. Onboard TVS (Transient Voltage Suppressor), effectively suppress surge voltage and transient ke voltage in the circuit, lightningproof & anti-electrostatic
8. Onboard resettable and protection s, ensures the current/voltage stable outputs, provides over-current/over-voltage proof, improves shock resistance
9. Onboard 120Ω terminal resistor, configured by jumper
10. Onboard terminals and pin headers, more convenient connection
11. Breakout control pins, for connecting with host control boards

Key Features

Isolated RS485 CAN HAT
Isolated RS485 CAN HAT
Isolated RS485 CAN HAT
Isolated RS485 CAN HAT
Isolated RS485 CAN HAT

What's In the Box

1 x package
