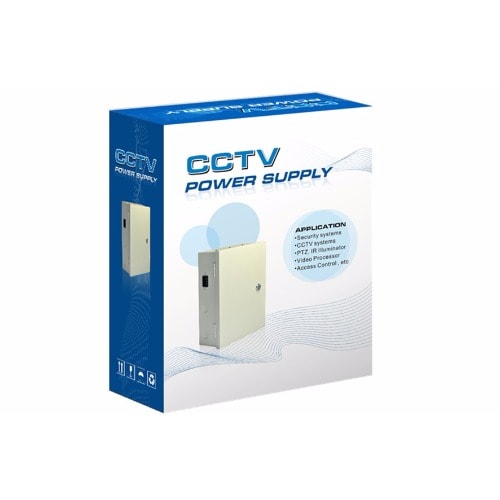

18CH CCTV Power Supply with Battery Backup

The 18channel Central Power Supply is a professional device for powering CCTV cameras and other gadgets that use 12V DC power. It uses 12V Lead-acid battery which makes it to function as an Uninterruptible Power Supply (UPS).

1, General Protection: Individual PTC (Positive Temperature Coefficient) Fuse and LED indicator on each output, when problem occurs, only affect the individual output, other outputs still working;

2, Short Circuit Protection: When short circuit occurs, Individual PTC Fuse will cut off the circuit and when breakdown removed, PTC fuse will automatically be restoring circuit;

3, High voltage protection: When high voltage occurs, the surge protection will be hit through to protect the connected device;

4, Over Current protection: When over current occurs, the power supply will automatically switch to self-protection status, when it is removed, then it will return to normal state;

5, Application: CCTV Camera, PTZ, IR Illuminators, Video Process, Access Control, etc.

6, Battery Backup: Use 12V Lead-acid battery. (Battery not included)

Specification

Input Voltage Range: AC90V-264V

Output Voltage Range: DC12V

Output Current: 10 Ampere

Output Power: 120 Watt

Output Channel: 18Channel

Output Fuse Rating: 1.1A

Battery Available: DC12V, 7AH lead-acid Battery
