800ft Hdmi 1080p Hd Wireless Video Transmission System
800ft Hdmi 1080p Hd Wireless Video Transmission System
Product information "CVW Crystal Video Swift800"
HDMI wireless transmitter set for distances up to 800 feet.
Transmission speed: 70 ms.
HDMI connections.
Eye Contact Range: 820.2 ft.
Frequency range: 5150 - 5250 MHz / 5725 - 5825 MHz
Bandwidth: 20 MHz.
Full HD 1080 / 60p video (compressed, 4: 2: 2 - 8 bits)
Audio format: PCM.
Frequency selection: manual with buttons (control via the LED display).
Mounting options: internal thread on the bottom (shoe adapter included).
Battery mounting: NPF battery plate.
Power consumption: 6 W (Tx), 5.2 W (Rx).
Weight: 5.75 oz (Tx / Rx)

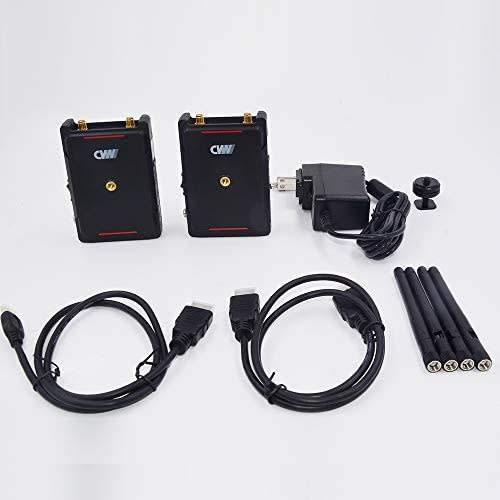

Set includes:

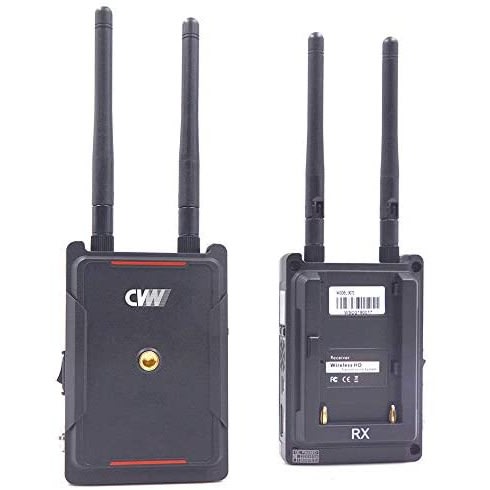

1 transmitter (with NP-F battery holder).
1 receiver (with NP-F battery holder).
4 antennas.
1 power supply.
2 HDMI cables (31.5 '' each).
1 shoe adapter.
Video formats:
1080p (60p / 59.94 * / 50/30 / 29.97 / 25 * / 24p / 23.98 * fps)
1080i (60 / 59.94 ** / 50 fps)
720p (60p / 59.94p *** / 50p)
* 59.94p will be output as 60p; 25 / 23.98p will be output as 24p
** 59.94i will be output as 60p
*** 59.94p will be output as 60p

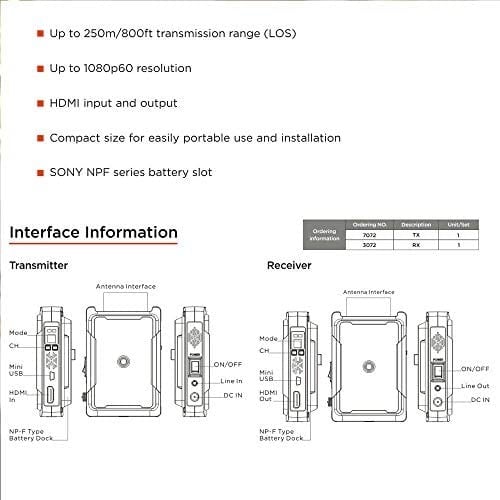

Input receiver:
HDMI output.
Micro-USB.
DC In 7-36V NP-F - Drum Holder
3.5mm Jack for Analog Audio
2 antennas.
Input transmitter:
HDMI output.
Micro-USB.
DC at 7-36V.
NP-F - Battery Holder
3.5mm jack for analog audio
2 antennas.
