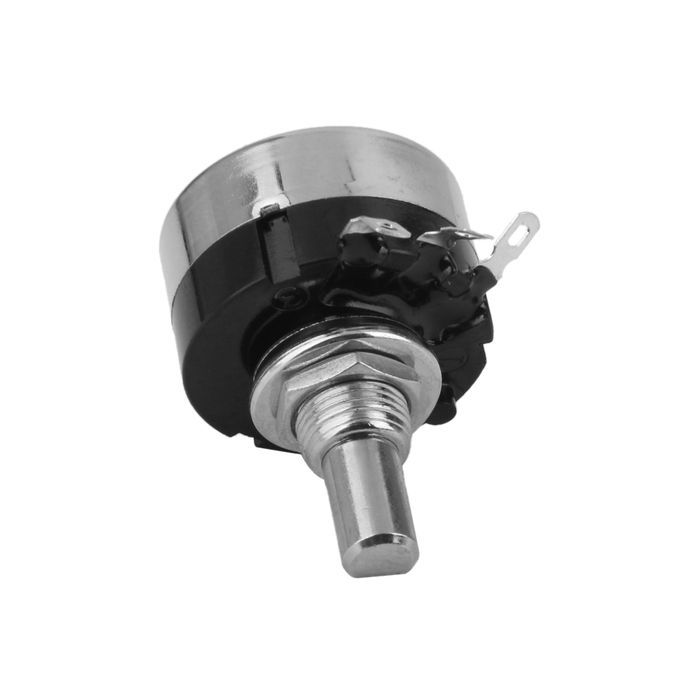

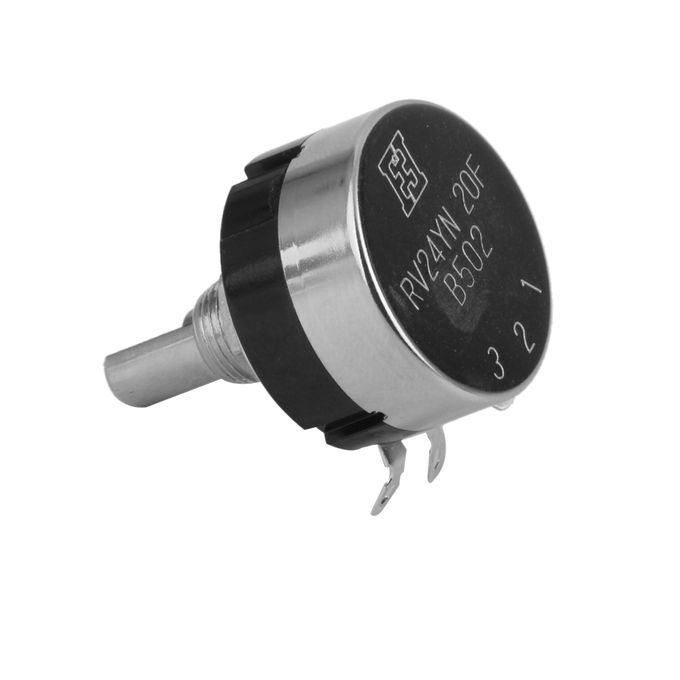

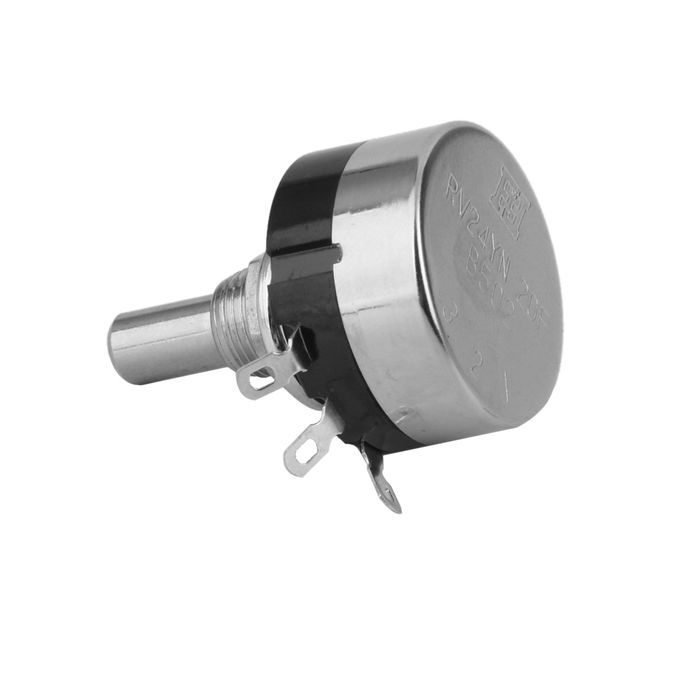

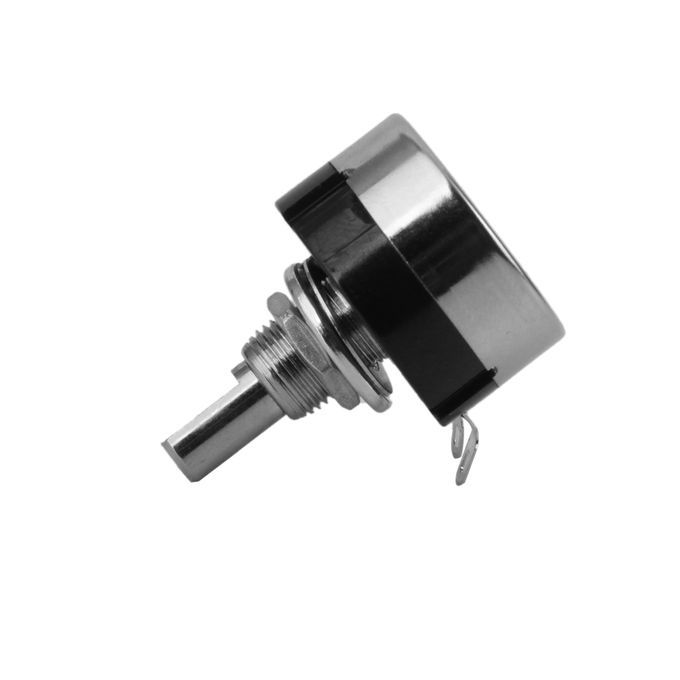

RV24YN20FB502 5K Round Shaft Carbon Film Rotary Taper
RV24YN20FB502 5K Round Shaft Carbon Film Rotary Taper
Welcome to my store, we have many kinds of price products, we launch new products every day, please follow my store and pay more attention, for more products, Please click on the seller information to enter our store to buy, we hope give you a pleasant shopping experience. Thank you and have a nice day!
Description:
Parameter:
B102-B1K-20F B502-B5K-20F B103-B10K-20F
Total Resistance: B5KΩ (There are 500Ω - 1MΩ)
Resistance Deviation: ± 10%
Power: 0.25W
Electrical angle: 280°± 10 °
Mechanical angle: 300 °± 5 °
Life: 100,000 Times
Specification:
Total height: Approx. 1.37 inch/35 mm
Body Core height: Approx. 0.59 inch/15mm
Axis High: Approx. 0.78 inch/20mm
Entire Diameter: Approx. 0.94 inch/24mm
Nut Diameter: Approx. 0.35 inch/9mm
Nut Height: Approx. 0.30 inch/7.8mm
The shaft is half-axle.
Dedicated game RV24YN 20S 5K potentiometer axle 20mmNominal Resistance Range: 5K
Resistance Deviation: ±5%
Rated Power: 2W
Laps: 1 Ring
Carbon potentiometer
Package Includes:
1x Potentiometer Arcade Games
Potentiometer Shaft Arcade;Potentiometer Arcade Games
a a a a a
Key Features
Parameter:
B102-B1K-20F B502-B5K-20F B103-B10K-20F
Total : B5KΩ (There are 500Ω - 1MΩ)
Deviation: ± 10%
Power: 0.25W
Easy to use
Exquisite Workmanship
Well Made
Best Choice and best discounts
Customer Care is Our Top Priority
Offer is Subject to Availability
Big Sale
What's In the Box
1x Potentiometer Arcade Games
| Model | JAVANLINCJ423228 |
|---|---|
| Production Country | China |
| Size (L x W x H cm) | 18 x 15 x 3 |
| Weight (kg) | 0.2 |
| Certifications | Organic |
| Color | multicolor |
| Main Material | 1 |
| From the Manufacturer | 1 |
| Care Label | 1 |
