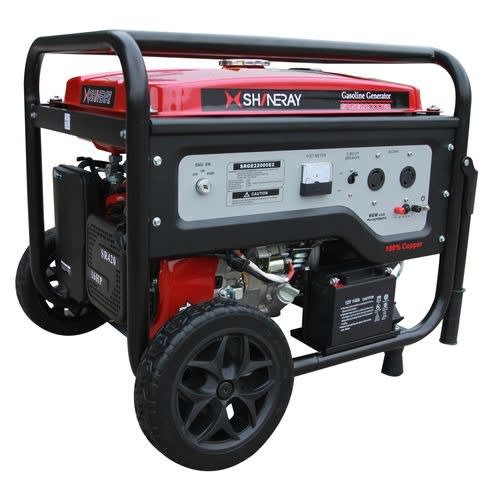

Shineray 7.5kva Automatic Start Generator - SRGE22000E2

MODEL SRGE22000(E2)

Product Details

SR190F/P ENGINE

SINGLE CYLINDER

FOUR STROKE

AIR COOLED25°OHV

ENGINE TYPE 90×66mm

BOREXSTROKE

T.C.L IGNITION TYPE\RECOIL START/

ELECTRIC START

STARTING TYPE DISPLACEMENT(cc) 420

OIL CAPACITY(L) 1.1

RATED POWER(KW) 6.5

MAX POWER(KW) 6.

RATED VOLTAGE(V) 230

RATED FREQUENCY (HZ) 50

GENERATOR POWER FACTOR

FUEL CAPACITY(L)25

NOISE dB(A)96

CONTINUOUS RUN TIME(h)9

CONSUMPTION RATE OF FUEL(g/K.W.h)≤370

MEASUREMENT(mm)700×540×580

NET WEIGHT(Kg)80(84).

Box Content
Generator Set, Funnel, 2Plugs and Plug spanner

Care Label.

The supporting pad is designed to make the motor free of external impact or shaking during transportation;
End users must remove or lose the supporting pad before use.
Eccentric rotation or excessive wear might occur and cause damage to the motor, if te generator runs frequently without the removal of the support pad.
The generator must be placed in an open area; any fences might cause inadequate venting and cause the accommodation of thermal generated from the exhaust pipe and lead to a risk of generator burning.
Lubricant oil/Engine Oil: Lubricant oil spec (SJ/SE) or above is preferred. Model (15w-40) and quality oil brands are required. Ø Replace oil after 20 hours at first use and replace it every 50 hours for commercial use and every 100 hours for family use.
