MOMIX USB Audio Interface Mixer Portable Audio Mixer

Features:

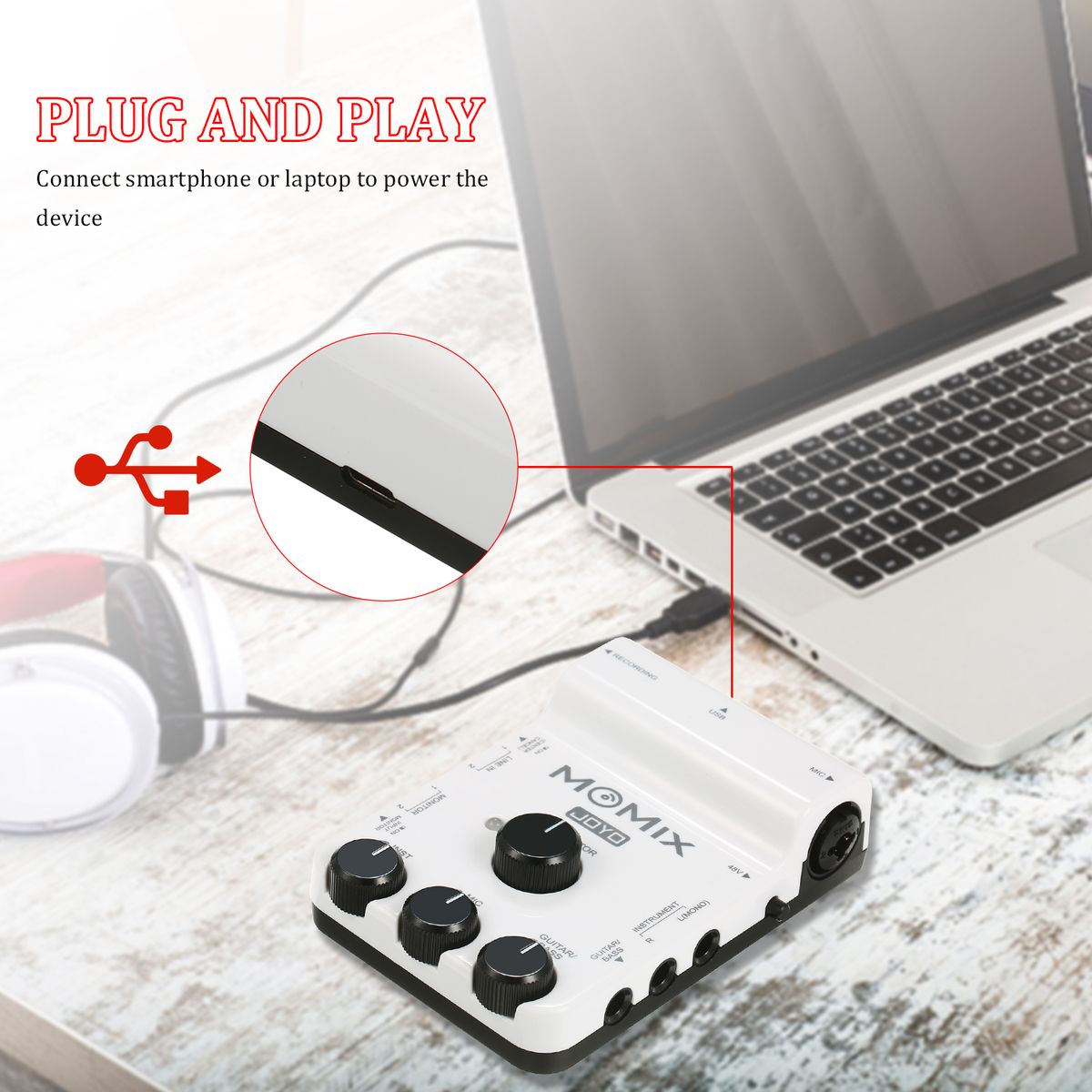

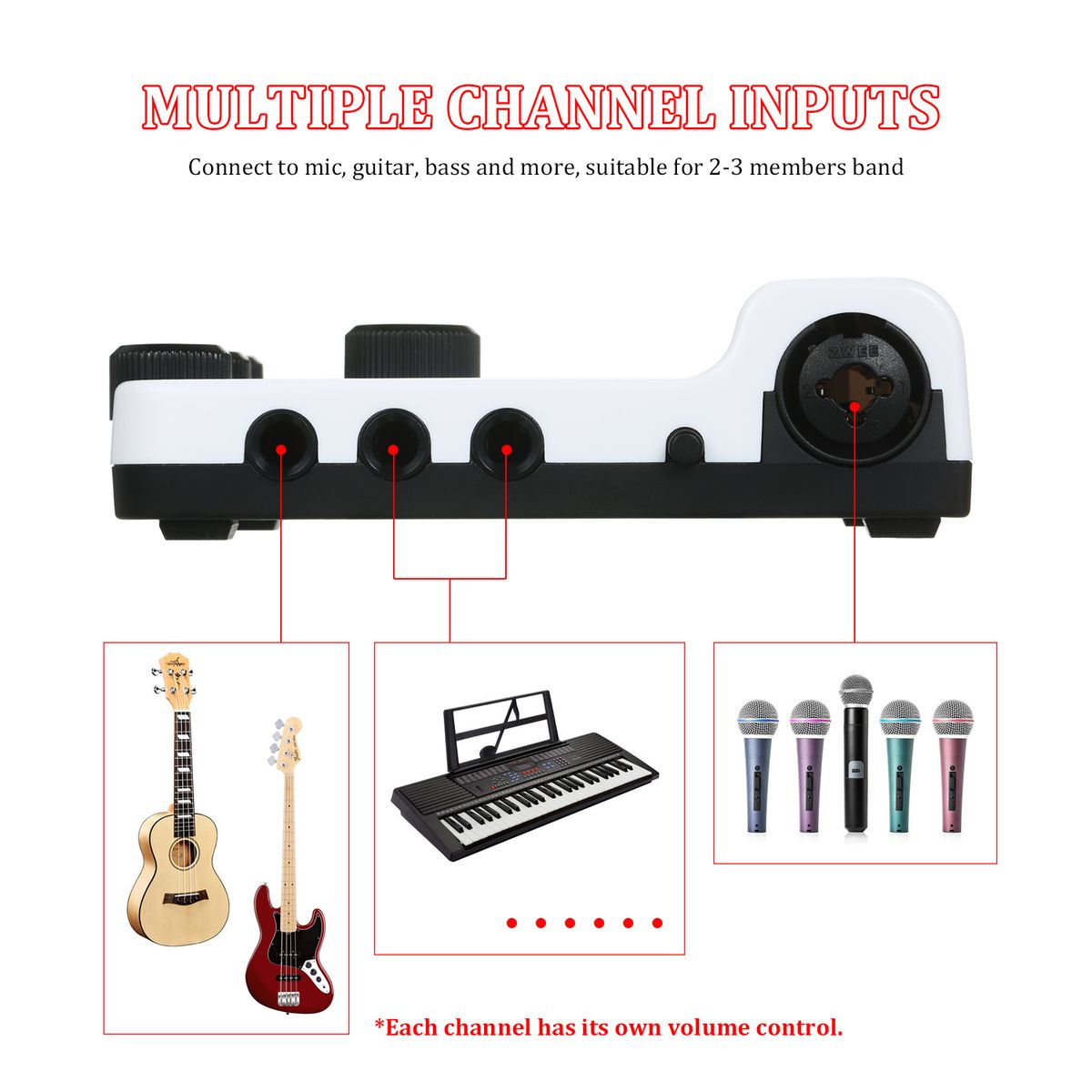

Plug and play, connect mixer to mic, guitar, bass, keyboard, electronic drum sets, and then attach to smartphone/tablet(as supply); each has independent volume control.

Just connect headphone/amp to the audio mixer, push “INOUT MONIOTR” button, to well monitor(volume adjustable, turn to on: dry and wet sound, turn to off: only wet sound).

Wire MP3/MP4 or drum machine to LINE IN; turn "CENTER CANCEL" on to reduce the vocal volume of playback music, making your sound prominent.

Can connect device to "RECORDING", real time output audio to smartphone, great for live stream; work with guitar effect pedal similar software, to create music, suitable for composing songs.

Portable audio equipment, features , simple, nice, fit for various scenes, lightweight, compact, not so big, space-saving, very convenient to anywhere.



Specifications:

Material: Plastic + Electric Components

Color: White

: USB Type-C 5V

Current Consumption: 50mA

Audio Resolution Sampling: 48KHz/16bit

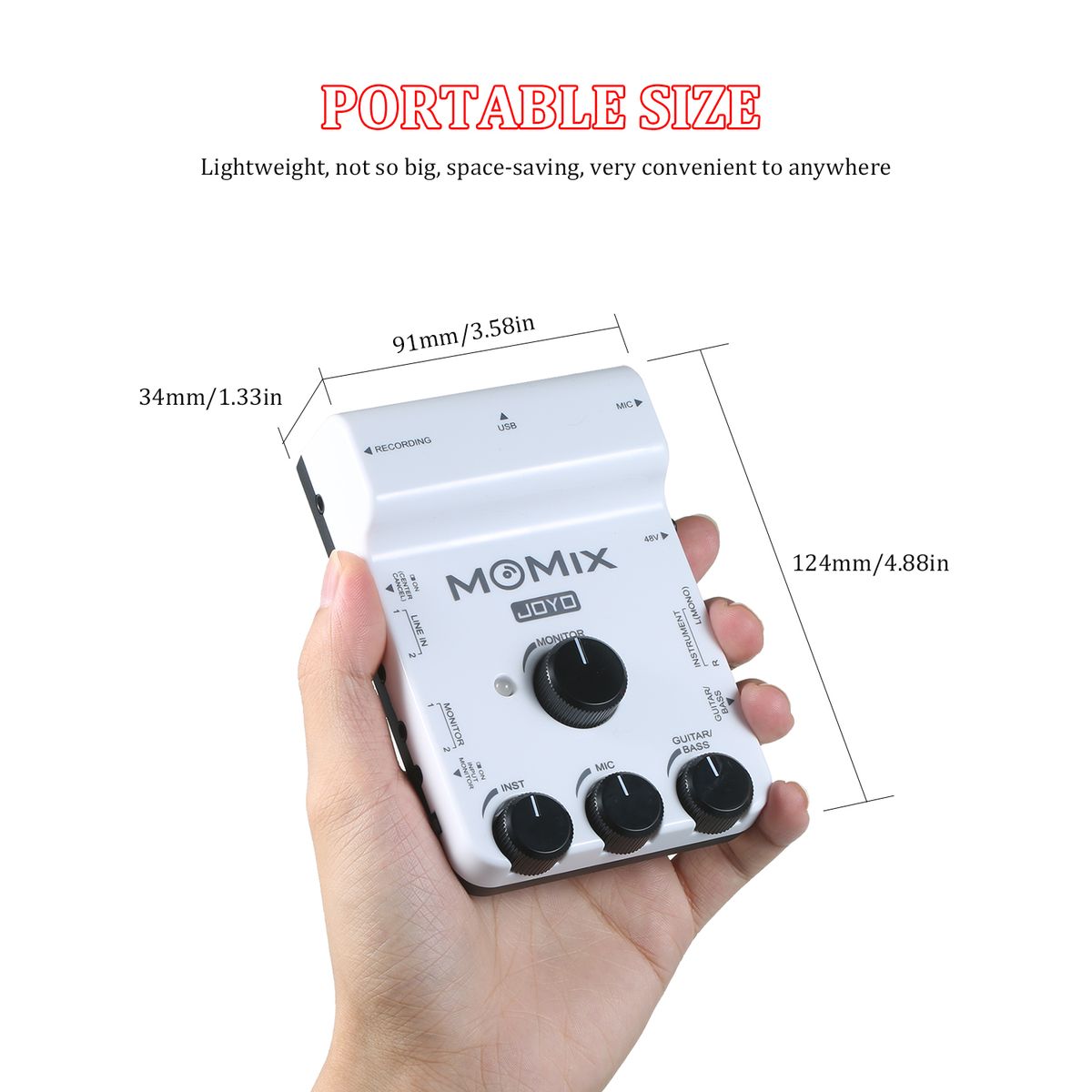

Dimensions: 124*91*34mm / 4.88*3.58*1.33in

Net Weight: 149g / 5.25oz

Package Size: 16*13*5.5cm / 6.29*5.11*2.16in

Package Weight: 255g / 8.99oz



Input Impedance And Sensitivity

Mic: 2.2KΩ-45dBV

Guitar: 1MΩ-20dBV

INSTRUMENT: 10KΩ-10dBV

LINE IN: 10KΩ -10dBV

Output Level: MONITOR: 0dBV



Note:

Audio mixer only, other accessories in the pictures are not included.

"CENTER CANCEL" function only supports LINE IN 1, not LINE IN 2.

Please read the user manual carefully for more information before usage.

Due to lighting or other reasons, the picture and material object may slightly differ.

Due to manual measurement, there may be deviation, please in kind prevail.

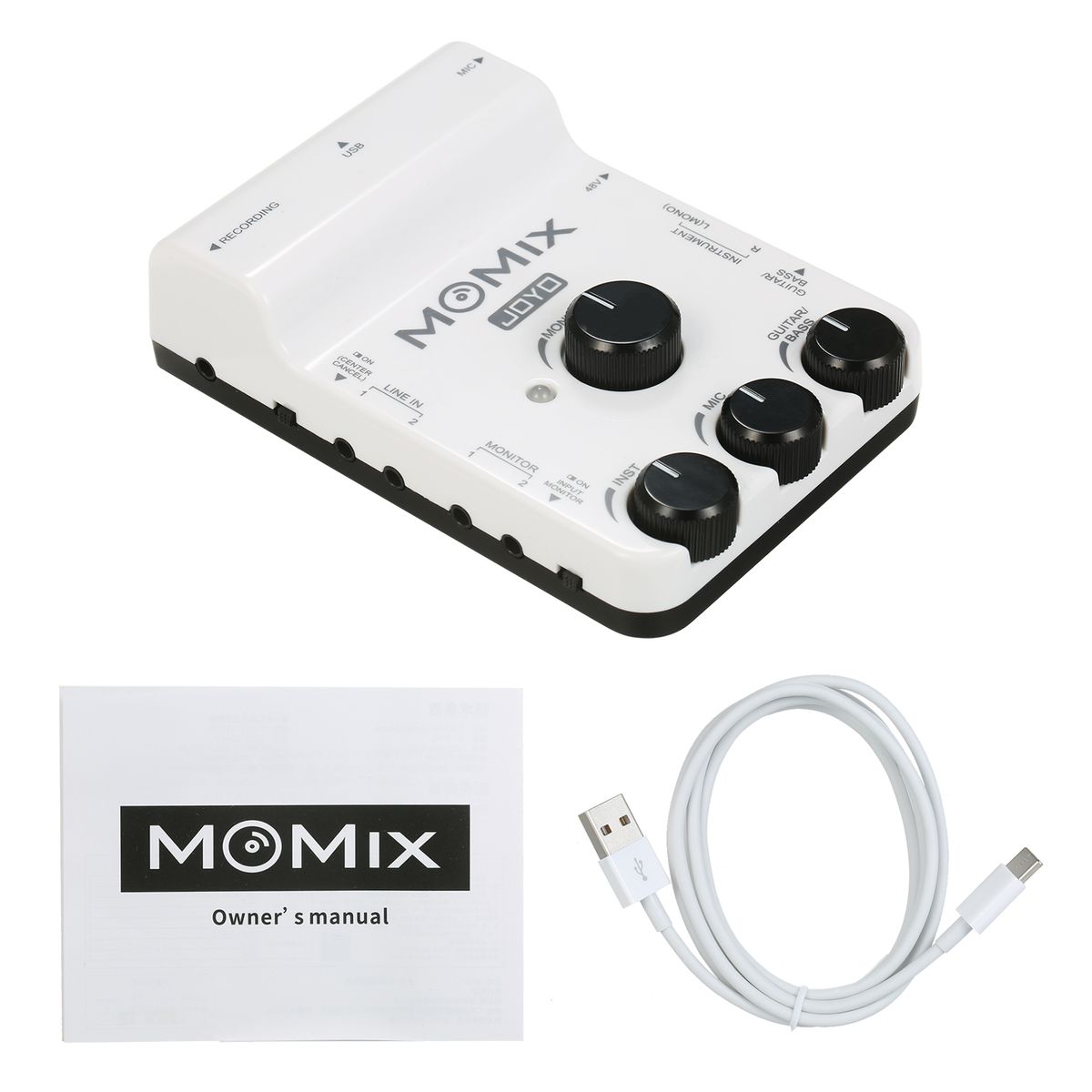

Packing List:

1 * Audio Mixer

1 * USB Type-C Cable

1 * User Manual

Key Features

Plug and play, connect mixer to mic, guitar, bass, keyboard, electronic drum sets, and then attach to smartphone/tablet(as supply); each has independent volume control.
Just connect headphone/amp to the audio mixer, push “INOUT MONIOTR” button, to well monitor(volume adjustable, turn to on: dry and wet sound, turn to off: only wet sound).
Wire MP3/MP4 or drum machine to LINE IN; turn "CENTER CANCEL" on to reduce the vocal volume of playback music, making your sound prominent.
Can connect device to "RECORDING", real time output audio to smartphone, great for live stream; work with guitar effect pedal similar software, to create music, suitable for composing songs.
Portable audio equipment, features , simple, nice, fit for various scenes, lightweight, compact, not so big, space-saving, very convenient to anywhere.
Plug and play, connect mixer to mic, guitar, bass, keyboard, electronic drum sets, and then attach to smartphone/tablet(as supply); each has independent volume control.

What's In the Box

1 x Audio Mixer,1 x USB Type-C Cable,1 x User Manual
