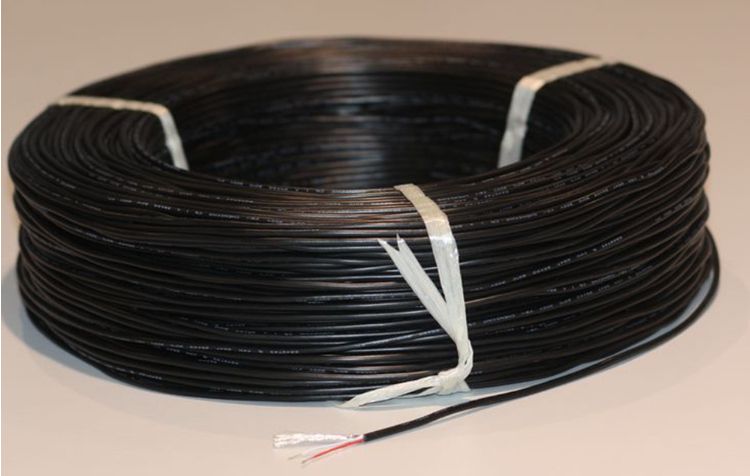

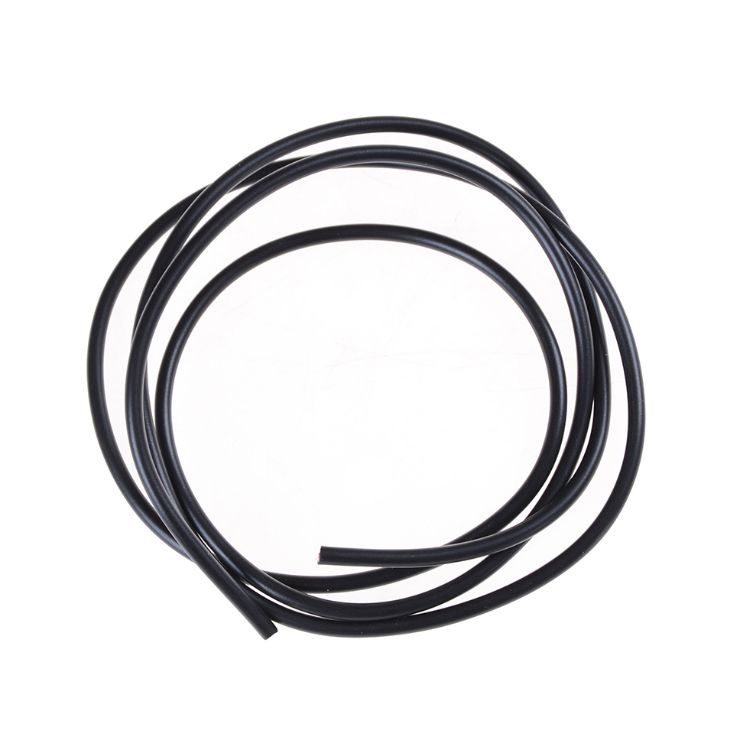

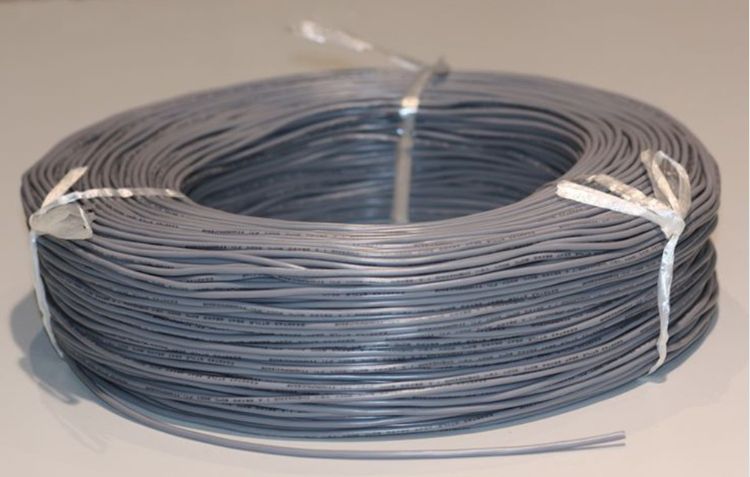

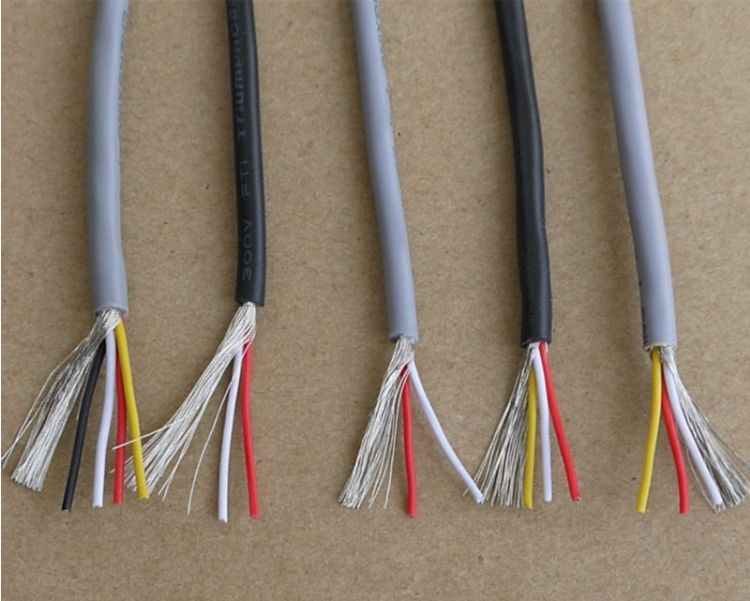

UL2547 Shielded Wire 22AWG 2 3 4 Cores PVC Insulated

The main features of this type of products are: pure conductor metal, without insulation and sheath layers, such as steel-cored aluminum stranded wires, copper-aluminum busbars, electric locomotive wires, etc.; the processing technology is mainly pressure processing, such as smelting, calendering, drawing The products are mainly used in suburban, rural areas, user main lines, switch cabinets, etc. The main features of this type of product are: extruding (winding) an insulating layer on the outside of the conductor, such as overhead insulated cables, or several cores twisted (corresponding to the phase, neutral and ground wires of the power system), such as overhead insulated cables with more than two cores , or add a jacket layer, such as plastic/rubber sheathed wire and cable. The main process technologies are drawing, stranding, insulation extrusion (wrapping), cabling, armoring and sheath extrusion, etc. There are certain differences in the combination of different processes of various products. The products are mainly used in the transmission of strong electric energy in the power generation, distribution, transmission, transformation and power supply lines, with large currents (tens of amps to thousands of amps) and high voltages (220V to 35kV and above).

Key Features

ModelNumber：UL254722AWG
Type：Insulated
ConductorMaterial：Copper
ConductorType：Stranded
InsulationMaterial：PVC
Application：Amplifier
RatedVoltage：300V
RatedTemperature：80Deg.C
Conductor：Tinned-Copper
FlameRestandance：ULVW-1
ConductorNo.：17/0.14TS
Packing/roll：300M
Core：2C,3C,4C

What's In the Box

1*product
