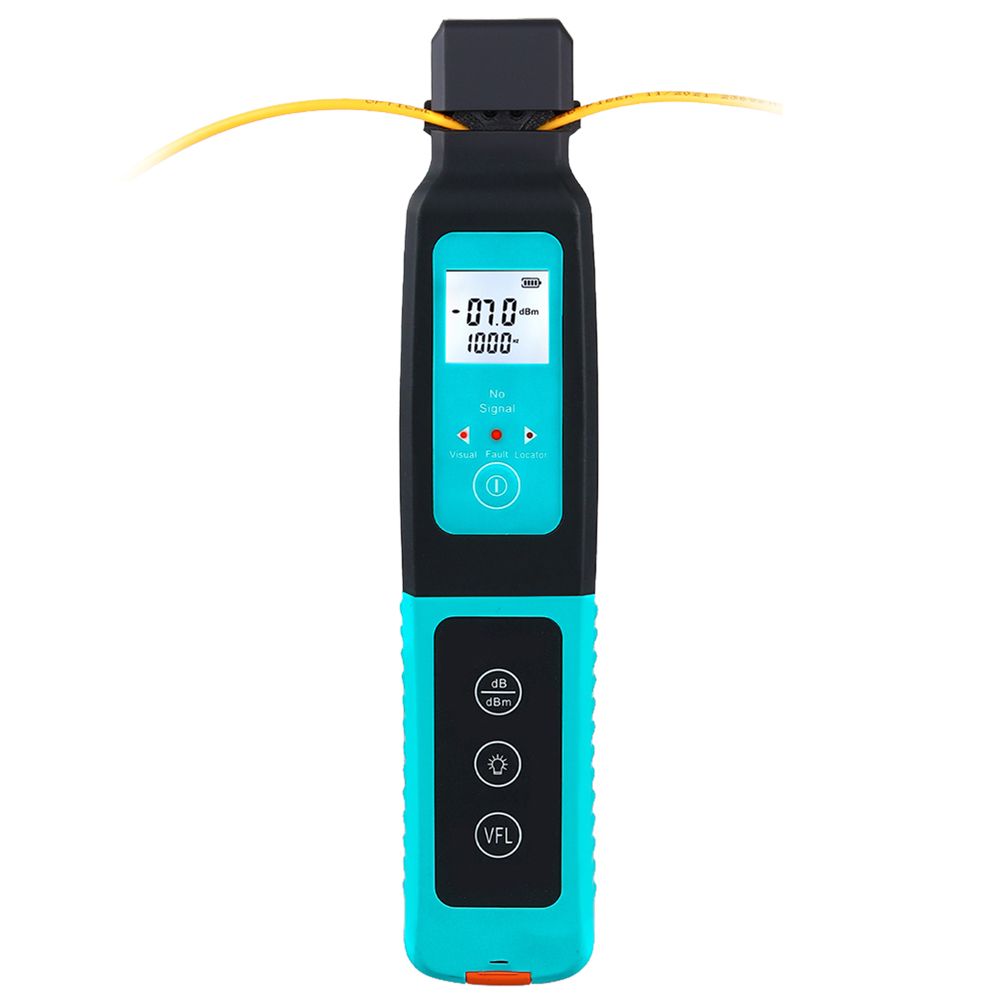

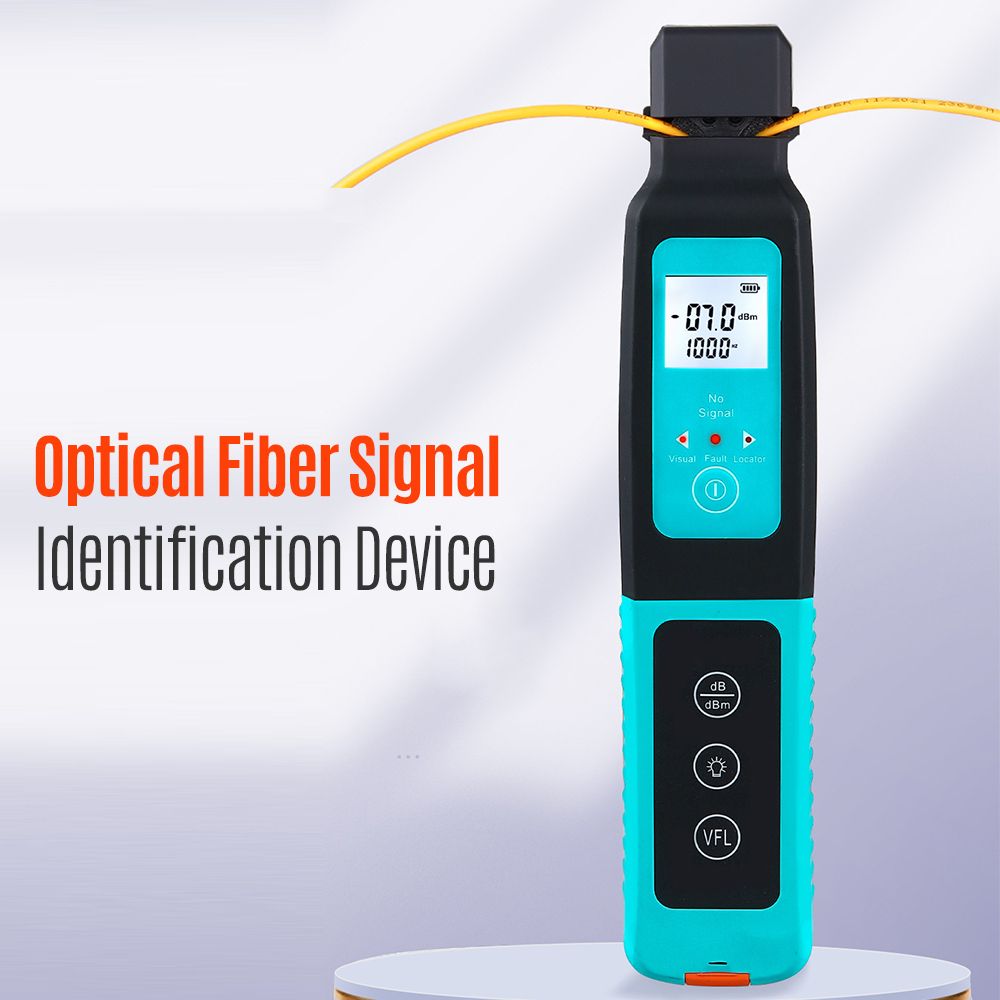

Optical Fiber Signal Identification Device With 10mw Red

Features:

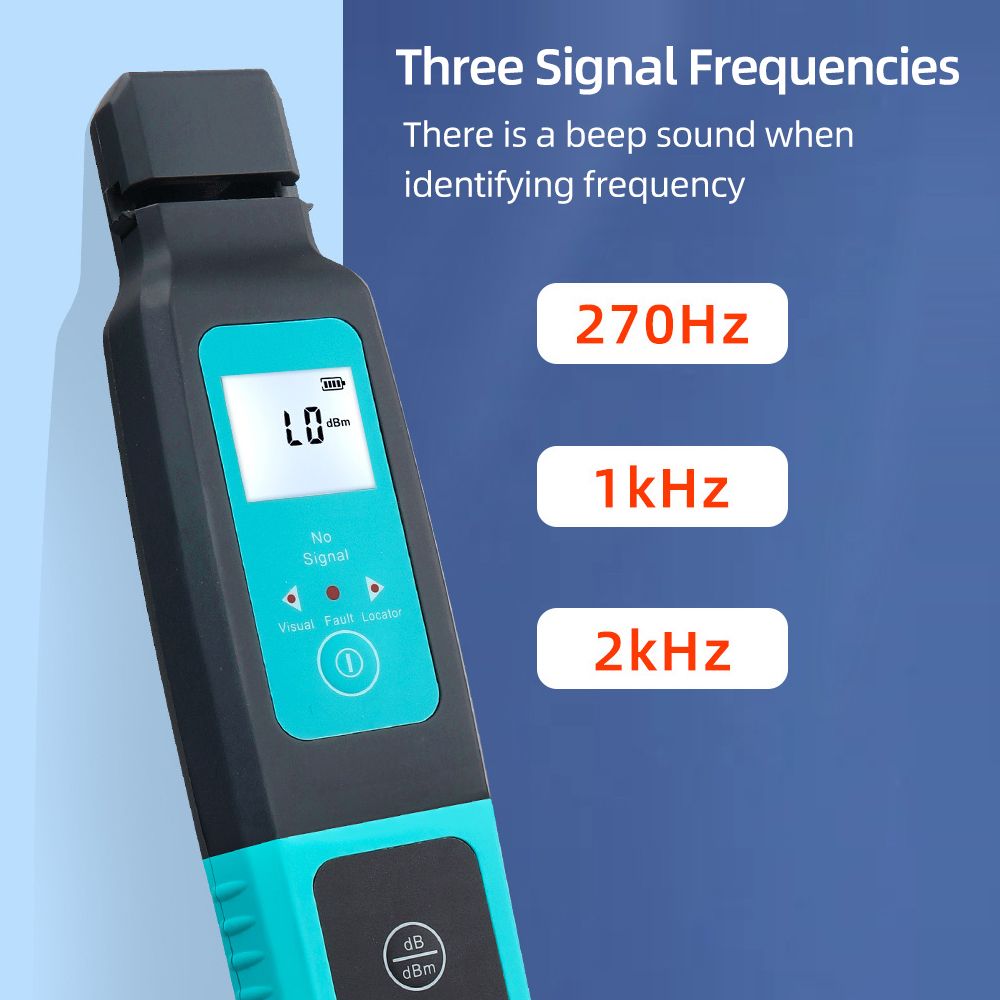

It can identify 3 kinds of signal frequencies.

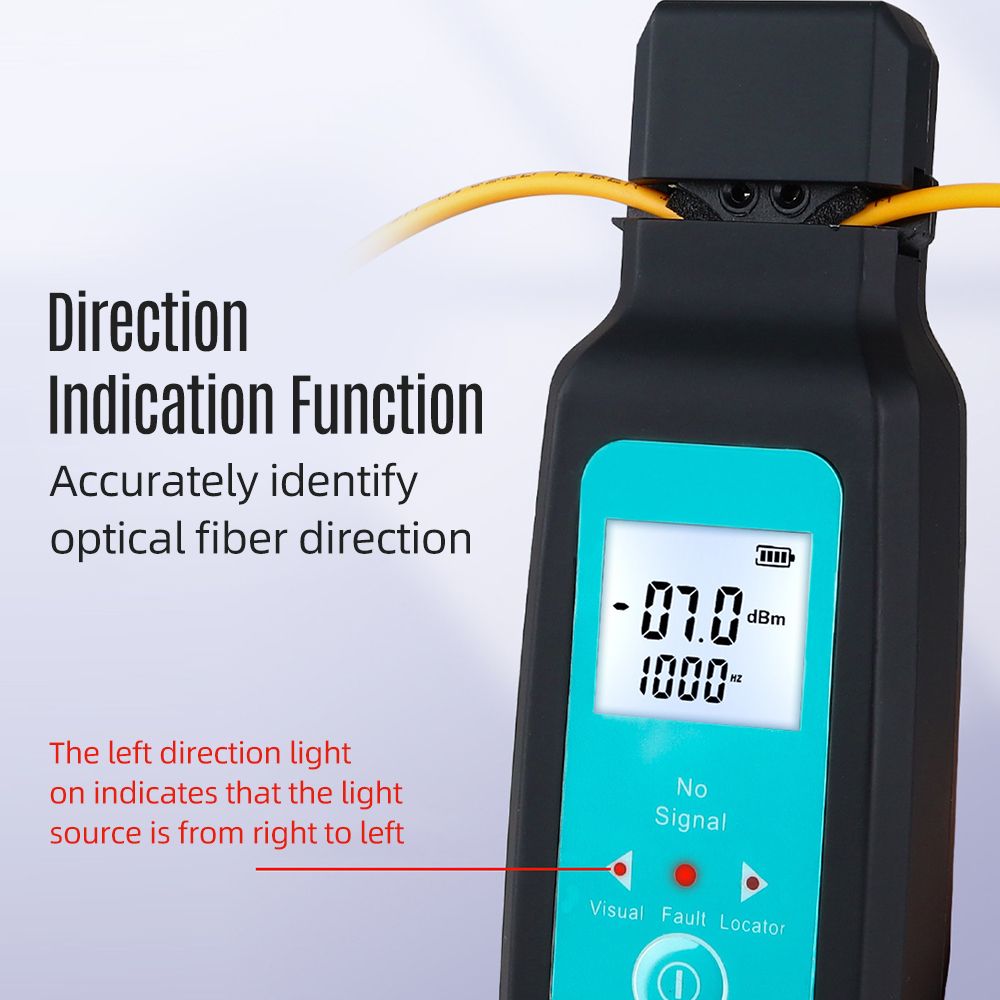

Direction indication function, accurately identify optical fiber direction.

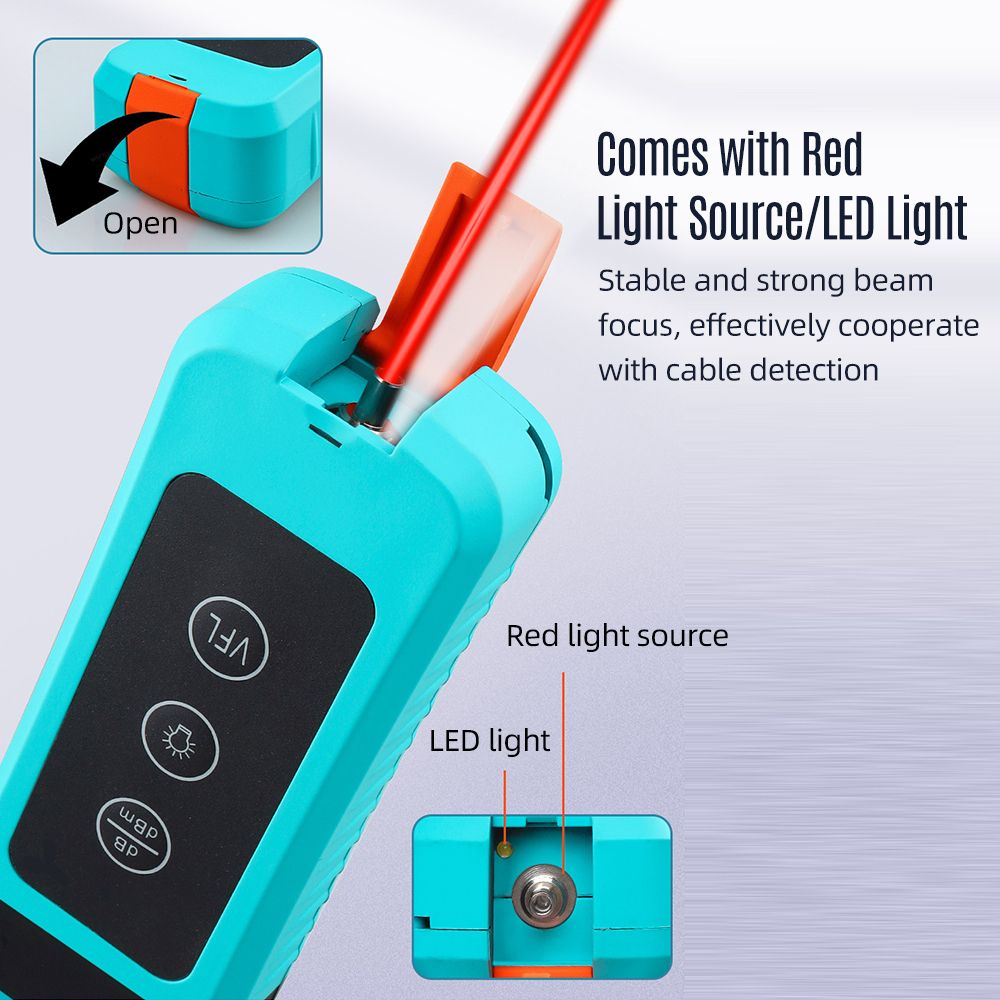

It comes with red light source and LED light, stable and strong beam focus, effectively cooperate with cable detection.

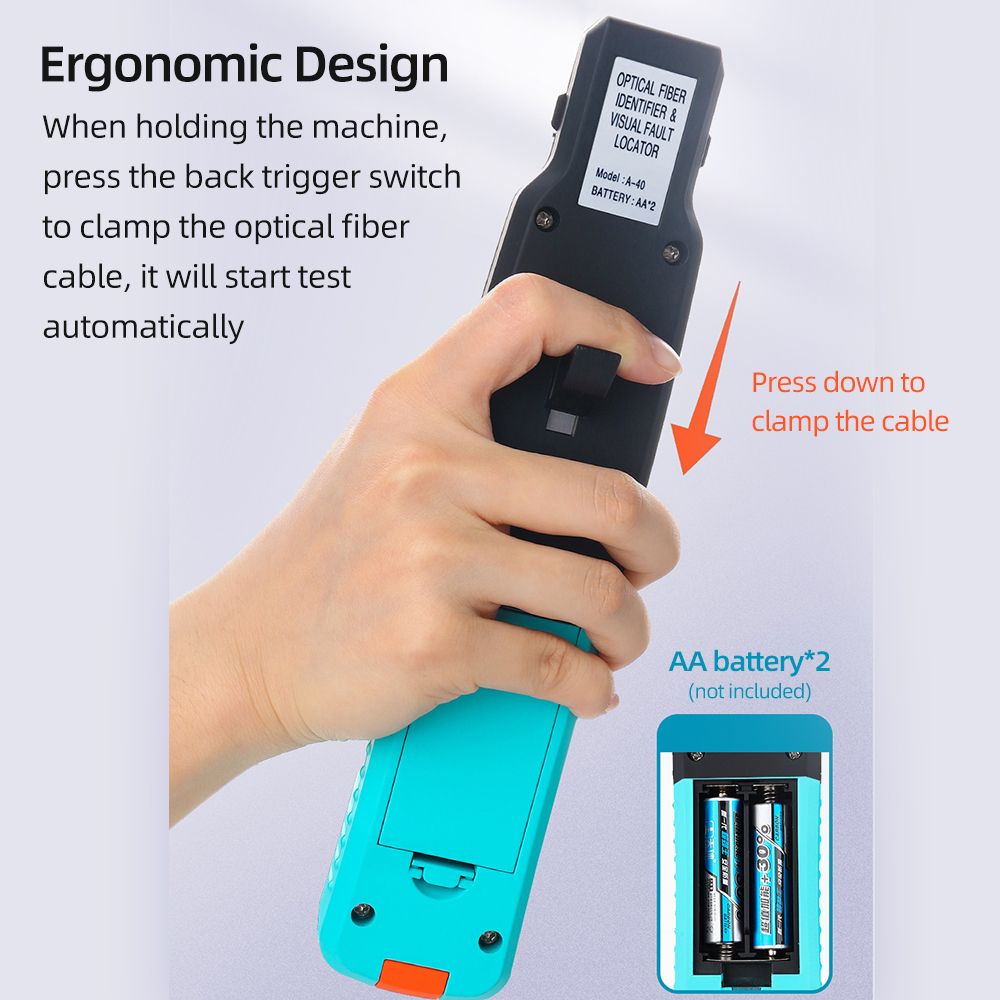

Ergonomic design, when holding the machine, press the back trigger switch to clamp the optical fiber cable, it will start test automatically.

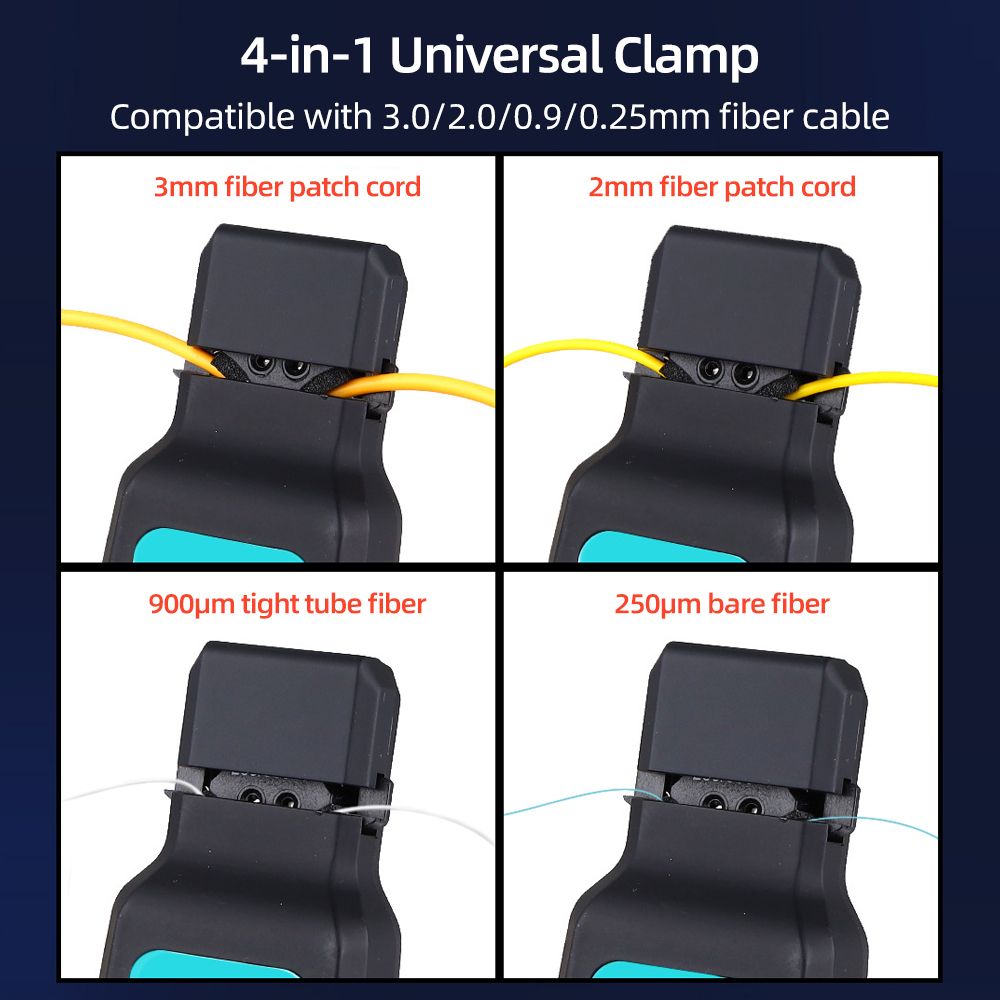

Compatible with 3.0/2.0/0.9/0.25mm fiber cable.

Specification:

Wavelength range: 800-1700nm

Optical fiber cable type: 3.0/2.0/0.9/0.25mm

Recognition signal frequency: 270Hz/1kHz/2kHz

Sensitivity range: +10~-50dBm

Output wavelength: 650 plusmn;10nm

Output power: gt;10mw

Battery requirement: 2*AA batteries(not included)

size: 24 * 4.5 * 2.8cm /9.45 * 1.77 * 1.1in

We confidently assure you'll be satisfied with what you get.However, If there's a chance that you are not satisfied with our goods or something else, please let us know before leaving us a Negative feedback. We will try our best for 100% customer satisfaction. Your 5-Star Positive Feedback is much appreciated to us, and your satisfaction is our greatest motivation to move forward.Welcome to Shop Here! Want more Items? Please come visit our SHOP.

*Shipping and Packaging All it will be double checked and well packed before sending.It will be dispatched within 5 business days after buyers pay for the order. It usually takes about 14 to 18 working days for delivering the package to the destination(for remote areas,it may take a little longer).Your satisfaction is our first priority.

*If you receive the order and it is in good condition,we would be grateful if you would leave us 5 star Positive Feedback for the transaction.

Key Features

It can identify 3 kinds of signal frequencies.
Direction indication function, accurately identify optical fiber direction.
It comes with red light source and LED light, stable and strong beam focus, effectively cooperate with cable detection.
Ergonomic design, when holding the machine, press the back trigger switch to clamp the optical fiber cable, it will start test automatically.
Compatible with 3.0/2.0/0.9/0.25mm fiber cable.
