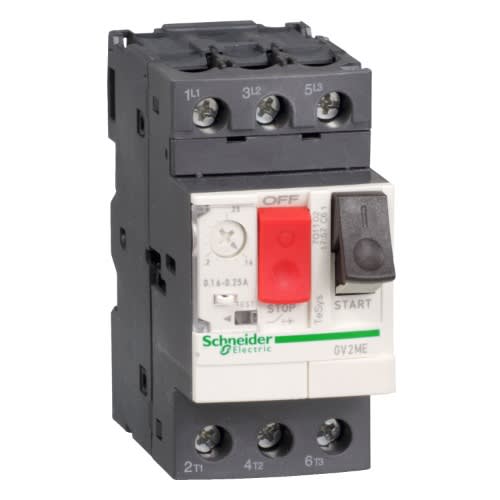

Motor Circuit Breaker - 3p - 13-18 A - Thermal Magnetic - Screw Clamp Terminals|| GV2ME20

TeSys GV motor circuit breaker, 3 poles (3P), 18A/690V, for 3-phase motor applications 7.5kW@400V. It provides a thermal-magnetic protection with a thermal setting range 13-18A, magnetic tripping at 13xIn, high breaking capacity Icu 15kA@400V. Connection by screw clamp terminals. Start-stop control by push-button guaranteed for 100 000 cycles AC-3. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine, ATEX), Green Premium compliant (RoHS/REACh).

SPECIFICATION

Main

• range of product TeSys GV2
• range TeSys Deca
• device short name GV2ME
• product name TeSys GV2, TeSys Deca
• product or component type Motor circuit breaker
• device application Motor protection
• trip unit technology Thermal-magnetic

Complementary

• poles description 3P
• network type AC
• utilisation category AC-3 conforming to IEC 60947-4-1, Category A conforming to IEC 60947-2
• network frequency 50/60 Hz conforming to IEC 60947-4-1
• fixing mode 35 mm symmetrical DIN rail: clipped, Panel: screwed (with adaptor plate)
• operating position Any position
• control type Push-button
• [In] rated current 18 A
• thermal protection adjustment range 13A…18 A
• magnetic tripping current 223 A
• [Ue] rated operational voltage 690 V AC 50/60 Hz conforming to IEC 60947-2
• [Ui] rated insulation voltage 690 V AC 50/60 Hz conforming to IEC 60947-2
• [Ith] conventional free air thermal current 18 A conforming to IEC 60947-4-1
• [Uimp] rated impulse withstands voltage 6 kV conforming to IEC 60947-2
• power dissipation per pole 2.5 W
• mechanical durability 100000 cycles
• electrical durability 100000 cycles for AC-3 at 415 V, at 415 V
• maximum operating rate 25 cyc/h
• rated duty Continuous conforming to IEC 60947-4-1
• tightening torque 1.7 N.m on screw clamp terminals
• height 89 mm
• width 45 mm
• depth 78.5 mm
