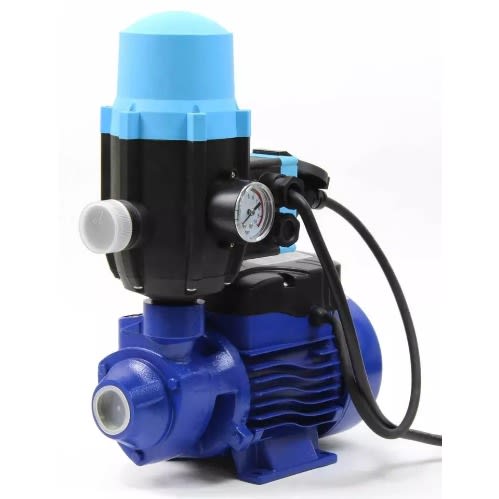

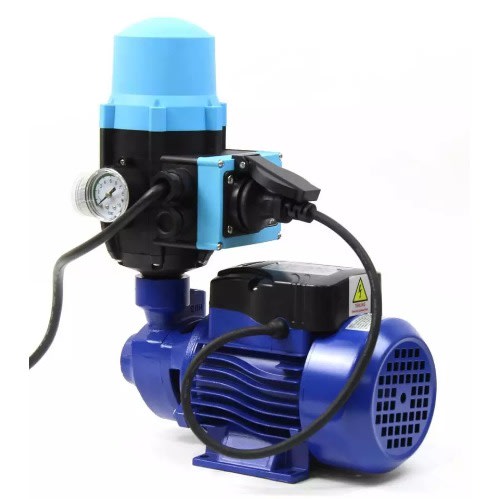

Water Surface Pump +Automatic Pressure Control Booster-0.5HP

ApplicationApplication

Suitable for use with clean water that does not contain abrasive particles and liquids that are not chemically aggressive towards the materials from which the pump

is made.

They are easy to use and are economical, they are ideal for domestic use and in particular for distributing water in combination with small pressure sets and for the irrigation of gardens and allotments. The pump should be installed in an enclosed environment,

or at least sheltered from inclement weather.

Motor

Two-pole induction motor(n-2850 r.p.m)

* Insulation Class B Protection IP44

Continuous service $1

Thermal protector Single-phase 220V/50Hz, 60Hz if request

Component

Operating conditions

Liquid temperature up to 60°C Ambient temperature up to 40°C

Total suction lift up to 8m

*Pump body:

*Pump support:

Construction

Cast iron, with brass/AISI304 SS insert if request

Cast iron, with brass/AISI304 SS

insert if request

Aluminum

Brass

Carbon steel, AISI 304 SS if request

Ceramic/Graphite

Motor housing:

*Impeller:

Motor shaft:

Mechanical seal:
