Elite 1200 Kva Pro Ups
Elite 1200 Kva Pro Ups
UPS | Elite 1200 PRO
FEATURES:
- Auto restart
- Overload protection
- Short circuit protection
- Compatible with generators
- Over temperature protection
- Intelligent battery management
- Built-in AVR with wide input range of 140V-300V
- Voltage/Wattage: 220V

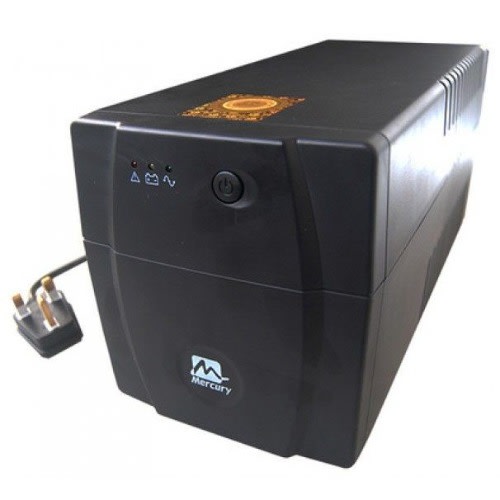

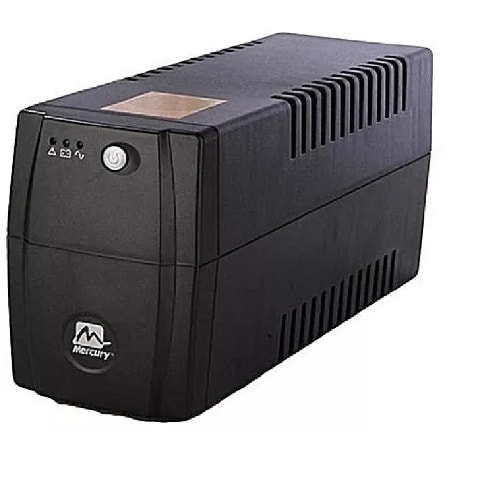

For a UPS that can be trusted for performance, reliability and durability, the Mercury UPS brand is one of the top choices. The Mercury Elite 1200 Pro Line Interactive UPS is suitable for office and domestic IT equipment and electronics.
The total output rating of the Mercury Elite 1200 is 720 watts. Check the full technical specifications, below.
| Input voltage | 220VAC |
| Input frequency | 50Hz |
| Input phase | Single phase |
| Input socket | With Fuse |
| Cold Start (0 to 100% load) | Press the ON/OFF switch |
| Input range (220V) | 140-300 |
| Rating output (VA). | 1200VA |
| Rating output (W). | 720W |
| Waveform | Battery mode (simulated sine wave), AC mode (sine wave |
| Power factor | 0.6 |
| Rating voltage | 220V |
| Output range | 220Vac-7% to +15% in battery mode |
| Rear Output Socket | 4 x Universal - Battery backup |
| Transfer time | TYPICAL4-8ms |
| Communication Interface | optional RS232/RJ11 |
| Rating frequency | 50Hz |
| Line-mode | Synchronize with the Utility |
| Battery mode | 50 Hz±1Hz |
| Line Mode | FUSE& firmware protection |
| Battery Mode | Software protection controlled by firmware |
| Line Mode | 110%±5%; Go to fault mode after 5 minutes, 120%±5%; Go to fault mode immediately. |
| Battery Mode | 110%±5%; Shutdown after 5 seconds, 120%±5%, Shutdown immediately |
| Rating | 2 X 12V/7.5AH (Actual rating 7AH) |
| Backup time - Typical | 20 to 30 mins (depending on load) |
| Charge current | About 1A at normal mode. |
| Over charge protection | 29V±0.2V stop charging, 27.4+/-0.2V recharge |
| Weight | 8.6+/-0.3 Kg |
| Dimensions per unit packaging | 395x205x258mm |
|
|
|
| Dimensions per Master carton | 410x430x273mm |
The Mercury UPS range comes with a full year warranty of the manufacturer. This product is effectivirly supported by the manufacturer, with a full service workshop in Lagos and other service centers in parts of the country.
