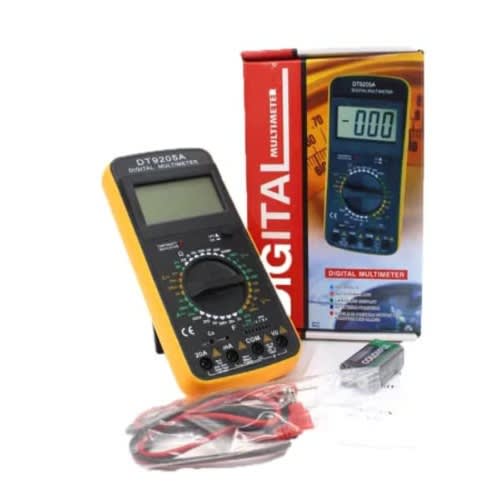

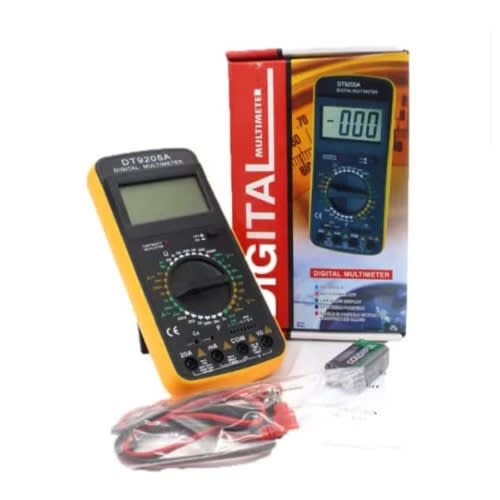

Electrical Digital Multimeter Tester Ac-dc Meter Dt9205

Features:

The meter is a held 31/2 digital multimeter for measuring DC and AC Voltage,DC and AC current,Resistance,Diode,Transistor,freguency,trmperature,capacitance and Continuity Test. The Back light of display is optional.

Specifications:

Display: Blue Back-light LCD, 1999 counts, updates 2-3/sec

Measuring method: Dual-slope integration A/D Converter

Operating Environment: 0 to 40 ?C

Power: 9V Battery, NEDA 1604 or 6F22 Type(Not included)

Fuse Protection: 200mA/250V

Size: 138mm x 69mm x 31mm

Weight: Approx. 280g

DC Voltage:

Measurement Range 200VmV-600V ?0.5% of rdg ? 2 digits

Overload Protection: 250V rms

AV Voltage:

Measurement Range 200V-600V ?1.2% ? 10 digits

Overload Protection: 600VDC or rms

DC Current:

Measurement Range DC 2000-10A ?1% of rdg ? 2 digits

Overload Protection: F 200mA/250V fuse (10A range unfused)

Resistance: Measurement Range 200 Ohms - 2M Ohms ?0.8% of rdg ? 3 digits

Maximum Open Circuit Voltage: 3.2V

Overload Protection: 250VDC or rms

Transistor: Measurement Range hFE TEST (0-1000)
