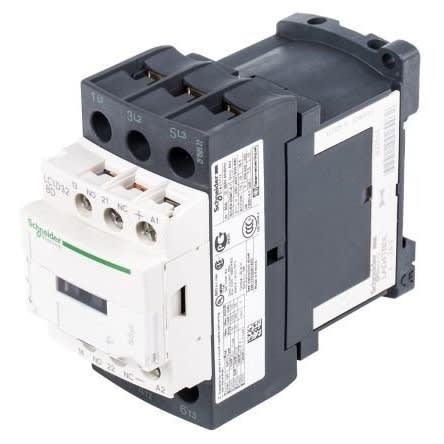

32a Contactor With 32a Abb Mcb Circuit Breaker And Timer Relay

Schneider Electric is a European multinational company providing energy and automation digital solutions for efficiency and sustainability.

Features:
1. 100%new and high quality.

2. This product is an industrial electric appliance that uses a coil to flow through the current to generate a magnetic field that closes the contact to achieve the control load of the electrical installation

3. The contactor is sensitive and has a greater carrying capacity.

4. Stable connection contact is of strong conductivity.

5. Usually used in power, distribution and power applications.

Specification:

Current: 32A

Coil Voltage: AC 220V

Ui: 690V

Uimp: 6kV

V/KW : (200-220)/2.2-3.7

max HP: 6HP

Torque: 20ib

Max. short circuit rms ratings: 5kv, 600v. with high response circuit breaker

Operating Frequency: 1200 times/hour

Wiring Mode: Plate Front Wiring

Installation Method: Fixed Type, Rail Type

Weight: Approx. 551g / 19.4oz

Miniature circuit breakers protect installations against overload and short-circuit, warranting reliability and safety for operations. System pro M compact S 200 series are current limiting overcurrent protective devices. They have two different tripping mechanisms, the delayed thermal tripping mechanism for overload protection and the magnetic tripping mechanism for short circuit protection.

Buttons Features:

• Product Name: Push Button Switch;
• Action Type: Latching
• Model : XB2BA42 X1 and XB2BA32 X1
• Contact Type: ON (NO) + OFF (NC)
• Poles: SPST
• Max voltage : 660V
• Current : 10A
• Quantity: 1 OFF buttons + 1 ON buttons
• Terminal : 2 Pins

Color: As Picture Shown;

Package Content: 1 x ON Push Buttons Switch and 1 OFF Push Buttons Switch

* Features: 2 terminals, 22mm mounting hole, 1NO with 1NC contact type,

* Used widely to control the electromagnetic starter, contactor, relay and other automatic control electric circuits.

Package List:

1 * AC Contactor + MCB + Auxilary contact +timer relay
