LCD Display Electricity Usage Meter Socket Energy Watt

This meter is a monitoring and testing instrument which determines the consumption of a connected appliance and the cost of the electricity consumed, helping users to track their electric consumption and reduce the bill and carbon emissions.



Features:

Great for Energy Consumption Monitor: used to measure the consumption, current, voltage, and cost of the connected appliance, helping save energy and money.

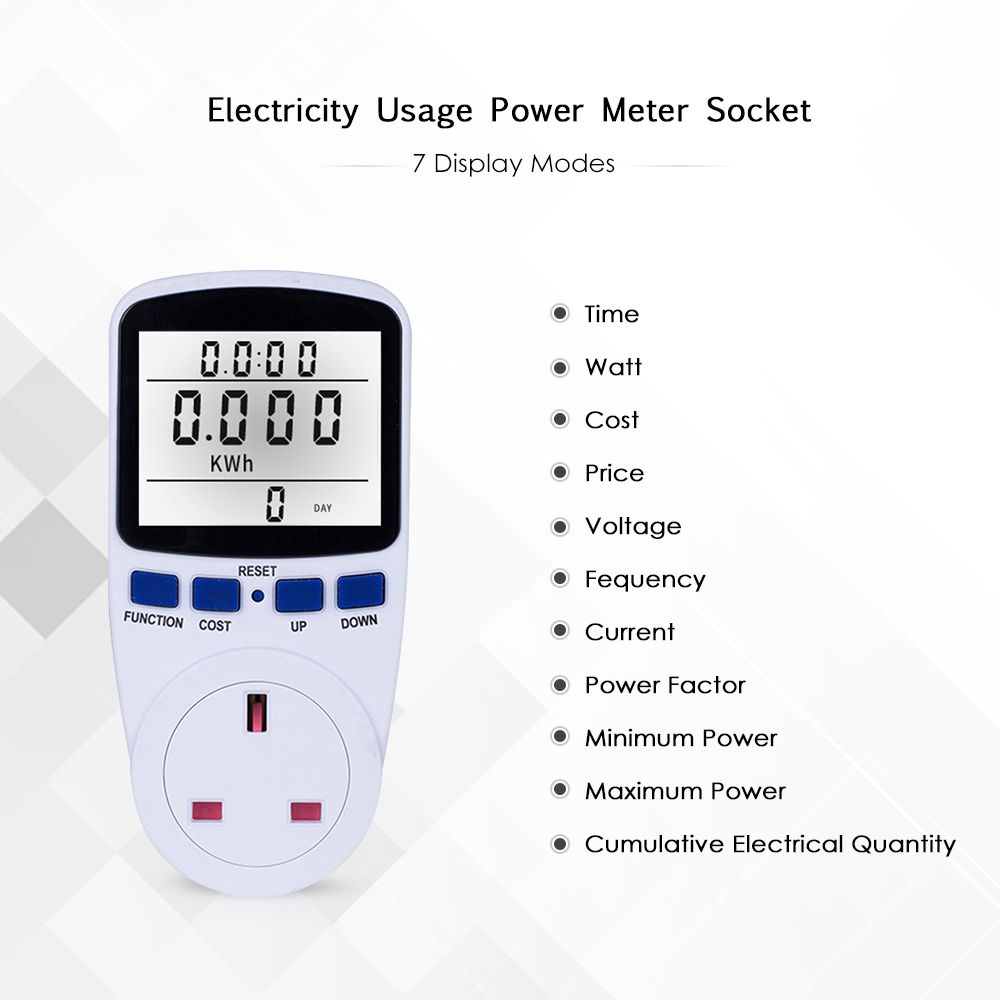

7 Display Modes: it can display time, watt, cost, cumulative electrical quantity, voltage, frequency, current, factor, minimum , maximum , price.

Large LCD display: easy and clear to read. No backlight / With backlight optional.

Electricity Price Setting: you can set the electricity price according to the actual condition in 00.00 COST/KWh~99.99 COST/KWh.

Overload Setting: when current load goes beyond the max. load , the letters "OVERLOAD" on LCD will keep blinking to remind you.

Reset Function: it allows resetting for abnormal display or no-response of button.

Built-in Battery: built-in a rechargeab-le battery to store electricity and save memory setting when failures.



Specifications:

Material: PC

Plug Type: UK

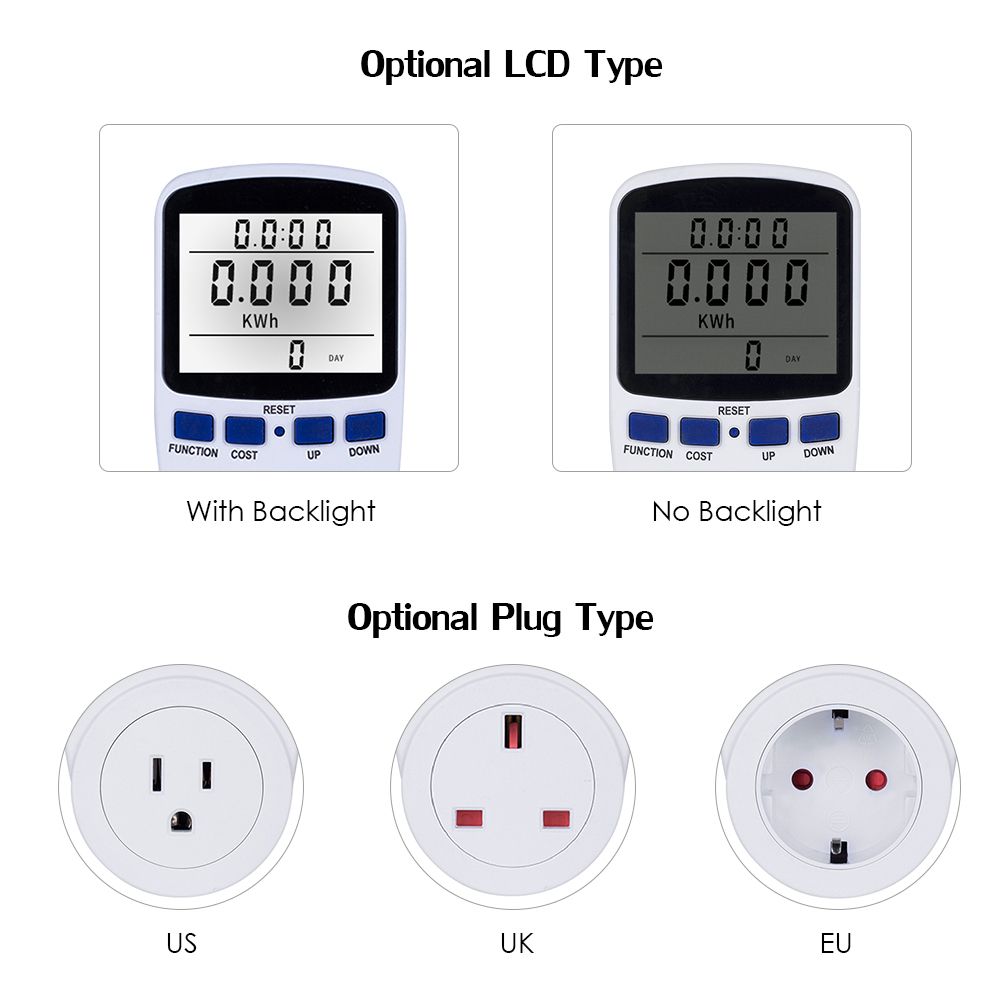

LCD Type: With Backlight / No Backlight (Optional)

Working Voltage: 230V~250V(UK)

Timing Display Range: 0 second~9999 days

Wattage Display(watts): 0W~2900W

Voltage Display Range: 0V~9999V

Frequency Display: 0Hz~9999Hz

Minimum/Maximum Wattage Display Range: 0.0W~9999W

Price Display Range: 0.00€/KWH~99.99€/KWH

Total KWh & Cost Display: 0.000KWH~9999KWH, 0.00€~9999€

For EU Plug Technical Parameters:

Operating Voltage: 230V, 50Hz

Operating Current: Max. 16A

Current Display(amps): 0.000A~16.000A

For US Plug Technical Parameters:

Operating Voltage: 120V, 60Hz

Operating Current: Max. 15A

Current Display(amps): 0.000A~15.000A

For UK Plug Technical Parameters:

Operating Voltage: 230V, 50Hz

Operating Current: Max. 13A

Current Display(amps): 0.000A~13.000A

Battery: built-in a 3.6V 20mAh rechargeab-le NI-MI battery(included)

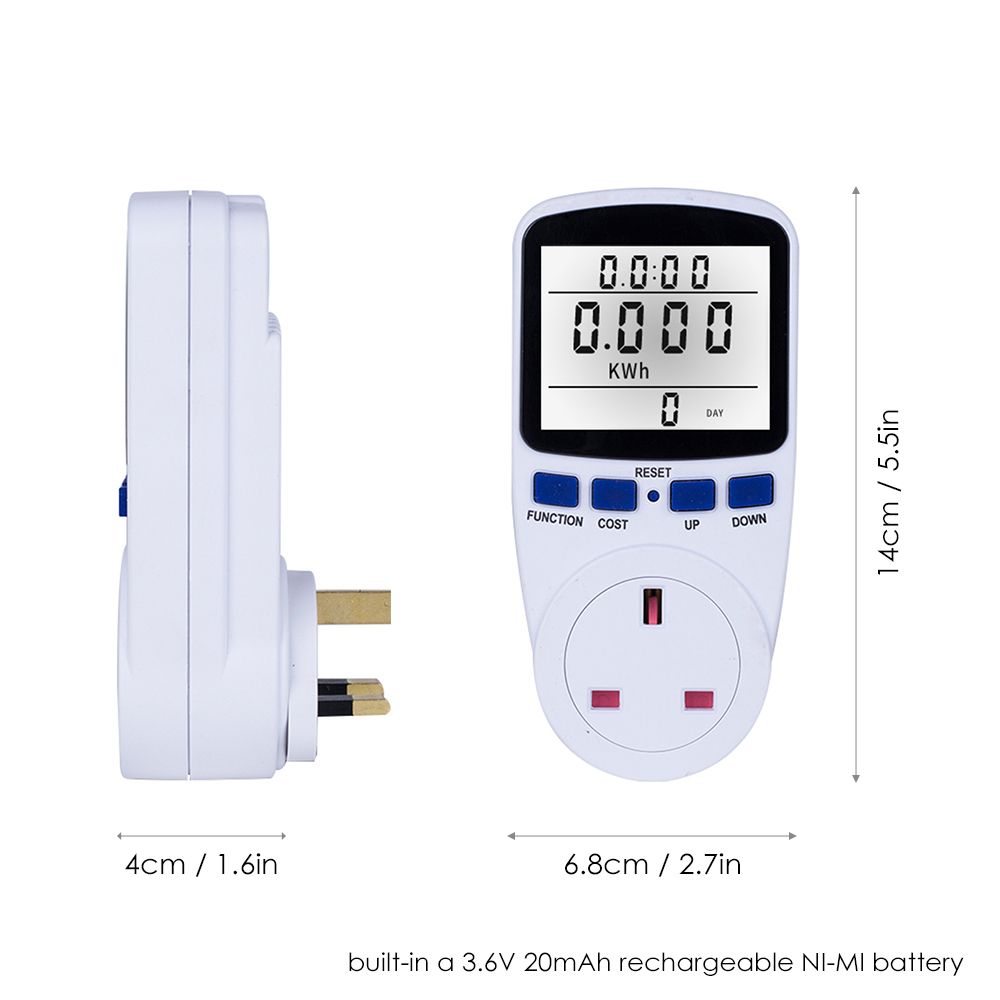

Item Size(without plug): 6.8 * 4 * 14cm / 2.7 * 1.6 * 5.5in (L * W * H)

Item Weight: 186g / 6.6oz

Package Size: 15 * 8 * 7.2cm / 5.9 * 3.1 * 2.8in

Package Weight: 215g / 7.6oz



Package List:

1 * Meter

1 * User Manual(English)

Key Features

Great for Energy Consumption Monitor: used to measure the consumption, current, voltage, and cost of the connected appliance, helping save energy and money.
7 Display Modes: it can display time, watt, cost, cumulative electrical quantity, voltage, frequency, current, factor, minimum , maximum , price.
Large LCD display: easy and clear to read. No backlight / With backlight optional.
Electricity Price Setting: you can set the electricity price according to the actual condition in 00.00 COST/KWh~99.99 COST/KWh.
Overload Setting: when current load goes beyond the max. load , the letters "OVERLOAD" on LCD will keep blinking to remind you.
Reset Function: it allows resetting for abnormal display or no-response of button.

What's In the Box

1 x Meter,1 x User Manual(English)
