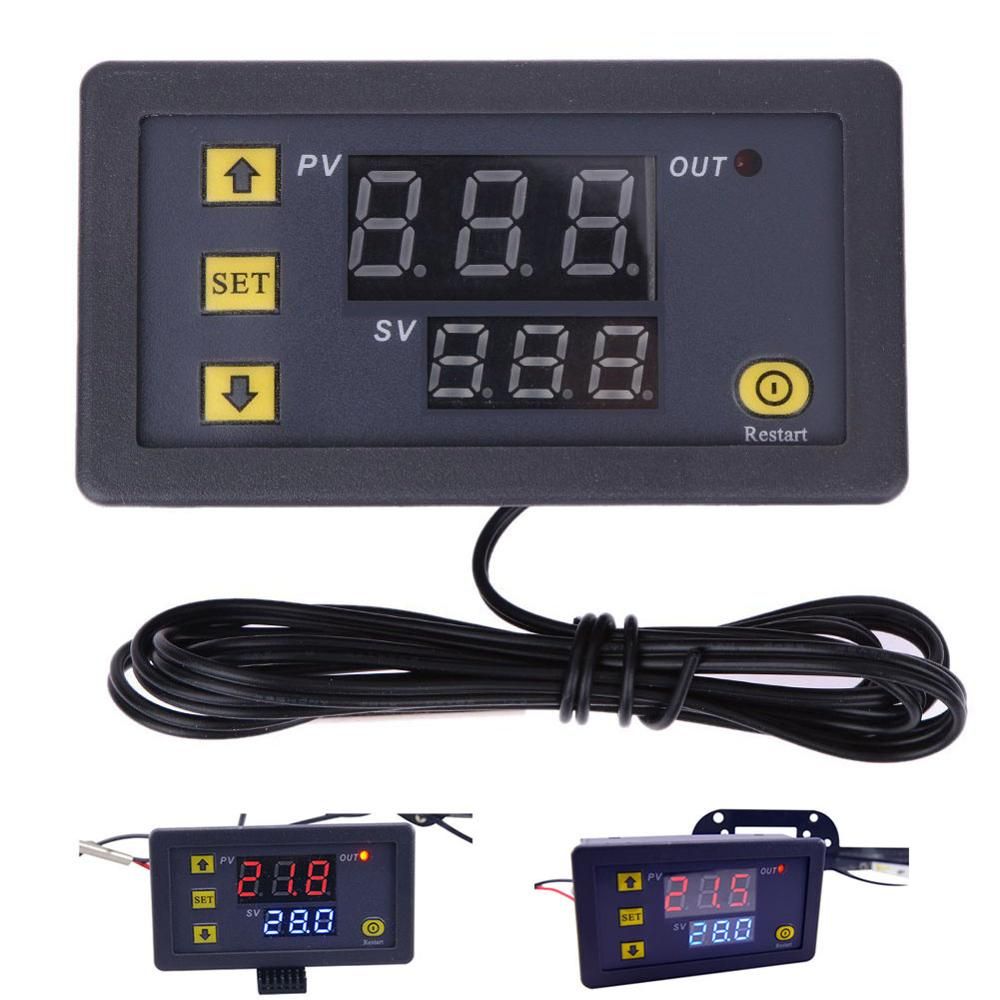

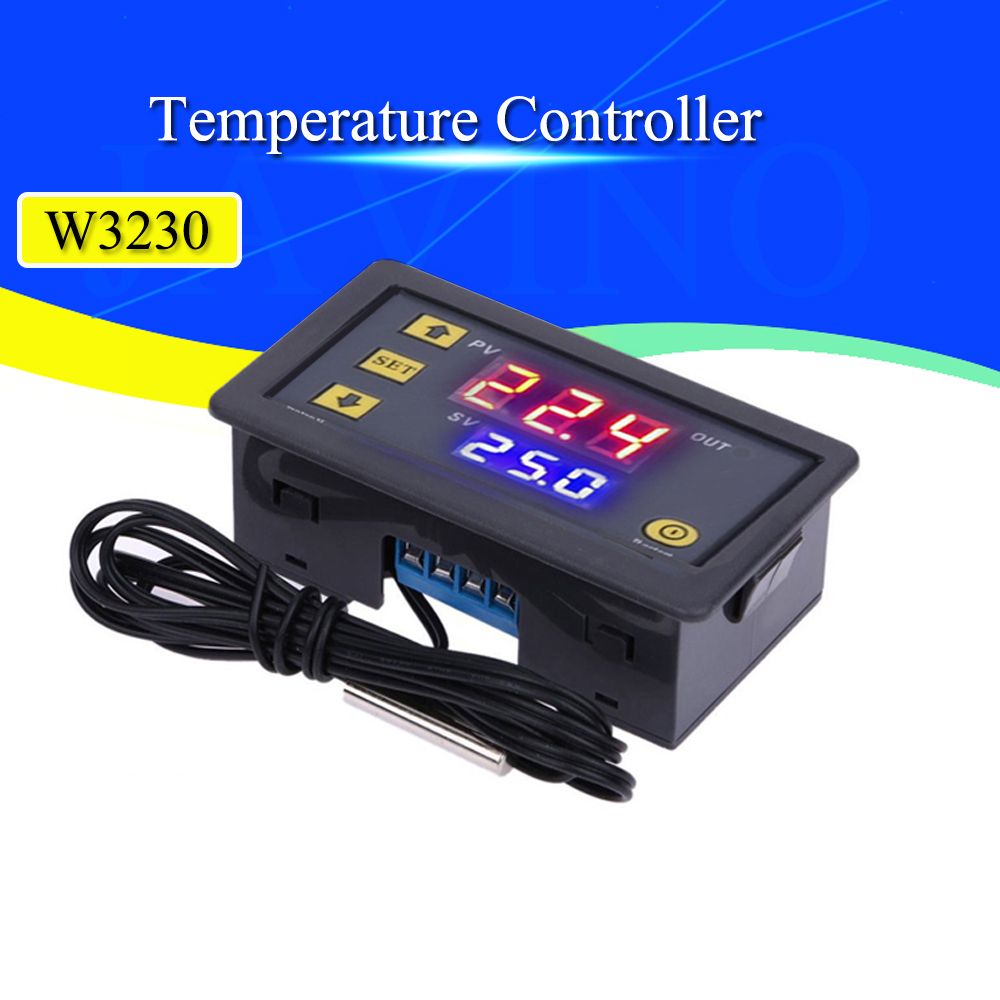

W3230 Digital Temperature Control LED Display Thermostat Controller

W3230 DC 12V 24V 110V 220V AC Digital Temperature Controller LED Display Thermostat With Heating Cooling Switch NTC SensorDescription:

• Mini temperature controller.

• With clear LED display for better readability.

• Wide temperature measuring range.

• Heating or cooling control.

• All parameters setting can be saved after short circuit.

• Relay output.

• High Control precision 0.1 centigrade

• Can be used for domestic freezer, water tanks, refrigerator, industrial chiller, steamer, industrial equipment and other temperature-controlled system.

• Power Supply:12V DC/24V DC/110V-220V AC

• Temperature Control Range:-55°-120°

• Resolution Ratio: 0.1°C(-9.9-99.9); 1°C(other range)

• Color of Displaying: red/blue

• Measurement accuracy: ±0.1°C

• Control accuracy: 0.1°C

• Sensor: NTC10K Waterproof sensor

• Output: Relay Contact Capacity 10A 220V / 20A 12V / 20A 24V

• Environmental requirements: -10-60°C , humidity 20%-85%RH

• Dimension:79mm *43mm*26mm

• Cutting Size:73mm*39mm

• Sensor wire: 1 meter

Wiring Diagram:

12V DC:

24V DC:

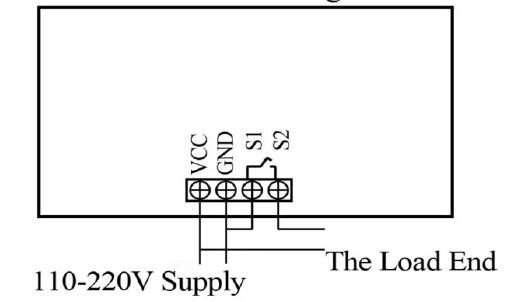

110V-220V AC:

Key Features

Mini temperature controller.
With clear LED display for better readability.
Wide temperature measuring range.
Heating or cooling control.
All parameters setting can be saved after short circuit.
Relay output.
High Control precision 0.1 centigrade
Can be used for domestic freezer, water tanks, refrigerator, industrial chiller, steamer, industrial equipment and other temperature-controlled system.

What's In the Box

Package Include:1PC x W3230
