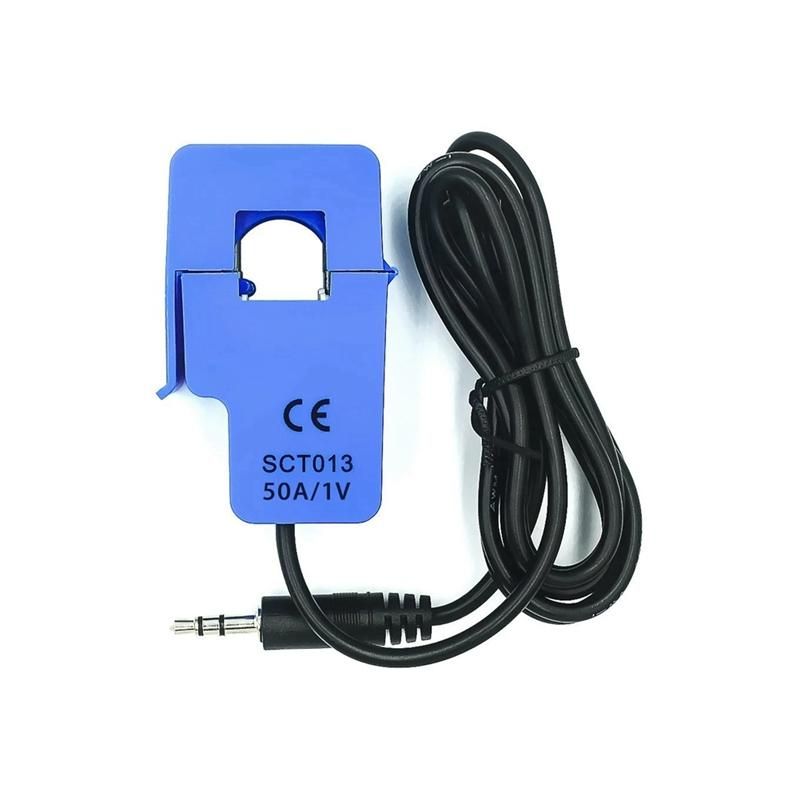

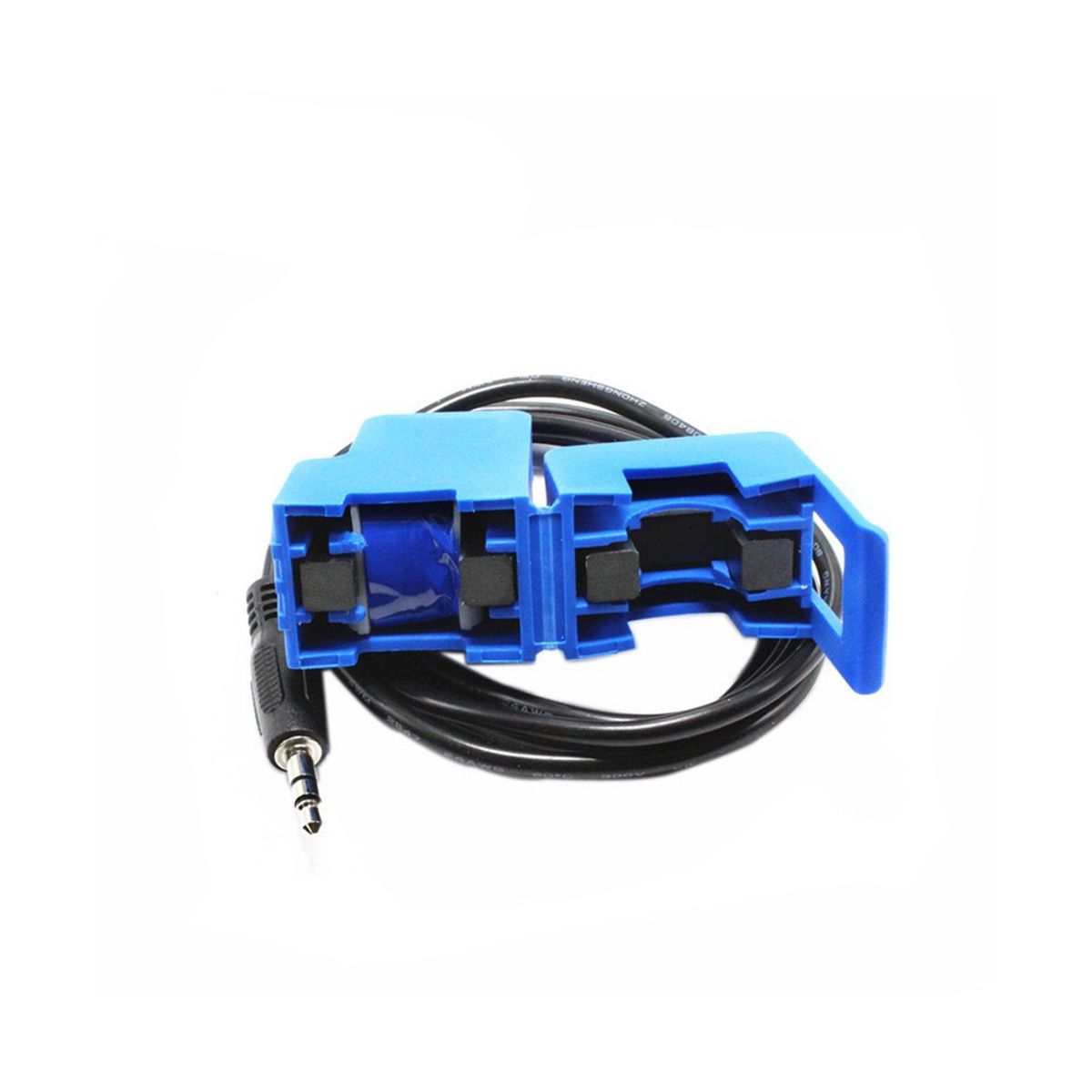

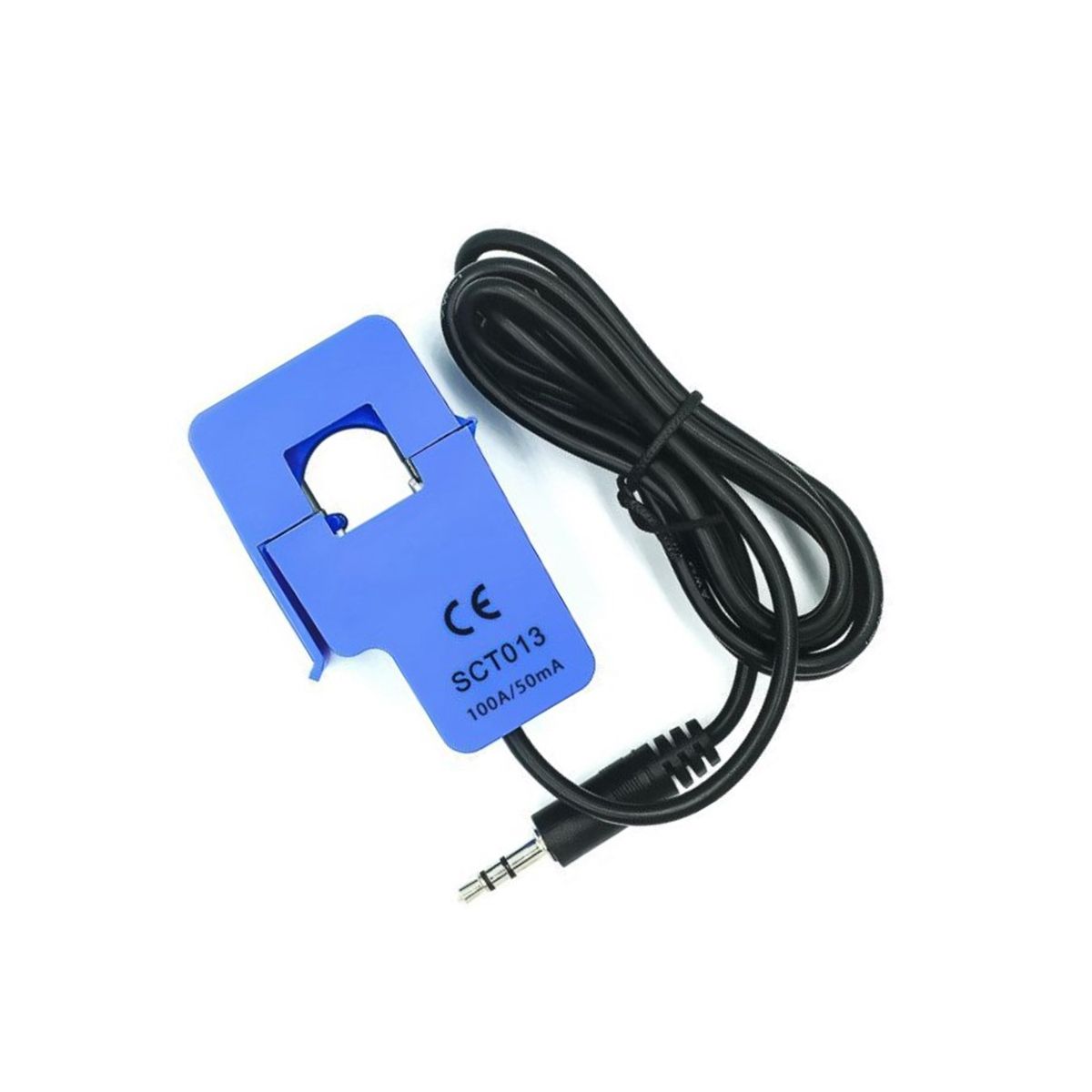

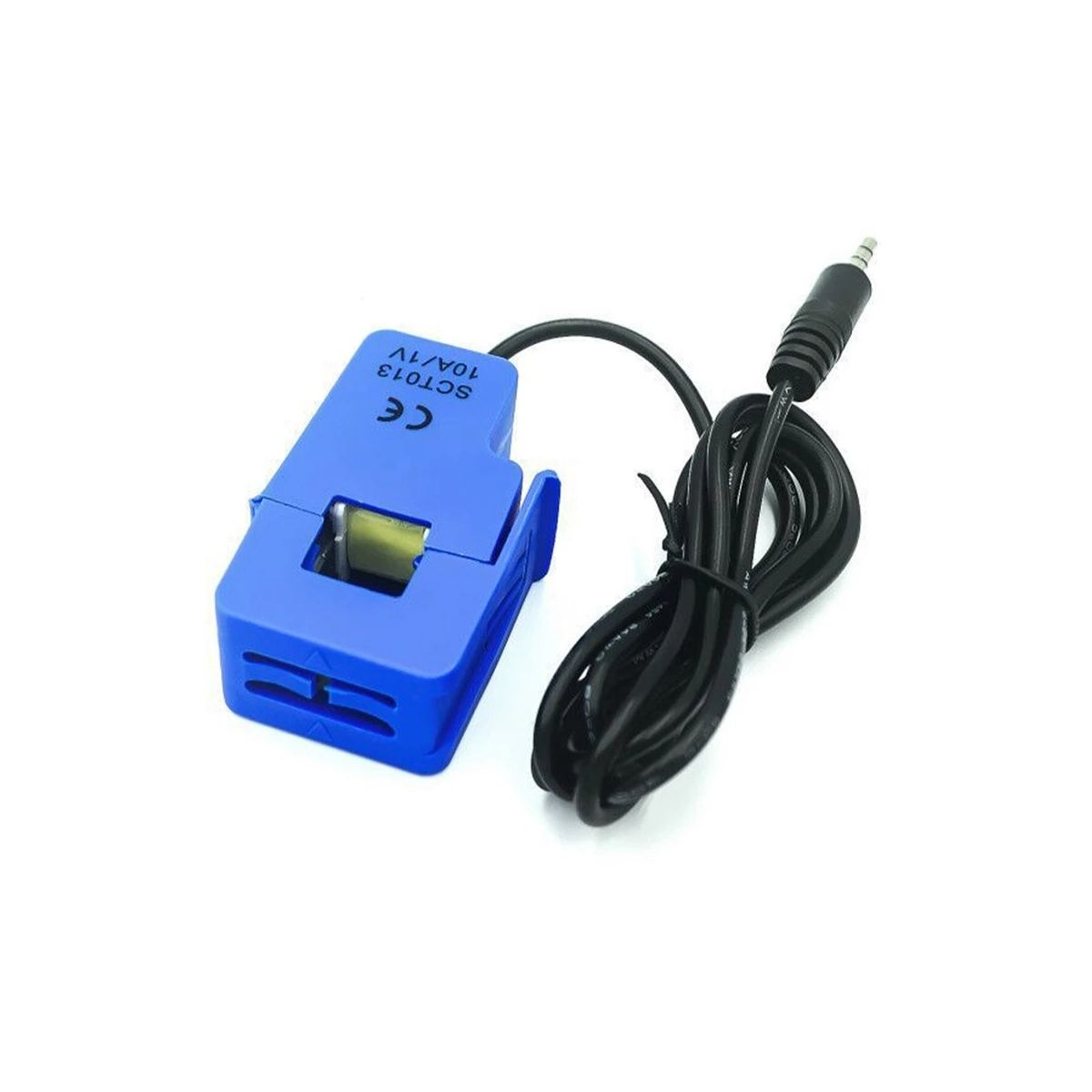

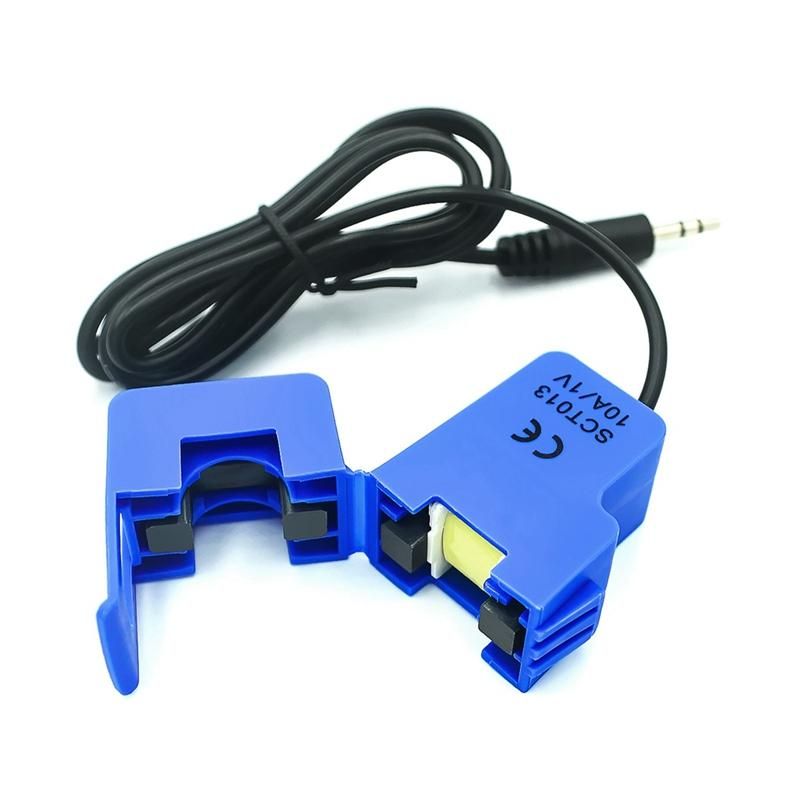

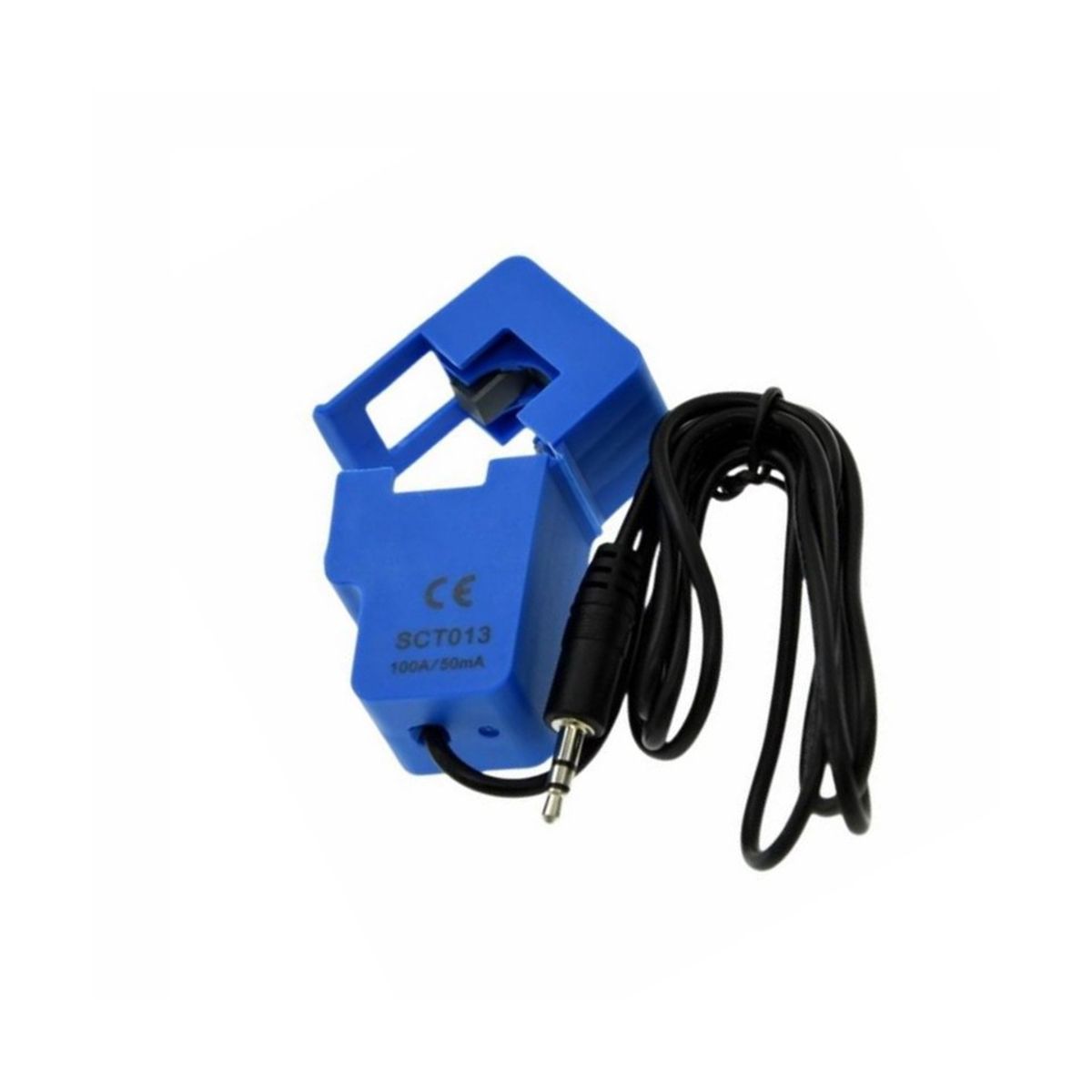

-013-000 Open- Current Transformer SCT013 Non-Invasive AC Current Sensor Split Core Current Transformer 50A 1V
˂
˃
-013-000 Open- Current Transformer SCT013 Non-Invasive AC Current Sensor Split Core Current Transformer 50A 1V
Price:
₦14,900
Share:
Product Description
Model SCT013
Frequency 50HZ-150KHZ
Retractable transformer -013
Opening size13mmx13mm
Non-linearity 3%10%-120% rated input current
15m leading wire35 3 core plug standard output
Two form of output current voltage voltage output built-in the sampling resistor
Core material ferrite
Mechanical strength opening and closing no less than 1000 20 C
Safety indicators Dielectric strength 6000V AC1min
Meet UL94-V0 retardant properties
Operating Temperature -25Celsius~ 70Celsius
Applications
for AC motors lighting equipment air compressors
and other current measurementmonitoring and protection
Colourblueblack
Materialplastic
type50A 1V
Package Contents
1 x Current Transformer
Only the above package content other products are not included
Note Light reflection and different displays may cause the color of the item in the picture a little different from the real thing The measurement allowed error is - 1-3cm
Frequency 50HZ-150KHZ
Retractable transformer -013
Opening size13mmx13mm
Non-linearity 3%10%-120% rated input current
15m leading wire35 3 core plug standard output
Two form of output current voltage voltage output built-in the sampling resistor
Core material ferrite
Mechanical strength opening and closing no less than 1000 20 C
Safety indicators Dielectric strength 6000V AC1min
Meet UL94-V0 retardant properties
Operating Temperature -25Celsius~ 70Celsius
Applications
for AC motors lighting equipment air compressors
and other current measurementmonitoring and protection
Colourblueblack
Materialplastic
type50A 1V
Package Contents
1 x Current Transformer
Only the above package content other products are not included
Note Light reflection and different displays may cause the color of the item in the picture a little different from the real thing The measurement allowed error is - 1-3cm
What's In the Box
1 x Current Transformer
Product Specification
| Model | Current Transformer |
|---|---|
| Production Country | China |
| Size (L x W x H cm) | 8x7x3 |
| Weight (kg) | 0.075 |
| Color | multicolor |
