Digital Manifold Gauge Electronic Refrigerant Meter HVAC

Intelligent electronic refrigerant group instrument is an auxiliary instrument for the installation, inspection and maintenance of refrigeration equipment such as air-conditioning, refrigerator, cold storage.

Features:

HVAC System Gauge Set has double pressure test, dual temperature test, digital readout, multi-unit switching, multi-mode function and built-in refrigerant database.

The guage can measure dual pressure and dual temperature at the same time, with automatic conversion of pressure and temperature units to facilitate different needs.

Built-in 89 kinds of refrigerant pressure-evaporation temperature database, also calculate the subcooling superheat, to facilitate direct reading of operating process data.

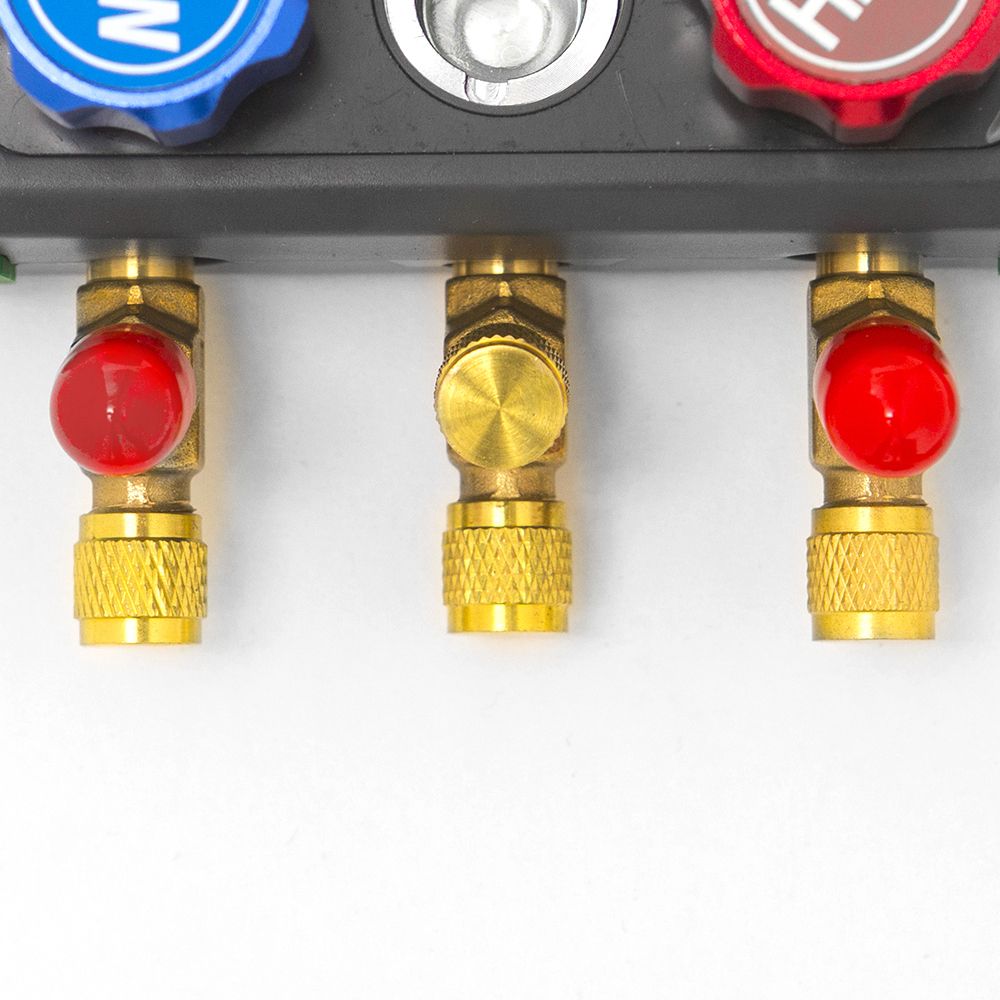

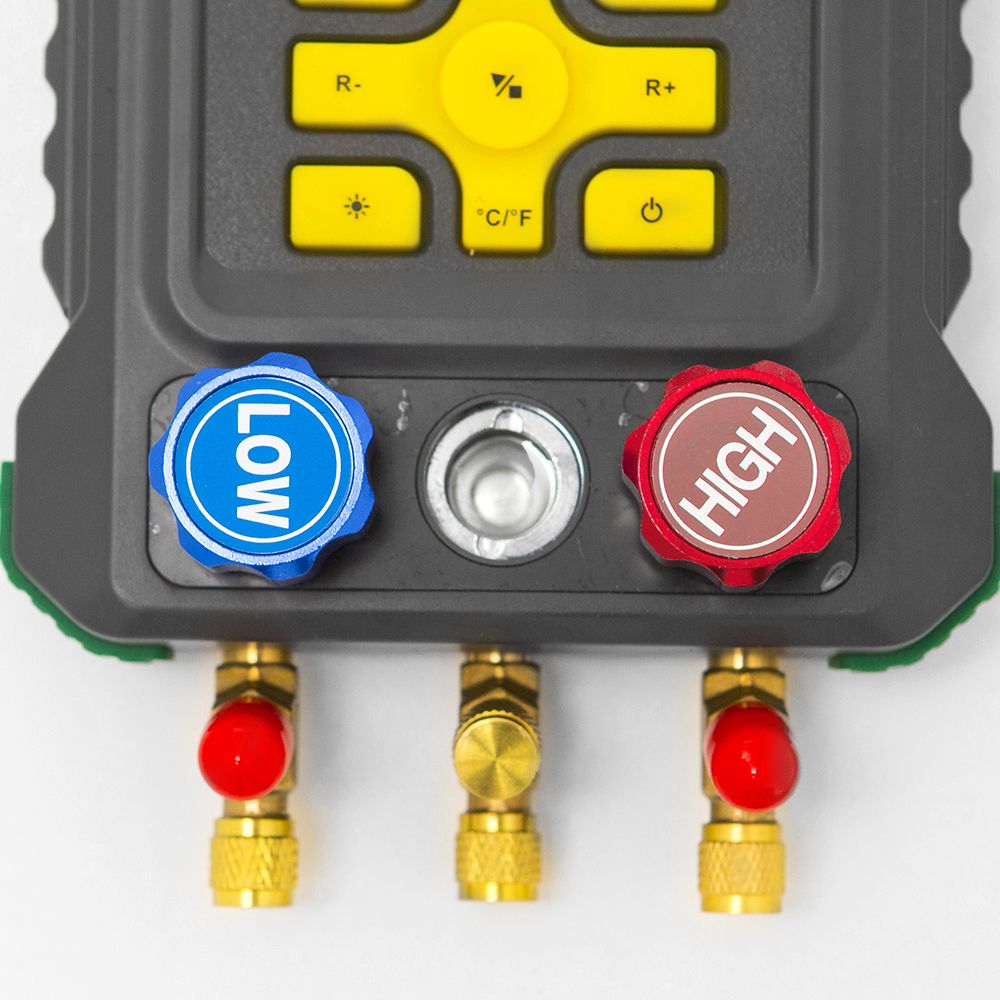

High clear backlit large screen, clear data, no need to worry about the dark environment. Long-lifespan valve switch, 1/4-inch standard interface design to ensure that the instrument\'s durability and versatility.

Adopts high-strength engineering plastics and flexible anti-slip silicone design, the machine is solid and comfortable to hold. Built-in 32-bit digital processing unit and high-accuracy data acquisition unit, data has high stability.

Multifunctional, accurate and simple operated digital manifold also can test percentage of vacuum measurement, pressure leak measurement, leak time speed record, and let you do the job right.

Specifications:

Material: ABS

Pressure Test: Gauge Pressure

Pressure Test Unit: Kpa; Mpa, Bar, inHg, PSI

Pressure Test Range: 0Kpa-6000Kpa

Pressure Test Resolution: 1Kpa

Pressure Test Accuracy: plusmn;0.5%(FS)+5dgt

Pressure Overload Limit: 10000Kpa (10Mpa, 100bar)

Vacuum Test: Relative Vacuum

Vacuum Test Unit: Kpa, Mpa, bar, inHg, PSI

Vacuum Test Range: -101Kpa~0Kpa

Vacuum Test Resolution: 1Kpa

Temperature Test Unit: deg;C (Celsius), deg;F (Fahrenheit)

Temperature Test Range: -40 deg;C ndash;150 deg;C (-40 deg;F ndash;302 deg;F)

Temperature Test Resolution: 0.1 deg;C (-40 deg;C ndash;99.9 deg;C), 1 deg;C (100 deg;C ndash;150 deg;C)

0.1 deg;F (-40 deg;F ndash;99.9 deg;F), 1 deg;F (100 deg;F ndash;302 deg;F)

Temperature Test Accuracy: plusmn;0.5 deg;C+2dgt / plusmn;0.9 deg;F+2dgt

Built-in 89 Kinds of Refrigerant NIST: According to AmericanNIST Standard

Power: 4 * 1.5V AA/LR6 Battery(Not Included)

Size: 170 * 110 * 50mm / 6.7 * 4.3 * 2.0in

Package Size: 350 * 300 * 100mm / 13.8 * 11.8 * 3.9in

Package Weight: 3200g / 7.1lb

Packing List:

1 * Digital Manifold Gauge

1 * User Manual (English)

2 * Temperature Clip

3 * Test Tube

1 * Suitcase
