About this item

• Raspberry Pi Pico W comes with a wireless communication module. The wireless module hardware uses Infineon's CYW43439 wireless which supports Wi-Fi 4 wireless networks in the 2.4 / 5 GHz band, making it the perfect solution for wireless network control and communication.
• 26 x multi-function GPIO pins: configurable pin function, allows flexible development and integration

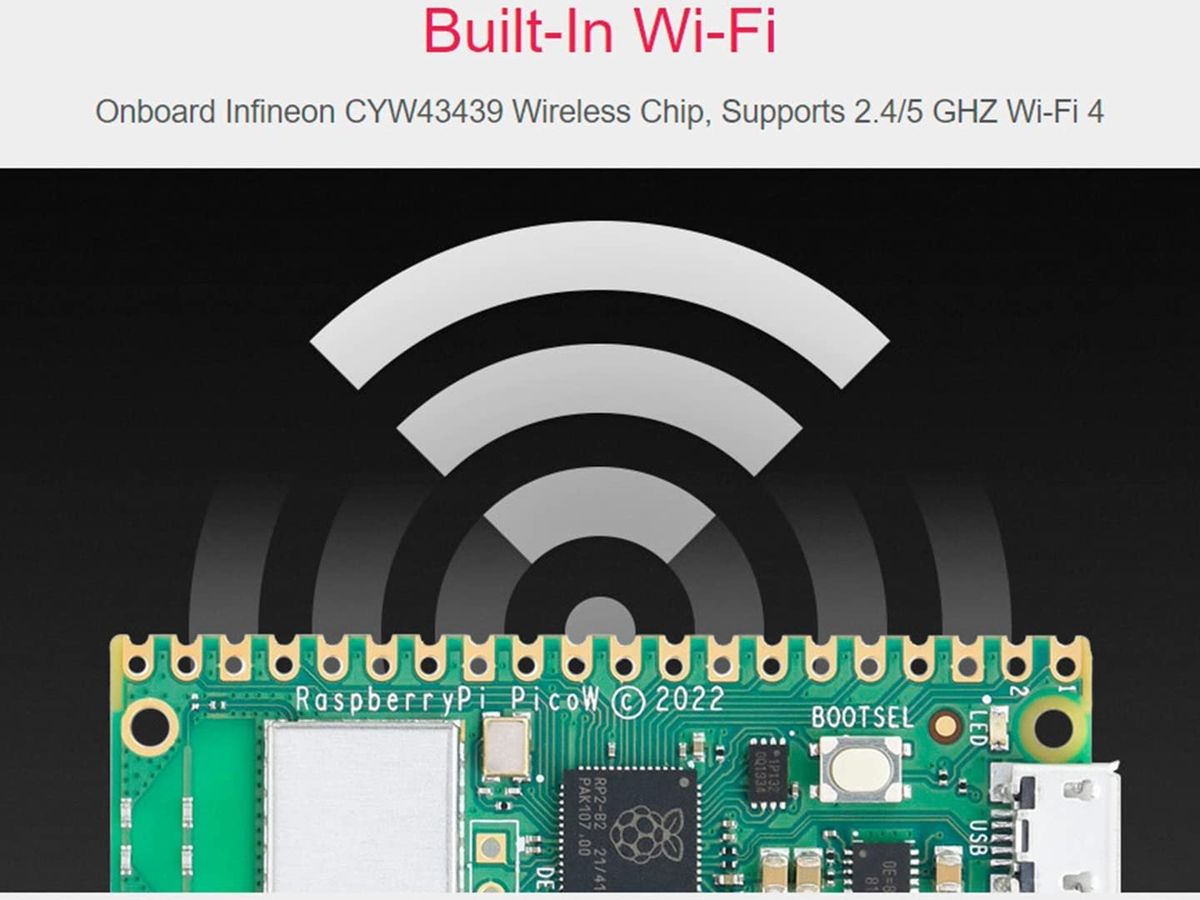

• Built-in Wi-Fi: Onboard Infineon CYW43439 wireless supports 2.4/5 GHZ Wi-Fi 4
• Dual-core Arm processor: Dual-core Arm Cortex M0+ processor, flexible clock running up to 133 MHz
• C/C++, MicroPython support: Comprehensive SDK, dev resources, tutorials to help you easily get started

Product Description

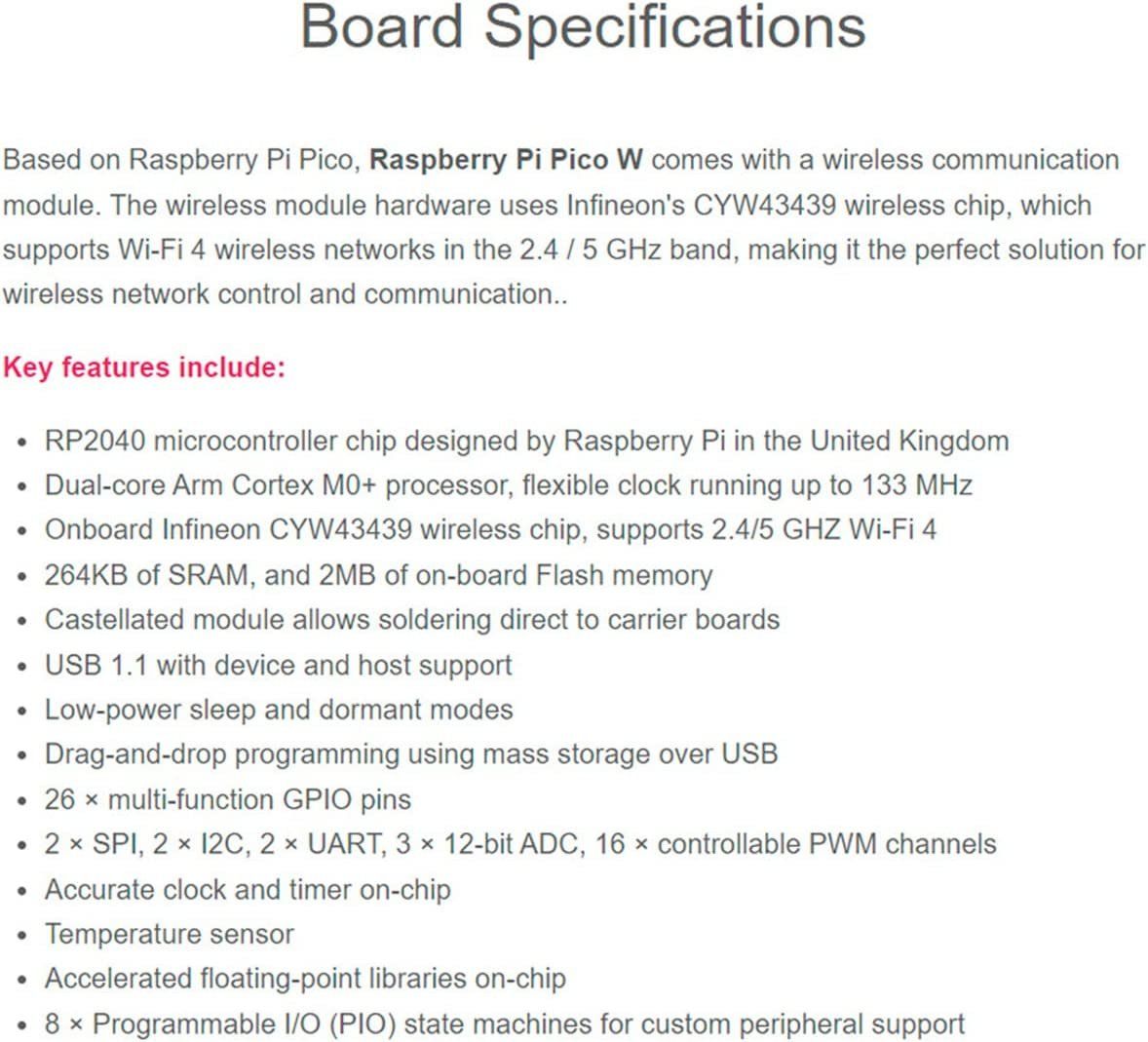

Board specifications

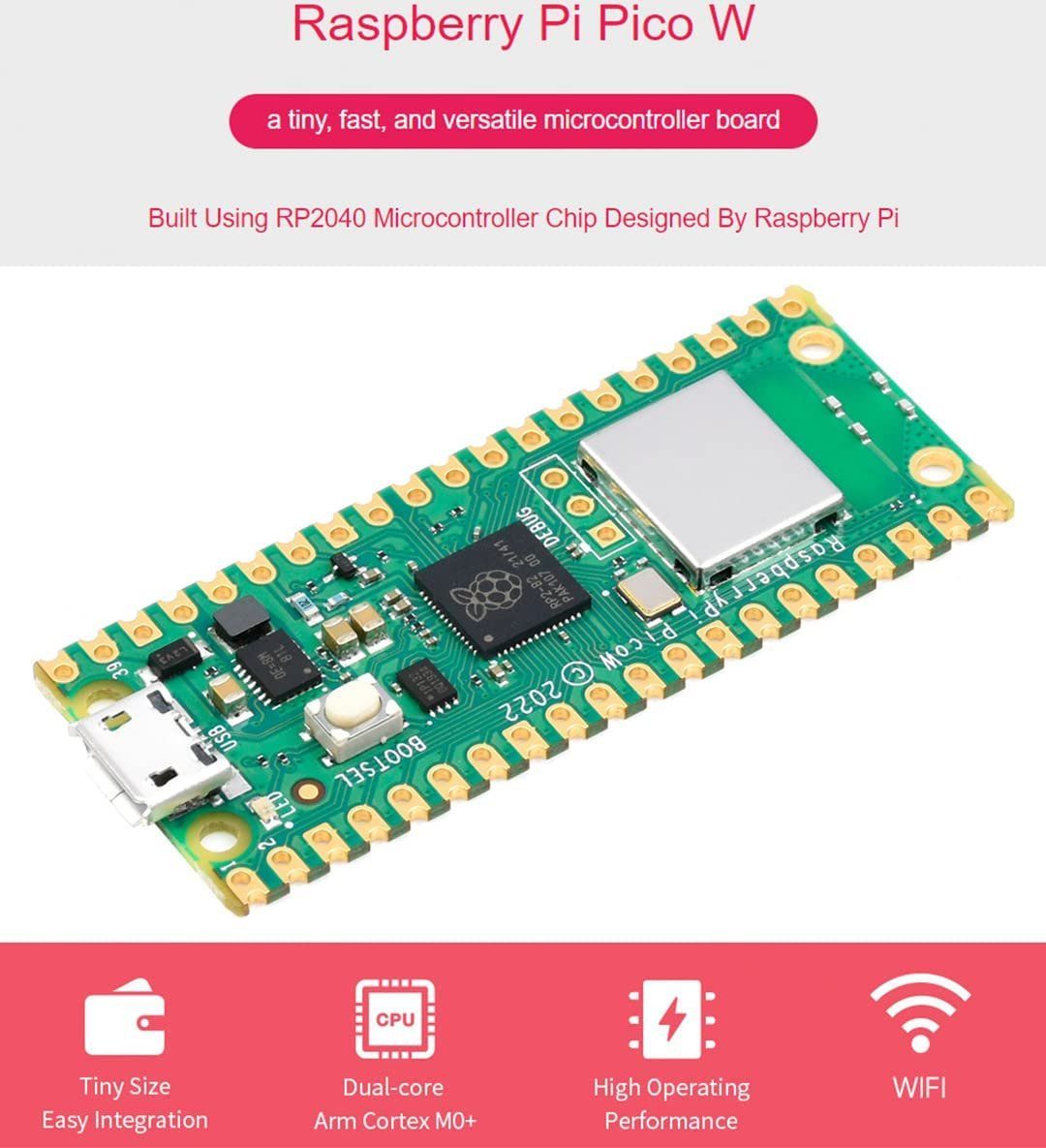

Based on Raspberry Pi Pico, Raspberry Pi Pico W board with pre-soldered header comes with a wireless communication module. The wireless module hardware uses Infineon's CYW43439 wireless which supports Wi-Fi 4 wireless networks in the 2.4 / 5 GHz band, making it the perfect solution for wireless network control and communication.


RP2040 microcontroller designed by Raspberry Pi in the United Kingdom
Dual-core Arm Cortex M0+ processor, flexible clock running up to 133 MHz
Onboard Infineon CYW43439 wireless supports 2.4/5 GHZ Wi-Fi 4
264KB of SRAM, and 2MB of on-board Flash memory
Castellated module allows soldering direct to carrier boards
USB 1.1 with device and host support
Low-power sleep and dormant modes
Drag-and-drop programming using mass storage over USB

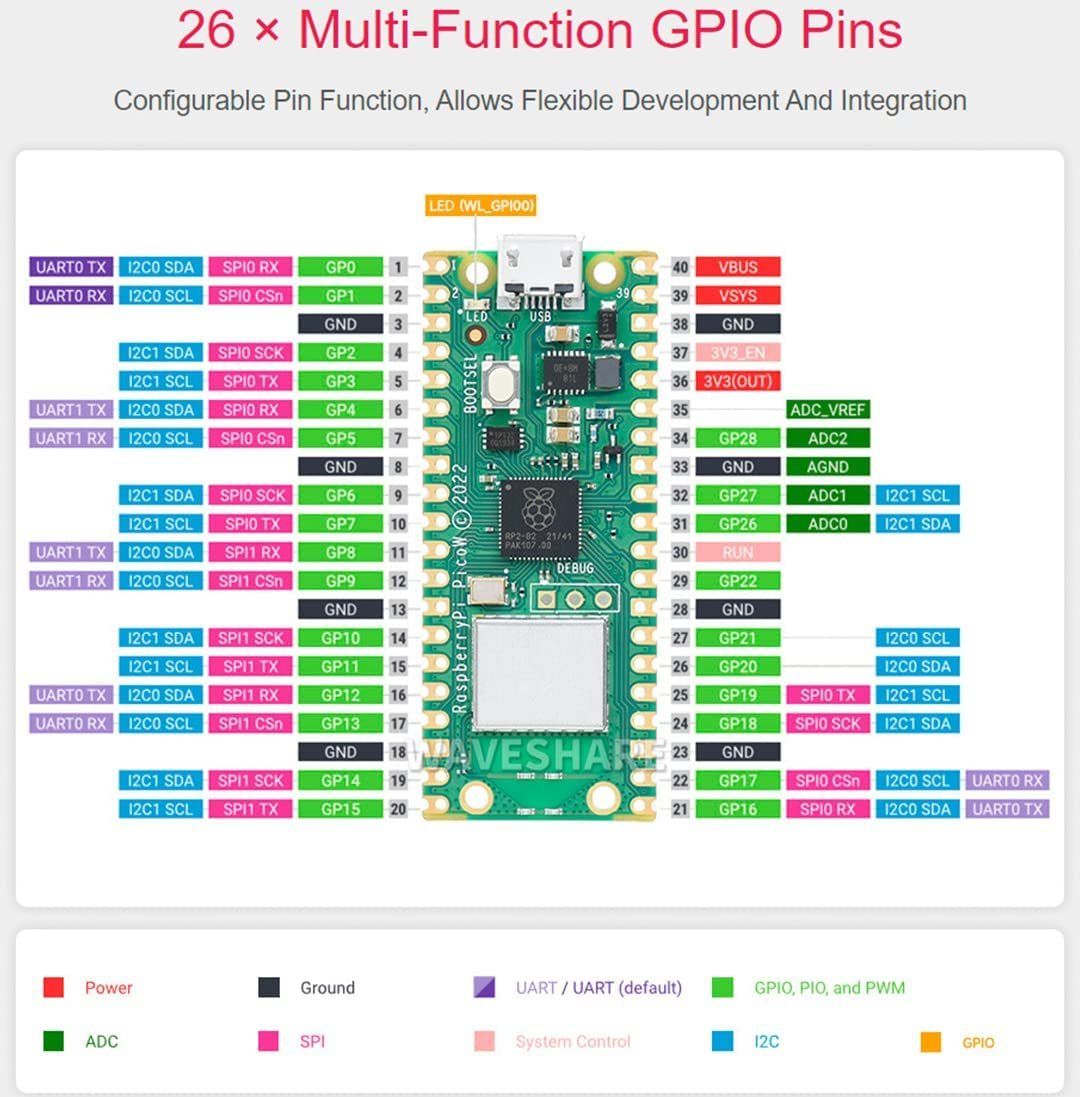

26 x multi-function GPIO pins
2 x 2 x I2C, 2 x UART, 3 x 12-bit ADC, 16 x controllable PWM channels
Accurate clock and on
Temperature sensor
Accelerated floating-point libraries on
8 x Programmable I/O (PIO) state machines for custom peripheral support

Package Content
Raspberry Pi Pico W board with pre-soldered header x1
3PIN yellow pin header x1
USB Type A to micro cable x1

Key Features

Brand : ‎waveshare
Item Weight : ‎1.13 ounces
Product Dimensions : ‎2.01 x 0.83 x 0.12 inches
Item Dimensions LxWxH : ‎2.01 x 0.83 x 0.12 inches
Color : ‎Pico W with pre-soldered header
Processor Brand : ‎ARM
Processor Count : ‎2
Manufacturer : ‎Waveshare
Date First Available : ‎October 24, 2022

What's In the Box

• 1 x X301 V1.0 Expansion Board
• 4 x M2.5x12 mm F/F Spacers
• 4 x M2.5x5mm Screws
• 2 x M2.5x10mm Screws
• 2 x M3x5mm Screws (to fix HDD)
