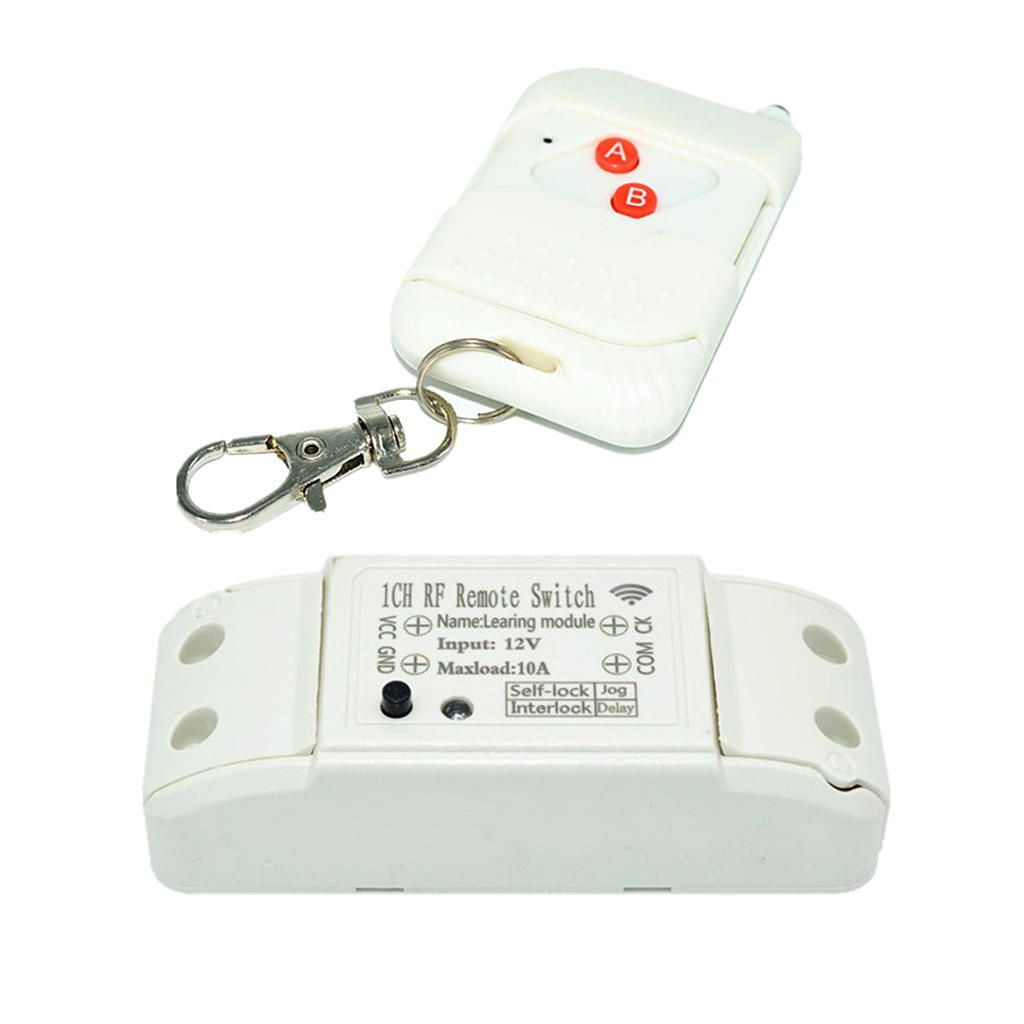

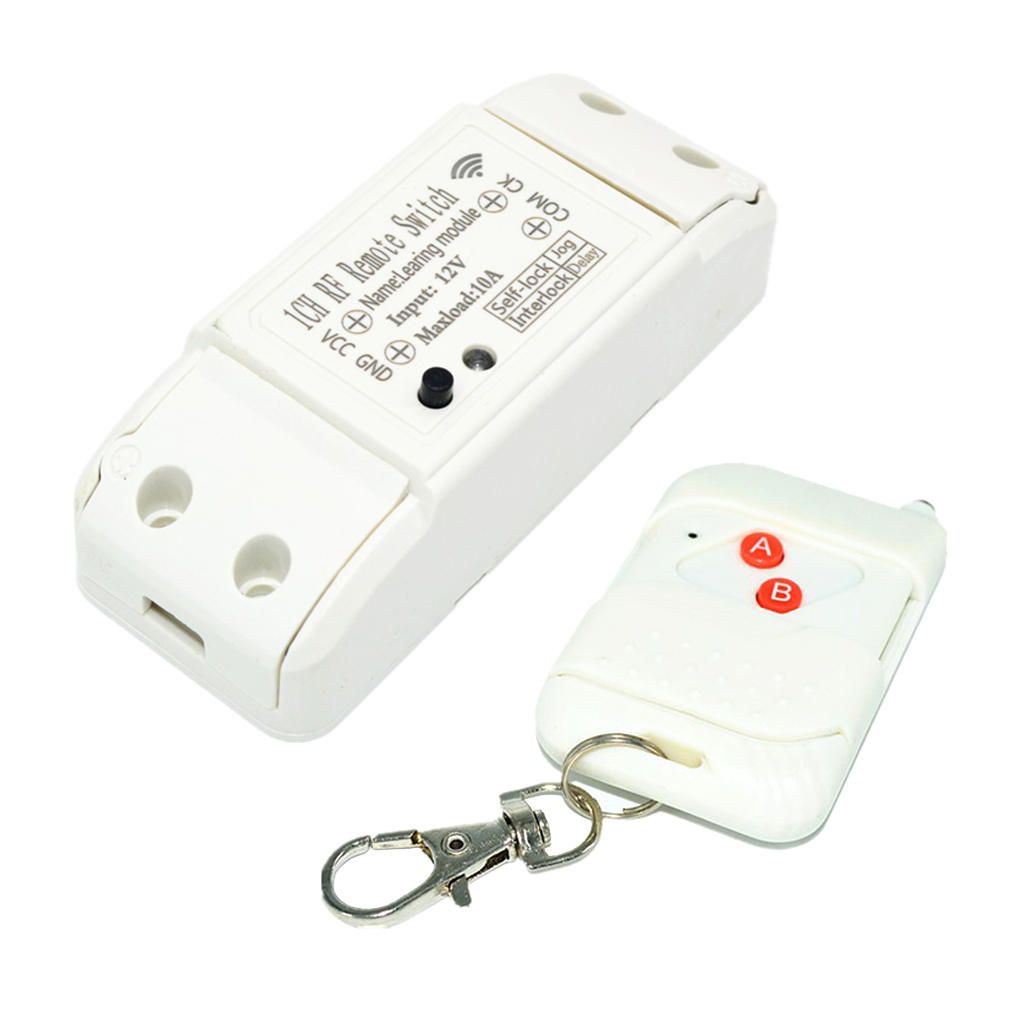

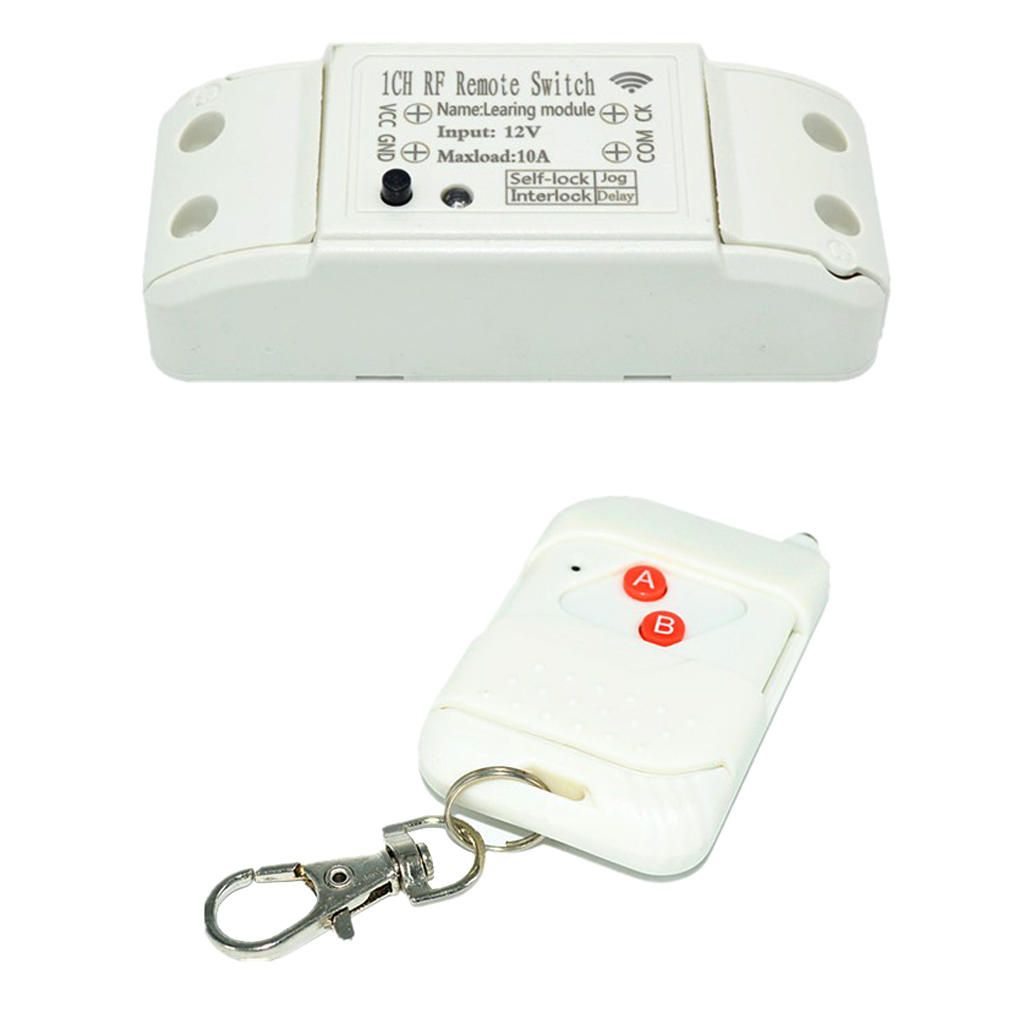

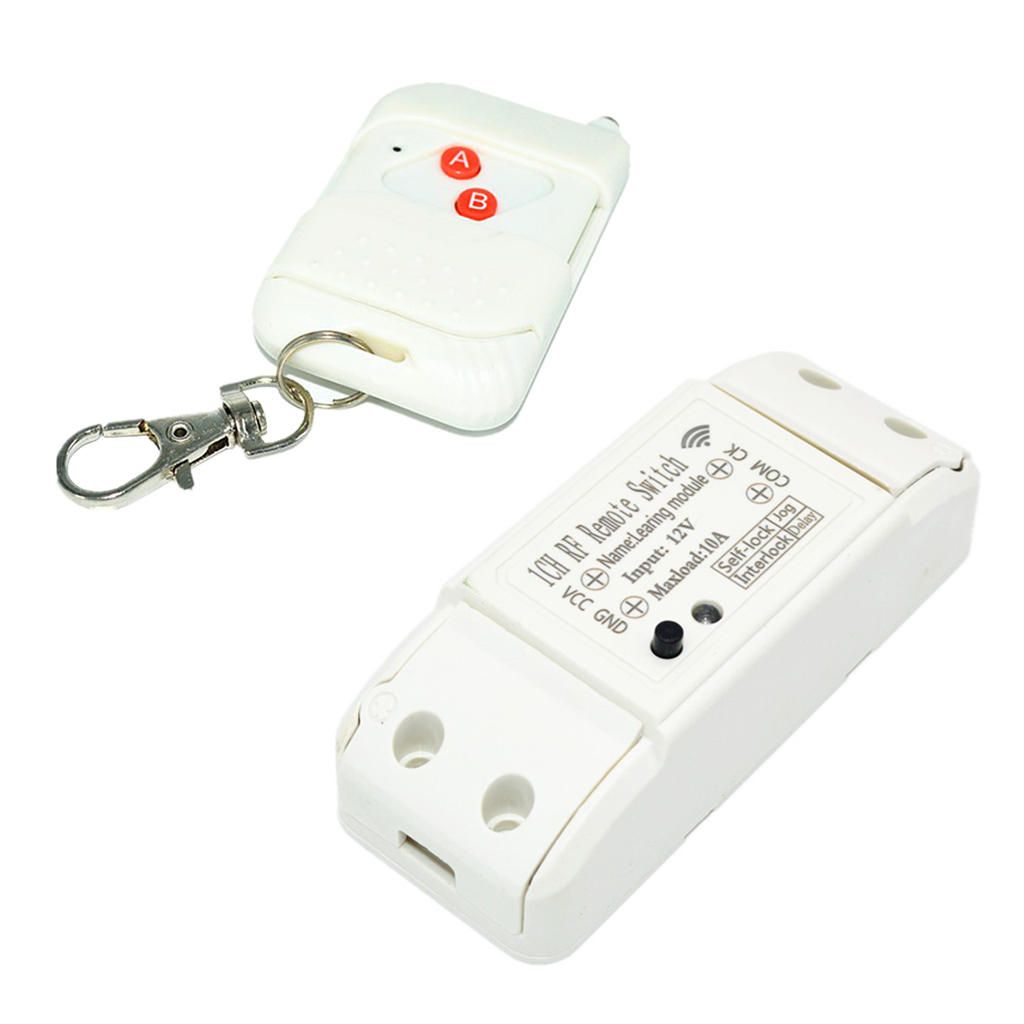

1CH 12V 433MHz Wireless RF Relay Switch Receiver 2-Button Remote

Description:

Operating voltage: 11.5 to 12.5V (input) VCC: Connect the power supply positive pole; GND: Connect the power supply negative poleOperating current: about 40mA (relay pull state)Static operating current: about 8mA (relay release state)Receiver size: Approx. 80 x 32 x 22mm / 3.1 x 1.2 x 0.8inch (with housing, housing with screw hole)Application: water pump, light bar, lamp, home appliances, machinery and equipment, mechanical switch, roll gate, shutter curtain, etc.Module type: wireless 433MHz learning module + manual switch + relay switch function

Specification:

Material: FR4 Fiberglass BoardReceiving distance: between 15-100 meters (can through the wall)Working mode: self-locking, jog, interlock, delay (4 kinds of work modules)Output mode: when output is passive output, the module is mainly used as mechanical switch and contact switch-Working Mode : (Pay attention to learn the remote control first, then set the mode.)Press and hold the button of the power indicator, flash 2 times to release, set to interlock; flash 3 times to release, set to self-lcok; flash 4 times to release, set to jog;Flash 5 times to release, set to delay for 3 seconds disconnect; flash 6 times for 5 seconds; flash 7 times for 10 seconds; flash 8 times for 15 second; flash 9 times for 20 seconds; flash 10 times for 30 seconds; flash 11 times for 40 seconds; flash 12 times for 50 seconds; flash 13 times for 60 seconds disconnect.-Module learning pairing method:After power on; press the button, immediately release; immediately press and hold (fast speed); after the indicator light flashes, release the button; then press and hold the remote control button that needs learning, the corresponding indicator light flashes 2 times and is always bright, learning is completed (after one-button control learning is completed, please set the module to self-locking)-Module clearing method:After power on; press the button, release it immediately; immediately press and hold again (fast speed); learning indicator flashes twice; then flashes 3 times quickly to indicate that the module is successfully cleared.

Package Includes:

1 Piece Wireless Delay Switch1 Piece 2-Button White Remote Controller

Key Features

Operating voltage: 11.5 to 12.5V (input) VCC: Connect the power supply positive pole; GND: Connect the power supply negative pole
Operating current: about 40mA (relay pull state)
Static operating current: about 8mA (relay release state)
Receiver size: Approx. 80 x 32 x 22mm / 3.1 x 1.2 x 0.8inch (with housing, housing with screw hole)
Application: water pump, light bar, lamp, home appliances, machinery and equipment, mechanical switch, roll gate, shutter curtain, etc.

What's In the Box

1 Piece Wireless Delay Switch1 Piece 2-Button White Remote Controller
