2.4-inch TFT Digital Oscilloscope Kit With Power Adapter And

features high sensibility, light and portable size, 2.4-inch TFT screen and protective case. It can display waveform parameters, such as frequency, period, pulse width, duty ratio, MAX./MIN./AVG./Peak-Peak/virtual values.

Features:

Adopts ARM Cortex-M3 processor (STM32F103C8), and includes a 2.4-inch color TFT display screen

Used for secondary development on the basis of this kit, for example, it can be changed to millivoltmeter, data loggers.

Come with instructions, easy to install and operate.

Auto/normal/single trigger modes, easy to capture the moment waveform.

Available rising or falling edge trigger.

Observable previous waveform before trigger (negative delay).

Can freeze waveform display at any time (HOLD function).

Waveform parameter digital display, including frequency, period, pulse width, duty ratio, MAX./MIN./AVG./Peak-Peak/virtual values.

Waveform storage function: Will not lose the waveform after powering off.

Short-circuit and open-circuit detection: Can help the user find out the soldering error.

TFT controller recognition function.

The SMD has been soldered, more suitable for electronic beginners.

Specifications:

Type: Finished Product

Model: US/ EU (optional)

Number of Channel: 1

Analog Bandwidth: 0-200KHz

Sensitivity Range: 5mV/Div - 20V/Div

Sensitivity error: lt; 5%

Maximum Input Voltage: 50Vpk (1X probe)

Input Impedance: 1M ohms/20pF

Resolution: 12 bits

Record Length: 1024 points

Coupling Modes: DC / AC / GND

Maximum Real-time Sampling Rate: 1MSa/s

Time Base Range: 10us/Div - 500s/Div

Trigger Modes: Auto, Normal, and Single

Trigger Types: Rising/falling edge

Trigger Position: Center of Buffer

Display: 2.4 quot; Color TFT LCD with 320*240 Resolution

Supply Voltage: DC 9V(8-10V Acceptable)

Current Consumption: ~120mA @ 9V

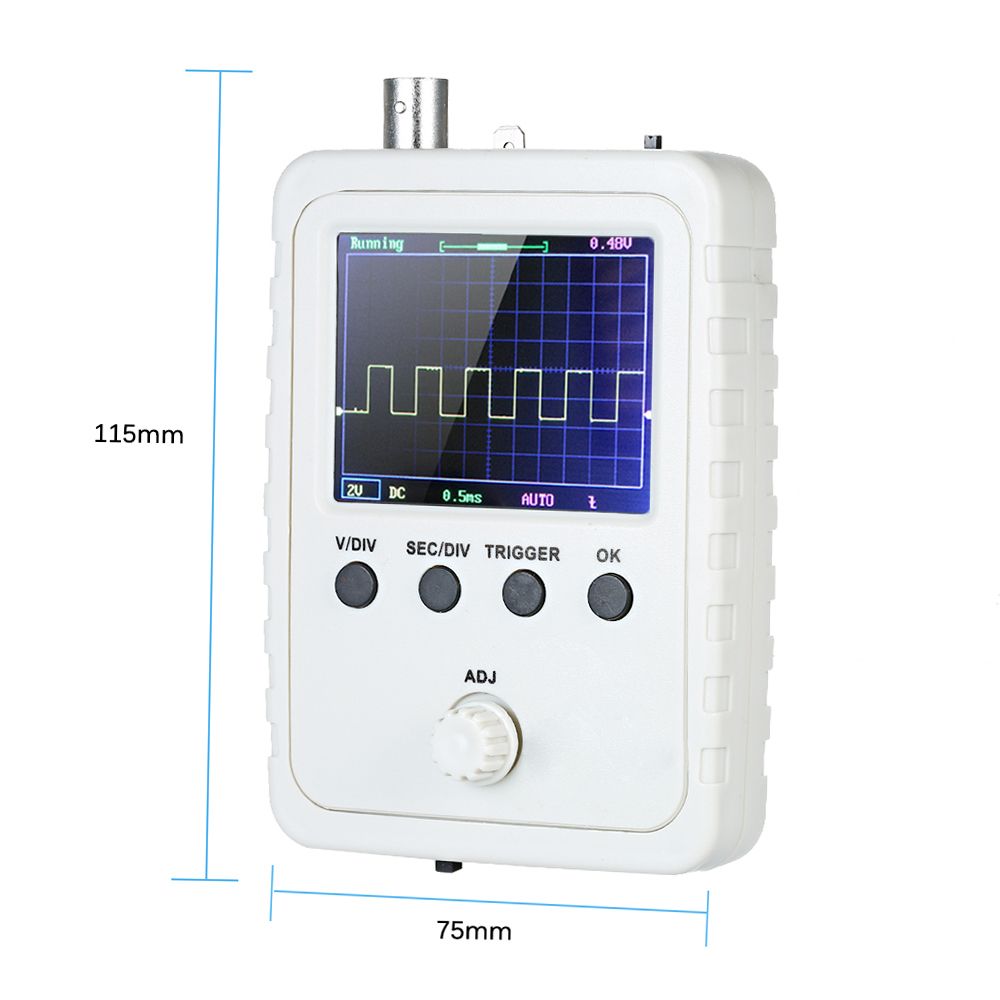

Product Size: 115 * 75 * 22mm / 4.53 * 2.95 * 0.87in

Product Weight: 92g / 3.24oz

Package Size: 202*110*38mm/7.95*4.33*1.50in

Package Weight: 314g/11.07oz
