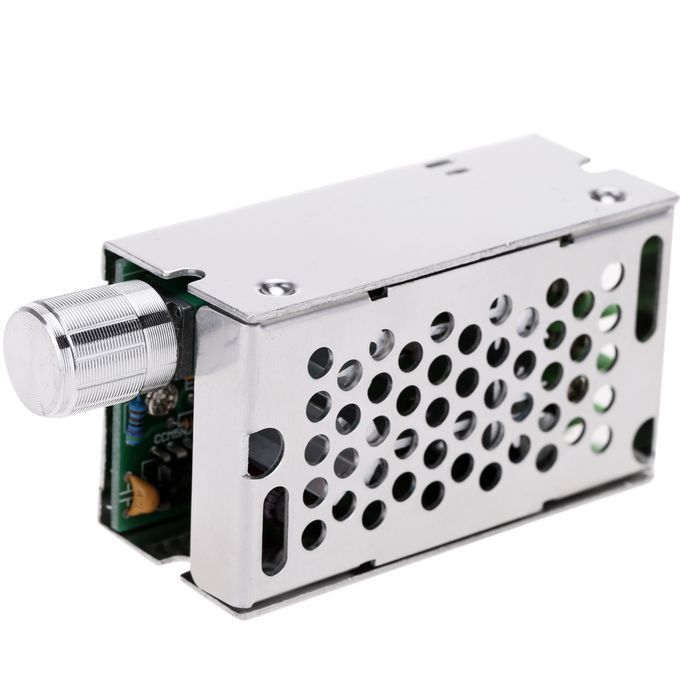

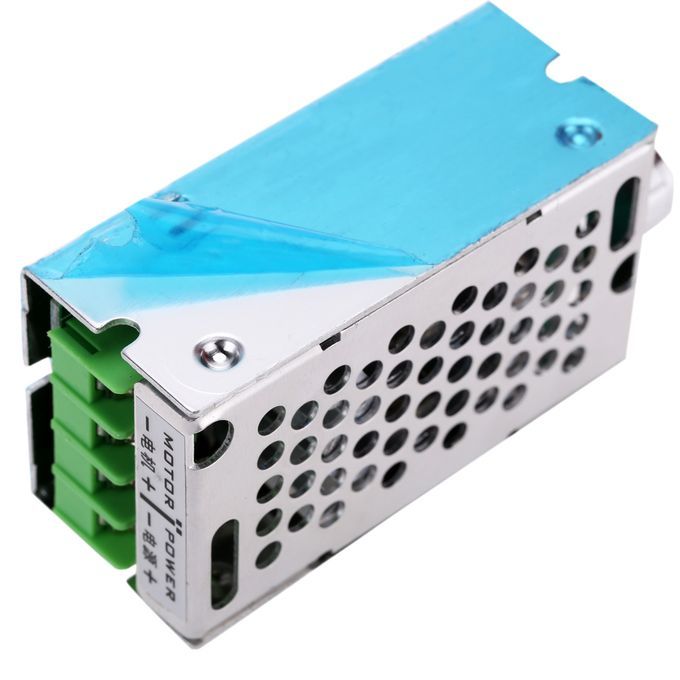

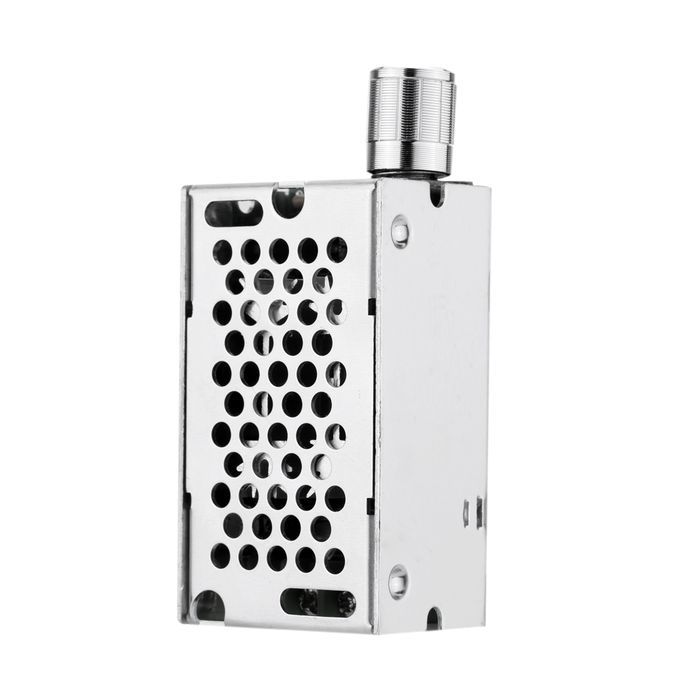

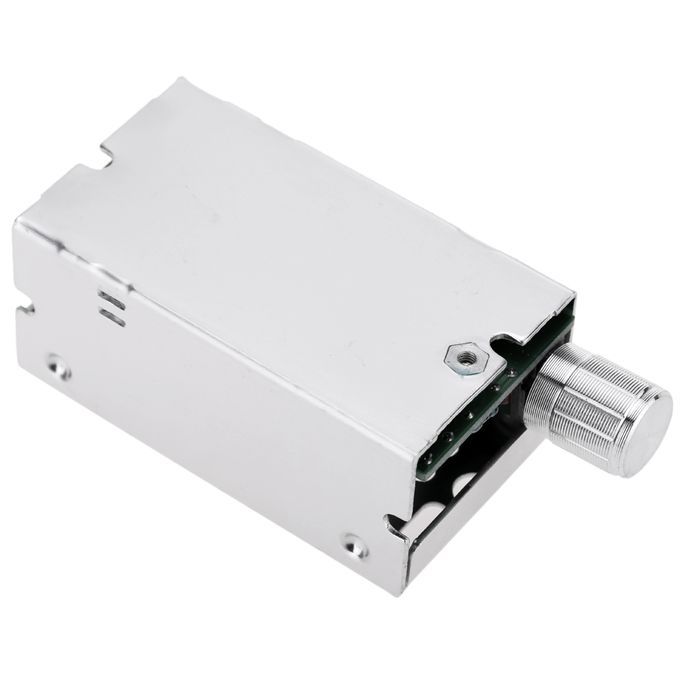

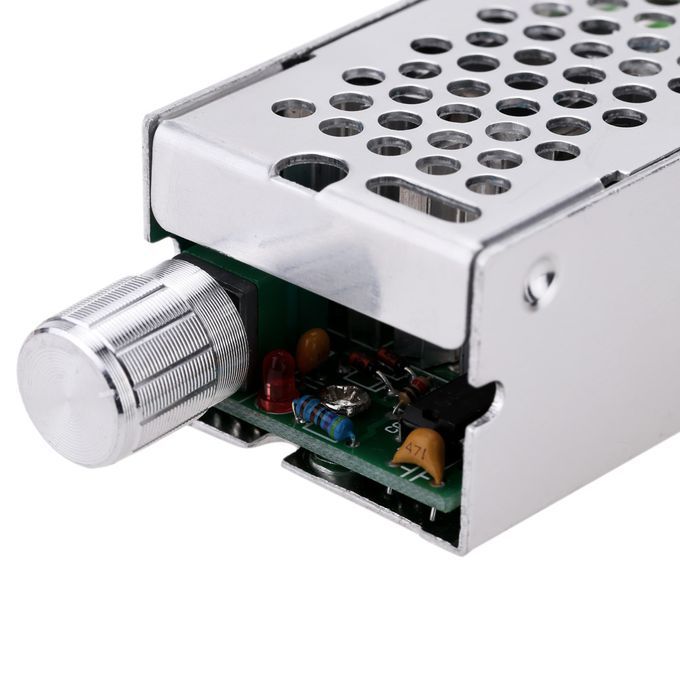

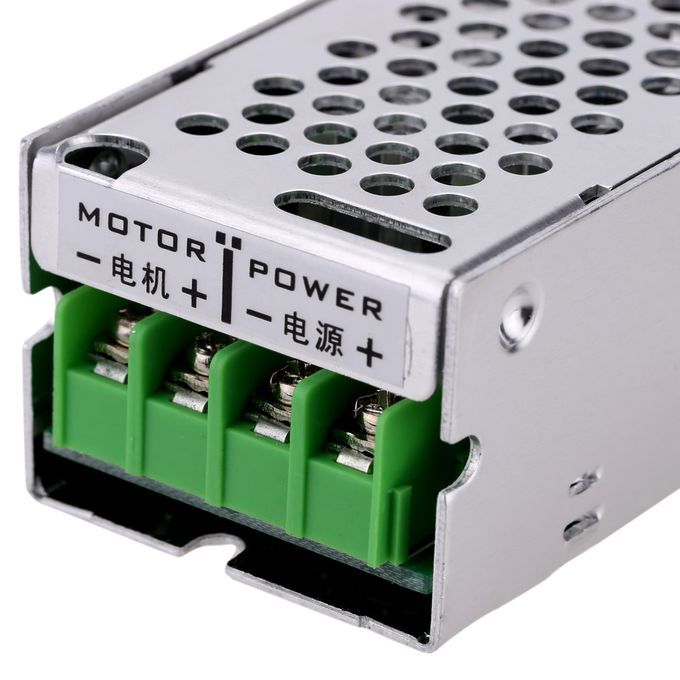

Adjustable Brush Motor Speed PWM Controller Adjuster
˂
˃
Adjustable Brush Motor Speed PWM Controller Adjuster
Price:
₦43,250
Brand: Generic
Share:
Product Description
It's a PWM speed controller so it enables you to control the speed of these little brush motors smoothly. It's ideal for applications like fans, etc. providing nice adjustment of motor speed instead of the more usual "High-Low" switching.
Features:
Wide range of operating voltage: 12V, 24V, 36V, 60V, max. : 400W.
A good speed controller for brush motors.
High-frequency capacitance, tube and 10A fuse are used in the module.
Adopts sealed and high-quality potentiometer with switch, stable performance.
Metal case creates better durability; high efficiency and low noise.
Suitable for applications like fans, etc. providing nice adjustment of motor speed.
Notice:
1. This speed controller is applicable to brush motor, not the brushless motor; it can't be used as voltage regulator.
2. It should be connected with voltage, don't connect with AC voltage(e.g. 220V AC).
3. The anode and the cathode of cannot be connected reversely, otherwise the controller will be damaged.
4. When running direction is inconsistent with your desire, you can change it by adjusting the linear order.
5. Potentiometer switch can change the output duty cycle of controller and then change the motor speed.
Specifications:
Operating Voltage: 12V/24V/36V/60V
Rated Current: 8A
Max. Current: 10A
Control : Max. 400W
Speed Control Range: 10% -100%
PWM Frequency: 21KHz
Item Size: 90 * 40 * 3mm / 3.54 * 1.57 * 1.18in
Item Weight: 79g / 2.8oz
Package List:
1 * Motor Speed Controller
a a a a a
Features:
Wide range of operating voltage: 12V, 24V, 36V, 60V, max. : 400W.
A good speed controller for brush motors.
High-frequency capacitance, tube and 10A fuse are used in the module.
Adopts sealed and high-quality potentiometer with switch, stable performance.
Metal case creates better durability; high efficiency and low noise.
Suitable for applications like fans, etc. providing nice adjustment of motor speed.
Notice:
1. This speed controller is applicable to brush motor, not the brushless motor; it can't be used as voltage regulator.
2. It should be connected with voltage, don't connect with AC voltage(e.g. 220V AC).
3. The anode and the cathode of cannot be connected reversely, otherwise the controller will be damaged.
4. When running direction is inconsistent with your desire, you can change it by adjusting the linear order.
5. Potentiometer switch can change the output duty cycle of controller and then change the motor speed.
Specifications:
Operating Voltage: 12V/24V/36V/60V
Rated Current: 8A
Max. Current: 10A
Control : Max. 400W
Speed Control Range: 10% -100%
PWM Frequency: 21KHz
Item Size: 90 * 40 * 3mm / 3.54 * 1.57 * 1.18in
Item Weight: 79g / 2.8oz
Package List:
1 * Motor Speed Controller
a a a a a
Key Features
Wide range of operating voltage: 12V, 24V, 36V, 60V, max. : 400W.
A good speed controller for brush motors.
High-frequency capacitance, tube and 10A fuse are used in the module.
Adopts sealed and high-quality potentiometer with switch, stable performance.
Metal case creates better durability; high efficiency and low noise.
Suitable for applications like fans, etc. providing nice adjustment of motor speed.
Easy to use
Exquisite Workmanship
Well Made
Best Choice and best discounts
Customer Care is Our Top Priority
Offer is Subject to Availability
Big Sale
What's In the Box
Adjustable Brush Motor Speed PWM Controller Adjuster
Product Specification
| Model | JAVANLINCJ2041342 |
|---|---|
| Production Country | China |
| Size (L x W x H cm) | 1 x 1 x 1 |
| Weight (kg) | 0.1 |
| Certifications | Organic |
| Color | Multicolor |
| Main Material | Patent Leather |
| From the Manufacturer | 1 |
| Care Label | 1 |
