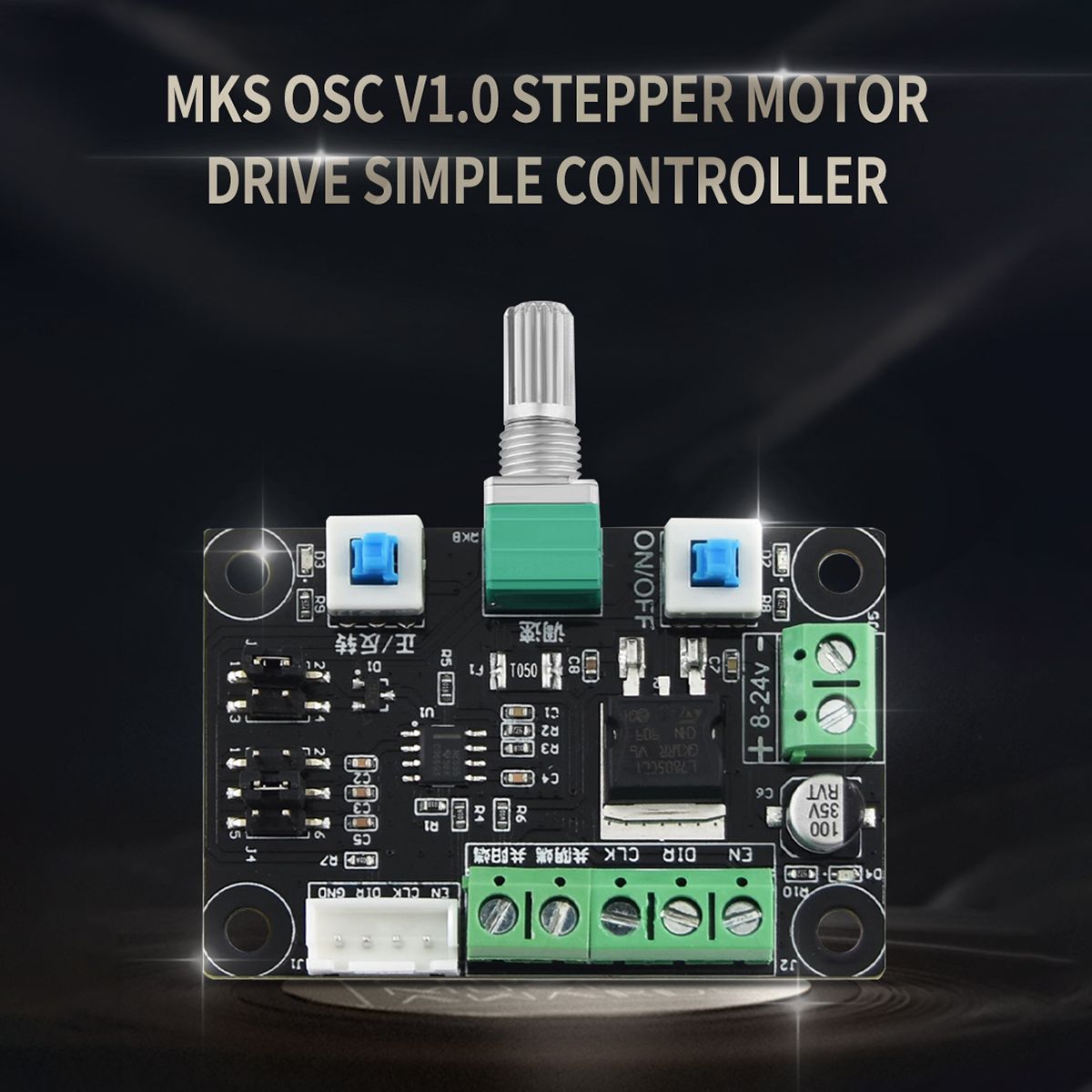

MKS OSC V1.0 Stepper Motor Drive Simple Controller Pulse PWM

Features:

This module is a pulse generation module and supplies a stepper driver as a signal. To control the stepper motor, it must be equipped with a driver.

This simple controller + stepper driver + stepper motor + DC power supply can form a simple control platform.(Only the controller is included.)

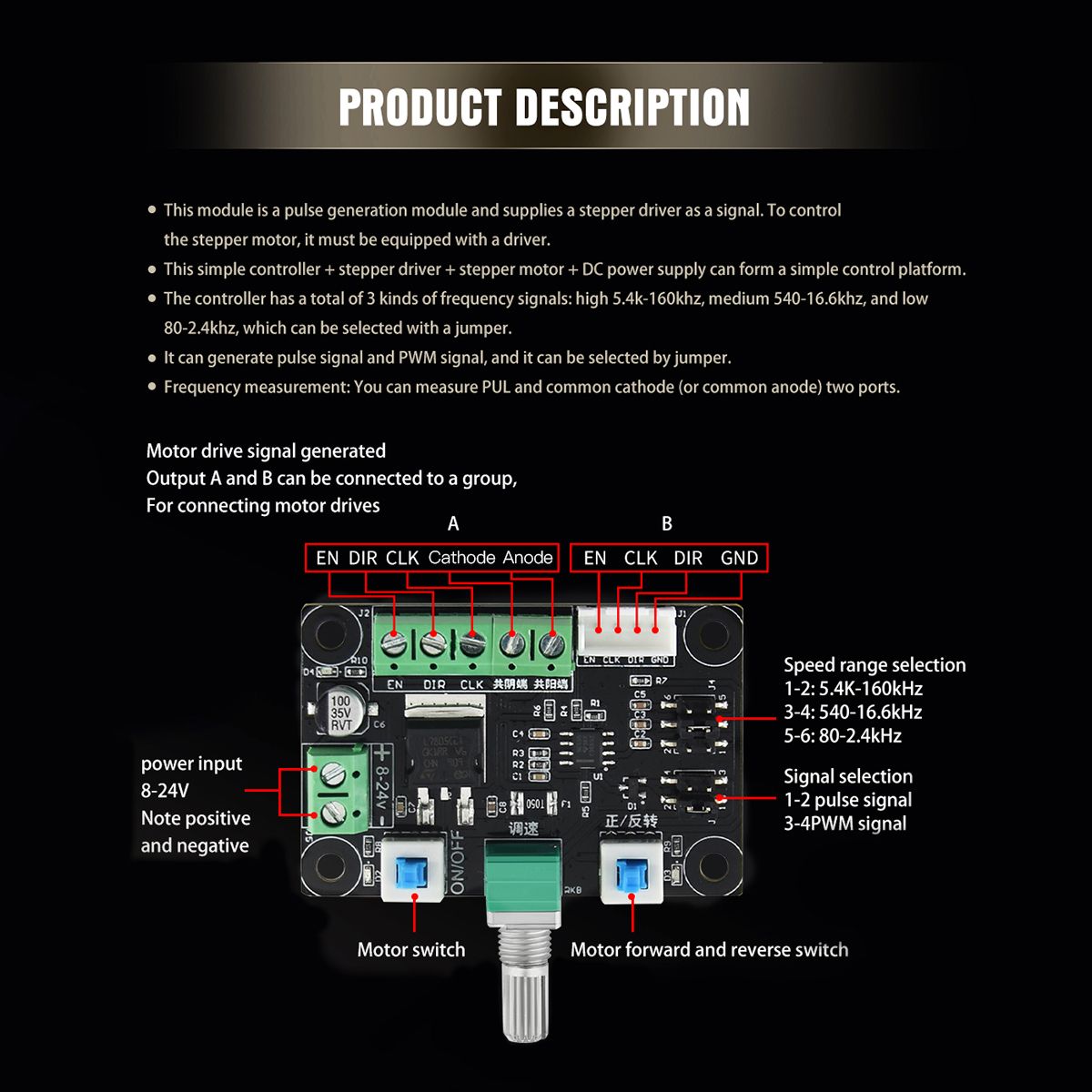

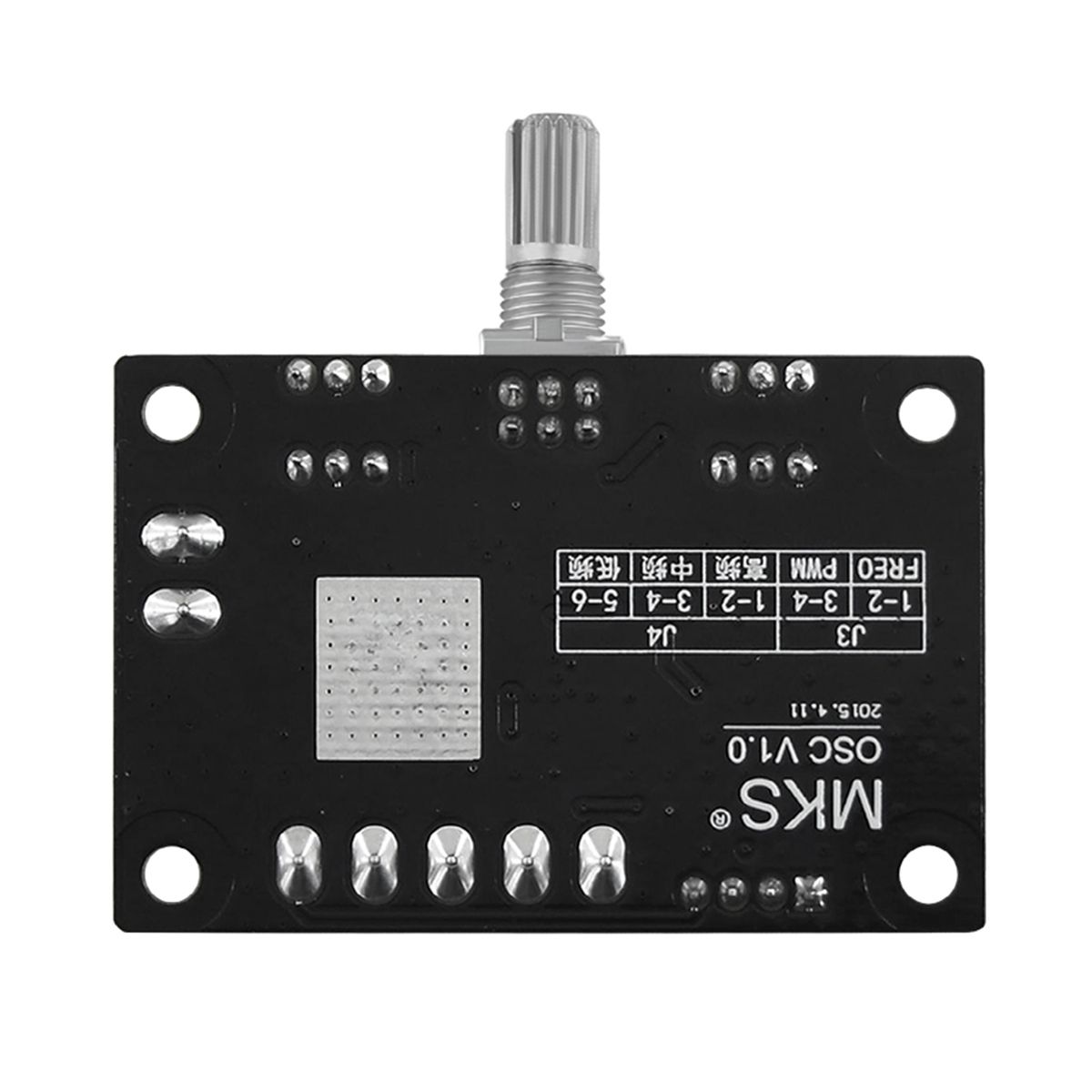

The controller has a total of 3 kinds of frequency signals: high 5.4k-160khz, medium 540-16.6khz, and low 80-2.4khz, which can be selected with a jumper.

It can generate pulse signal and PWM signal, and it can be selected by jumper.

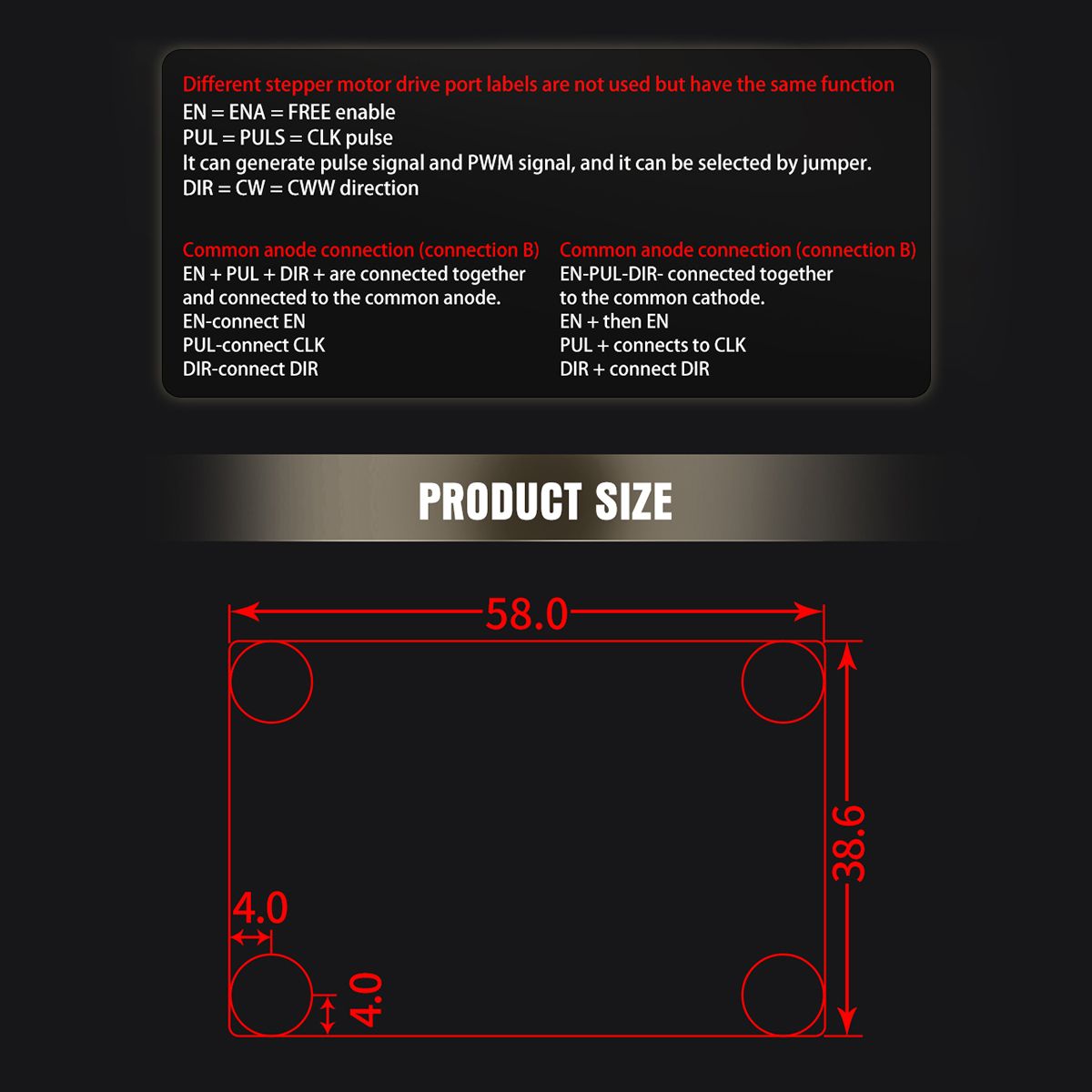

Frequency measurement: You can measure PUL and common cathode (or common anode) two ports.

Specifications:

Power Input: 8-24V

Frequency Signals: 5.4k-160khz,540-16.6khz,80-2.4khz

Package Weight: 15g / 0.5oz

Packing List:

1 * Controller

We confidently assure you'll be satisfied with what you get.However, If there's a chance that you are not satisfied with our goods or something else, please let us know before leaving us a Negative feedback. We will try our best for 100% customer satisfaction. Your 5-Star Positive Feedback is much appreciated to us, and your satisfaction is our greatest motivation to move forward.Welcome to Shop Here! Want more Items? Please come visit our SHOP.

*Shipping and Packaging All it will be double checked and well packed before sending.It will be dispatched within 5 business days after buyers pay for the order. It usually takes about 14 to 18 working days for delivering the package to the destination(for remote areas,it may take a little longer).Your satisfaction is our first priority.

*If you receive the order and it is in good condition,we would be grateful if you would leave us 5 star Positive Feedback for the transaction.

Key Features

This module is a pulse generation module and supplies a stepper driver as a signal. To control the stepper motor, it must be equipped with a driver.
This simple controller + stepper driver + stepper motor + DC power supply can form a simple control platform.(Only the controller is included.)
The controller has a total of 3 kinds of frequency signals: high 5.4k-160khz, medium 540-16.6khz, and low 80-2.4khz, which can be selected with a jumper.
It can generate pulse signal and PWM signal, and it can be selected by jumper.
Frequency measurement: You can measure PUL and common cathode (or common anode) two ports.
