SMD SMT Component Welding Practice Board With Pen Test

Welcome to my store, we have many kinds of price products, we launch new products every day, please follow my store and pay more attention, for more products, Please click on the seller information to enter our store to buy, we hope give you a pleasant shopping experience. Thank you and have a nice day!

Description:

Test Leads:

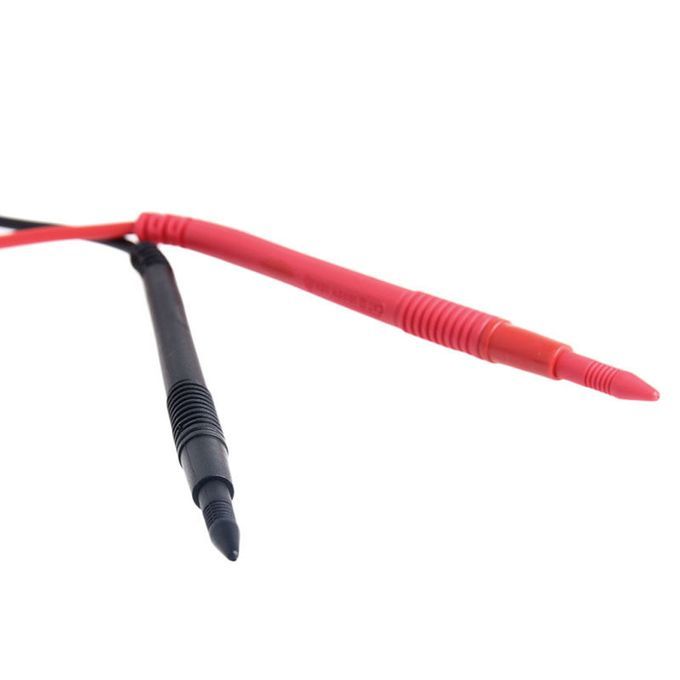

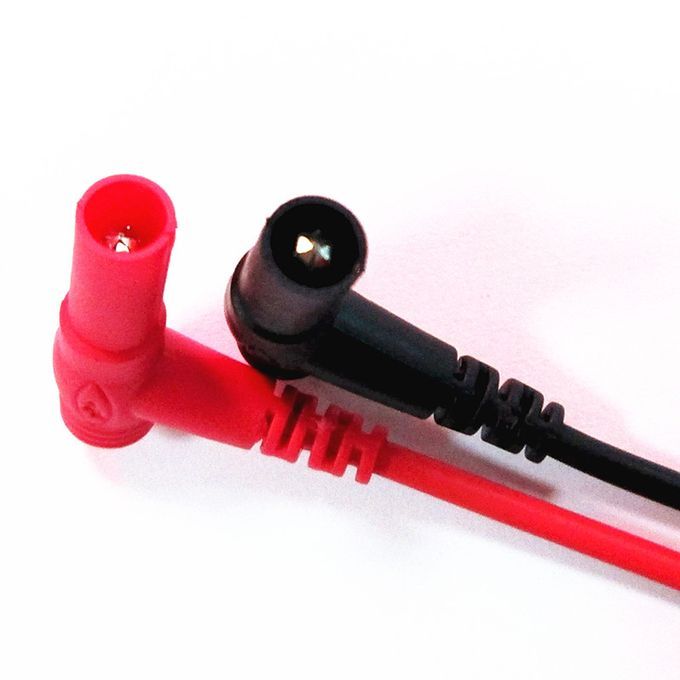

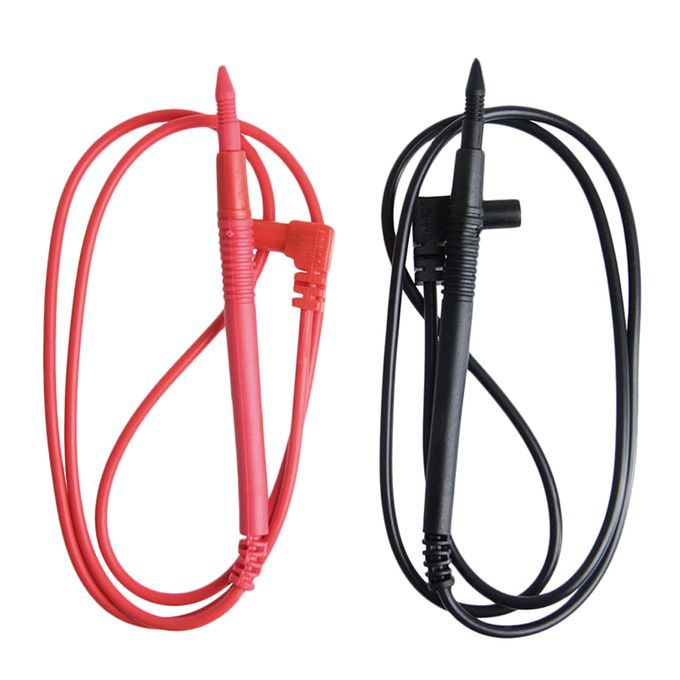

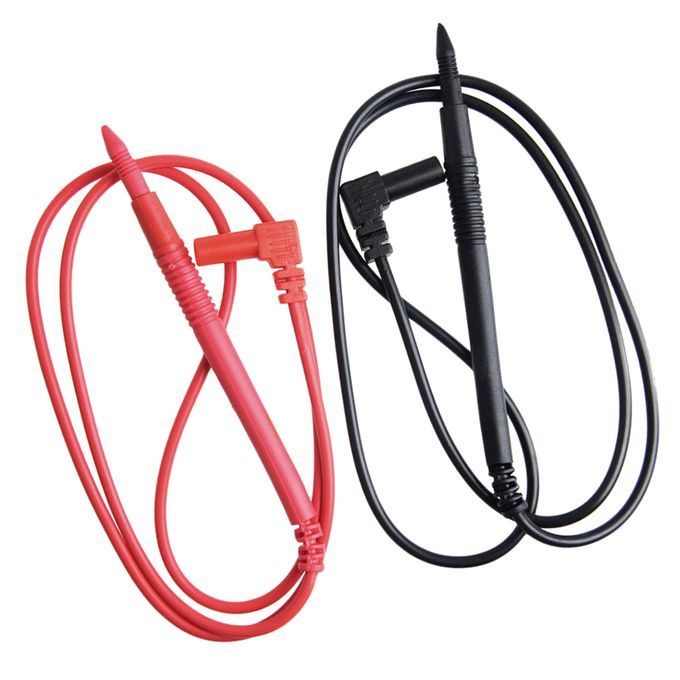

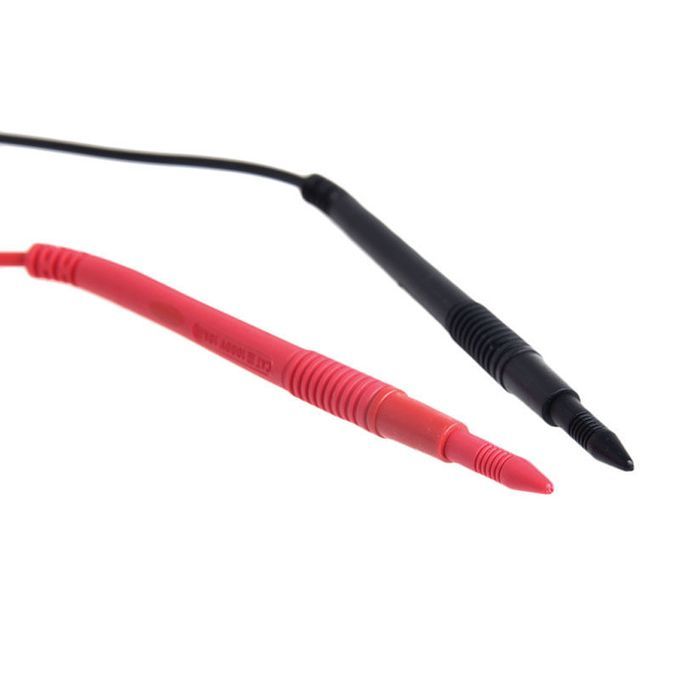

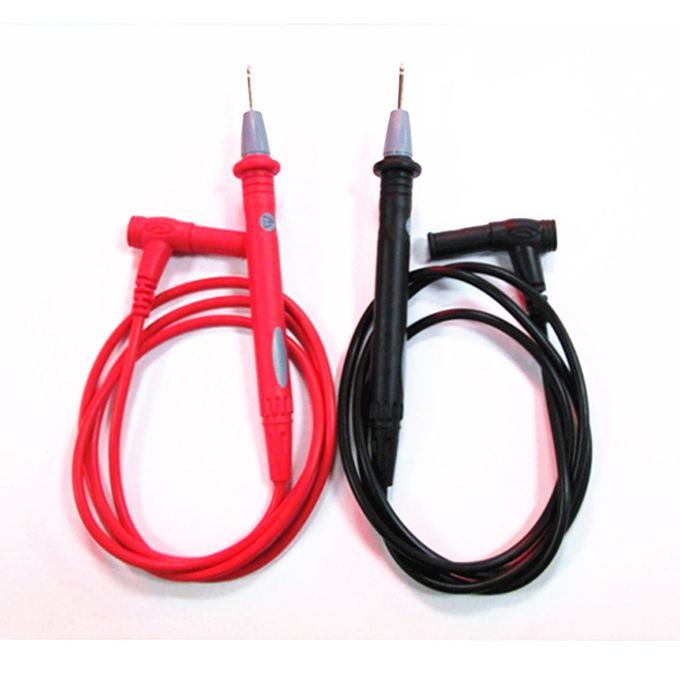

This test cable use tips, so it can test very small SMD component 0402, 0603, etc

SMD SMT Contact Probe Meter Test Lead Cable for DMM TL71 TL75

High quality soft PVC silicone wires, anti-broken soft rubber handle, copper probe

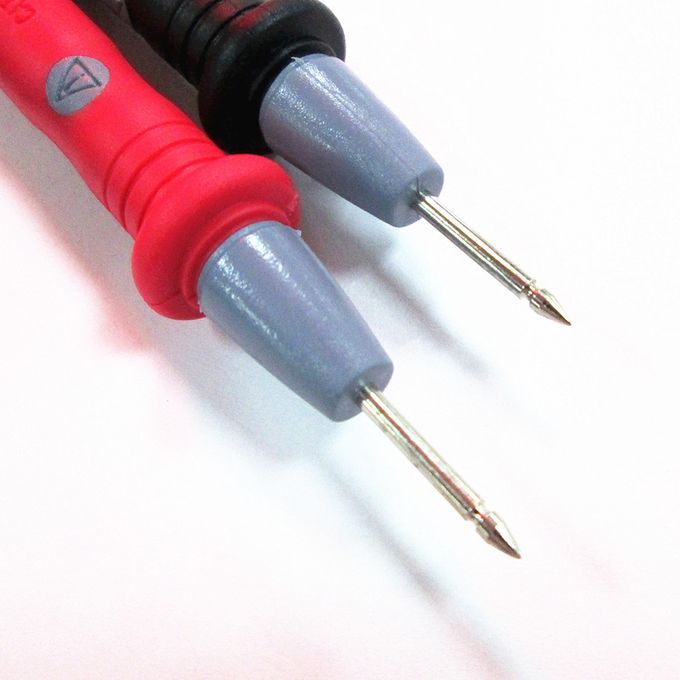

Probe tip suit for measuring very small IC pins, LED lights and small components

There are 3 column of each side (left and right), and each column has its test point.

The circular Light circuit of the middle was consisted by 4017, NE555 and light-emitting diodes; it can work after welding successfully.

Specification:

Test Leads:

Material: Copper, Plastic

Cable total length: Approx. 90cm/35.43inch

Probe Rod Length: Approx. 13cm/5.12inch

Max. Voltage& Current: 1000V 10A

Weight: 70g

SMD SMT Component Welding Practice Board Kit Set:

Operating voltage:3-12V

Material: Pcb board

Size: Approx. 85.6mm× 54mm ×1.6mm(L×W×H)/ 3.37''×2.13''×0.06''

Portable design: the size is as same as of the identity card which can be set into pocket

All the components showed on the pictures are included in the kit

Welding operating diagram and circuit of the light diagram are included

Package Includes:

1 Set Test Leads

1 Set SMD Component Welding Practice Board Kit

Note:

Please allow 1-3mm differs due to manual measurement

Due to the different display and different light, the picture may not reflect the actual color of the item. Thanks for your understanding

SMD SMT Components; Test Leads;SMD SMT Tip;SMD SMT Component Welding Practice;Digital Probe Cable; Practice DIY Kit ;Electrical Test Practice Equipment

Key Features

Test Leads:
This test cable use tips, so it can test very small SMD component 0402, 0603, etc
SMD SMT Contact Probe Meter Test Lead Cable for DMM TL71 TL75
High quality soft PVC silicone wires, anti-broken soft rubber handle, copper probe
Probe tip suit for measuring very small IC pins, LED lights and small components
Easy to use
Exquisite Workmanship
Well Made
Best Choice and best discounts
Customer Care is Our Top Priority
Offer is Subject to Availability
Big Sale

What's In the Box

1 Set Test Leads 1 Set SMD Component Welding Practice Board Kit
