BSIDE ADMS7 Smart Multimeter True RMS Digital Multimeter

Features:

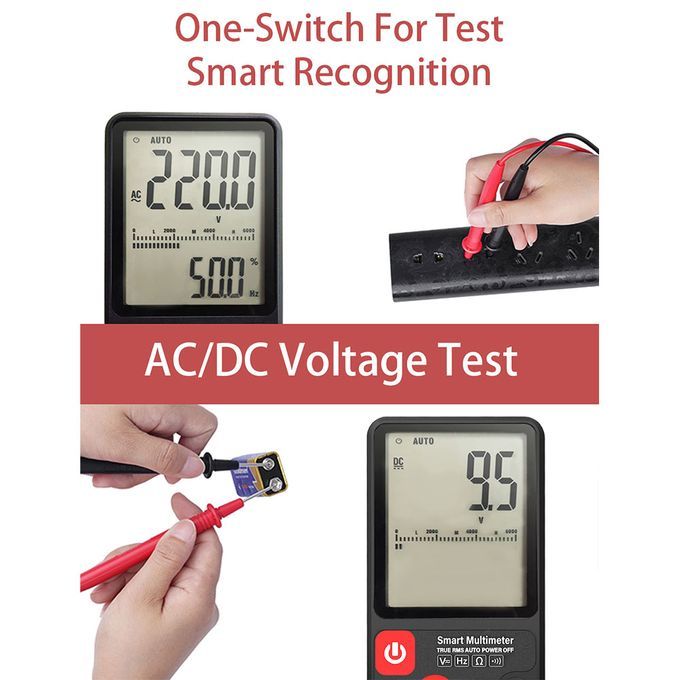

Wide Measuring Range: for measuring DC/AC voltage, Resistance, Frequency, Continuity test and V-alert test.

Multiple Features of: big LCD screen, low battery indication, data hold, auto off, over-range display, buzzer, V-alert test(dangerous voltage alarm), live wire test, etc.

Pocket Size Design: portable size as small as a mobile phone, super lightweight and slim, the multimeter is very convenient to carry around and has comfort handheld feeling.

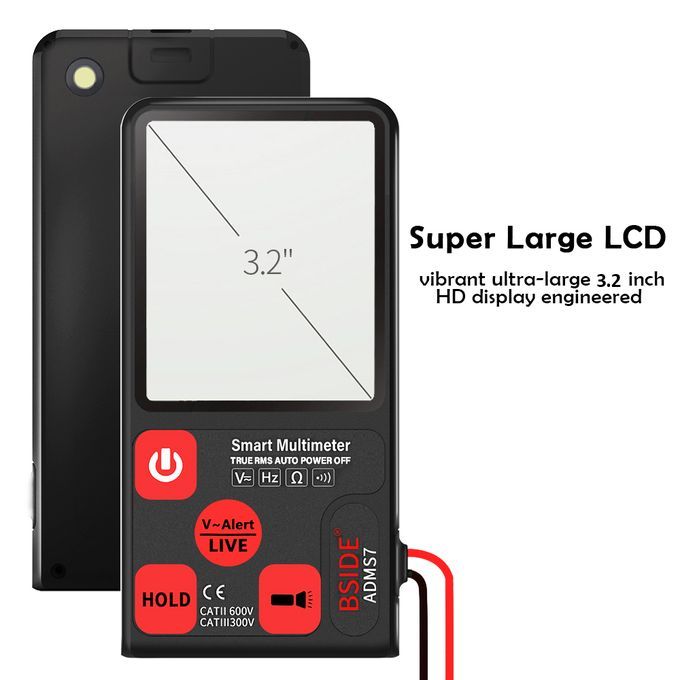

3.2" Large LCD Display: 64*52mm LCD screen with large digital-readout for clear reading, max. display value 6000 counts with true RMS.

Auto -off: 3 minutes automatic shutdown if there's no operation, which is saving.

Low Battery Indicator: remind you to replace battery to ensure measurement accuracy.

Overload Protection: with full protection on all ranges for safe operation.

Flashlight Function: with flashlight to light up the working area.



Specifications:

Material: ABS+PC

Display Type: Digital display

Max. Display: 6000 digits

Range Control: Auto range

Safety Level: CAT II 600V, CAT III 300V

Sampling Time: about 3 times/second

DC Voltage Range: 600V

DC Voltage Resolution: 0.1V

AC Voltage Range: 600V

AC Voltage Resolution: 0.1V

Resistance Range: 6000Ω

Resistance Resolution: 1Ω

Frequency Range: 1000Hz

Frequency Resolution: 1Hz

Operating Temperature: 0~40℃ (32-104℉)

Storage Temperature: -10~60℃ (14-140℉)

Operating & Storage Humidity: 45%~80%RH

Working Height: Max. 2000m

Supply: 2 * 3V button battery

Screen Size: 64 * 52mm / 2.52 * 2.05in

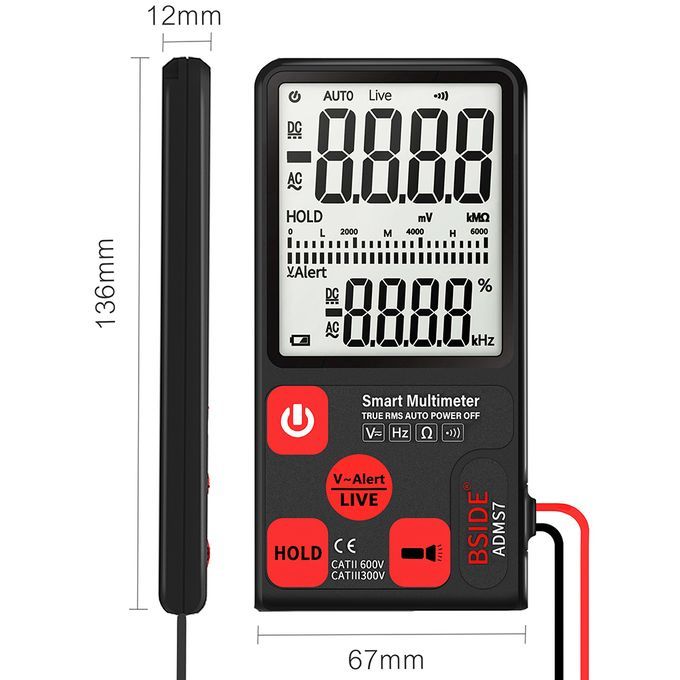

Item Size: 136 * 67 * 12mm / 5.35 * 2.64 * 0.47in

Item Weight: 111g / 3.92oz

Package Weight: 143g / 5.04oz

Package Size: 15 * 8.5 * 4cm / 5.91 * 3.35 * 1.57in



Package List:

1 * Digital Multimeter

1 * Pair of Test Leads

1 * Lanyard

1 * User Manual (English)
