Electric Bicycle/Bike/Scooter Motor, Gear Brushed DC
˂
˃
Electric Bicycle/Bike/Scooter Motor, Gear Brushed DC
Price:
₦188,500
Brand: Generic
Share:
Product Description
250W brush motor: Rated speed: 2950rpm/min
Gear Ratio: 9.78:1
Actual speed: 300 rpm
Weight: 2.6 kg

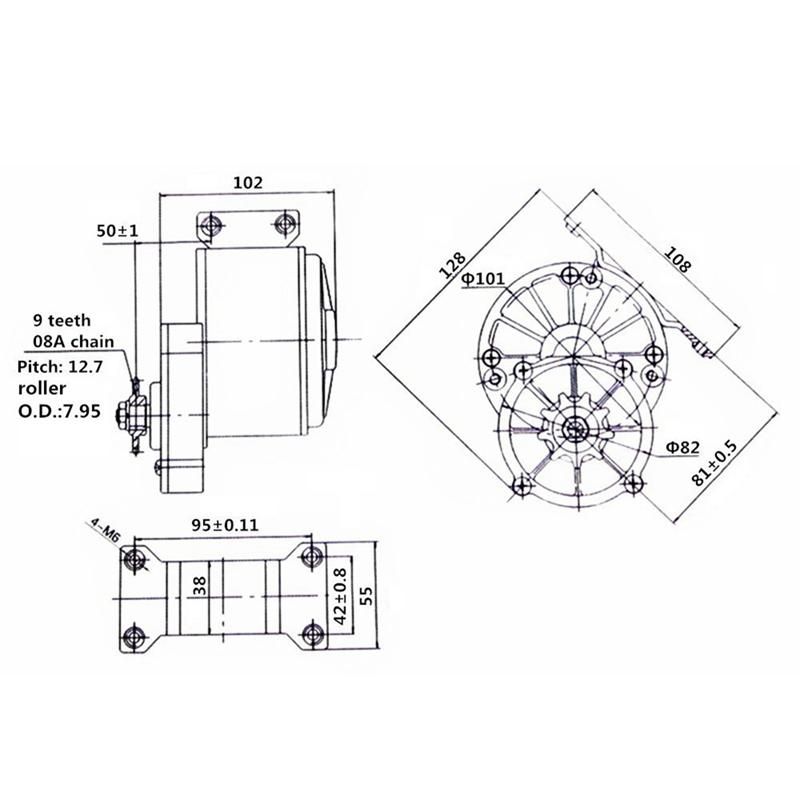

Sprocket: 9 teeth sprocket 410 (use for ordinary bicycle chain) Sprocket size
Teeth: 9
Pitch: 12.7
Tooth thickness: 3mm

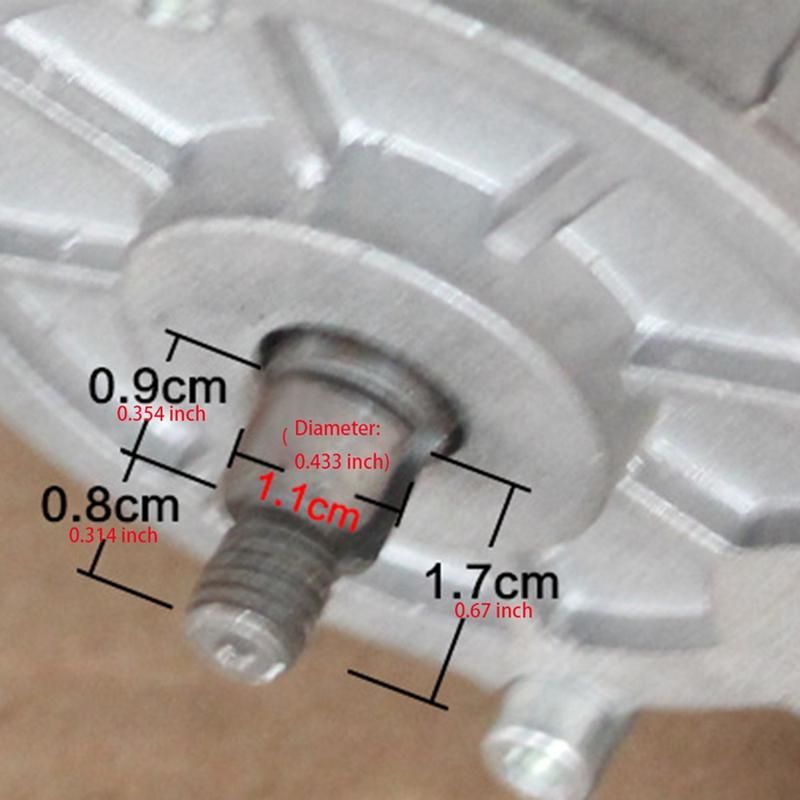

Inside diameter: 11mm
Outside diameter: 41mm
Colour:As Shown
Material:plastic+metal
type:12V Package Contents:
1 x DC Motor Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
Gear Ratio: 9.78:1
Actual speed: 300 rpm
Weight: 2.6 kg
Sprocket: 9 teeth sprocket 410 (use for ordinary bicycle chain) Sprocket size
Teeth: 9
Pitch: 12.7
Tooth thickness: 3mm
Inside diameter: 11mm
Outside diameter: 41mm
Colour:As Shown
Material:plastic+metal
type:12V Package Contents:
1 x DC Motor Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
Product Specification
| Size (L x W x H cm) | 21x14x8 |
|---|---|
| Weight (kg) | 2.2 |
| Color | As Shown |
