Ultra-quiet Mini DC12V 10W 400L/H Lift 400cm

This is a mini size submersible water pump. It's equipped with a brushless motor providing smooth and quiet operation than a non-brushless water pump.



Features:

Brushless pump, permanent magnetic rotor, maintenance-free.

Enameled wire coil and circuit board are sealed by epoxy resin.

The coil adopts pure copper enameled wire, lower temperature rise and longer life span.

Amphibious pump, you can use it in the water or out of water(follow the installation instruction).

5.5*2.1mm female DC12V for input.

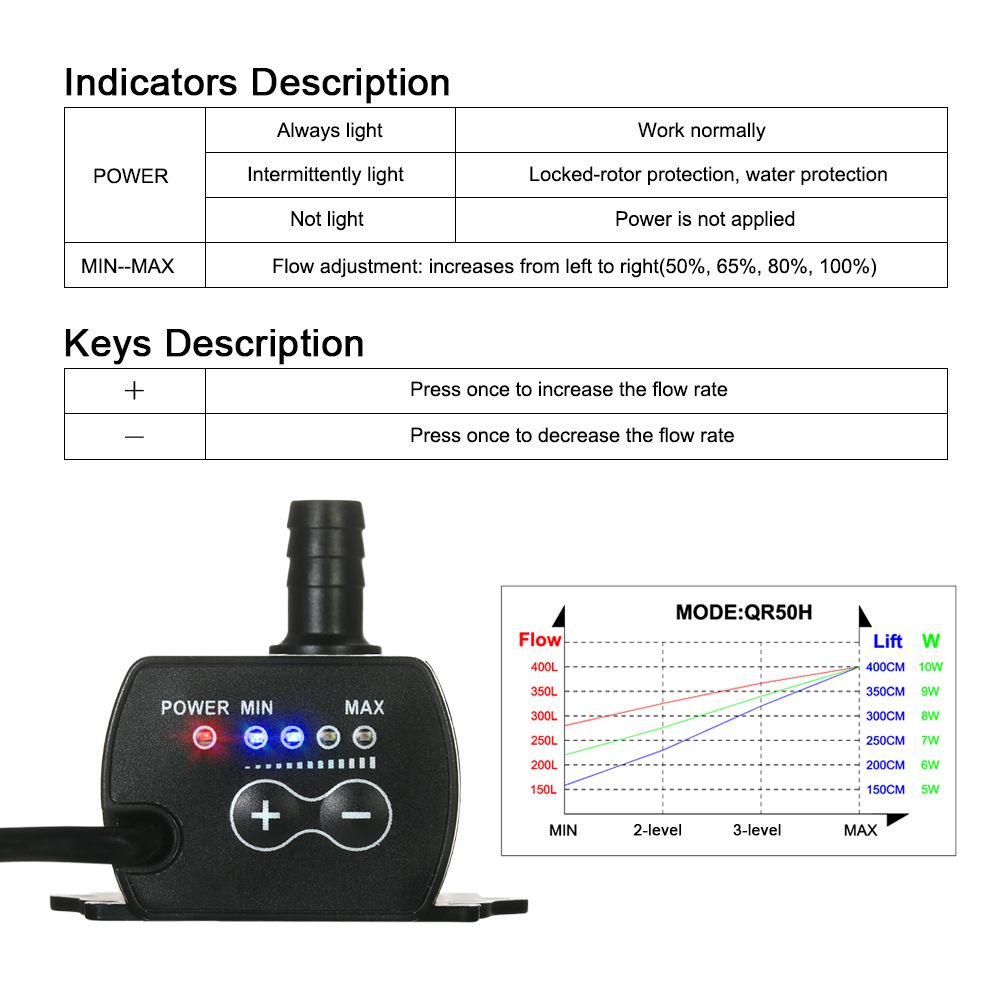

Flow Adjustment with LED indicators, and memory function when off.

Lack of water protection.

IP68 waterproof grade, totally submersible in the water.

Detachable design, providing convenience for cleaning work.

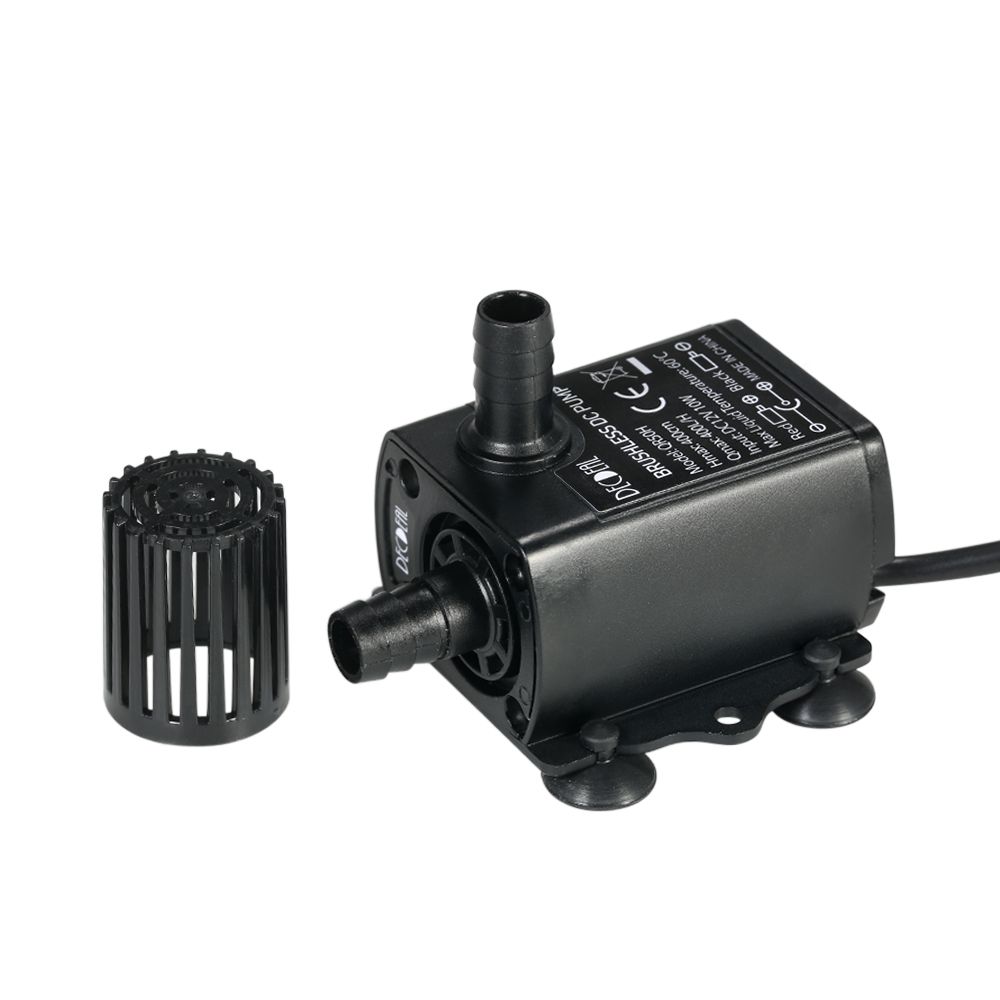

With a filter, avoiding blocking the inlet.

4 rubber suckers on the bottom, can adsorb on the smooth surface and reduce noise and vibration.

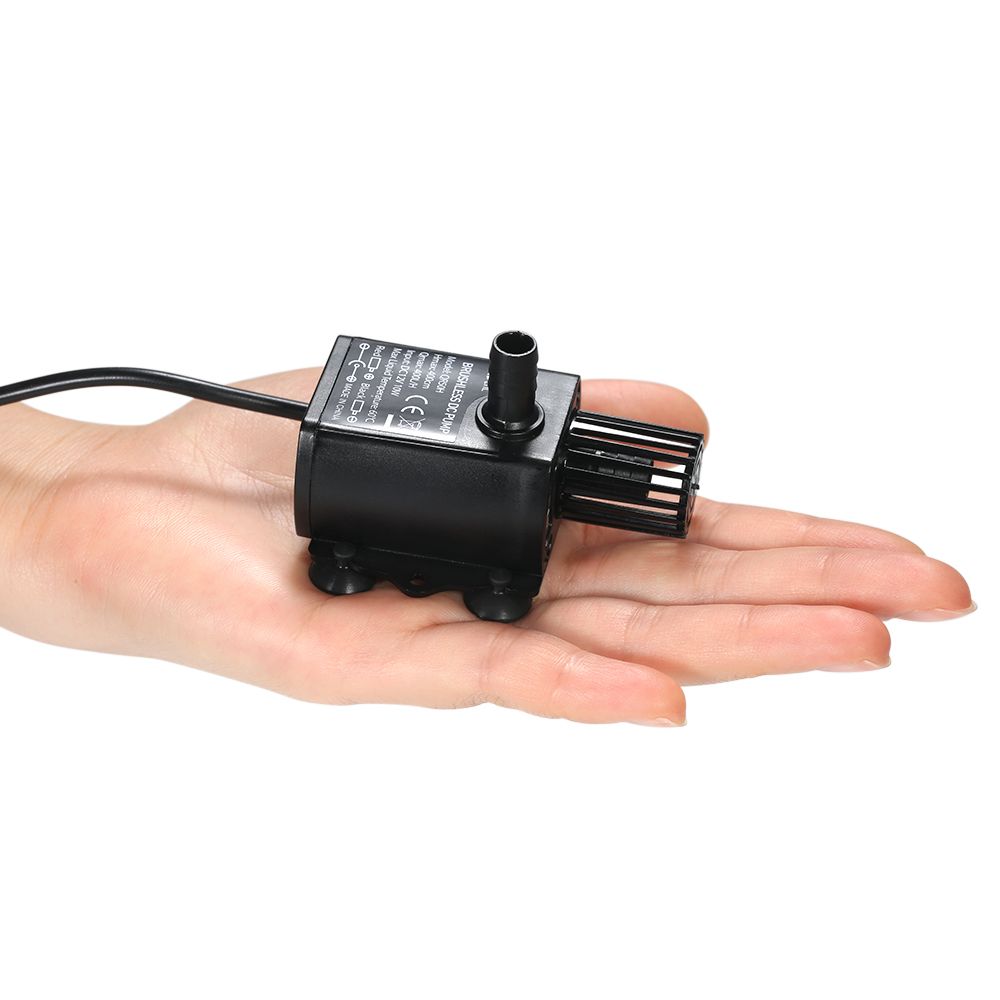

Small size, high efficiency, low noise.

Suitable for aquarium, fountain, car cooling, computer water cooling system and circulation systems.



Note:

1. Please check the voltage and of the pump before on.

2. Please cut off the before you install/put in/take away the pump from the water; otherwise, the pump can't outlet water due to the air in it.

3. It can be used in the water or other liquids(without particles and impurities); NOT for viscous and acid-base liquids.

4. DO NOT dry burn the pump, otherwise it would be damaged;

5. Switch on-off the repeatedly for several times to eliminate the air in the pump impeller and the pipe.



Specifications:

Color: Black

Pump material: PC + ABS

Rated Voltage: 12V

Max. : 10W

Max. Current: 830mA

Max. Flow Quantity: 400L/H

Max. Lift: 400cm / 13.12ft

Noise: Less than 37dB

Lack of Water Protection: Yes

Outer Dia. of Inlet/Outlet: 8.5mm / 0.33in

Inner Dia. of Inlet/Outlet: 6mm / 0.24in

Waterproof Class: IP68

Max. Liquid Temperature: 60°C

Cable Length: 150cm / 59in

Product Size: 59.5 * 49 * 42mm / 2.34 * 1.9 * 1.65in

Product Weight: 94g / 3.32oz

Package Size: 6.5 * 6 * 5.4cm / 2.56 * 2.36 * 2.12in

Package Weight: 106g / 3.76oz

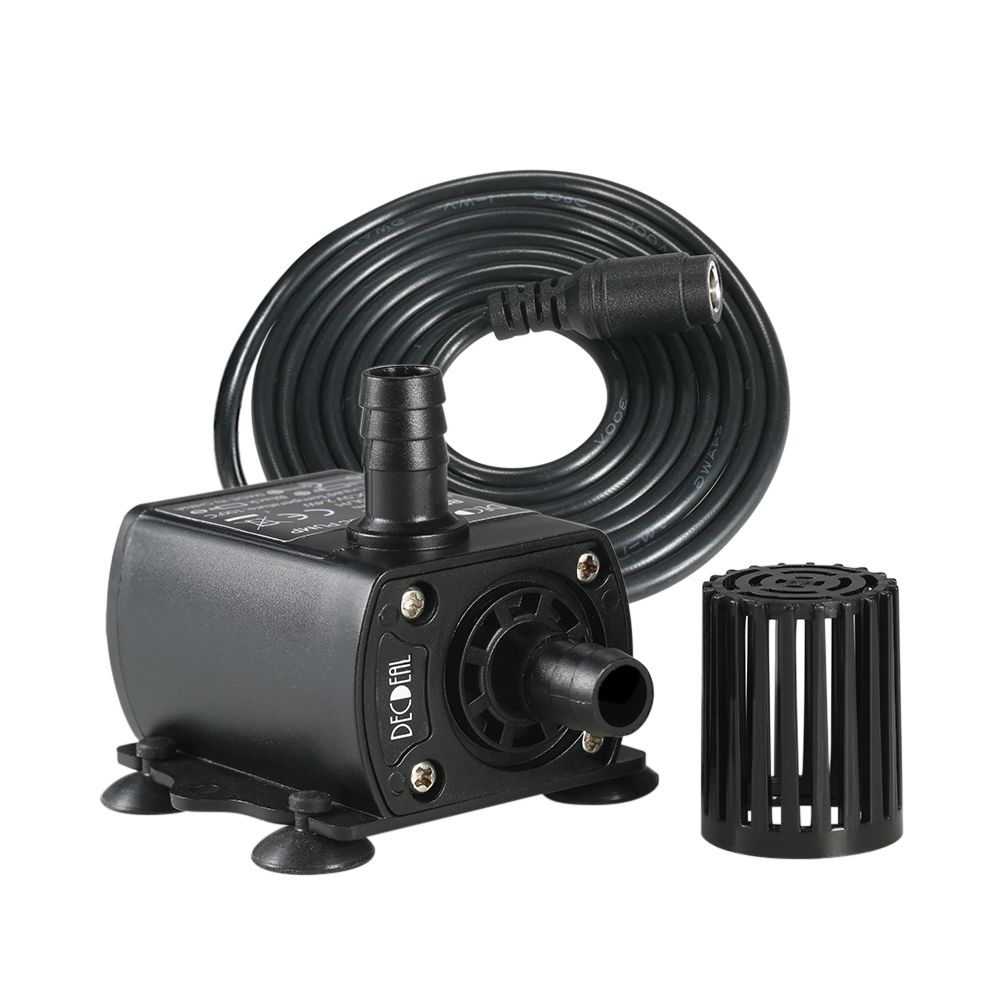

Package List:

1 * DC12V Brushless Pump

1 * Filter

1 * User Manual(English)

Key Features

Brushless pump, permanent magnetic rotor, maintenance-free.
Enameled wire coil and circuit board are sealed by epoxy resin.
The coil adopts pure copper enameled wire, lower temperature rise and longer life span.
Amphibious pump, you can use it in the water or out of water(follow the installation instruction).
5.5x2.1mm female DC12V for input.
Flow Adjustment with LED indicators, and memory function when off.

What's In the Box

1 x DC12V Brushless Pump,1 x Filter,1 x User Manual(English)
