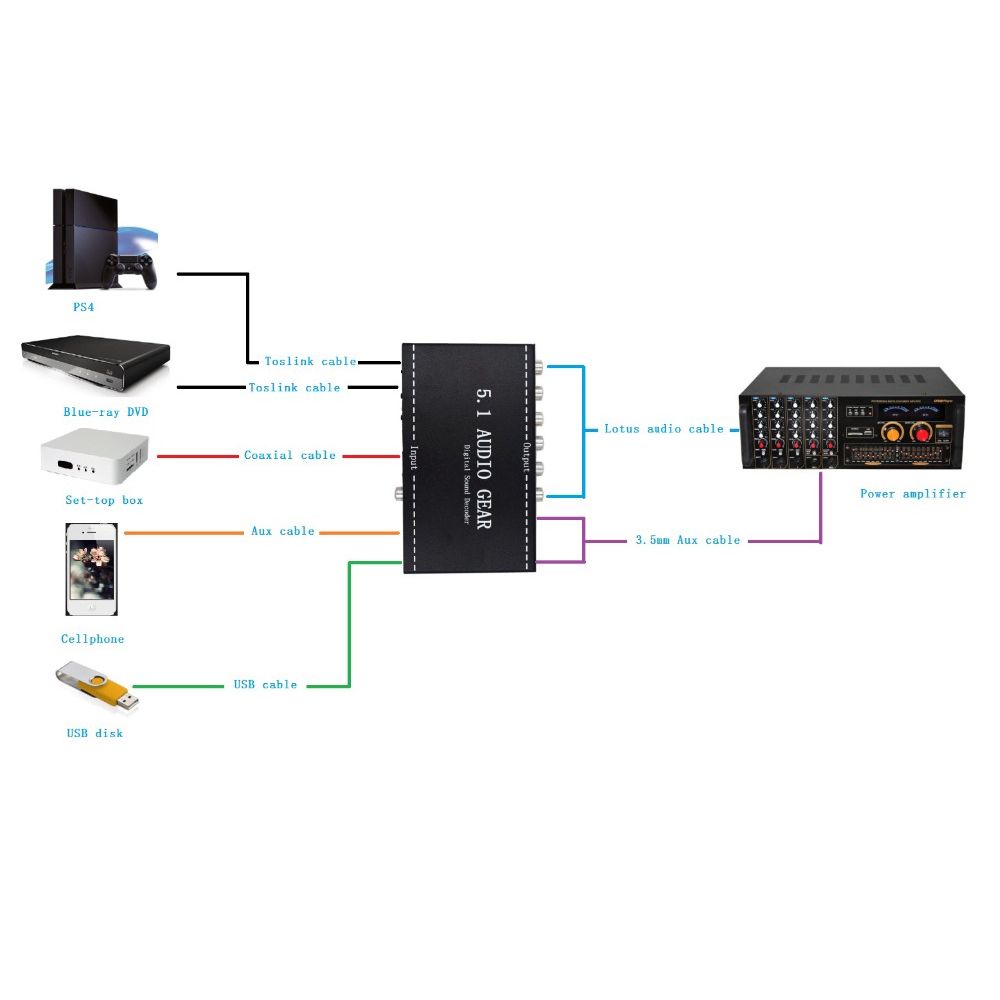

The NK-A6L digital audio decoder adopts 24-bit audio DSP, 96KHz digital receivers, and 192KHz/24 bit ADC and DAC. Supports for Dolby Digital AC-3 Dolby Pro Logic, DTS, and other digital audio format source decoding, a variety of sound field and the replay results of two listening modes, 5.1 analog audio output, allowing to automatically work with different amplifier and speakers, to deliver different sound effects, easy to connect many entertainment devices with optical and coaxial digital signal and analog output signals (such as: for set-top boxes, HD players, Blu-ray DVD, PS2, PS3, XBOX360)

Features:

• Supports for Dolby Digital AC-3 Dolby Pro Logic, DTS, and other digital audio format source decoding, a variety of sound field and the replay results of two listening modes, 5.1 analog audio output.
• Convert DTS/AC3 source digital audio to analog 5.1 audio or stereo audio output.
• Convert the analog stereo (L/R) signals after digital processing chip into analog 5.1CH output.

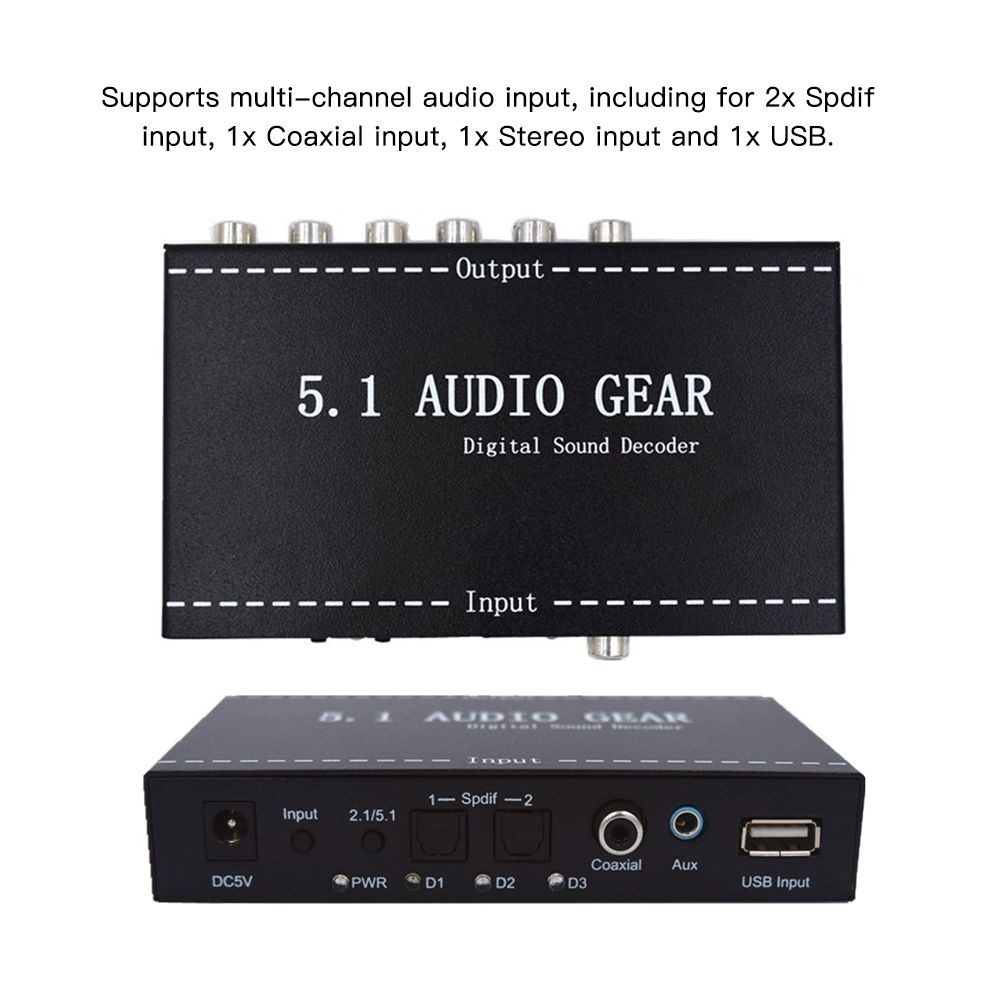

• Supports multi-channel audio input, including for 2x Spdif input, 1x Coaxial input, 1x Stereo input and 1x USB.
• Allows to automatically work with different amplifier and speakers, to deliver different sound effects, easy to connect many entertainment devices with optical and coaxial digital signal and analog output signals.

Specification:

Model: NK-A6L

Type: Digital Audio Decoder

Signal to Noise: 120db

Degree of Separation: 85db

Frequency Response: (20Hz-20 KHz) +/- 0.5db

Max Output Volt: 2.2V

Supply: /5V 1A

Item Size: 13 * 7.5 * 2.5cm / 5.1 * 2.95 * 0.98inches

Item Weight: 248g / 8.7oz

Package Size: 21.5 * 14.7 * 5.5cm / 8.5 * 5.8 * 2.2inches

Package Weight: 402g / 14.2oz

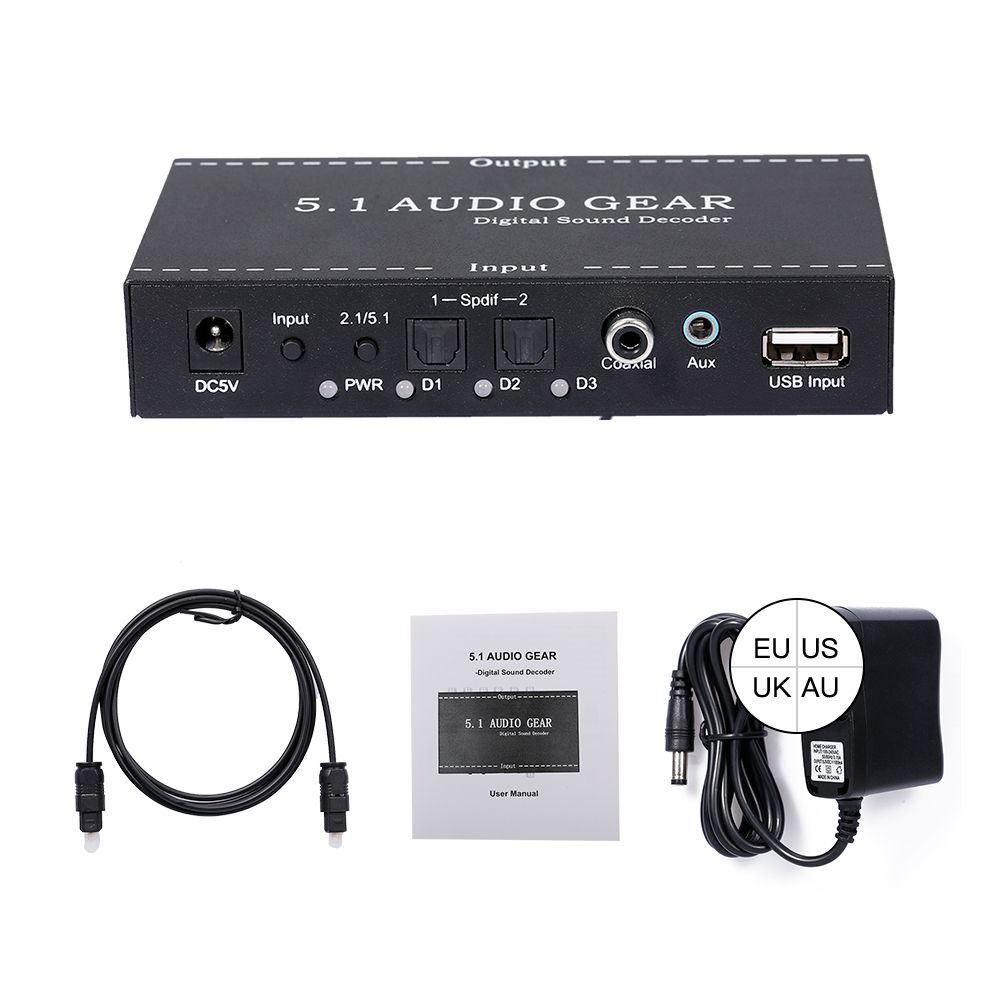

Package Included:

1 * Digital Audio Decoder

1 * Adapter

1 * Optical Cable

1 * Manual

Key Features

Supports for Dolby Digital AC-3 Dolby Pro Logic, DTS, and other digital audio format source decoding, a variety of sound field and the replay results of two listening modes, 5.1 analog audio output.
Convert DTS/AC3 source digital audio to analog 5.1 audio or stereo audio output.
Convert the analog stereo (L/R) signals after digital processing chip into analog 5.1CH output.
Supports multi-channel audio input, including for 2x Spdif input, 1x Coaxial input, 1x Stereo input and 1x USB.
Allows to automatically work with different amplifier and speakers, to deliver different sound effects, easy to connect many entertainment devices with optical and coaxial digital signal and analog output signals.
Supports for Dolby Digital AC-3 Dolby Pro Logic, DTS, and other digital audio format source decoding, a variety of sound field and the replay results of two listening modes, 5.1 analog audio output.
