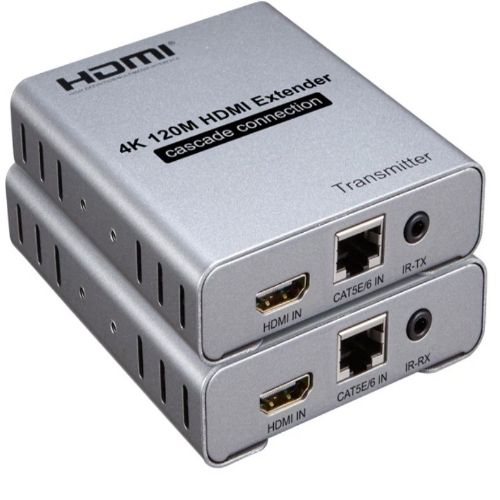

HDMI 120M Kvm Ip Extender

Introduction:
The 4K 120M HDMI extender uses one single cat-5E or cat-6(recommended) cable
instead of HDMI cable, you can extend the 4K@30Hz signal to 120 meters .

The purpose of the extender is to achieve long-distance signal transmission with low-cost wires.


Features:
1:120M long distance transmission:
2:Multi-receiver cascade transmission:
3:Low power consumption, low temperature and high safety.

Length of CAT-5E/CAT-6 cable between Rx and TX ............ up to 120 meters
HDMI input ......................... 4K/1080p/720p/576p/576i/480p/480i
Support audio format ........................ DTS/Dolby/LPCM
HDMI output ............... 4K30Hz/1080p/720p/576p/576i/480p/480i
Max bandwidth .............................. 340MHz
Max baud rate ....................................... 3.4Gbpsx3
Input video signal ................................. 0.5~1.5Volts p-p
Output DDC signal ............................. 5Volts p-p (TTL)
Input HDMI cable distance .......... ≤15m AWG26 HDMI standard cable
Output HDMI cable distance ...... ≤15m AWG26 HDMI standard cable
TX Max working current ...................................... 350mA
RX Max working current ...................................... 200mA
Power adapter format .................. Input:AC (50HZ, 60HZ) 100V-240V; Output: DC5V/1A
Operating Temperature range .............................. (-15 to +55℃)
Operating Humidity range ......................... 5% to 90%RH (No Condensation)
Dimension (L x W x H) ........................................ 94x84x24(mm)
TX Weight ............................................................. 223g
RX Weight ........................................................... 223g

Package Content:
1PCS Transmitter
1PCS Receiver
1Pair IR Cable
2PCS Power Adapter
1PCS User Guide

Key Features

120m HDMI extender
1 pc transmitter
2 PC receiver.
1 pair it remote.
2 pcs power adapter.
User manual

What's In the Box

• 120m HDMI extender
• 1 pc transmitter
• 2 PC receiver.
• 1 pair it remote.
• 2 pcs power adapter.
• User manual
