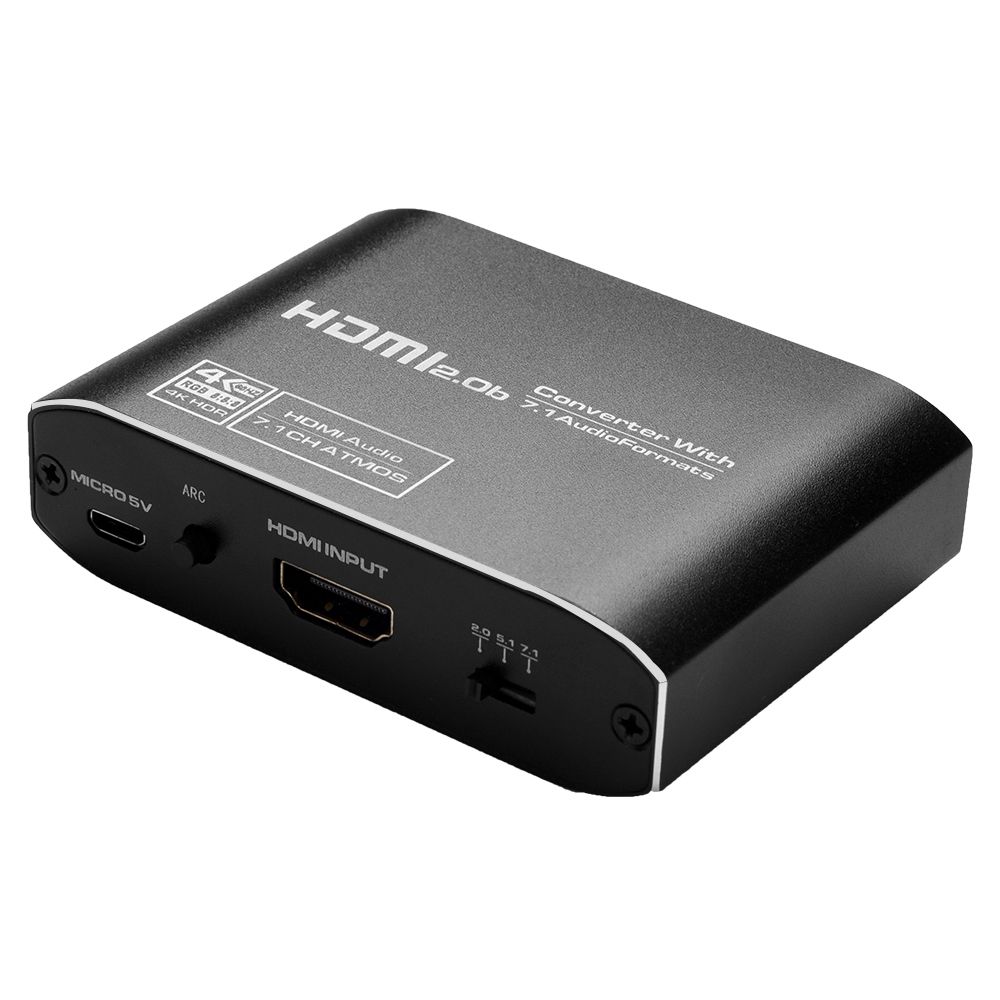

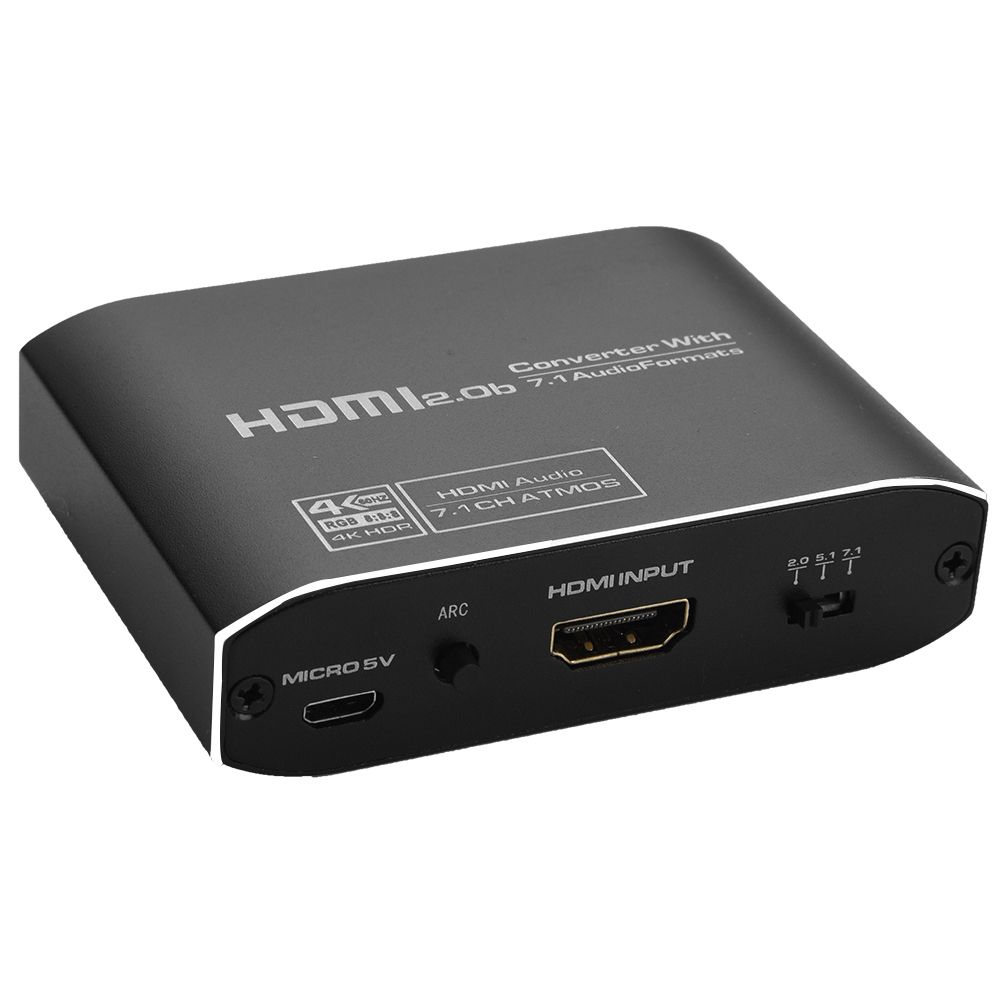

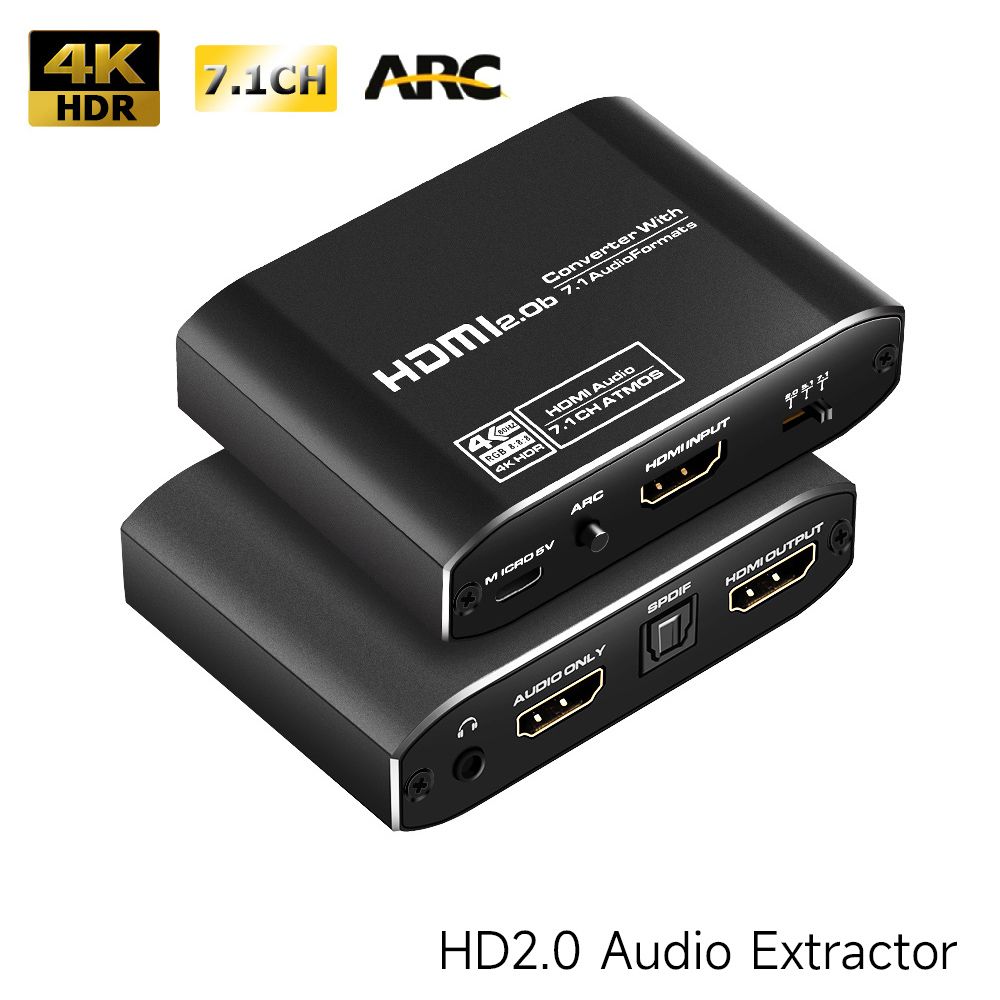

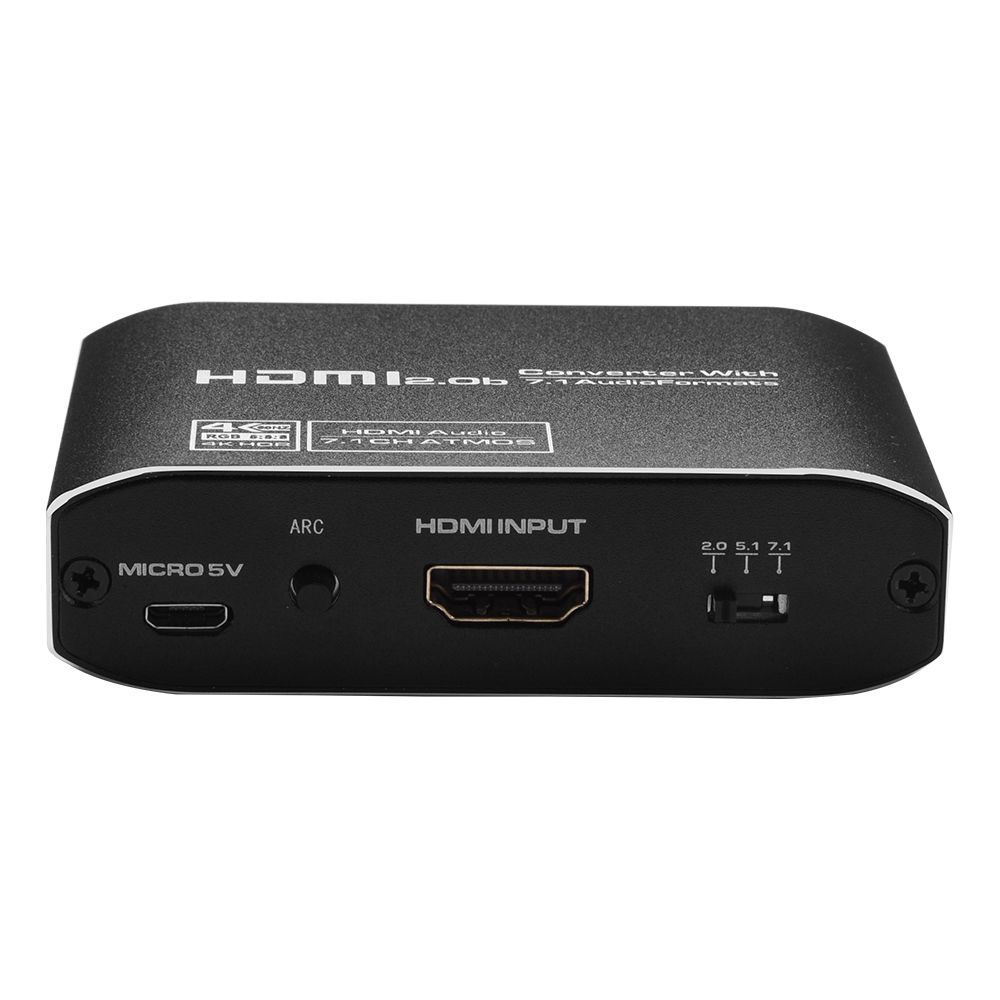

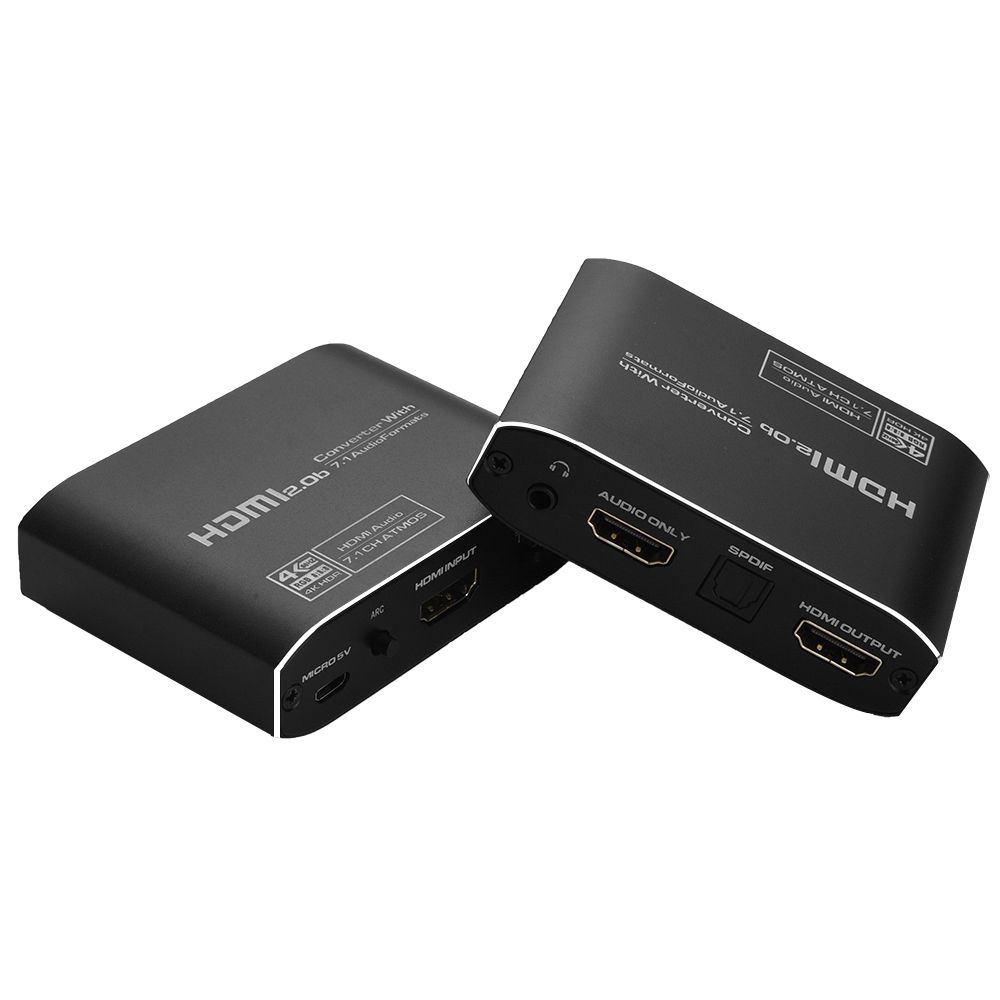

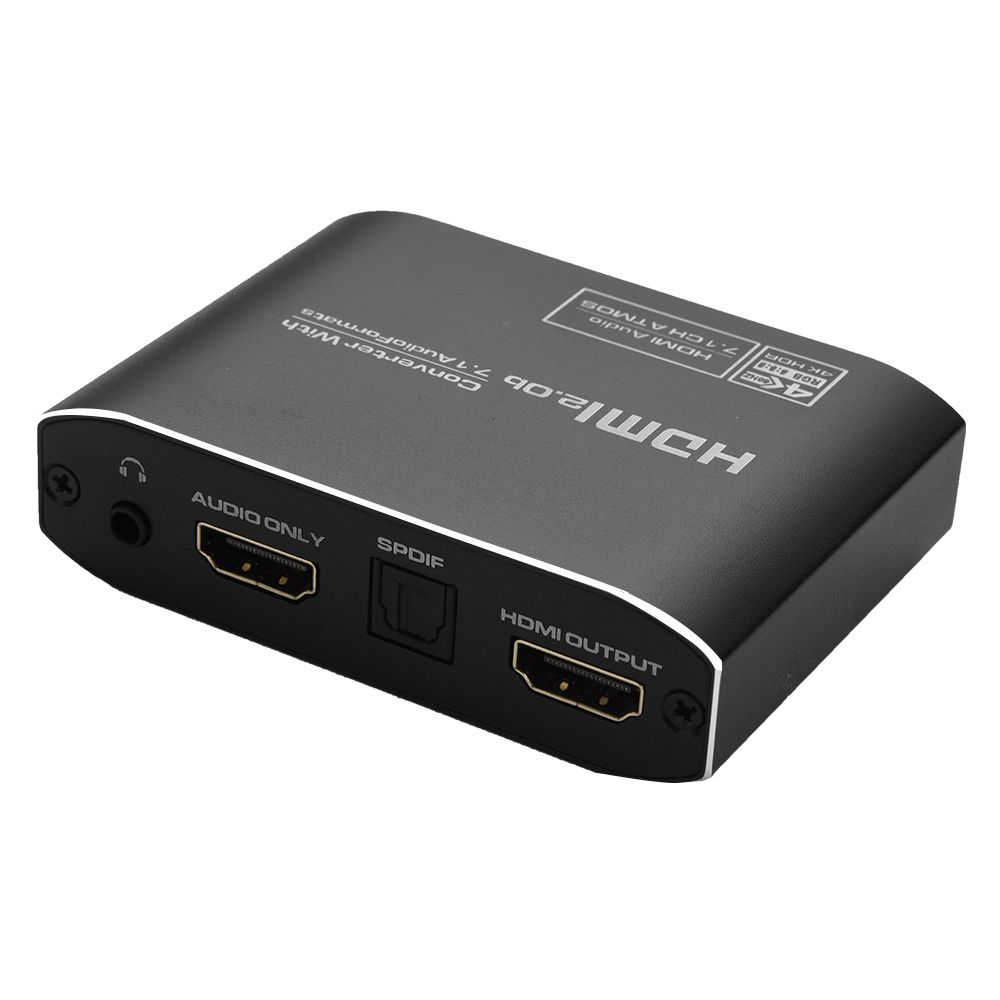

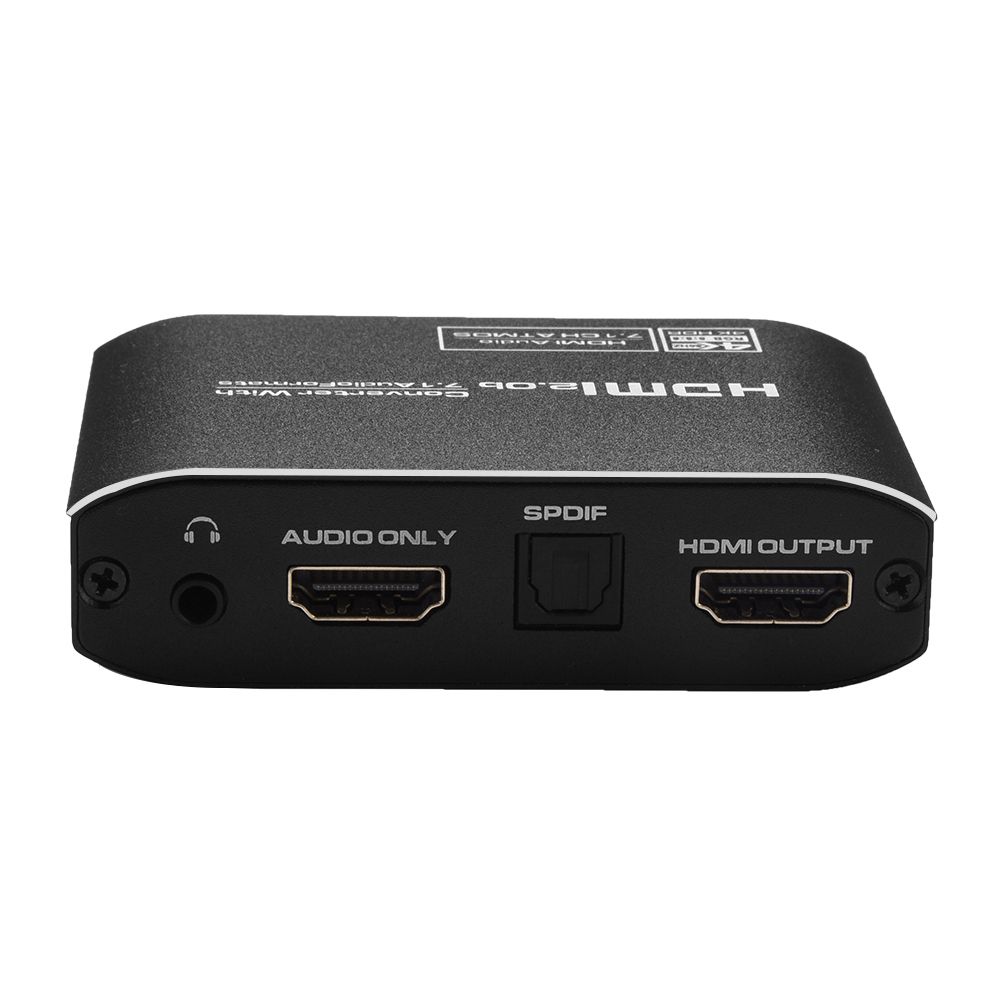

HD2.0 4K@60Hz Audio Extractor Audio Converter 3 Audio Modes

Features:

This audio extractor can extract audio from a digital HD signal to HD 7.1CH audio, optical SPDIF or 3.5mm stereo out, and the video/ audio signal is passed through the HD output port, which effectively achieves audio synchronization separation and provides high quality transmission.

Support up to 2160p@60Hz, RGB 8:8:8, HDR.

It has 2.0CH, 5.1CH, 7.1CH three kinds of audio mode options, easy to switch.

Support ARC(Audio Return Channel).

Compatible with most devices with standard HD interface, such as Blu-ray DVD, set-top box, laptop, TV/monitor, amplifier, speaker, etc.

Specification:

Type: HD audio extractor

Input port: 1*HD

Output ports: 1*HD video, 1*SPDIF, 1*3.5mm audio, 1*HD 7.1CH audio

HD resolution: 2160p/1080p/1080i/720p/576p/576i/480p

Audio output: L/R+SPDIF

Max baud rate:18Gbps

Audio mode switch: 2.0CH/5.1CH/7.1CH

Input/Output TMDS signal: 0.5~1.5Volts p-p(TTL)

Input/Output DDC signal: 5Volts p-p(TTL)

Max working current: 500mA

size: 8 * 6 * 2.2cm /3.15 * 2.36 * 0.87in

weight: Approx. 90g /3.17oz
