TR16 8-120V Waterproof Battery Capacity Tester Voltage

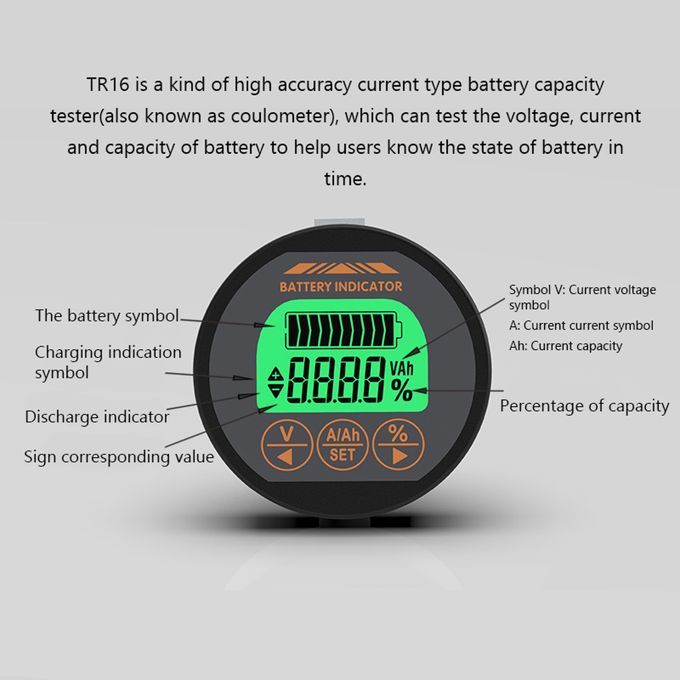

TR16 is a kind of high accuracy current type battery capacity tester(also known as coulometer), which can test the voltage, current and capacity of battery to help users know the state of battery in time. TR16 have memory function. It is suitable for mobile and portable equipment, e-bike, balance cars, cleaning machines, instruments, and so on.



Features:

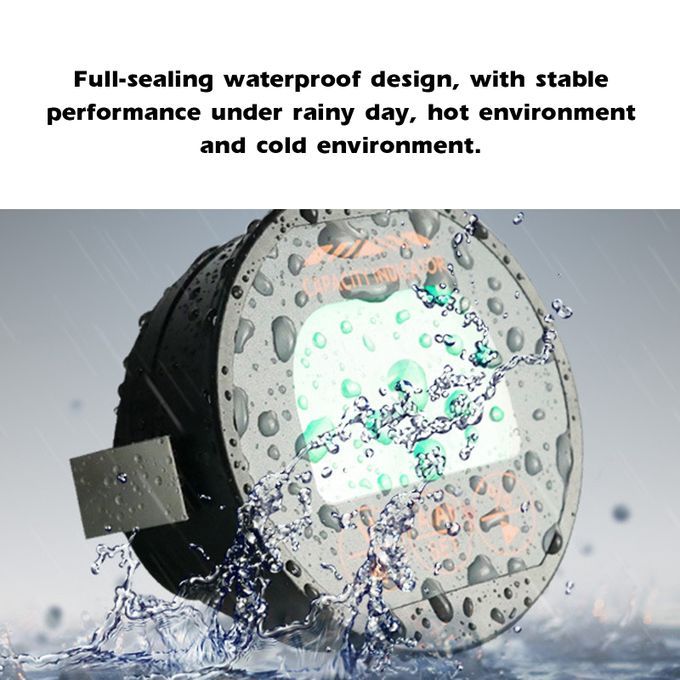

Full-sealing waterproof design, with stable performance under rainy day, hot environment and cold environment.

Large capacity design, max 999.9AH settable, compatible with all kinds of batteries.

High accuracy design, the testing error of charge and discharge quantity of electricity is ≤1%.

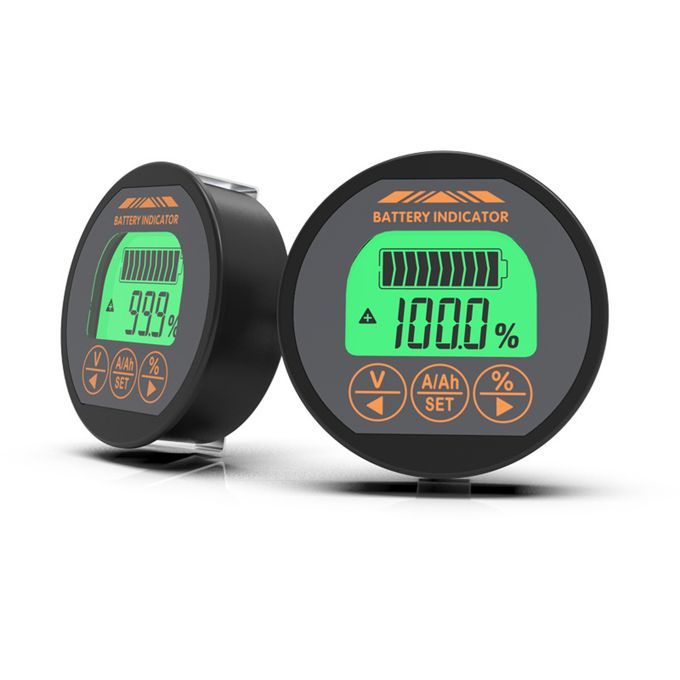

Equipped with LCD display, you can see the electric quantity, voltage, current clearly.

Suitable for lithium batteries, lithium iron phosphate batteries, leadacid batteries and nickel-metal hydride batteries which working voltage is from 8V to 120V.

Help testing the voltage, current and capacity of battery to help users know the state of battery in time.

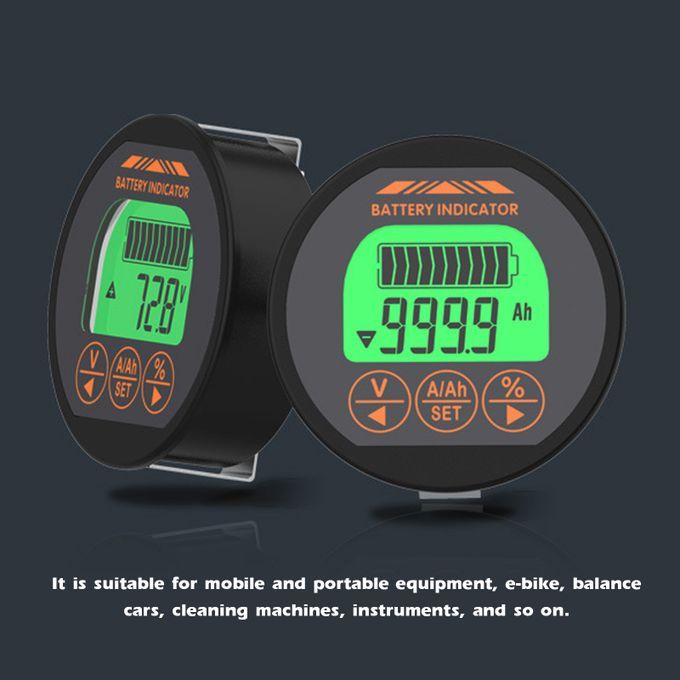

Suitable for mobile and portable equipment, e-bike, balance cars, cleaning machines, instruments, and so on.



Specifications:

Name: Battery Capacity Tester

Model: TR16

Material: ABS

Testing-range: 8-120V

Current: 50A, 100A, 350A (optional)

Working dissipation: 10.0-12.0mA

Standby dissipation: 0.5-0.6mA

Sleep dissipation: 50-60μA

Voltage accuracy: ±1.0%

Current accuracy: ±1.0%

Capacity accuracy: ±1.0%

Backlight on current(50A): 50.0mA

Backlight on current(>50A): 100.0mA

Preset capacity value: 0.1-999 Ah

Current of 50A sampler: 0.0-75.0A

Current of 100A sampler: 0.0-150.0A

Current of 350A sampler: 0.0-500.0A

Temperature-range: -10 to 60 ℃

Item size: 59 * 59 * 20mm / 2.32 * 2.32 * 0.79in

Item weight:

50A: 200g / 7.05ounce

100A: 270g / 9.52ounce

350A: 410g / 14.46ounce

Package size: 100 * 100 * 50mm / 3.94 * 3.94 * 1.97in

Package weight:

50A: 200g / 7.05ounce

100A: 270g / 9.52ounce

350A: 410g / 14.46ounce



Packing List:

1 * Battery Capacity Tester

1 * Cable

1 * Bracket
a a a a a

Key Features

Full-sealing waterproof design, with stable performance under rainy day, hot environment and cold environment.
Large capacity design, max 999.9AH settable, compatible with all kinds of batteries.
High accuracy design, the testing error of charge and discharge quantity of electricity is ≤1%.
Equipped with LCD display, you can see the electric quantity, voltage, current clearly.
Suitable for lithium batteries, lithium iron phosphate batteries, leadacid batteries and nickel-metal hydride batteries which working voltage is from 8V to 120V.
Help testing the voltage, current and capacity of battery to help users know the state of battery in time.
Easy to use
Exquisite Workmanship
Well Made
Best Choice and best discounts
Customer Care is Our Top Priority
Offer is Subject to Availability
Big Sale

What's In the Box

1 x Battery Capacity Tester,1 x Cable,1 x Bracket
