Product Description
Description :
SATLINK WS-6908 -S FTA Professional Digital Satellite Finder Meter
It is a powered handheld Satellite alignment meter demodulating -S Signal. picture, Signal Strength and Signal Quality will be showed on LCD Screen after you set up your local -S . Also, it enables you to select big menu window for data figure which is helpful for alignment.
It can show Azimuth and Elevation, CBER/VBER, S/N, Signal Strength and signal lock sound. It can detect very faint signal, and supports OFF/13V/18V. With auto-protection for LNB short-circuit. AV INPUT and AV OUTPUT for Camera, LCD...etc With 12V Adaptor for external use. With build-in high capacity (8.4V 3000mAh), which can work for more than 4 hours after fully charged. It can play photo(JPEG) and music(mp3) files from external USB memory device.
Functions :
1. High quality and stable performance: its with a microprocessor controller.
2. 3.5 LCD display, bigger menu window.
3. picture, signal strength and signal quality can be showed on LCD
4. Screen after you set up your local -S .
5. Its with auto-protection for LNB short-circuit.
6. It Azimuth and Elevation, CBER/VBER, S/N, signal strength and signal lock sound alarm.
7. Supports both AV IN and AV OUT for camera, LCD, etc.
8. Built-in large capacity 3000mAH Li-ion .
9. Matched with a protective bag for easier outdoor using.
10. language: English, German, French, Portuguese, Spanish, Italian, Dutch, Polish, Turkish.
11.English user manual is included in the CD disk.
Specification :
System capabilities
Fully -S comliant
Yes
LNB/Tuner input
Connector
F type female
Frequency range
950MHz-2150MHz
Signal level
-65dBm~-25dBm
LNB
13/18V, 350mA
LNB Switch control
22KHz
DiSEqC
Ver 1.0/1.2
Demodulator
Front end
QPSK
Demodulation Range
2Mbps~45Mbps
SCPC and MCPC capable
Yes
System resource
Processor
32bit processor (133MHz)
SDRAM
4 x 16Mbyte
FLASH
8Mbyte
Video decoder
MPEG
Main Profile ' Main Level
Data Rate
up to 15Mbits/s
Resolution
720 x 576, 720 x 480
Video Format
PAL/NTSC/SECAM
MPEG Audio
MPEG
MPEG 12
Type
Mono
Sampling rates
32, 44.1 and 48KHz
Data Tranfer
Connector
USB type
supply
Li-ion
8.4V/3000mAH
Input
AC 100-240V 50/60Hz
Output
12V

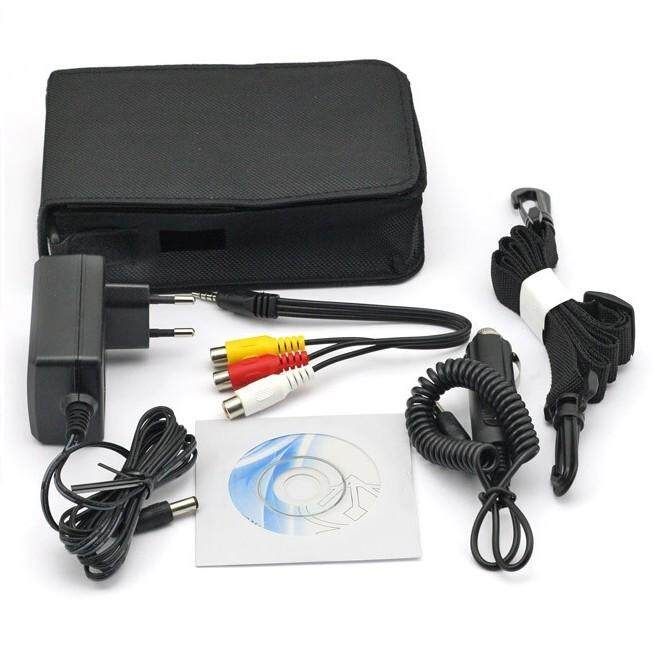

Package includes :
1 x Satlink WS-6908 satellite finder
1 x Black carry bag
1 x Car charger
1 x adapter (Comes with an adapter according to your country)
1 x Video and audio input output cable
1 x CD

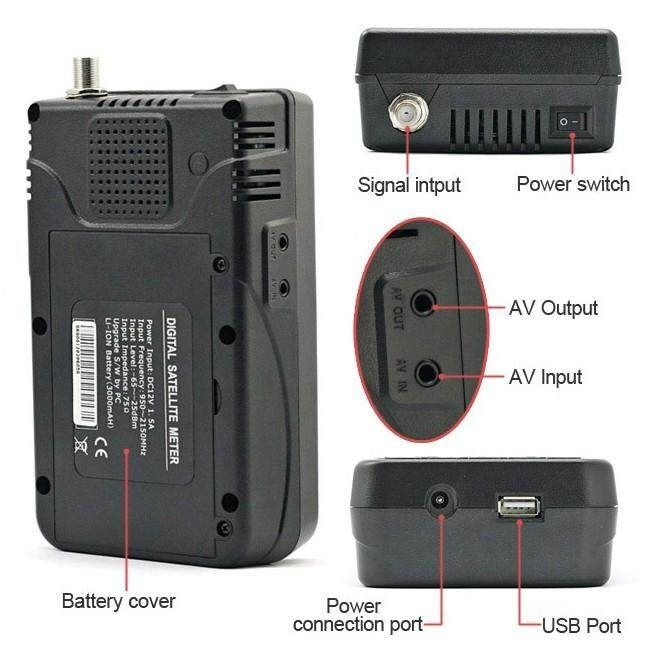

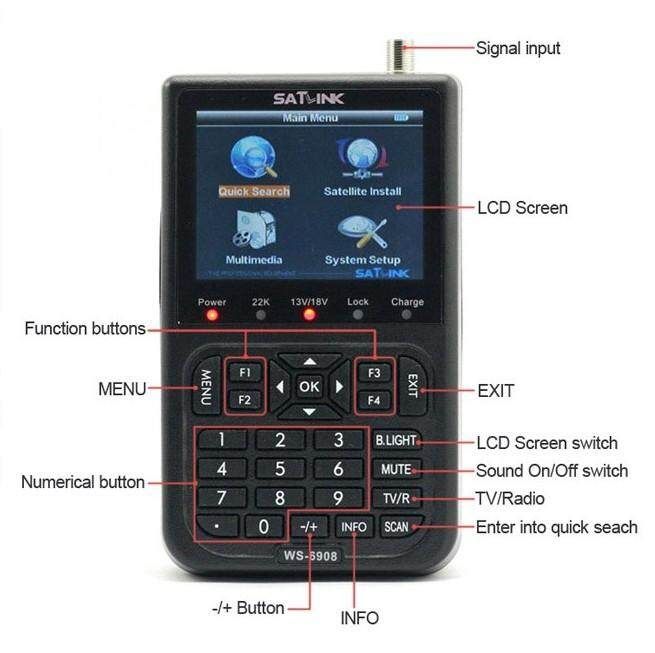

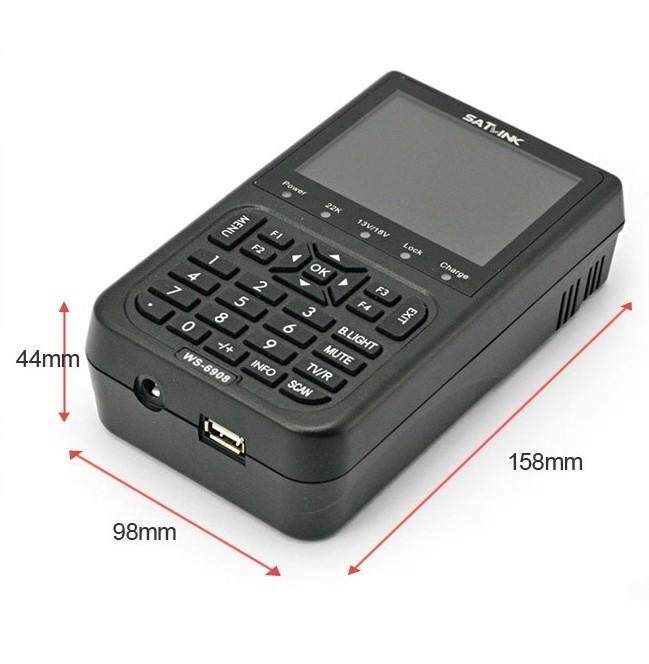

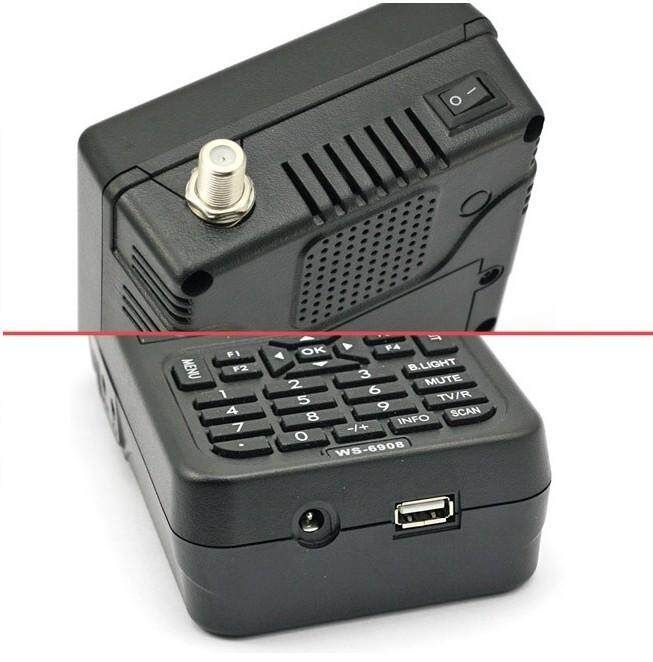

Details pictures :
Description :
SATLINK WS-6908 -S FTA Professional Digital Satellite Finder Meter
It is a powered handheld Satellite alignment meter demodulating -S Signal. picture, Signal Strength and Signal Quality will be showed on LCD Screen after you set up your local -S . Also, it enables you to select big menu window for data figure which is helpful for alignment.
It can show Azimuth and Elevation, CBER/VBER, S/N, Signal Strength and signal lock sound. It can detect very faint signal, and supports OFF/13V/18V. With auto-protection for LNB short-circuit. AV INPUT and AV OUTPUT for Camera, LCD...etc With 12V Adaptor for external use. With build-in high capacity (8.4V 3000mAh), which can work for more than 4 hours after fully charged. It can play photo(JPEG) and music(mp3) files from external USB memory device.
Functions :
1. High quality and stable performance: its with a microprocessor controller.
2. 3.5 LCD display, bigger menu window.
3. picture, signal strength and signal quality can be showed on LCD
4. Screen after you set up your local -S .
5. Its with auto-protection for LNB short-circuit.
6. It Azimuth and Elevation, CBER/VBER, S/N, signal strength and signal lock sound alarm.
7. Supports both AV IN and AV OUT for camera, LCD, etc.
8. Built-in large capacity 3000mAH Li-ion .
9. Matched with a protective bag for easier outdoor using.
10. language: English, German, French, Portuguese, Spanish, Italian, Dutch, Polish, Turkish.
11.English user manual is included in the CD disk.
Specification :
System capabilities
Fully -S comliant
Yes
LNB/Tuner input
Connector
F type female
Frequency range
950MHz-2150MHz
Signal level
-65dBm~-25dBm
LNB
13/18V, 350mA
LNB Switch control
22KHz
DiSEqC
Ver 1.0/1.2
Demodulator
Front end
QPSK
Demodulation Range
2Mbps~45Mbps
SCPC and MCPC capable
Yes
System resource
Processor
32bit processor (133MHz)
SDRAM
4 x 16Mbyte
FLASH
8Mbyte
Video decoder
MPEG2
Main Profile ' Main Level
Data Rate
up to 15Mbits/s
Resolution
720 x 576, 720 x 480
Video Format
PAL/NTSC/SECAM
MPEG Audio
MPEG
MPEG 12
Type
Mono
Sampling rates
32, 44.1 and 48KHz
Data Tranfer
Connector
USB type
supply
Li-ion
8.4V/3000mAH
Input
AC 100-240V 50/60Hz
Output
12V
Package includes :
1 x Satlink WS-6908 satellite finder
1 x Black carry bag
1 x Car charger
1 x adapter (Comes with an adapter according to your country)
1 x Video and audio input output cable
1 x CD
Details pictures :
a a a a a
SATLINK WS-6908 -S FTA Professional Digital Satellite Finder Meter
It is a powered handheld Satellite alignment meter demodulating -S Signal. picture, Signal Strength and Signal Quality will be showed on LCD Screen after you set up your local -S . Also, it enables you to select big menu window for data figure which is helpful for alignment.
It can show Azimuth and Elevation, CBER/VBER, S/N, Signal Strength and signal lock sound. It can detect very faint signal, and supports OFF/13V/18V. With auto-protection for LNB short-circuit. AV INPUT and AV OUTPUT for Camera, LCD...etc With 12V Adaptor for external use. With build-in high capacity (8.4V 3000mAh), which can work for more than 4 hours after fully charged. It can play photo(JPEG) and music(mp3) files from external USB memory device.
Functions :
1. High quality and stable performance: its with a microprocessor controller.
2. 3.5 LCD display, bigger menu window.
3. picture, signal strength and signal quality can be showed on LCD
4. Screen after you set up your local -S .
5. Its with auto-protection for LNB short-circuit.
6. It Azimuth and Elevation, CBER/VBER, S/N, signal strength and signal lock sound alarm.
7. Supports both AV IN and AV OUT for camera, LCD, etc.
8. Built-in large capacity 3000mAH Li-ion .
9. Matched with a protective bag for easier outdoor using.
10. language: English, German, French, Portuguese, Spanish, Italian, Dutch, Polish, Turkish.
11.English user manual is included in the CD disk.
Specification :
System capabilities
Fully -S comliant
Yes
LNB/Tuner input
Connector
F type female
Frequency range
950MHz-2150MHz
Signal level
-65dBm~-25dBm
LNB
13/18V, 350mA
LNB Switch control
22KHz
DiSEqC
Ver 1.0/1.2
Demodulator
Front end
QPSK
Demodulation Range
2Mbps~45Mbps
SCPC and MCPC capable
Yes
System resource
Processor
32bit processor (133MHz)
SDRAM
4 x 16Mbyte
FLASH
8Mbyte
Video decoder
MPEG
Main Profile ' Main Level
Data Rate
up to 15Mbits/s
Resolution
720 x 576, 720 x 480
Video Format
PAL/NTSC/SECAM
MPEG Audio
MPEG
MPEG 12
Type
Mono
Sampling rates
32, 44.1 and 48KHz
Data Tranfer
Connector
USB type
supply
Li-ion
8.4V/3000mAH
Input
AC 100-240V 50/60Hz
Output
12V
Package includes :
1 x Satlink WS-6908 satellite finder
1 x Black carry bag
1 x Car charger
1 x adapter (Comes with an adapter according to your country)
1 x Video and audio input output cable
1 x CD
Details pictures :
Description :
SATLINK WS-6908 -S FTA Professional Digital Satellite Finder Meter
It is a powered handheld Satellite alignment meter demodulating -S Signal. picture, Signal Strength and Signal Quality will be showed on LCD Screen after you set up your local -S . Also, it enables you to select big menu window for data figure which is helpful for alignment.
It can show Azimuth and Elevation, CBER/VBER, S/N, Signal Strength and signal lock sound. It can detect very faint signal, and supports OFF/13V/18V. With auto-protection for LNB short-circuit. AV INPUT and AV OUTPUT for Camera, LCD...etc With 12V Adaptor for external use. With build-in high capacity (8.4V 3000mAh), which can work for more than 4 hours after fully charged. It can play photo(JPEG) and music(mp3) files from external USB memory device.
Functions :
1. High quality and stable performance: its with a microprocessor controller.
2. 3.5 LCD display, bigger menu window.
3. picture, signal strength and signal quality can be showed on LCD
4. Screen after you set up your local -S .
5. Its with auto-protection for LNB short-circuit.
6. It Azimuth and Elevation, CBER/VBER, S/N, signal strength and signal lock sound alarm.
7. Supports both AV IN and AV OUT for camera, LCD, etc.
8. Built-in large capacity 3000mAH Li-ion .
9. Matched with a protective bag for easier outdoor using.
10. language: English, German, French, Portuguese, Spanish, Italian, Dutch, Polish, Turkish.
11.English user manual is included in the CD disk.
Specification :
System capabilities
Fully -S comliant
Yes
LNB/Tuner input
Connector
F type female
Frequency range
950MHz-2150MHz
Signal level
-65dBm~-25dBm
LNB
13/18V, 350mA
LNB Switch control
22KHz
DiSEqC
Ver 1.0/1.2
Demodulator
Front end
QPSK
Demodulation Range
2Mbps~45Mbps
SCPC and MCPC capable
Yes
System resource
Processor
32bit processor (133MHz)
SDRAM
4 x 16Mbyte
FLASH
8Mbyte
Video decoder
MPEG2
Main Profile ' Main Level
Data Rate
up to 15Mbits/s
Resolution
720 x 576, 720 x 480
Video Format
PAL/NTSC/SECAM
MPEG Audio
MPEG
MPEG 12
Type
Mono
Sampling rates
32, 44.1 and 48KHz
Data Tranfer
Connector
USB type
supply
Li-ion
8.4V/3000mAH
Input
AC 100-240V 50/60Hz
Output
12V
Package includes :
1 x Satlink WS-6908 satellite finder
1 x Black carry bag
1 x Car charger
1 x adapter (Comes with an adapter according to your country)
1 x Video and audio input output cable
1 x CD
Details pictures :
a a a a a
Key Features
Frequency range：950MHz-2150MHz
Signal level：-65dBm~-25dBm
LNB ：13/18V, 350mA
LNB Switch control：22KHz
DiSEqC：Ver 1.0/1.2
Demodulator：Front end
Demodulation Range：2Mbps~45Mbps
Output: 12V
Easy to use
Exquisite Workmanship
Well Made
Best Choice and best discounts
Customer Care is Our Top Priority
Offer is Subject to Availability
Big Sale
What's In the Box
1 x Satlink WS-6908 satellite finder 1 x Black carry bag 1 x Car charger 1 x adapter (Comes with an adapter according to your country) 1 x Video and audio input & output cable 1 x CD
Product Specification
| Model | JMVANJIA314165 |
|---|---|
| Production Country | China |
| Size (L x W x H cm) | 27 x 21 x 7 |
| Weight (kg) | 1.2 |
| Certifications | Organic |
| Color | Multicolor |
| Main Material | 1 |
| From the Manufacturer | 1 |
| Care Label | 1 |
