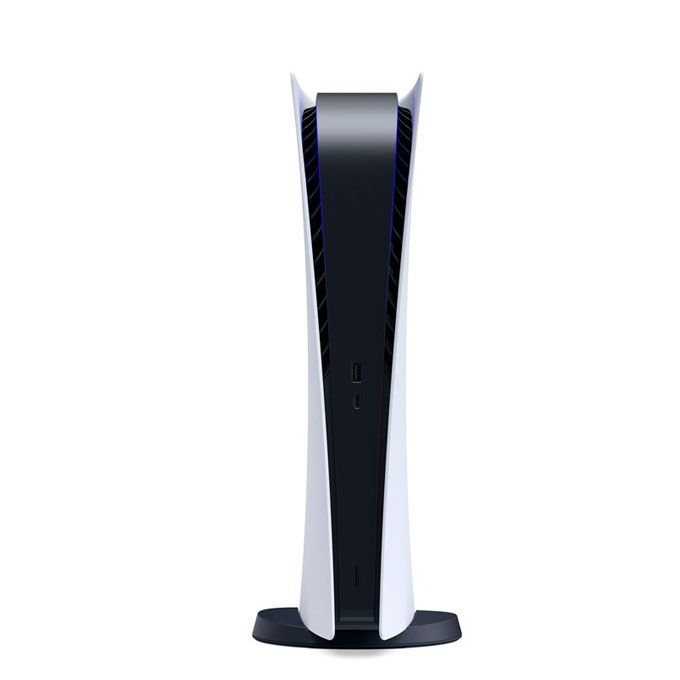

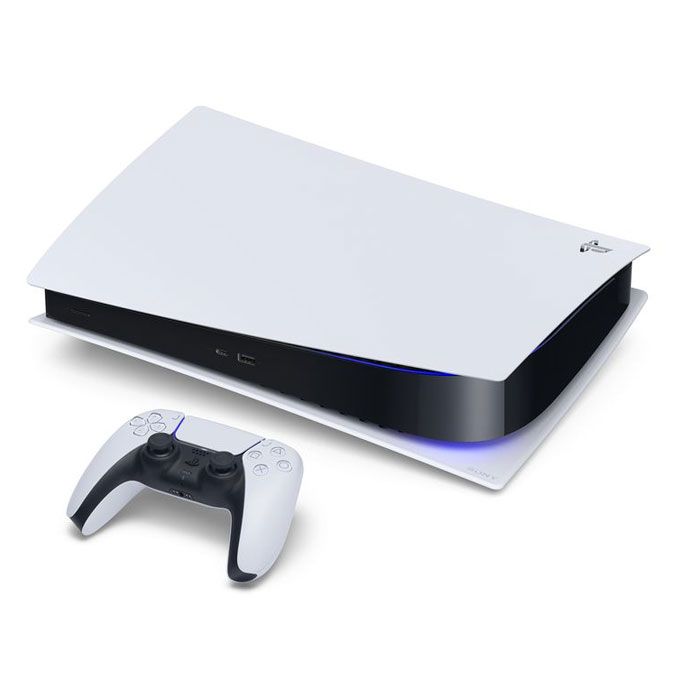

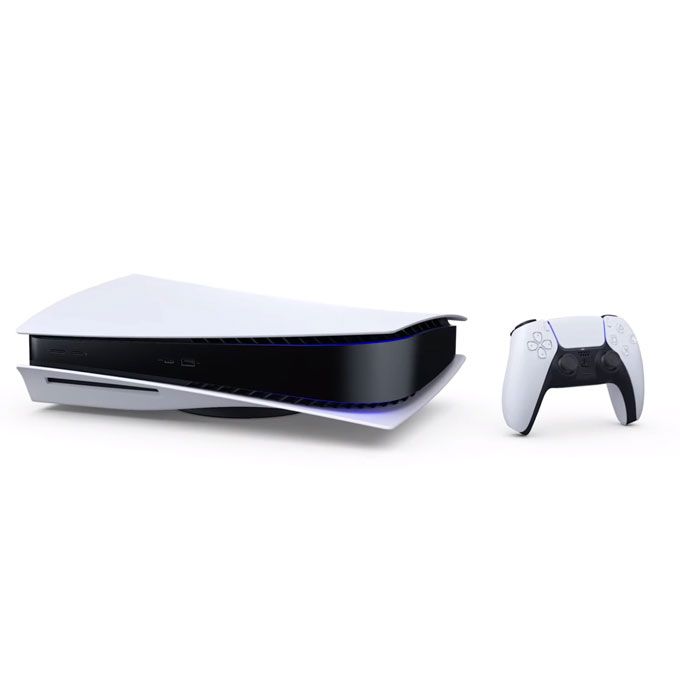

PlayStation 5 (PS5) Console
PlayStation 5 (PS5) Console
| Component | Specification |
|---|---|
| CPU | x86-64-AMD Ryzen Zen 8 Cores / 16 Threads at 3.5GHz (variable frequency) |
| GPU | Ray Tracing Acceleration Up to 2.23 GHz (10.3 TFLOPS) |
| GPU Architecture | AMD Radeon RDNA 2-based graphics engine |
| Memory/Interface | 16GB GDDR6/256-bit |
| Memory Bandwidth | 448GB/s |
| Internal Storage | Custom 825GB SSD |
| IO Throughput | 5.5GB/s (Raw), Typical 8-9GB/s (Compressed) |
| Expandable Storage | NVMe SSD Slot |
| External Storage | USB HDD Support |
| Optical Drive (optional) | Ultra HD Blu-ray (66G/100G) ~10xCAV BD-ROM (25G/50G) ~8xCAV BD-R/RE (25G/50G) ~8x CAV DVD ~3.2xCLV |
| PS5 Game Disc | Ultra HD Blu-ray, up to 100GB/disc |
| Audio | "Tempest" 3D AudioTech |
| Video Out | HDMI Out port Support of 4K 120Hz TVs, VRR (specified by HDMI ver 2.1) |
| Dimensions | PS5 - 390mm x 104mm x 260mm (width x height x depth) PS5 Digital Edition - 390mm x 92mm x 260mm (width x height x depth) |
| Weight | PS5 - 4.5kg PS5 Digital Edition - 3.9kg |
| Power | PS5 - 350W PS5 Digital Edition - 340W |
| Input / Output | USB Type-A port (Hi-Speed USB) USB Type-A port (Super Speed USB 10Gbps) x2 USB Type-C port (Super Speed USB 10Gbps) |
| Networking | Ethernet (10BASE-T, 100BASE-TX, 1000BASE-T) IEEE 802.11 a/b/g/n/ac/ax Bluetooth 5.1 |
Play Like Never Before
One of the major new features of the PS5 is the next generation solid state storage, and it's also the aspect Cerny spent most time talking about.
Like the Xbox Series X, the PS5 move away from the hard drive based storage of previous generation consoles to fast SSD storage. How fast are we talking about here? Sony claims raw I/O that rewrite the rules of what a PlayStation console can do which makes it roughly 100x faster than the storage on the PS4.
Having storage that fast has a number of advantages. It improves all load times tremendously, which means games launch faster, load faster and also speeds up things like reloading levels or fast travel. In turn this means developers don't need to have things like loading screens or the deceptive long corridors or elevator rides, which are currently necessary to hide the loading time for the next level. Storage this fast could load assets instantly, have seamless transitions, and basically change how games are made.
The faster storage also makes efficient use of the system memory. With the PS4, because the base hard drive was slower, most of the game assets had to be stored on the 8GB GDDR5 memory and would just sit there taking up space. With the PS5, the assets can be streamed in much faster, so only a fraction of the new 16GB GDDR6 memory has to be allocated to the assets.
With the PS5, the entire memory operation from decompression to coherency, mapping, file I/O, and check-in and load management have been updated to work with the faster storage so you get the full benefit of the 100x improvement in memory speed.
Key Features
x86-64-AMD Ryzen Zen 8 Cores / 16 Threads at 3.5GHz (variable frequency)
Ray Tracing Acceleration Up to 2.23 GHz (10.3 TFLOPS)
AMD Radeon RDNA 2-based graphics engine
16GB GDDR6/256-bit
5.5GB/s (Raw), Typical 8-9GB/s (Compressed)
USB HDD Support
BD-ROM (25G/50G) ~8xCAV BD-R/RE (25G/50G) ~8x CAV DVD ~3.2xCLV
Ultra HD Blu-ray, up to 100GB/disc
"Tempest" 3D AudioTech
HDMI Out port Support of 4K 120Hz TVs, VRR (specified by HDMI ver 2.1)
USB Type-A port (Hi-Speed USB) USB Type-A port (Super Speed USB 10Gbps) x2 USB Type-C port (Super Speed USB 10Gbps)
Ethernet (10BASE-T, 100BASE-TX, 1000BASE-T) IEEE 802.11 a/b/g/n/ac/ax Bluetooth 5.1
What's In the Box
- Sony PlayStation 5 Console

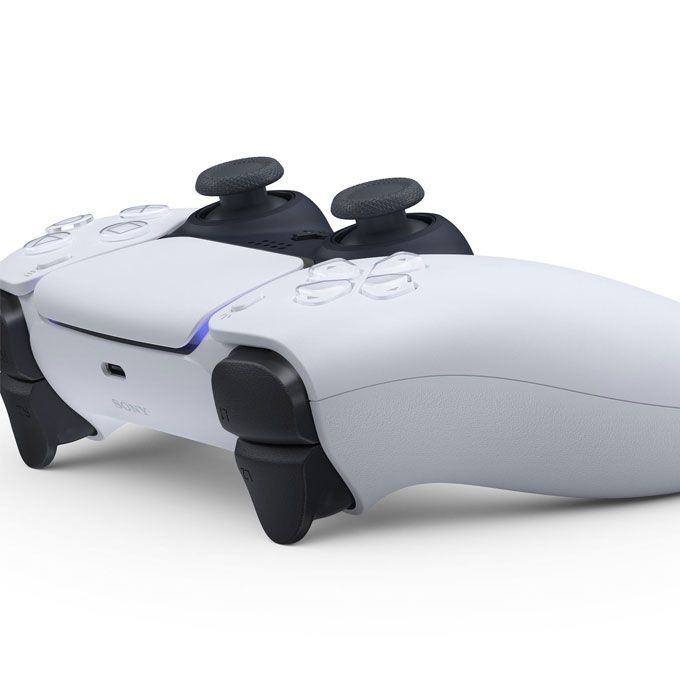

- Wireless controller
- HDMI cable
- AC power cord
- USB cable
- Printed materials
| Model | Ps5 |
|---|---|
| Weight (kg) | 0.5 |
| Color | White |
