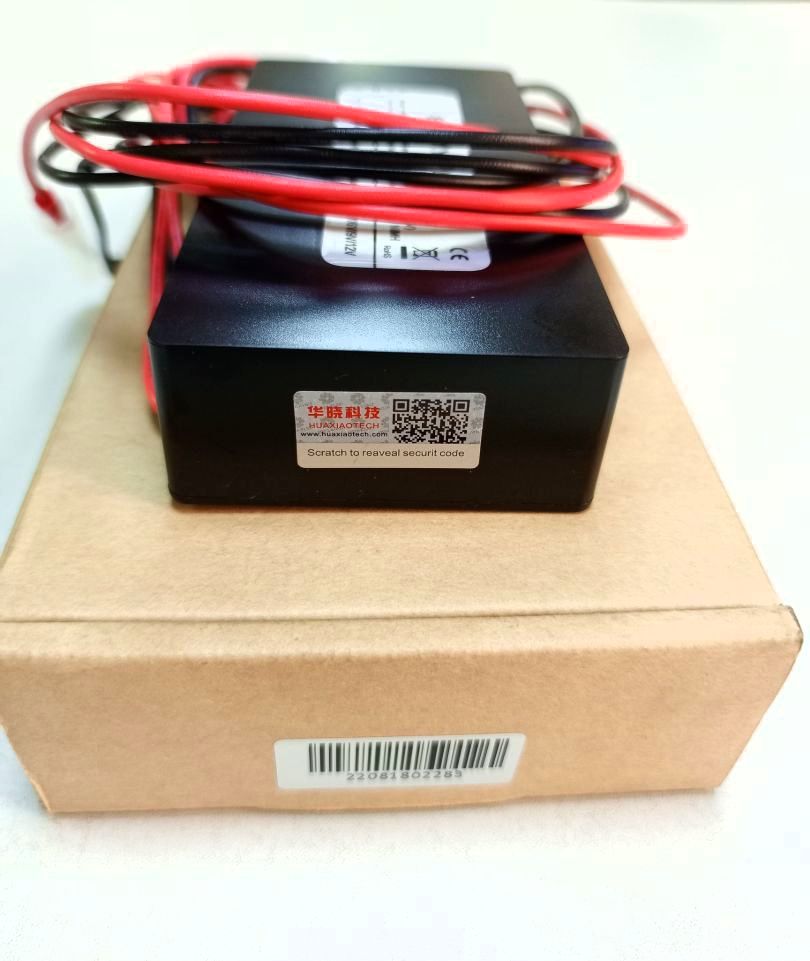

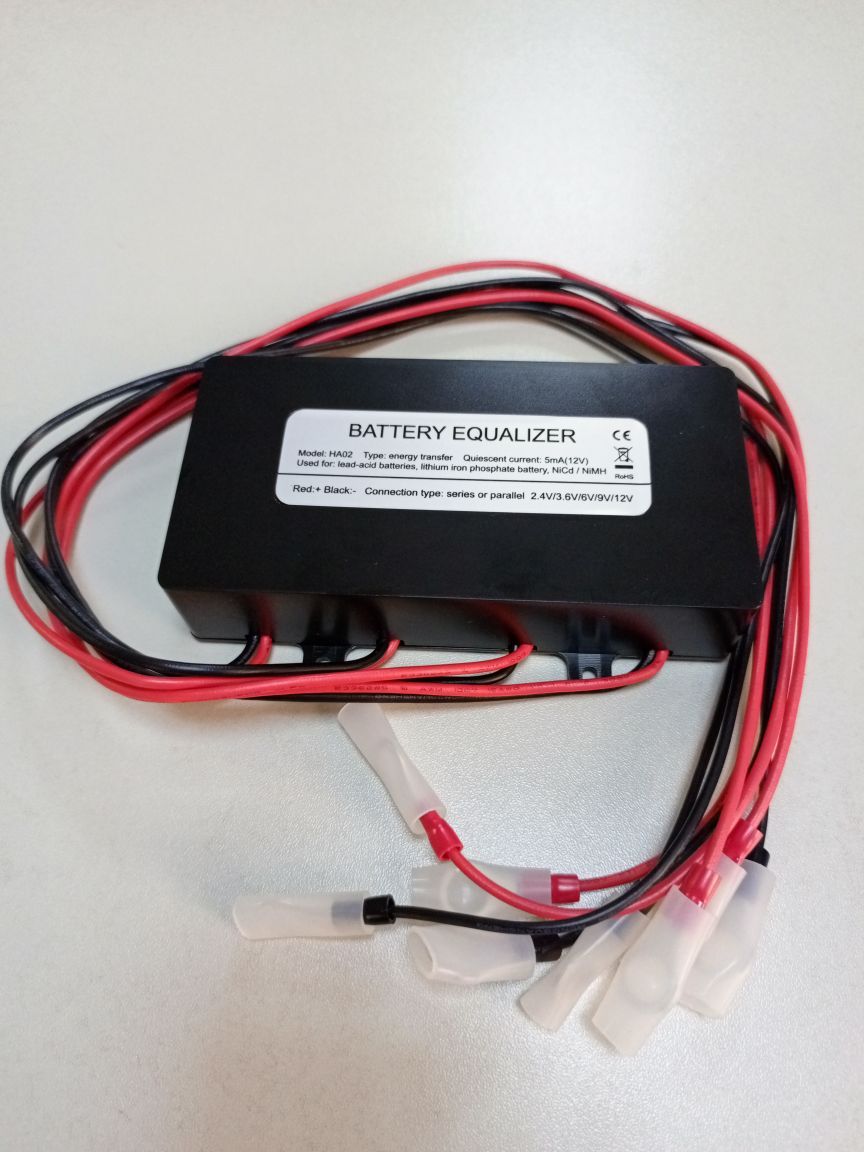

Battery Equalizer Balancer 48V

Battery Equalizer Balancer 48V
When two or more batteries are connected are in series or parallel voltage differences begin to occur as the batteries charge and discharge.
This ultimately reduces the life span of your precious battery bank by about 2-3yrs
This Battery balancer is a Battery Management System
Once voltage difference of 2mv is detected, this energy transfer battery equalizer automatically begins to move current from higher to lower voltage battery until equilibrium is attained.
This is a must for every solar installation
Specification48v1. 4 batteries in series2. 8 batteries in series/parallel
Technical Data

• Battery nominal voltage 4*(2.4/3.6/6/9/12)v
• Optimizing Current - 0-10A
• Quiescent current 5ma(12V 1.2mA(2.4V)
• Dimensions - 62*124*27m
• Protection - Reverse Polarity Protection
• Under Voltage Lockout- 1.8v

Once voltage difference of 2mv is detected, this energy transfer battery equalizer automatically begins to move current from higher to lower voltage battery until equilibrium is attained this is a must for every solar installation

This battery balancer is active even when the battery bank is on idle mode. It's power consumption is very infinitesimal. It is meant to be permanently attached to the battery bank as a BMS

What's In the Box

1 x 48v Battery balancerManual
