SSA-100M (100 Watts) Medium Power PA Amplifiers

From: Sole Authorised Distributor in Nigeria

Dimensions: W420 × H135 × D290 mmWeight: 8.5kgModel: SSB-100MColour: Black
About AHUJA: Ahuja started out from India in 1940 and has grown into several large well-equipped factories employing hundreds of engineers manufacturing the widest range of PA System Equipment to meet every PA need that can ever be imagined through constant product development, thereby guaranteeing absolute reliability on the products even in the most extreme operating and climatic conditions.

MIXER AMPLIFIERS

MEDIUM WATTAGE PA MIXER AMPLIFIERS

SSA-100®M

100 WATTS

MEDIUM WATTAGE PA MIXER AMPLIFIER

• 5 Mic & 2 Aux Inputs.
• Preamplifier and Line Output for connecting to a Booster Amplifier and for recording the programme.
• Instant transfer to DC power (Car Battery) if AC power fails.
• Bass & Treble Tone Controls cut type.



SPECIFICATIONS:

Power Output: 130W Max., 100W RMS at 10% THD, 90W RMS at 5% THD, 80W RMS at 2% THD

Output Regulation: ≤ 2 dB, no load to full load at 1kHz

Input Channels: 5 × Mic 0.65mV/4.7kΩ, 1 × Aux 50mV/470kΩ, 1 × Aux 150mV/470kΩ

Frequency Response: 50-15,000Hz ±3dB

Signal to Noise Ratio: 60dB

Tone Controls: Bass: -10dB at 100Hz, Treble: -10dB at 10kHz

Outputs: Preamp 200mV/600Ω, Line 1V/1kΩ

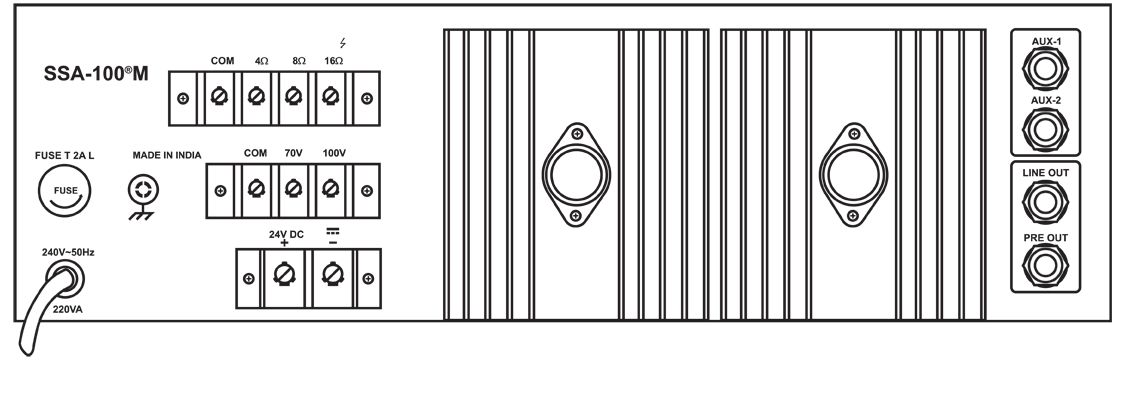

Speaker Outputs: 4Ω, 8Ω, 16Ω, 70V & 100V

Power Supply: AC: 220-240V 50/60Hz DC: 24V (2×12V Car Battery)

Power Consumption: AC: 220VA DC: 3A

Dimensions: W420 × H135 × D290 mm

Weight: 10.5kg

Key Features

5 Mic & 2 Aux Inputs.
Preamplifier and Line Output for connecting to a Booster Amplifier and for recording the programme.
Instant transfer to DC power (Car Battery) if AC power fails.
Bass & Treble Tone Controls cut type.
