NF-908S Multifunction Optical Meter & Network Line

Mainly used for optical measurement. Support 850/980/1310/1490/1550/1625nm wavelength, with measurement range -60~8dBm.



Features:

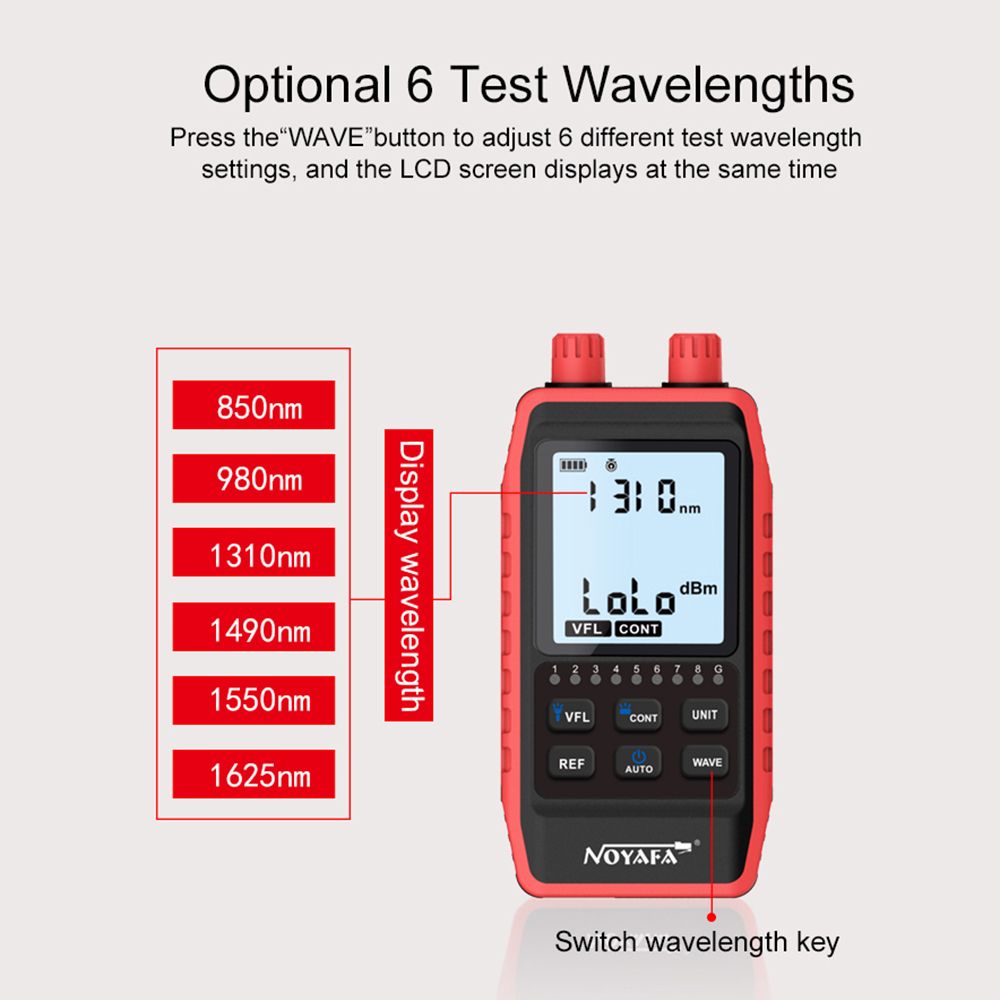

Support 6 wavelengths: 850/980/1310/1490/1550/1625nm wavelength, and show on the LCD screen at the same time.

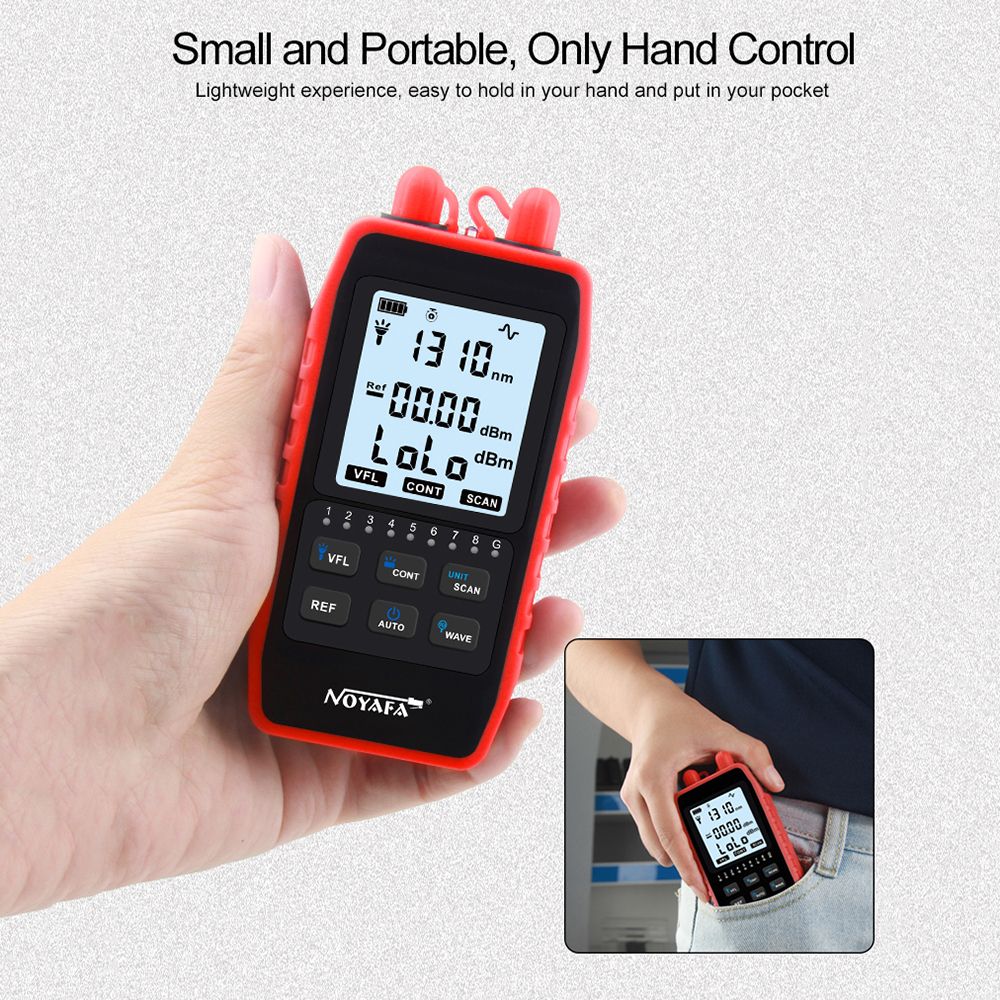

Compact size with simple interface and operation button, easy to use.

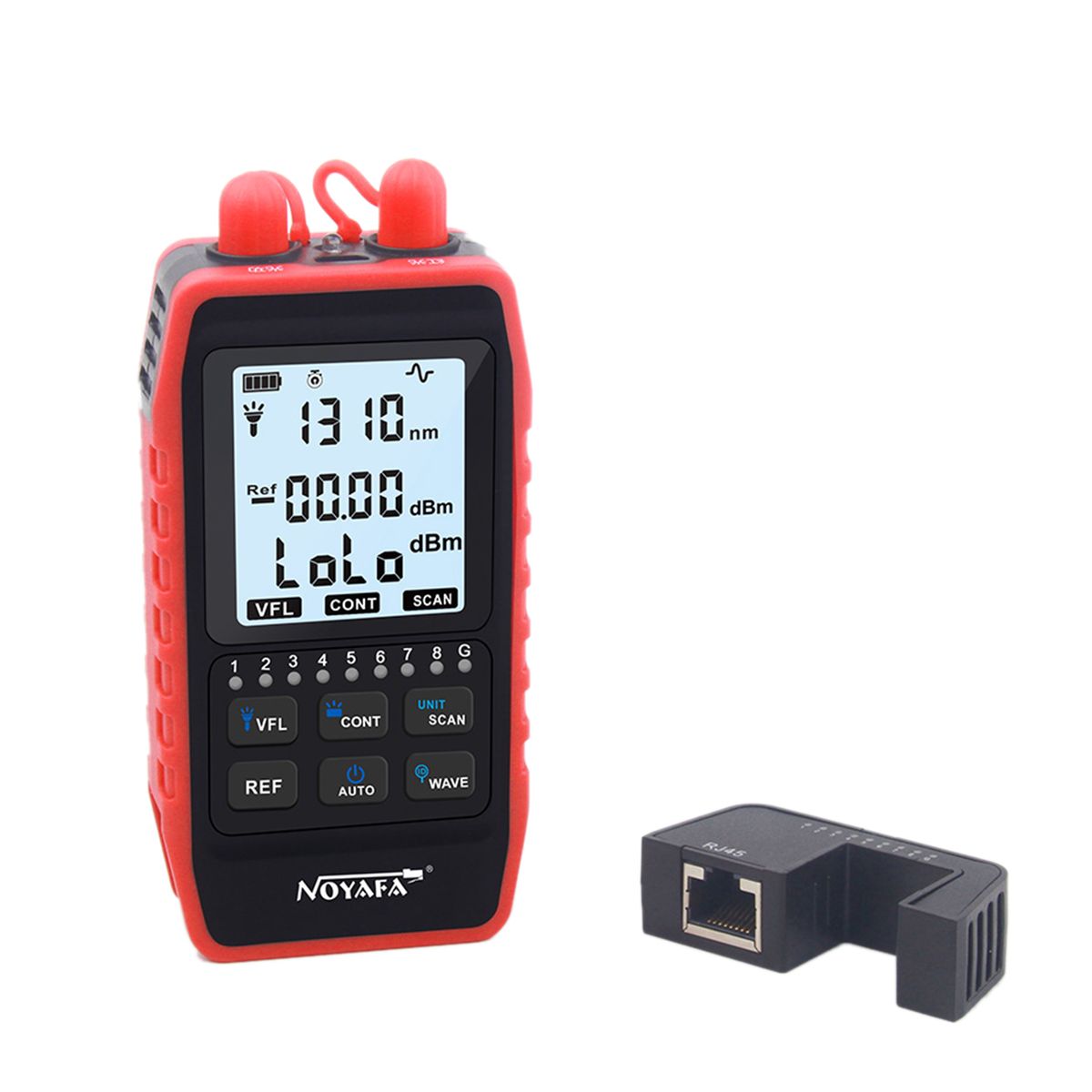

With a built-in RJ45 cable tester, which is detachable, making it convenient to use.

The RJ45 cable tester can automatically scan and test whether the network cable order is correct.

Can be used for various types of optical interface, such as FC, SC, ST.

Equipped with 700mAh battery for long working time and LED light for illumination in the dark.

With cable tracing function(NF-908S), cable continuity testing function, check fiber breakage, winding,etc



Specifications:

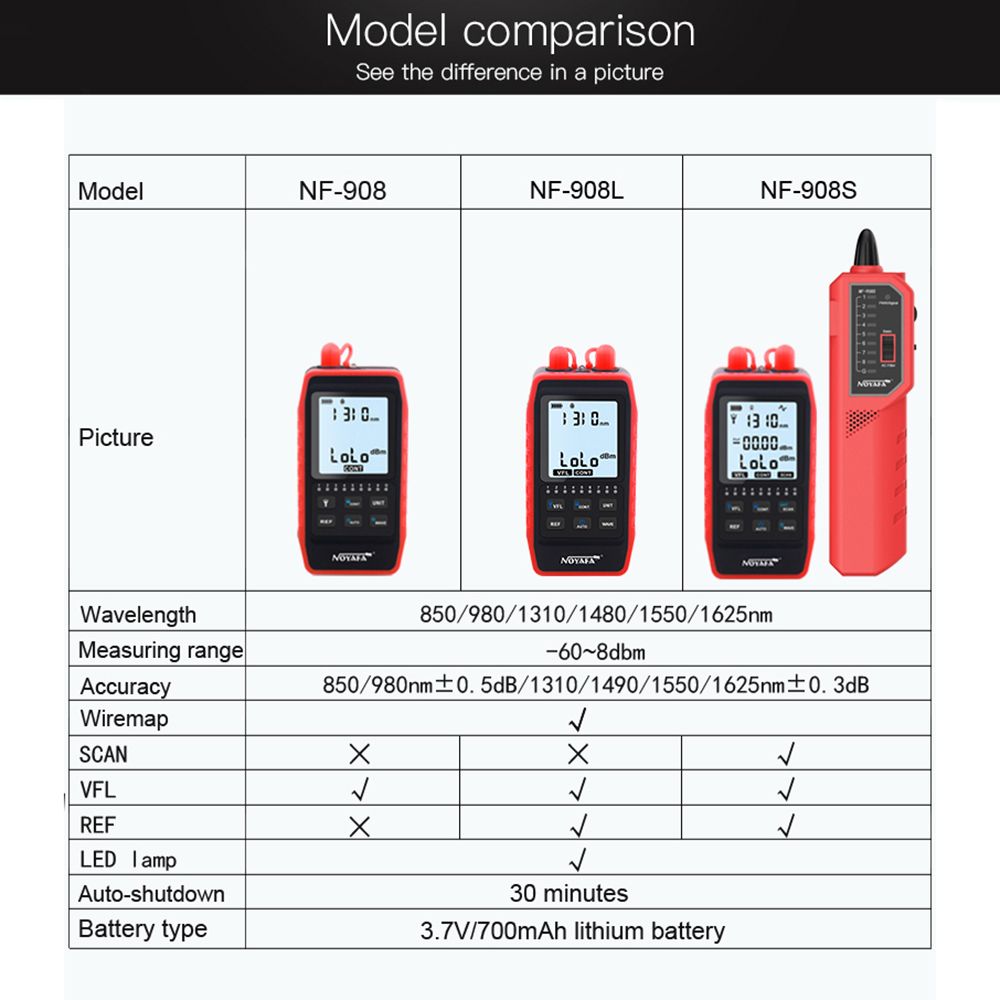

Model: NF-908L / NF-908S (Optional)

NF-908L: Without Wire Tracker & SCAN Function

NF-908S: With Wire Tracker & SCAN Function

Material: ABS

Wavelength: 850/980/1310/1490/1550/1625nm

Measuring Range: -60~8dBm

Accuracy: 850/980nm±0.5dB

Optical Meter Supply: Built-in 3.7V, 700mAh lithium battery

Wire Tracker Supply: 9V 6F22 battery (NOT included)

Auto-off: 30 minutes

Wiremap: Yes

REF: Yes

LED Lamp: Yes

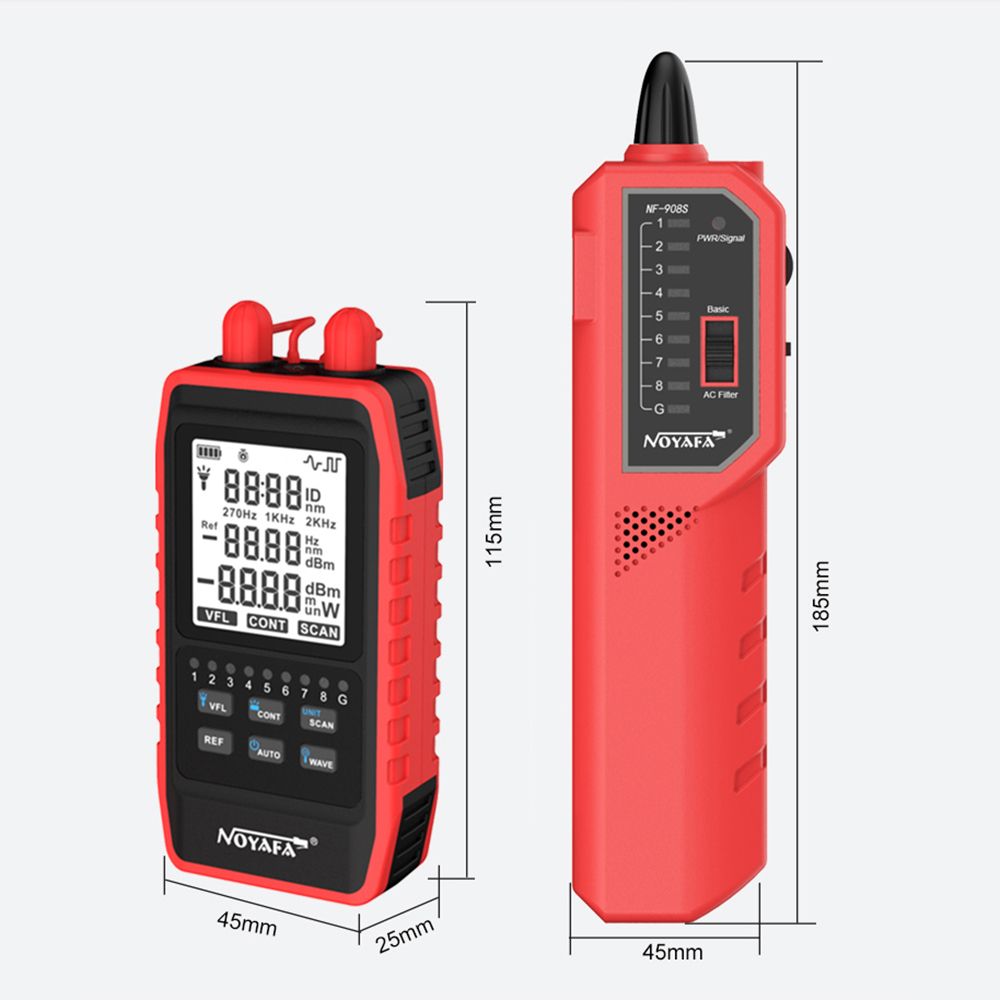

Item Size:

Optical Meter: 115 * 45 * 25mm / 4.52 * 1.77 * 0.98in

Wire Tracker: 185 * 45mm / 7.28 * 1.77in

Package Weight: 165g / 5.82oz, 320g / 11.29oz

Package Size: 12.8 * 7 * 3.5cm / 5.03 * 2.75 * 1.37in, 25 * 15 * 5cm / 9.84 * 5.91 * 1.97in



Package List:

NF-908L:

1 * Optical Meter

1 * RJ45 Remote Adapter

1 * Cable

1 * Manual (English)



NF-908S:

1 * Optical Meter

1 * Wire Tracker (Receiver)

1 * RJ45 Remote Adapter

1 * Cable

1 * Manual (English)

Key Features

Support 6 wavelengths: 850/980/1310/1490/1550/1625nm wavelength, and show on the LCD screen at the same time.
Compact size with simple interface and operation button, easy to use.
With a built-in RJ45 cable tester, which is detachable, making it convenient to use.
The RJ45 cable tester can automatically scan and test whether the network cable order is correct.
Can be used for various types of optical interface, such as FC, SC, ST.
Equipped with 700mAh battery for long working time and LED light for illumination in the dark.

What's In the Box

NF-908L:,1 x Optical Meter,1 x RJ45 Remote Adapter,1 x Cable,1 x Manual (English),NF-908S:,1 x Optical Meter,1 x Wire Tracker (Receiver),1 x RJ45 Remote Adapter,1 x Cable,1 x Manual (English)
