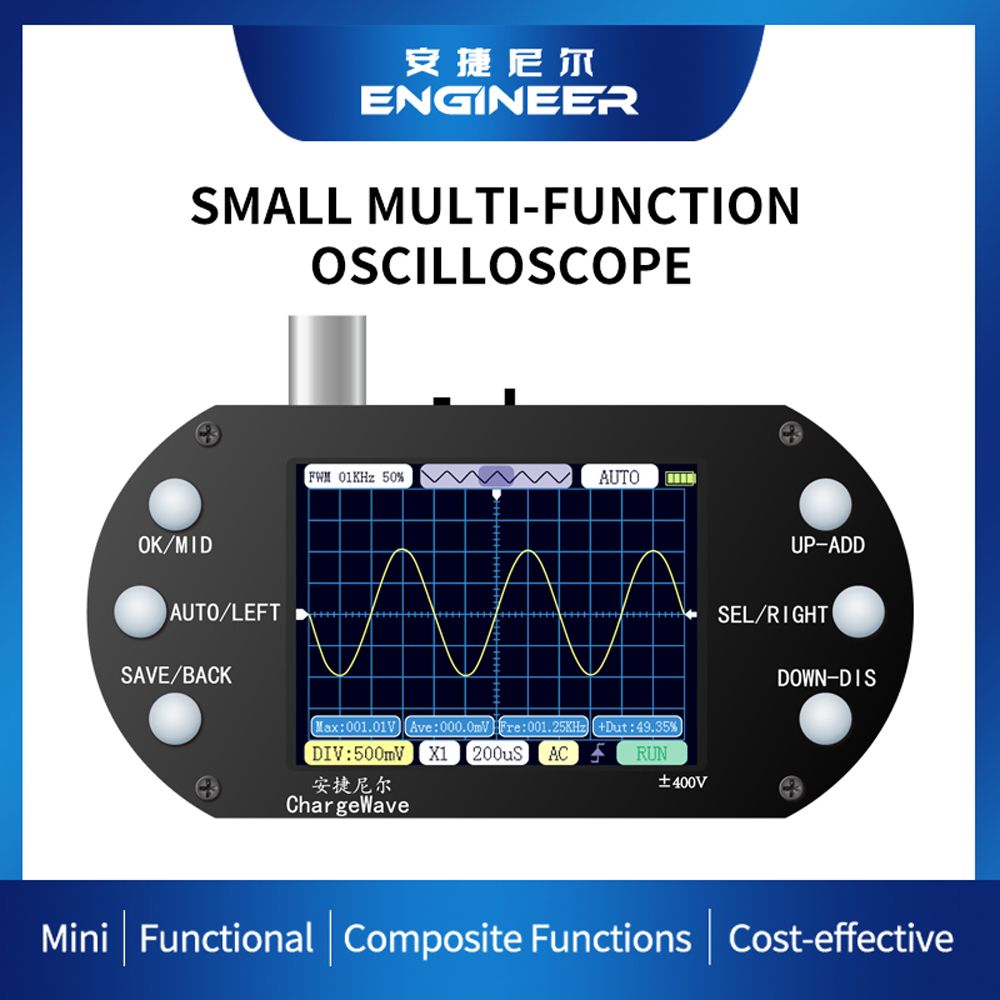

Handheld Oscilloscope 320*240 Resolution 2.4inch TFT

This oscilloscope has .4-inch TFT display, 320*240 resolution, you can see the measurement data displayed on the screen. 2.5MHz sample rate, 200KHz actual bandwidth, 500KHz analogue bandwidth (sinewaves). The efficient one-click AUTO function displays the measured waveform without tedious adjustment. Waveform measurements display functions that can be used to detect sinewaves, square waves, half-waves, sink pulse waves, etc.



Features:

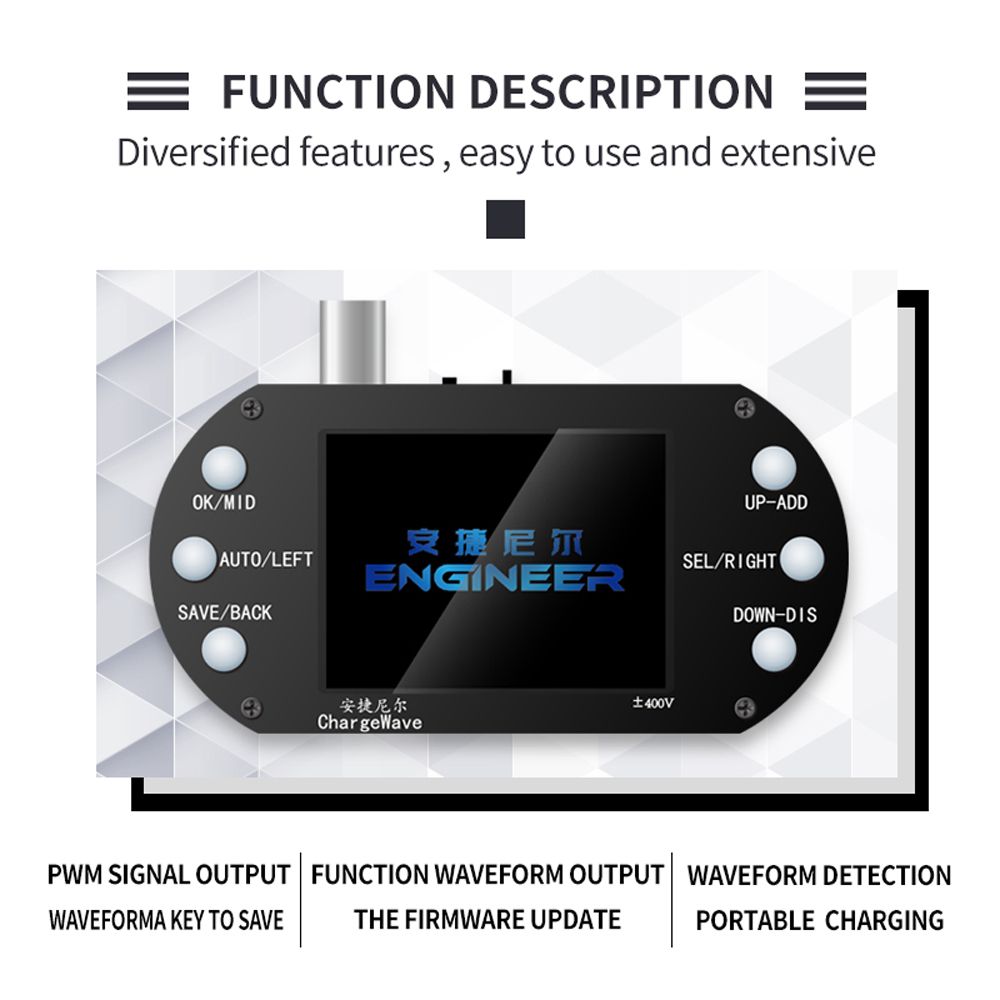

Equipped with a 2.4-inch TFT display, 320*240 resolution, you can see the measurement data displayed on the screen.

2.5MHz sample rate, 200KHz actual bandwidth, 500KHz analogue bandwidth (sinewaves).

With complete trigger function (single, normal, automatic), no matter for periodic analogue signal or non-periodic digital signal can be used freely.

The measurement of the voltage signal is up to ±400V.

The efficient one-click AUTO function displays the measured waveform without tedious adjustment.

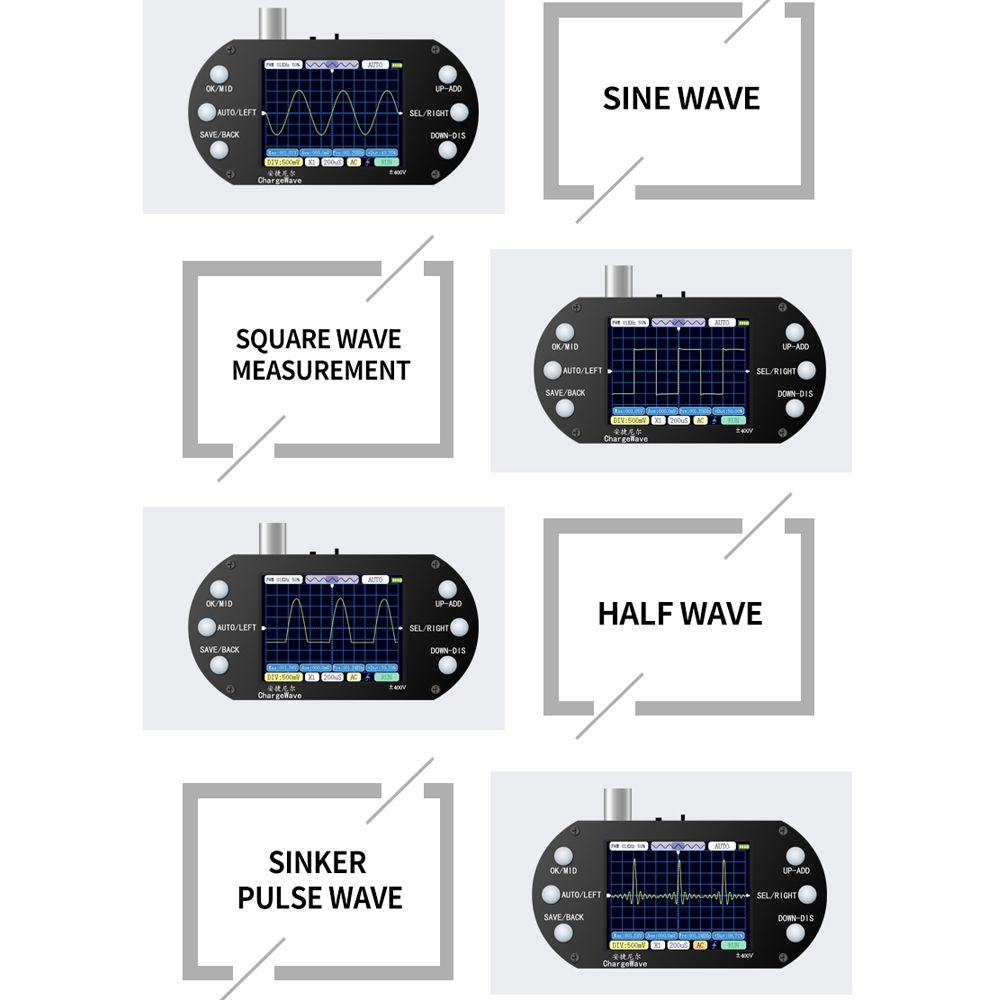

Waveform measurements display functions that can be used to detect sinewaves, square waves, half-waves, sink pulse waves, etc.

With one-button waveform saving feature. ​Only the part of the waveform that is currently being displayed can be saved.

Widely applicable, it can be used in a wide ranges of applications such as automotive maintenance, appliance maintenance, teaching, and research.



Note:

Some of the measured signals cannot be correctly captured with AUTO and need to be adjusted manually.

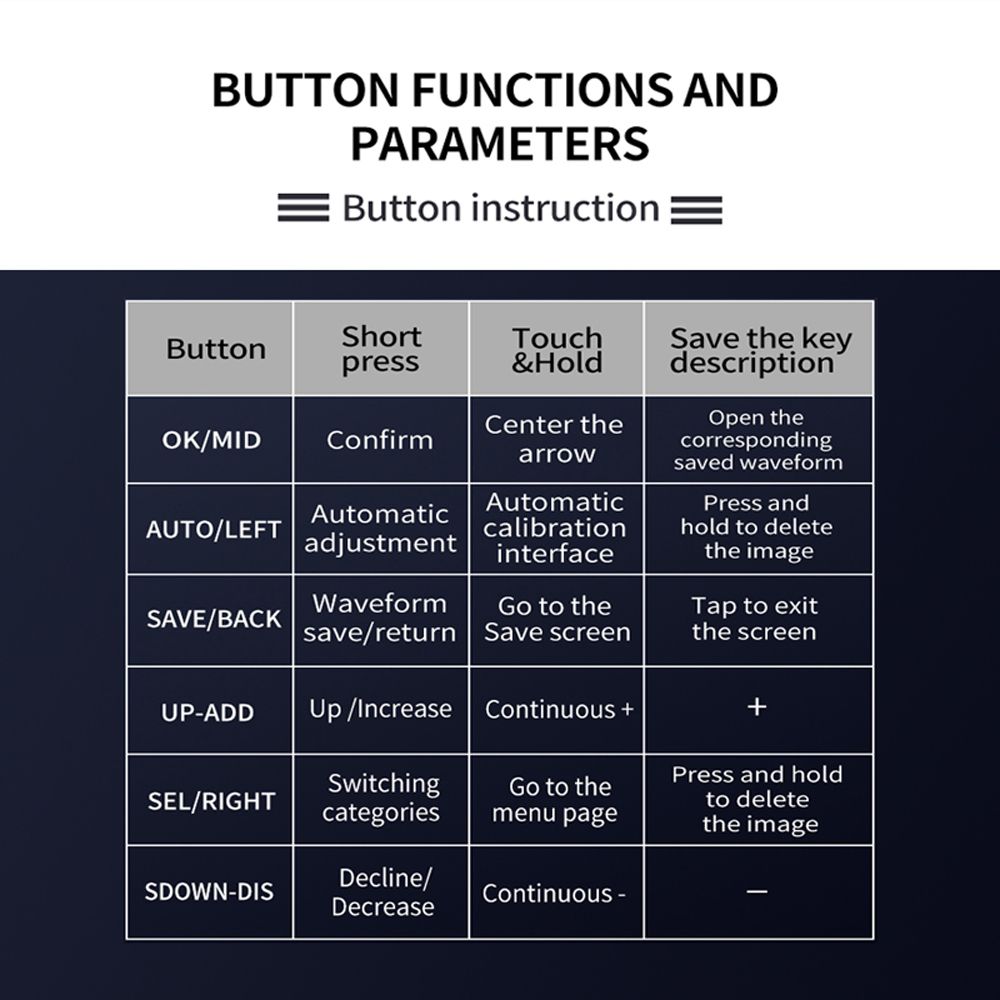

Firmware upgrade: To upgrade the display part, press OK to turn on the machine, to upgrade the bottom part, press SAVE to turn on the machine.

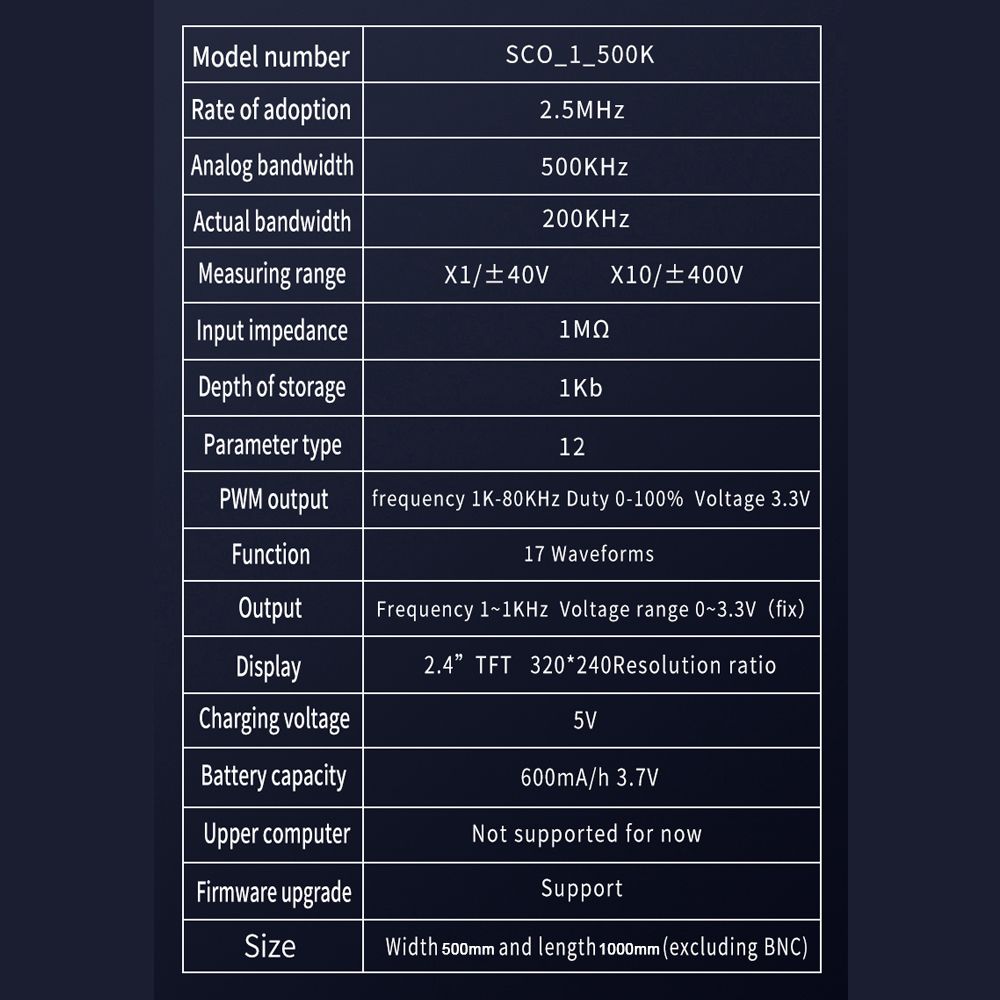

Specifications:

Name: Handheld Oscilloscope

Material: plastics

Model number: SCO_1_500K

Type: standard configuration, high configuration (optional)

Rate of adoption: 2.5MHz

Analogue bandwidth: 500KHz

Actual bandwidth: 200KH

Measuring ranges: X1/土40V; X10/土400V

Input impedance: ΙΜΩ

Depth of storage:1Kb

Parameter type:12

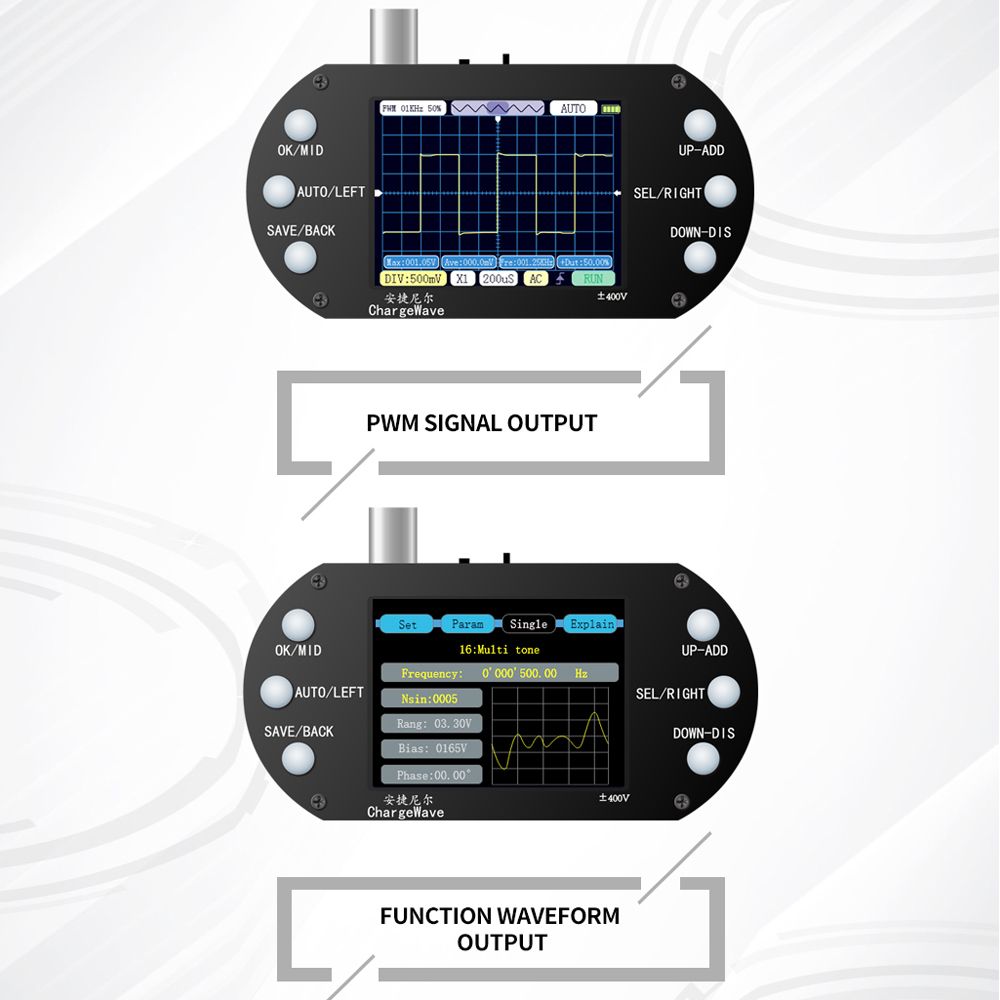

PWM output:

Frequency: 1K-80KHz

Duty: 0-100%

Voltage: 3.3V

Function: 17 Waveforms

Output:

Frequency: 1-1KHz

Voltage ranges: 0-3.3V (fix)

Display: 2.4" TFT 320*240 Resolution ratio

voltage: 5V

Battery capacity: 1 * 3.7V, 600mAh (included)

Upper computer: Not supported for now

Firmware upgrade: Support

Item size: 50 * 100mm / 1.97 * 3.94in

Package size:

Standard configuration: 135 * 102 * 30mm / 5.31 * 4.02 * 1.18in

High configuration: 105 * 155 * 40mm / 4.13 * 6.10 * 1.57in

Package weight:

Standard configuration: 200g / 7.05ounce

High configuration: 250g / 8.82ounce



Packing List (standard configuration, ±40V):

1 * Handheld Oscilloscope

1 * Clip



OR



Packing List (high configuration, ±400V):

1 * Handheld Oscilloscope

1 * Probe

1 * Clip

Key Features

Equipped with a 2.4-inch TFT display, 320x240 resolution, you can see the measurement data displayed on the screen.
2.5MHz sample rate, 200KHz actual bandwidth, 500KHz analogue bandwidth (sinewaves).
With complete trigger function (single, normal, automatic), no matter for periodic analogue signal or non-periodic digital signal can be used freely.
The measurement of the voltage signal is up to ±400V.
The efficient one-click AUTO function displays the measured waveform without tedious adjustment.
Waveform measurements display functions that can be used to detect sinewaves, square waves, half-waves, sink pulse waves, etc.

What's In the Box

(standard configuration, ±40V):,1 x Handheld Oscilloscope,1 x Clip,
