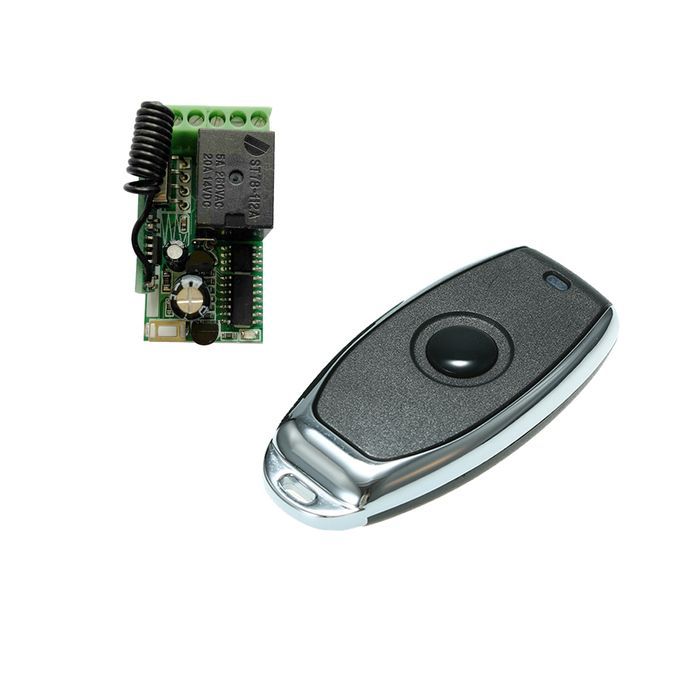

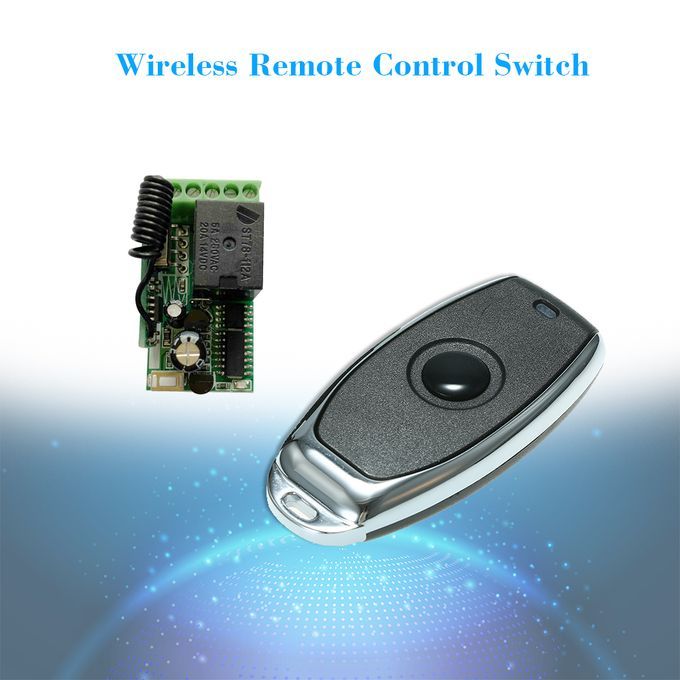

433Mhz DC 12V Universal RF Remote Control Switch Relay

Features:

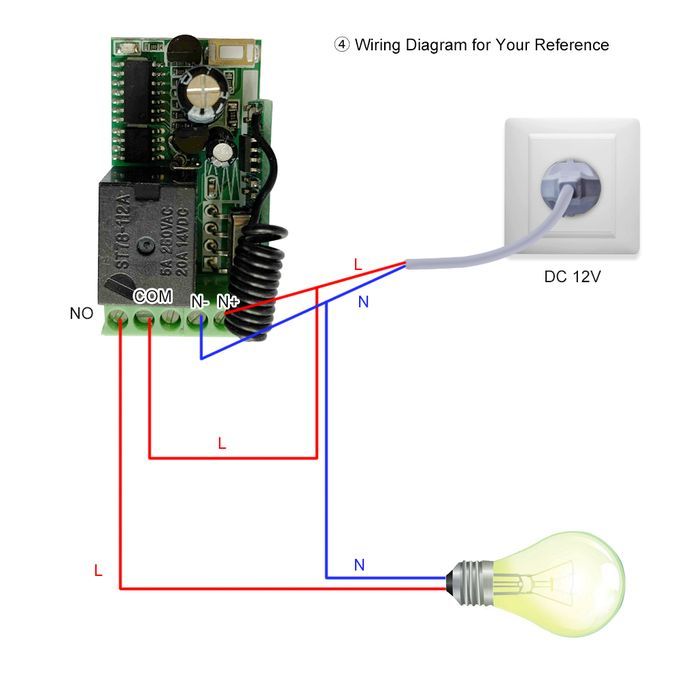

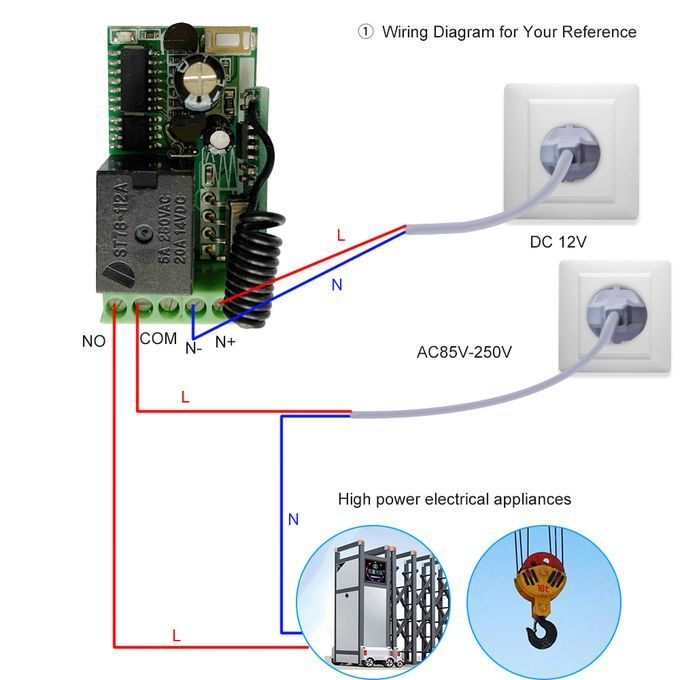

*Very convenient to use, simple wiring diagram connection way. RF Remote Control Switch, can through walls.

*Support remote control up to 16 pieces. It can connect to the electronic control lock, intercom doorbell, garage door, light, electric curtain, household appliances, motor control, security system, etc. So that it can remote unlock the door, close the light, open or close the curtain,etc.

*Ultra low consumption, stable performance. Super small size, occupying very little space. The receiver board size is only about 4.3*2.4*1.7cm.

*The working mode can be changed by yourself: you can switch to momentary, toggle, latching three modes as you need.

*Learning pair code: it can work with any remote control with the same frequency, so you needn't worry about losing remote control any more. (If the remote control is lost, buy one and pair with the PCB board is OK.)





Receiver Specifications:

Channels: 1

Input : DC12V

Standby Current: ≤8mA

Output Current: ≤10A

RF Frequency: 433MHz

Output : DC/AC Optional

RF working mode: superheterodyne reception

Coded System: Learning Code (1527 Chip) ; Fixed Code

Receive sensitivity: -105dbm

Decoding mode: MCU software decoding

Remote control storage: up to 16 PCS

Working mode: Momentary, Toggle, Latching

Wiring type: fixed terminal

Output Terminal: NO , NC , COM

Receiver Board Size: Approx. 4.3 x 2.4 x 1.7cm / (1.7 x 0.9 x 0.7”)



Remote Control Specifications:

Frequency: 433MHz

Range: 50m (open area)

Battery: 2*CR2016 3V (included)

Quantity: 5PCS





Package Information:

Package Size: Approx. 15 * 10 * 5cm / 5.9 * 3.9 * 2in

Package Weight: Approx. 140g / 5oz





Package List:

1* Receiver Board

5* Remote Control
a a a a a

Key Features

xVery convenient to use, simple wiring diagram connection way. RF Remote Control Switch, can through walls.
xSupport remote control up to 16 pieces. It can connect to the electronic control lock, intercom doorbell, garage door, light, electric curtain, household appliances, motor control, security system, etc. So that it can remote unlock the door, close the light, open or close the curtain,etc.
xUltra low consumption, stable performance. Super small size, occupying very little space. The receiver board size is only about 4.3x2.4x1.7cm.
xThe working mode can be changed by yourself: you can switch to momentary, toggle, latching three modes as you need.
xLearning pair code: it can work with any remote control with the same frequency, so you needn't worry about losing remote control any more. (If the remote control is lost, buy one and pair with the PCB board is OK.)
xVery convenient to use, simple wiring diagram connection way. RF Remote Control Switch, can through walls.
Easy to use
Exquisite Workmanship
Well Made
Best Choice and best discounts
Customer Care is Our Top Priority
Offer is Subject to Availability
Big Sale

What's In the Box

1x Receiver Board,5x Remote Control
