Waterproof Solder Seal Heat Shrink Electrical Wire Terminal

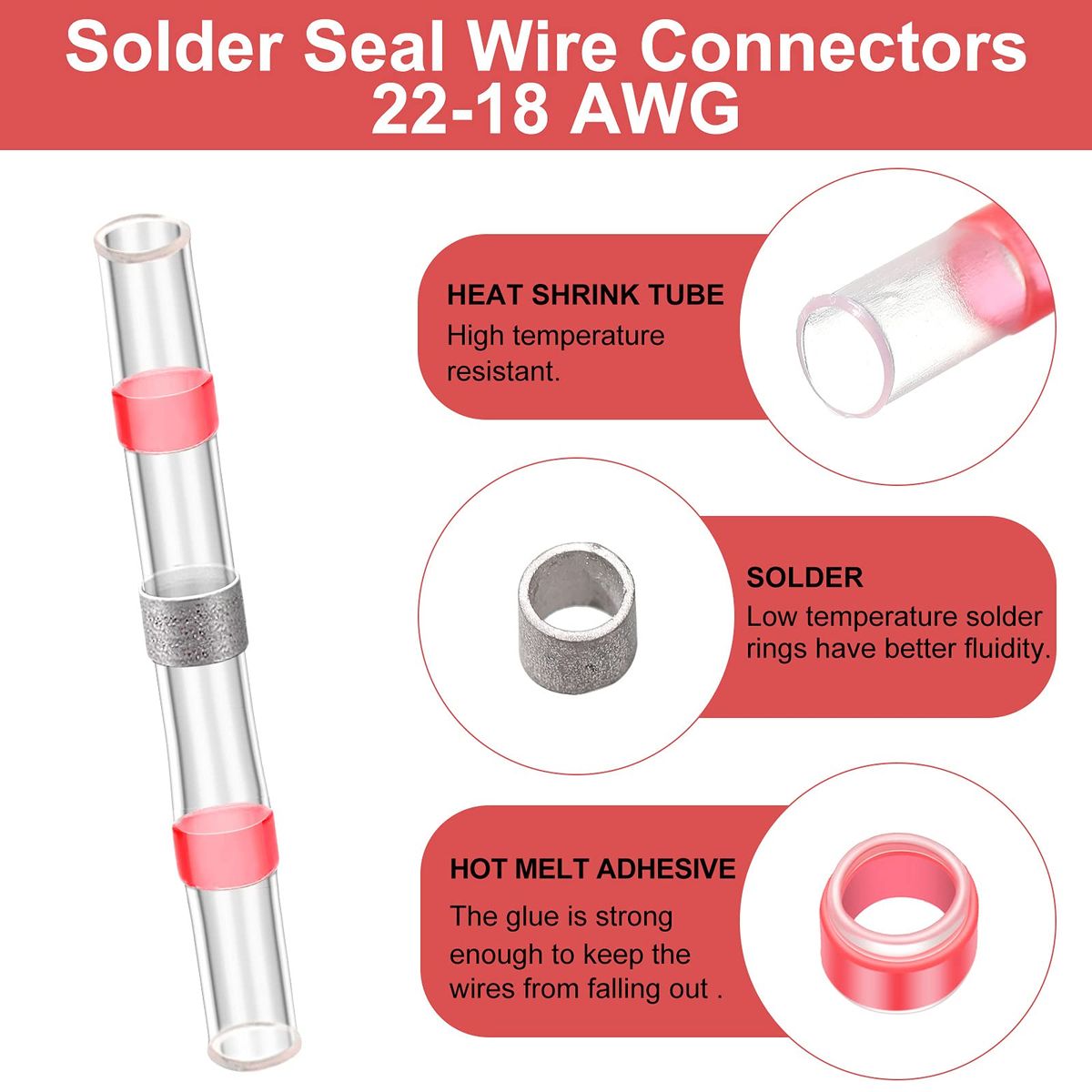

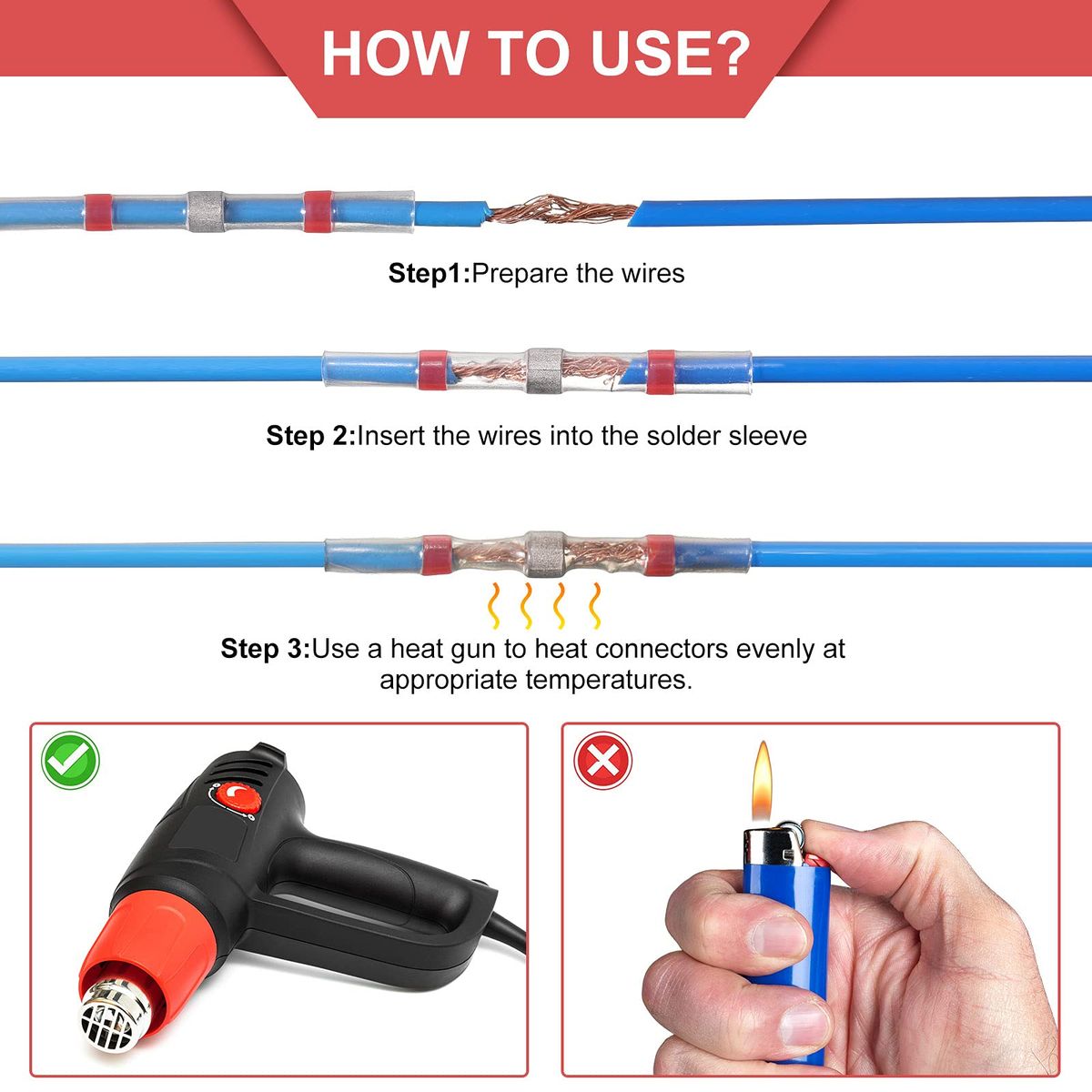

Feature:- Transparent sleeve provides precise inspection when strip and insert wires inside.Color-coded tubing makes it easy to identify the right size of the connector for every application.- Simply position the two stripped wires into the solder sleeve and use hot gun to apply heat to finish the connection.Don't need to crimp,and the insulation tubing will shrink down,shrinking ratio: 3:1,creating a waterproof seal.- Polyolefin tubing outside and hot melt adhesive inside would effectively improve the waterproof performance of these solder connectors.- Due to high waterproof, these Solder Seal Wire Connectors are commonly preferred in automotive sector as well as marine sector,can also used for vehicle, home or scientific wiring projects.Specification:- Voltage: Max. 600V- Shrink Ratio: 3:1- Red Connectors:AWG 22-18 Fit Wire 0.5-1mm²- Start Shrink Temperature: 80 ℃- Fully Shrink Temperature: 130 ℃- Operating Temperature: -55 ℃ -125 ℃- Note: It means the temperature of surface of the connector, rather than the temperature that the hot air gun should set.Package including: 10/50PCS Solder Seal Wire Connectors(Note: Without Box)

Guarantee:

We stand behind the quality of our products. If for any reason you are not satisfied with your purchase, please do not hesitate to contact us. Thank you so much.

Thank you for your purchase!

Your opinions and suggestions are our greatest motivation.

Please leave your comments and comments so that we can develop other useful products.

Key Features

Our wire connectors are upgraded to use exclusive material in the connectors to avoid shrink tubing melting before solder ring. The success rate of connecting wire has been greatly improved.
Solder seal wire connectors come with IP67 water-resistant rating. After being heated, they shrink and water will not be able to go inside, preventing any short circuit issues. Widely used on marine projects.
The product can be bent after connection and no need to crimp or solder in the confined area, just control the temperature with a heat gun.
Solderless, crimpless, one-step solder and seal process for all your connections, much faster and easier than the old way.
The solder seal connectors meet the newest standard of International Automotive Task Force, which is the most standardized and safest way for you to repair or modify your car.

What's In the Box

Package including: 10/50PCS Solder Seal Wire Connectors(Note: Without Box)
