ATU-100 DIY Kits 1.8-50MHz Automatic Antenna Tuner +OLED

Features:

This is an DIY set, so you need to assemble it by yourself, which can improve your manipulative ability.

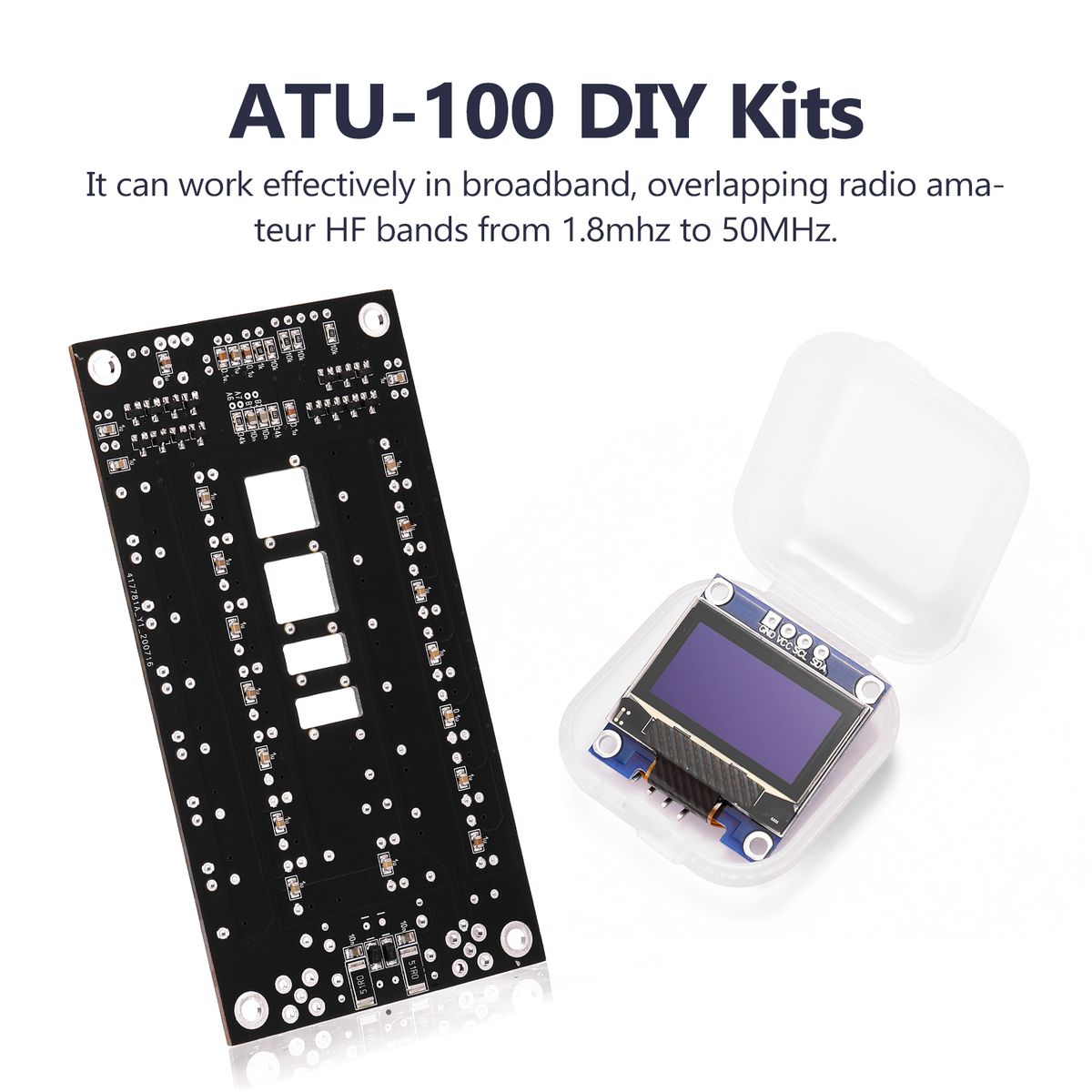

It can work effectively in broadband, overlapping radio amateur HF bands from 1.8mhz to 50MHz.

The max current consumption is 400mAh, and it with 7 inductance and 7 capacitance.

It is easy for you to carry, so you can take it with you to anywhere you want to use it.

With the OLED screen, which can let you see clearly the data, give you a better using experience.

Specifications:

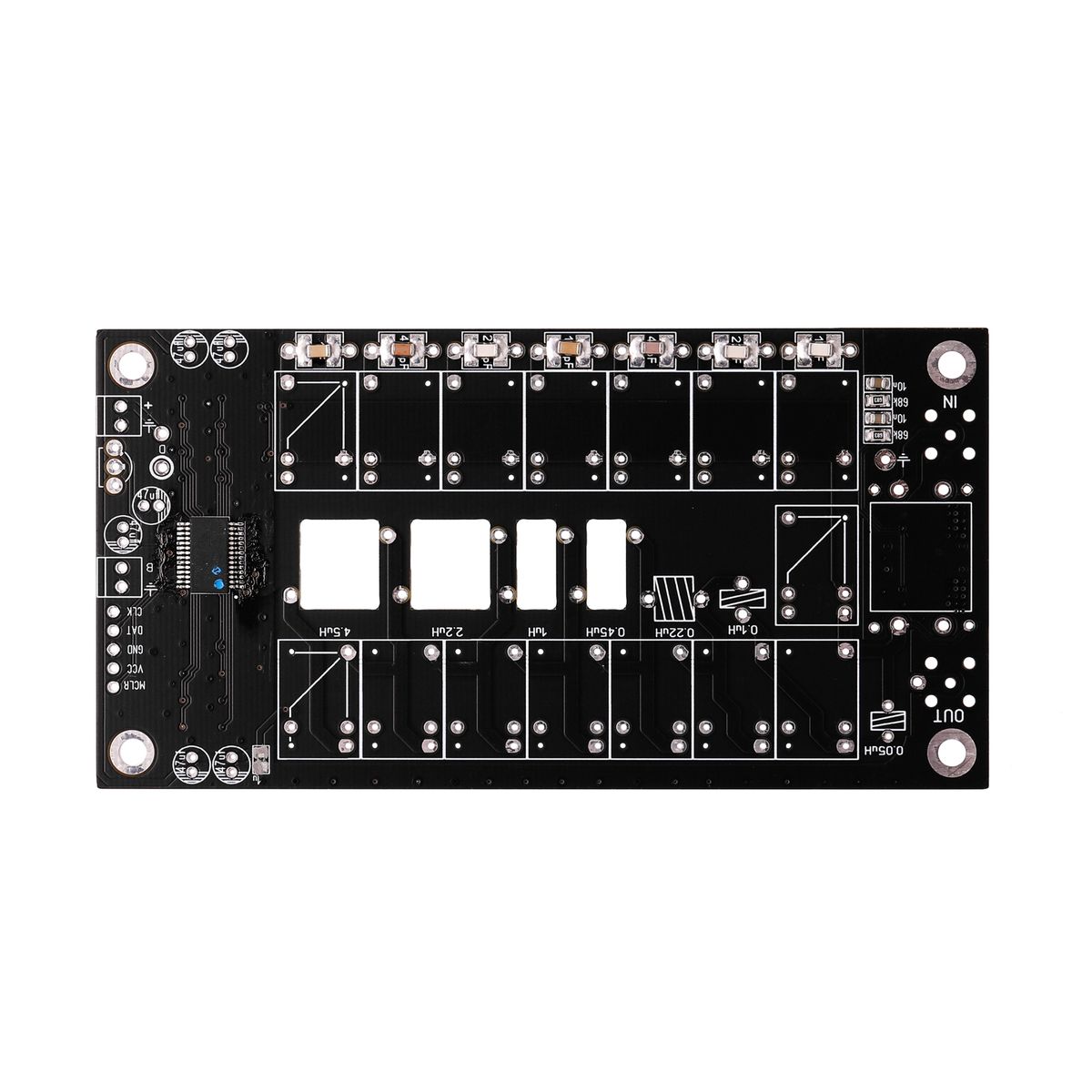

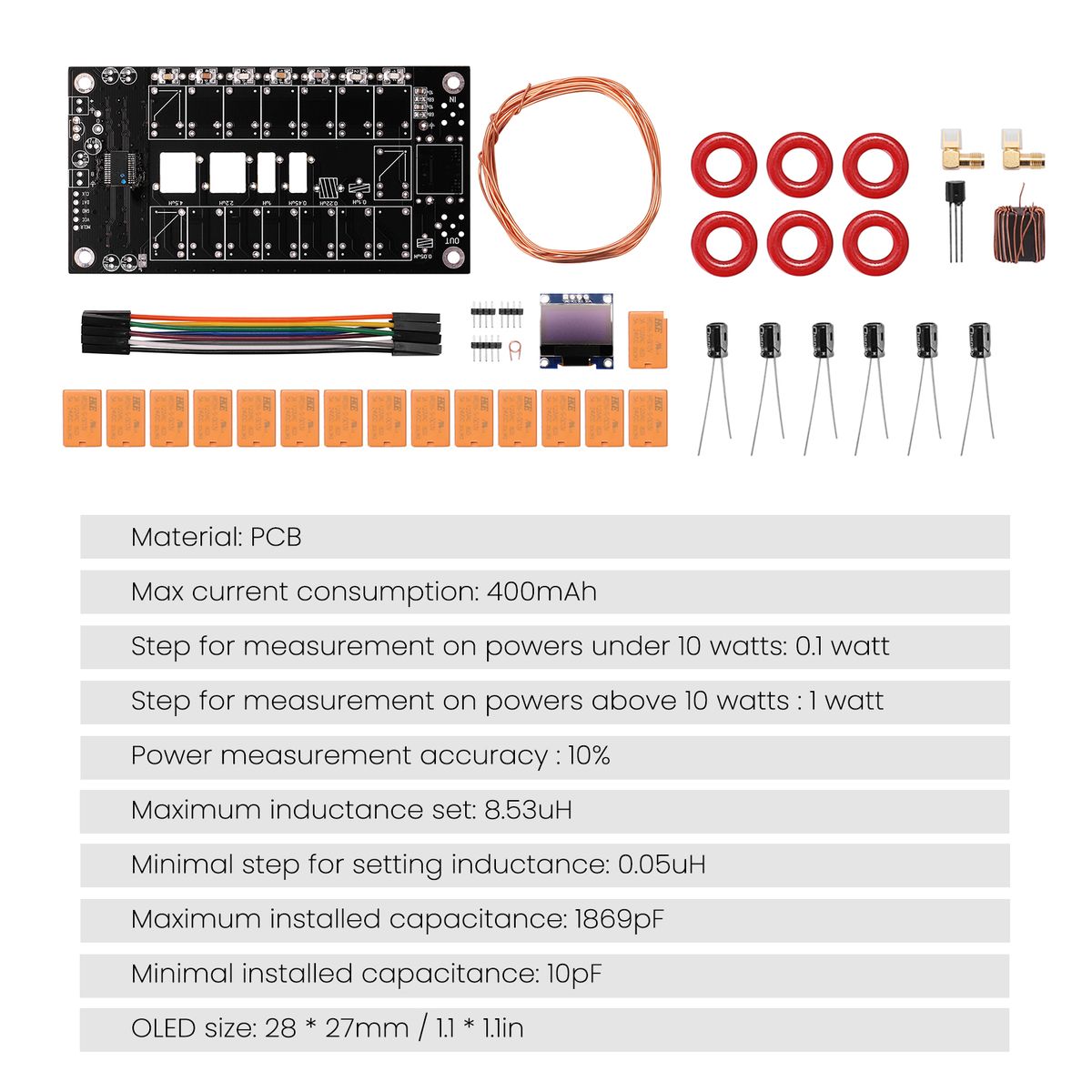

Material: PCB

Max current consumption: 400mAh

Step for measurement on powers under 10 watts: 0.1 watt

Step for measurement on powers above 10 watts : 1 watt

Power measurement accuracy : 10%

Maximum inductance set: 8.53uH

Minimal step for setting inductance: 0.05uH

Maximum installed capacitance: 1869pF

Minimal installed capacitance: 10pF

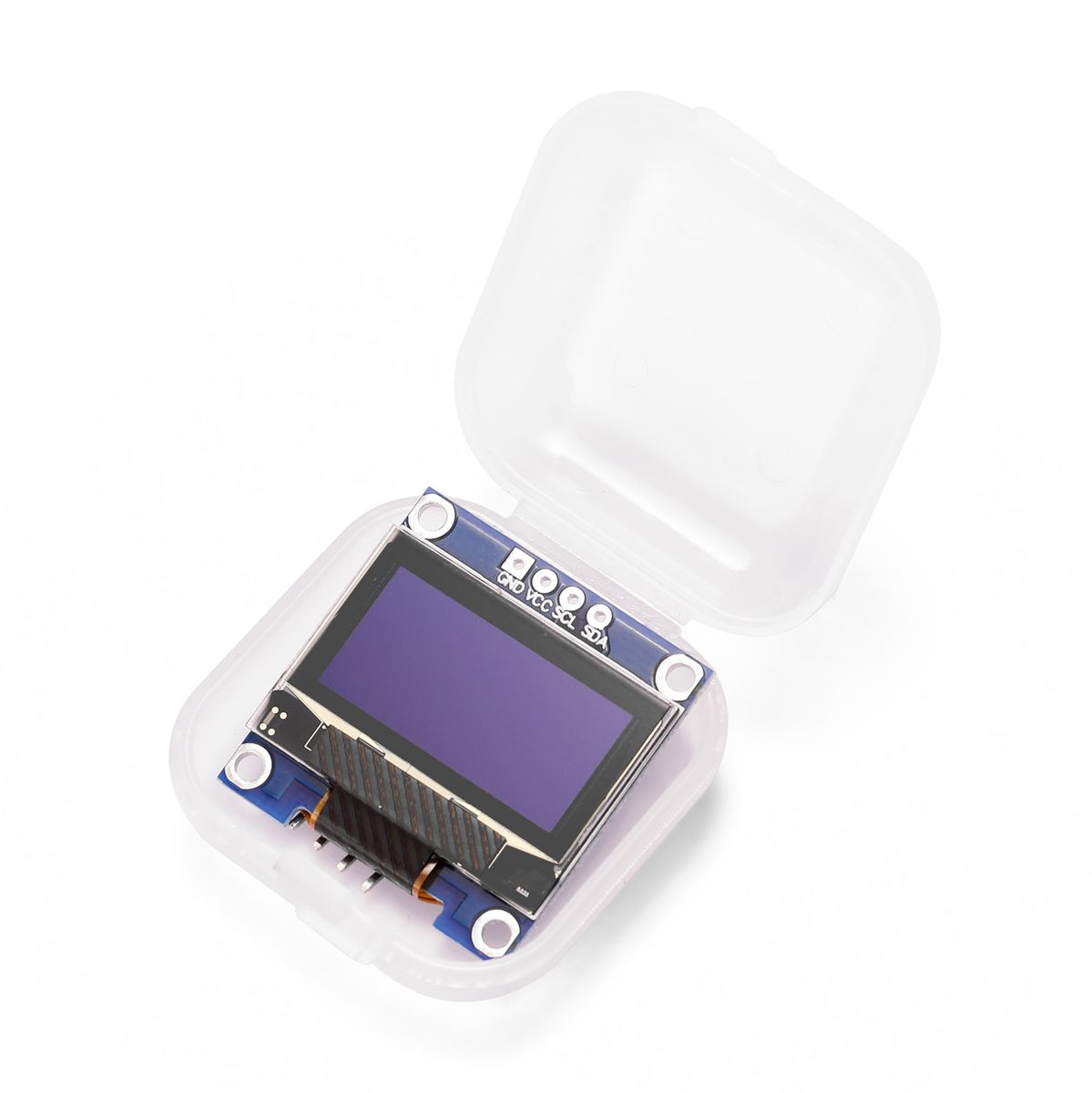

OLED size: 28 * 27mm / 1.1 * 1.1in

weight: 129g / 4.6ounce

Package size: 165 * 120 * 20mm / 6.5 * 4.7 * 0.8in

Package weight: 137g / 4.8ounce
