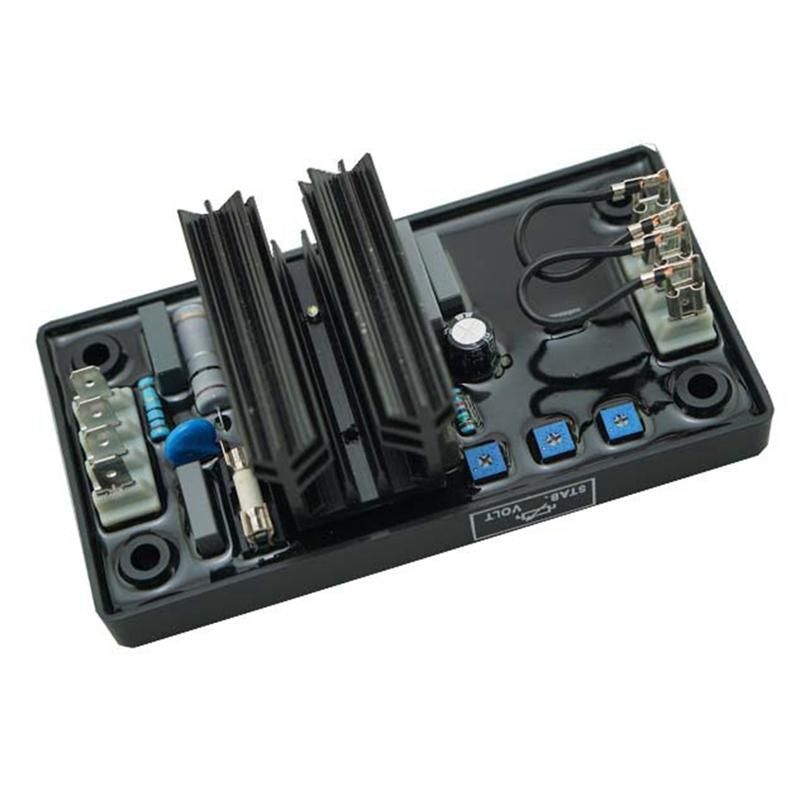

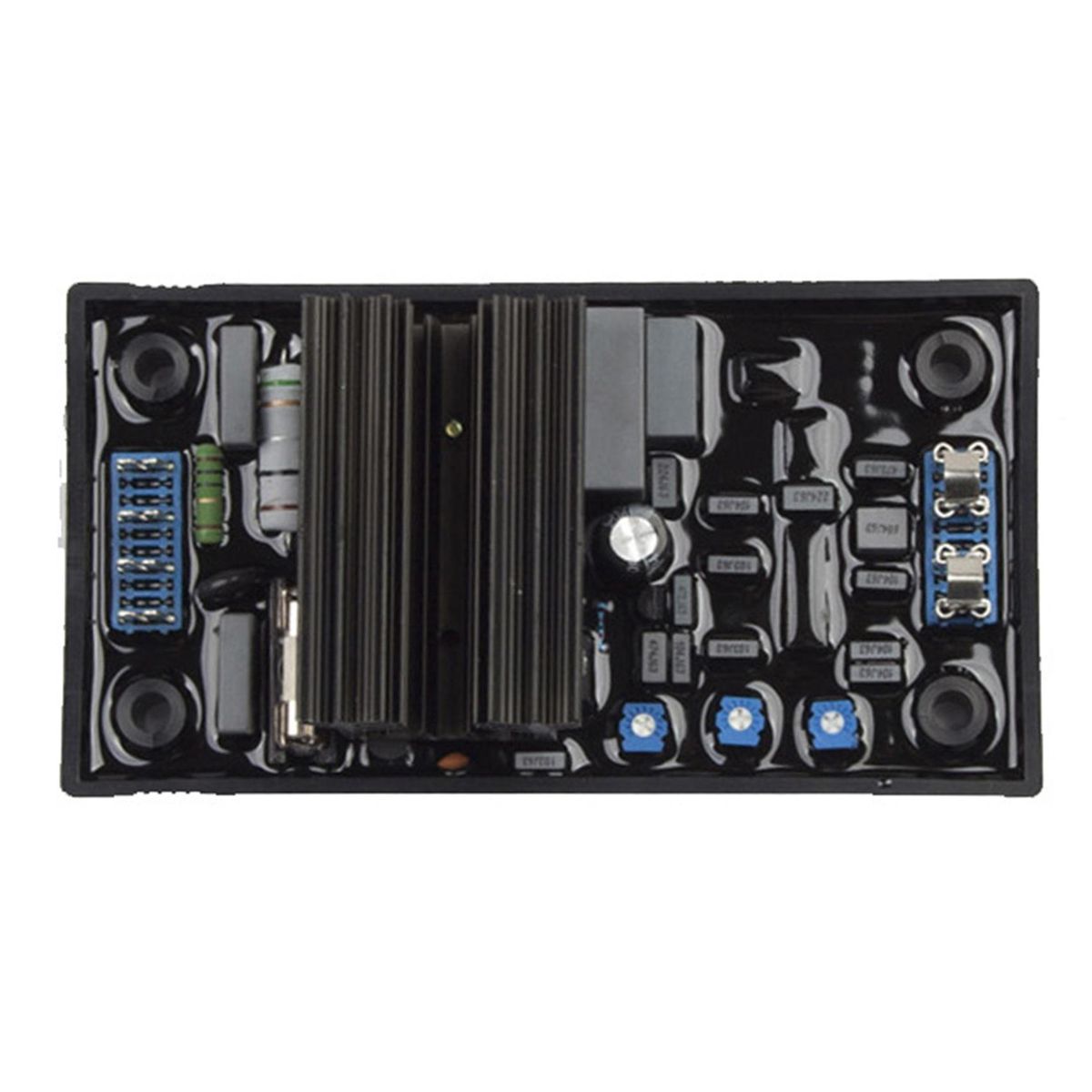

R230 AVR Generator Automatic Voltage Regulator Module Universal AVR Generator
˂
˃
R230 AVR Generator Automatic Voltage Regulator Module Universal AVR Generator
Price:
₦91,250
Share:
Product Description
It is small size light weightresistant and strong
With the functions of Low-frequency protection and voltage slowly establishedEMI suppression circuit
Suitable for generatorscan adjust the voltage slightly to stabilize the output voltage of the generator
When the voltage is 4 v 25 hzthe Voltage will be set automatically
Model R230
Frequency50-60Hz
Voltage input85-139VAC
Output Voltagemax 63VDC at 100VAC input
Currentcontinuous 8A dc intermittent 10A for 10 secs
Resistance15 minimum
Regulation-05%
Voltage -upResidual voltage at avr terminal≥5VAC
External Voltage Adjustment-10% with 1k ohm 1 watt trimmer
colorBlack
MaterialMetalPC
Package Contents
1 x Voltage Regulator
Only the above package content other products are not included
Note Light reflection and different displays may cause the color of the item in the picture a little different from the real thing The measurement allowed error is - 1-3cm
With the functions of Low-frequency protection and voltage slowly establishedEMI suppression circuit
Suitable for generatorscan adjust the voltage slightly to stabilize the output voltage of the generator
When the voltage is 4 v 25 hzthe Voltage will be set automatically
Model R230
Frequency50-60Hz
Voltage input85-139VAC
Output Voltagemax 63VDC at 100VAC input
Currentcontinuous 8A dc intermittent 10A for 10 secs
Resistance15 minimum
Regulation-05%
Voltage -upResidual voltage at avr terminal≥5VAC
External Voltage Adjustment-10% with 1k ohm 1 watt trimmer
colorBlack
MaterialMetalPC
Package Contents
1 x Voltage Regulator
Only the above package content other products are not included
Note Light reflection and different displays may cause the color of the item in the picture a little different from the real thing The measurement allowed error is - 1-3cm
What's In the Box
1 x Voltage Regulator
Product Specification
| Model | Voltage Regulator |
|---|---|
| Production Country | China |
| Size (L x W x H cm) | 16x9x6 |
| Weight (kg) | 0.343 |
| Color | multicolor |
