Led Light TTL Digital Logic Pulser Analyzer Detecting Probe Circuit PCB Tester
˂
˃
Led Light TTL Digital Logic Pulser Analyzer Detecting Probe Circuit PCB Tester
Price:
₦27,350
Brand: Generic
Share:
Product Description
Description :

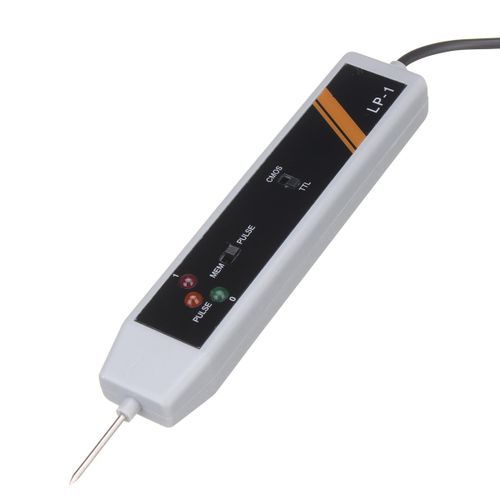

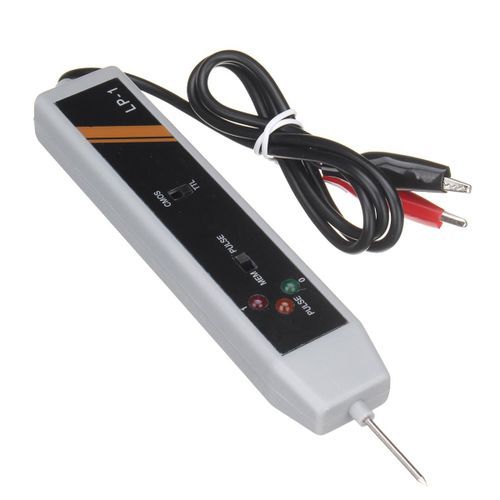

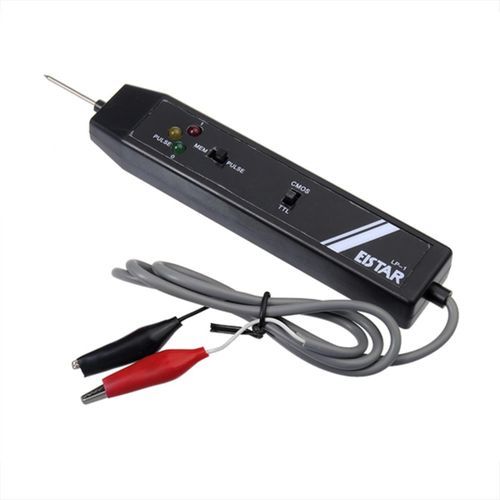

Digital Logic Probe Pen for PCB Measuring Analyzer Circuit Tester
Logic probe use different colors indicating lights to show the electrical level of the instrument.

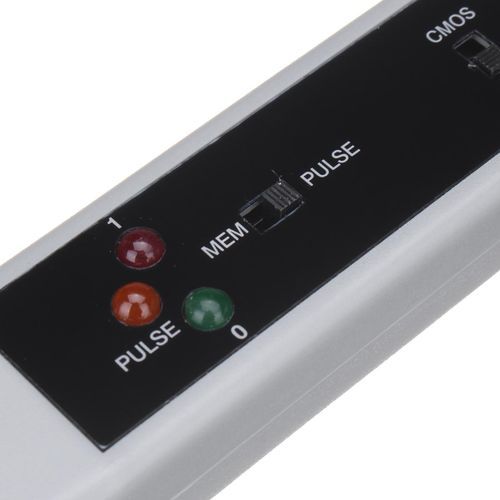

It is a simple tools to test digital circuits PCB. It can easily diagnose the faults chip in digital circuit PCB. There are three signal indicating lights of the logical probe, red light indicate a high level, green light indicate the low level, the orange light means the pulse signals.

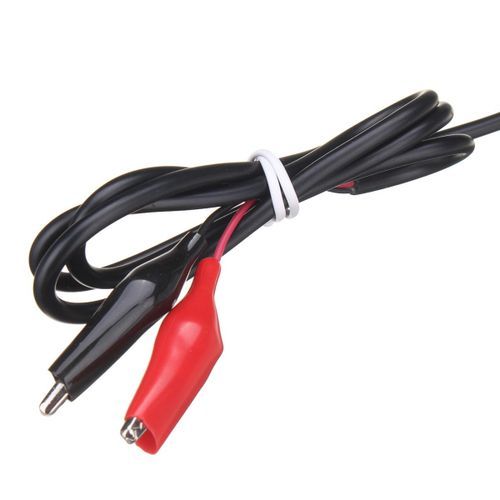

When test, the red alligator clip to the positive terminal of the test circuit, the black folder negative .
Attention to both ends of the voltage should not exceed 18V DC.
Package included :
1 x Digital Logic Probe Pen
Key Features
Color: Black
Easy to use
Simple tools to test digital circuits PCB
and high quality
The orange light means the pulse signals
Easily diagnose the faults chip in digital circuit PCB
What's In the Box
1 x Digital Logic Probe Pen
Product Specification
| Model | wenyang |
|---|---|
| Size (L x W x H cm) | 26 x 9 x 3 |
| Weight (kg) | 0.12 |
| Color | Multi |
